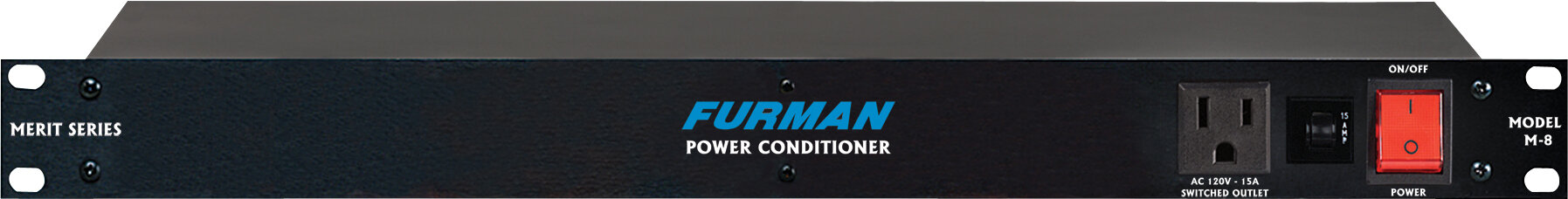

Furman M8 Merit Series Spike Protector

Product Description

A Merit "M" Series Power Conditioner is the perfect low-cost AC power solution for any rack-mount system. Install an M-8, M-8D, or M-8L in the top slot of your rack, and the eight switched AC outlets in the rear panel will power up and protect all your equipment up to a 15-amp load. The M-8L and M-8D feature two slide out, swiveling light fixtures to provide discreet illumination of your equipment on stages, in studios, and in other dark places. A dimmer knob lets you adjust the lamp brightness to just the right level. The M-8D adds a bright red, three-digit LED meter that displays incoming voltage. The M-8 and is designed for applications where lights are not required.

M-Series conditioners protect your delicate electronic equipment by combining high voltage varistor (MOV) surge and transient suppressors. The fast-acting suppression circuit quickly responds and clamps transient voltages to safe levels. An RFI/EMI interference filter works to prevent noise from fluorescent lights, certain dimmers, radio transmitters, and similar sources of "electronic pollution" from contaminating the AC line and from there, leaking into sensitive audio, video, or computer circuits. The M-8 and M-8L are NRTL/TUV listed.

Circuit breaker -- For safety, a circuit breaker is provided on the rear panel. If the total load on the power conditioner (combining all outlets) exceeds the 15A (or 1800 watt limit), the circuit breaker will trip. If this happens, it may be easily reset by pushing in the button. There is no need to replace fuses.

Lamps -- For convenience in traveling, the lamps (if present) may be pushed in, safely out of the way. When the rack is again ready to use, they pull out easily (up to 2.75 in., or 7 cm) and may be adjusted to provide optimum illumination for your equipment. The units come supplied with 5-watt night-light bulbs. Cooler-running 4-watt bulbs or even colored Christmas tree bulbs may be substituted, if desired. Replacements are readily available at most hardware stores or almost anywhere household light bulbs are sold, and can be ordered from Furman. Bulbs are easily replaced without removing the unit from the rack by unscrewing the cap on the end of each light tube.

Switches -- All models have a convenient master switch for the rear outlets which glows when the power is on. In models with lighting, there is a separate "rack lights" switch for the lamps, plus a dimmer control knob which increases the lamps' brightness.

Warranty information -- The Merit Series power conditioners are protected by a limited one year warranty covering manufacturer defects. Warranty service is provided by Furman Sound, Inc.

M-8 Features
Filtration of noise from radio frequencies and electromagnetic interference

Standard level of surge suppression

8 rear panel outlets

Sturdy one rack space design

15 amp capacity with circuit breaker zZounds is an authorized dealer of Furman products.

Maximum output current: 15 amps (1800 watts at 120 VAC)

Line cord: 6 ft. captive, 14 AWG, with three conductor Edison plug

Lamps: 2 x 7 W

AC voltmeter (if present): range 60 to 150 VAC; accuracy +/- 2 VAC

Spike protection mode: line to neutral

Clamping voltage: maximum surge current:

Maximum spike energy: 102 joules

Noise attenuation, transverse mode: greater than 20 dB, 1.5 to 200 MHz

Dimensions: 1.75 in. H x 19 in. W x 7.5 in. D with light tubes in; when fully extended light tubes reach 3.5 in. from front panel surface

Weight: 5 lbs (2.3 kg)

Construction: steel chassis, black painted

Power consumption: 14 watts if lamps are present
