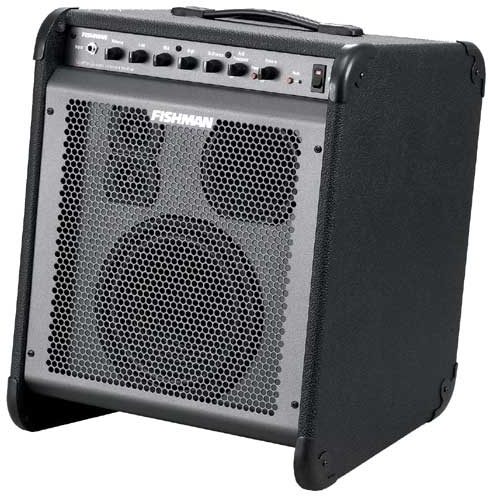

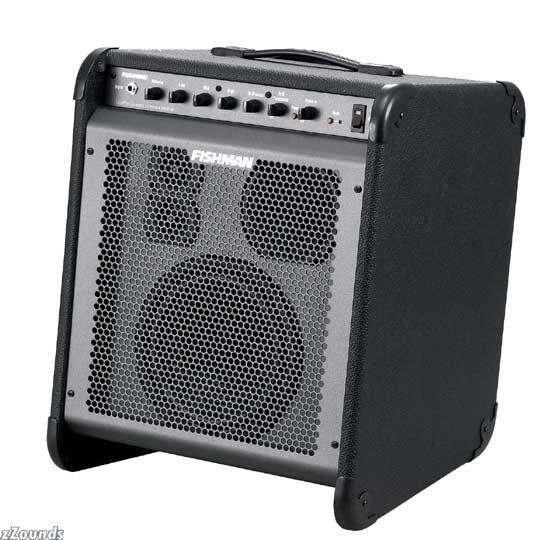

Fishman Loudbox Acoustic Guitar Amplifier (250 Watts)

Product Description

This full-range, high powered amp is designed especially for acoustic stringed instruments. With performance that gives new meaning to the phrase 'loud and clear', this diminutive, triamped powerhouse delivers studio-quality sound at stunning volume levels. The 250 Watt, single-channel Loudbox, features an 8 in. woofer, 4 in. polypropylene mid driver and two 1 in. soft-dome neodymium tweeters.

These speaker components have been painstakingly designed for high power handling and a smooth, flat acoustic response. Each component is housed in its own sealed enclosure and tuned precisely for acoustic stringed instruments. The innovative Loudbox enclosure leans back 10 degrees for better dispersion of highs and tighter lows. When you need even more angle, an integrated 't-bar' kick stand allows you to tilt the amp back as much as 70 degrees, converting the Loudbox into an effective near-field floor monitor.

Fishman's decision to go with a tri-amped, three-way speaker system was driven entirely by their quest for amplified clarity and sheer volume. To achieve the sound quality and power they were looking for, a two-way system just couldn't cut it; that would sacrifice the system's response or over-burden the drivers. Once Fishman added the midrange driver to the equation, all these problems evaporated.

Taking a cue from commercial sound reinforcement systems, the three power amplifiers that drive the Loudbox deliver cleaner, less distorted sound through the speakers than any acoustic amplifier in its class. The high efficiency paper cone woofer pumps out the bass, the polypropylene midrange driver handles the crucial midrange frequencies and two softdome neodymium tweeters top off the treble.

The tweeters in the Loudbox are identical to those used in the best studio mastering monitors; they produce a smooth, sweet treble that is perfect for acoustic instruments. With two of these tweeters, you get great dispersion and high SPLs, without the unpleasant "honk" of a high frequency compression driver found in many so called 'acoustic' amps.

The single-channel Loudbox features an ultra-high impedance input with an EQ section that includes bass, treble, midrange and brilliance controls. Like a high-performance sports car, Fishman decided to keep the layout simple and straightforward. The Loudbox has a greater than 116dB SPL rating, so the big thrills with this amp come when you step on the gas and feel the surge of power. Fighting acoustic feedback is straightforward with the Loudbox's notch filter and phase switch. A sweet-sounding spring reverb, mute switch, effects loop, and an XLR output round out the features.

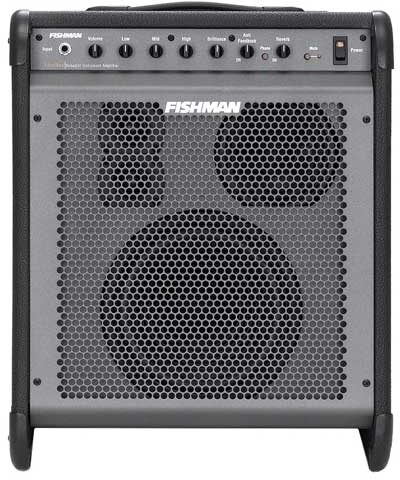

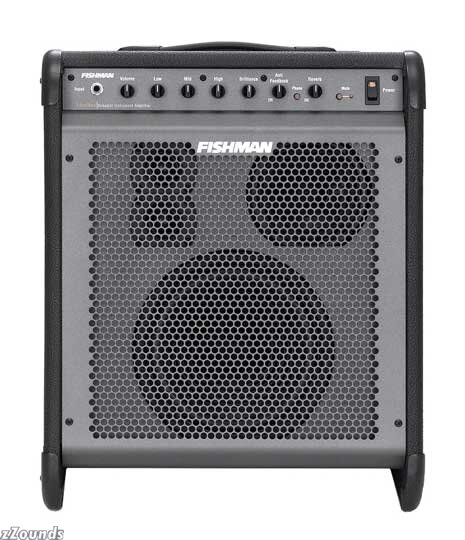

Front Panel Features

Input / Volume

Low / Mid / High EQs

Brilliance

Anti-Feedback

Phase (Use the phase switch in conjunction with the Anti Feedback filter to eliminate acoustic feedback.)

Reverb

Mute

Power Switch

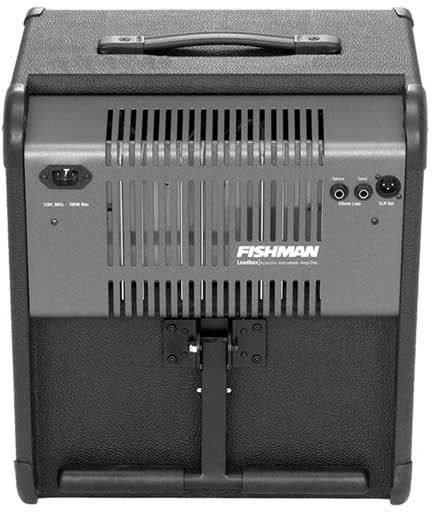

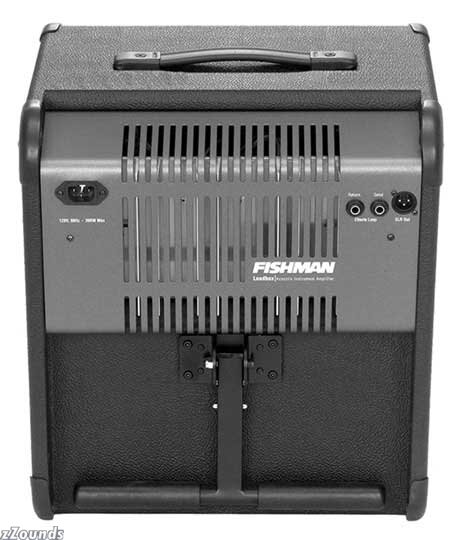

Rear Panel Features

Effects Loop (Serial)

XLR Output zZounds is an authorized dealer of Fishman products.

Specifications

Cumulative Rated Power: 250W
- Woofer Amp: 160W rms
- Midrange Amp: 60W rms
- Tweeter Amp: 30W rms

SPL @ 1 Meter: >116dB SPL

Frequency Response: 100Hz - 20kHz +/-4dB

Hum and Noise: < -95dB referred to full output

Power Consumption: 270W max @ 120Vrms, 60Hz

Input Impedance: 10MOhm / 68pF

Nominal Input Level: -20dBv

Maximum Recommended Input Level: +6dBv

Effects Send:
- Output Impedance: 2.2K
- Output Voltage: ~ +3dBv (1.4Vrms max) -10dB Nominal

Effects Return:
- Input Impedance: 20K
- Input Voltage: ~ +3dBv (1.4Vrms max ) -10dB Nominal
Effects send and return are designed to be compatible with battery operated effects processors.

XLR Out : +3dBv balanced

Crossover Frequency: 450Hz, 3.4kHz (Tri-amplified w/electronic crossover)

Speaker System:
- Woofer: 8 in. Treated Paper Cone
- Midrange: 4 in. Polypropylene Cone
- Tweeters: 2 x 1 in. dome, rare earth magnets, Ferro fluid cooled

Baffle Angle:
- Upright Position: 10 degrees
- With Kickstand: 45 degrees, 57 degrees, 70 degrees

Dimensions (H x W x D): 19.25 x 15.5 x 13.75 in.

Weight: 55.5 lbs.
