This product is no longer available at zZounds.

(In most cases, a product is unavailable because it has been discontinued by its manufacturer.)

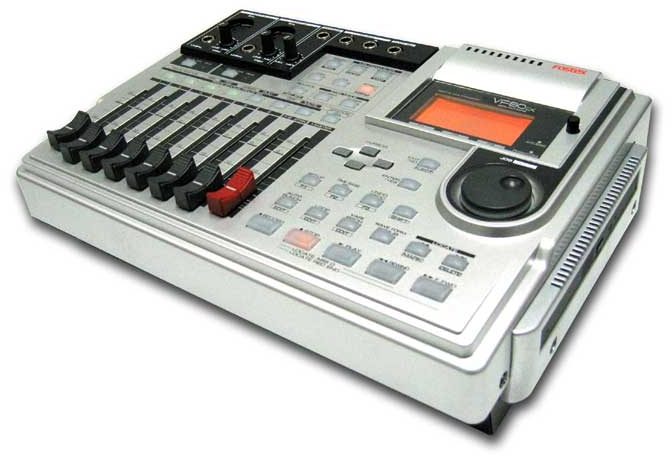

Fostex VF80EX 8-Track Digital Studio

Factory-installed 20GB hard drive and an improved version of Fostex' A.S.P.+ digital effects processing. 32 People rated this product:

Rate and Review This Product

Roll Over to Enlarge

Main

overview specs docs

Product Description

zZounds is an
authorized Fostex dealer

It's priced like an analog recorder but the new VF80EXCDR is an upgraded digital powerhouse that comes with a factory-installed 20GB hard drive and an improved version of Fostex' A.S.P.+ digital effects processing, which includes guitar effects, microphone modeling, guitar amp modeling, reverbs, delays, compression and more!

New features include a built-in CD burner with improved high speed burning, software enhancements and increased memory allocation. A cool Training Mode lets you loop sections of a song to play along with and learn parts, and also eliminates pre-recorded vocals! Other features include digital mixing, waveform display, two guitar inputs, two XLR inputs with phantom power, 8 hours of 8-track, non-compressed recording time with the standard hard drive, S/PDIF I/O, and mastering effects.

The Fostex VF80EXCDR is the breakthrough digital multitracker positioned at the pricing divide between digital and analog MTR's. Inheriting many of the technologies Fostex has developed in their long history of MTR designs, the VF80EXCDR offers 8-track digital recording, an intuitive digital mixer, improved A.S.P.+ digital effects, 99 scene memory, wave form display, XLR inputs with phantom power, and the list goes on. Based on its predecessor, the VF80 comes with improved features including a superior on-board effects chip and the internal Fostex CD-R/RW burner.

Features

Built-in CD-R/RW drive

New and Improved A.S.P.+ Effects

Guitar Effects

Microphone Modeling

Guitar Amp Modeling

Factory-installed 20GB drive (64 hrs. mono/8 hrs 8-track recording; non-compressed)

2 Guitar inputs

2 XLR inputs with phantom power

S/PDIF I/O

Mastering Effects

Training mode - helps you learn music passages and eliminate pre-recorded vocals zZounds is an authorized dealer of Fostex products.

Specifications

Recording/Reproducing Recording Medium: 3.5 in., hard disk (E-IDE type)

Recording Format: FDMS-3 (*)

Save/Load Format: FDIO-1 (**)

Sampling Frequency: 44.1kHz

Quantization: 16-bit linear (Non expanded)

A/D Converter: 20-bit 64 times, over sampling, Delta-Sigma

D/A Converter: 24-bit 128 times, over sampling, Delta-Sigma

Number of Recording Track: 8 real tracks + 16 additional tracks

2 tracks for simultaneous recording (Maximum)

Vari Pitch Control: +/- 6%

Crossfade: 10msec.

Recording/Reproducing Frequency: 20Hz ~ 20kHz

* = Fostex Disk Management System-3
** = Fostex Data In Out-1

Input/Output

Input A, B Connector:
- 1/4 in. jack (Unbalanced)
- XLR-3-31 type connector (Balanced)

Input Impedance:
- 50kW or more (Unbalanced) 1kW or more (Balanced)

Standard Input Level: -50 ~ +4dBu

Phantom Power (XLR only): +48VDC (Setting of ON/OFF with PHANTOM switch)

Headphone Connector: 1/4 in. TRS jack
Load Impedance: 10W ~ 50W
Output Level: 20mW or more (at 32W)

Stereo Out L, R Connector: 1/4 in. jack
Load Impedance: 10kOhms or more
Output Level: -10dBV

S/P DIF Digital In Connector: COAXIAL
Format: IEC 60958 (S/P DIF)

Digital Out Connector: COAXIAL
Format: IEC 60958 (S/P DIF)

MIDI IN/OUT Connector: DIN 5 PIN

Punch IN/OUT Connector: ø6mm Phone jack (An optional FOOT SW Model 8051 can be connected.)

General

Dimensions (W x H x D): 307 x 108 x 217 mm

Weight: Approx. 3.2kg

Power Supply: 120VAC 60Hz, 230V~ 50/60Hz (AC inlet type)

Power Consumption: 20W

Accessories

Owner's manual

Power Cable

Fostex Warranty Fostex Warranty If you have additional warranty questions, please call the manufacturer at 800-994-4984

zZounds is an
authorized Fostex dealer

Our extended 30-Day 100% Satisfaction Guarantee applies on this product. Buy it, and if it isn't just right for you, return it!

Our Return Policy

Payment Options

Purchase Orders

What Our Customers Are Saying About zZounds "zZounds price matching policy let me buy the gear I wanted, at the price I wanted, from the vendor I wanted. Outstanding." - customer on May 6th, 2012

Customer Reviews

4.5 out of 5 (32 ratings) Rate and Review This Product

Read 1 Fostex VF80EX 8-Track Digital Studio Review

"No Compression is fatal flaw"

Sound: sound quality is great. It's digital after all, very quiet and real Feature: One fatal flaw, which really destroys this unit. You cant compress tracks individually. You can only compress everything in mastering, which is so disappointing, still useful, but could be so much better. Compression is the key to good recording and this fails the test. Otherwise, the effects and editing facilities are brilliant. Also beware!!! Not a true 8 track. It's really only 6. Ghost tracks are great though. Quality: Yes, made very well. Freezes every now and then though, but not a real problem. Value: Good value, BUT ADD A COMPRESSOR EFFECT FOR EACH TRACK!!!! Manufacturer Support: Dunno The Wow Factor: Very compact unit, top marks here. Overall: Due to the lack of compression effects, I wouldn't buy it. I thought it was great at first, and generally it is excellent, until I discovered a computer software package that allows me to compress individual tracks and it makes recording so much easier for mixing I cant believe it.

Style of Music: rock

2 of 2 people (100%) found this review helpful. Did you?
