Fostex RM1 Rackmount Stereo Monitor System

The new Fostex RM-1 is the ideal solution for stereo monitoring needs in tight industrial environments. The RM-1 is the perfect system for machine rooms, VTR monitoring, surveillance, mobile and stationary control rooms, theme park applications - or any other situation where monitoring is needed and space is tight.

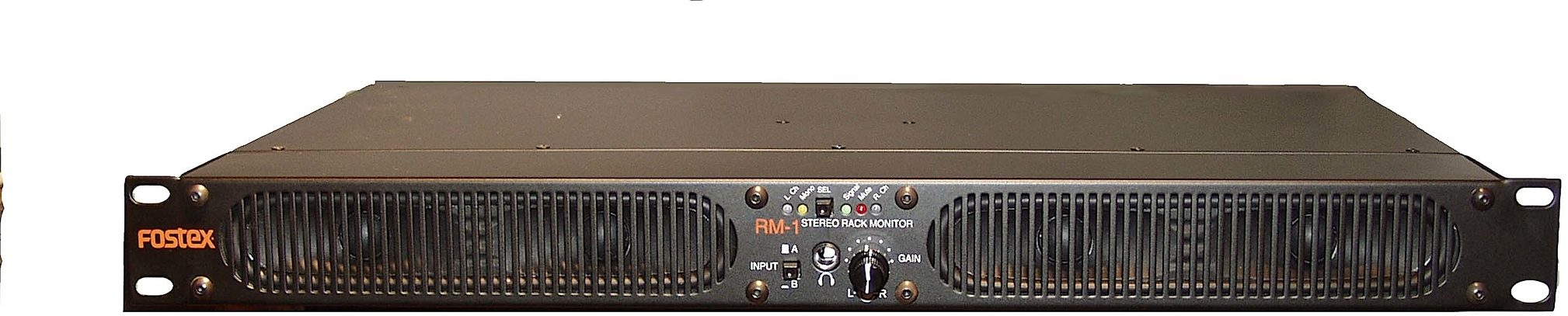

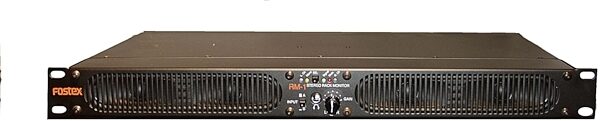

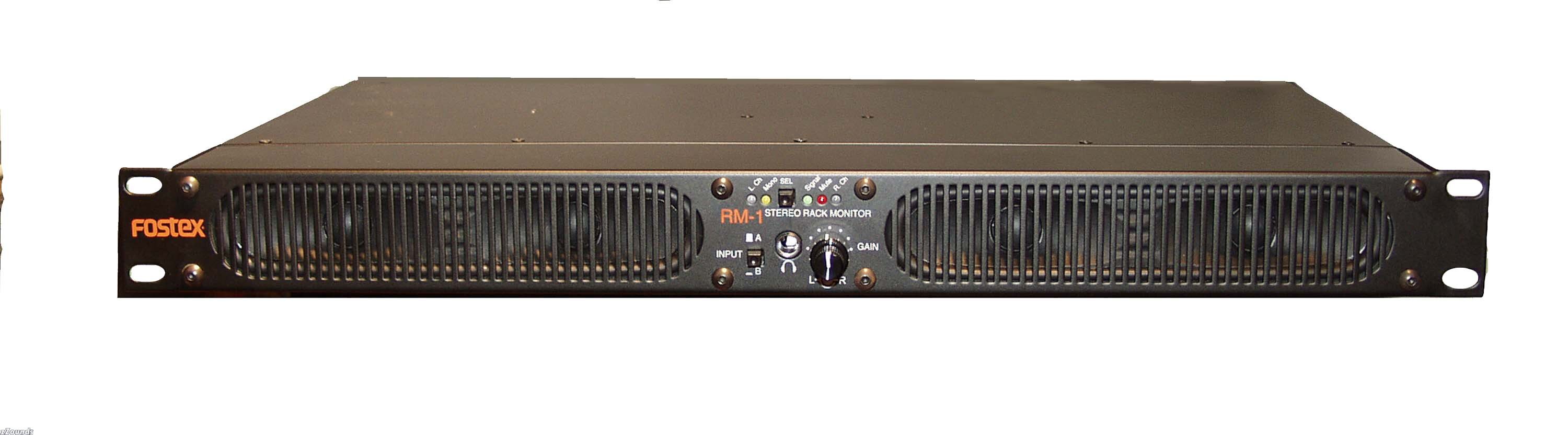

The unit is a 1 rack space high industrial design, utilizing robust construction for around the clock operation. The aluminum front panel has a multitude of user options so that the audio output may be configured for the application at hand. The A/B Input Selector selects the A stereo group or B stereo group to output to the drivers or headphone jack. The up position selects the A input, the down position selects the B input.

The 1/4 in. stereo headphone jack can be used with all available types of headphones with ample sensitivity giving the user the necessary volume in loud machine room environments. When using headphones, the drivers are muted.

The Dual Concentric Volume control can be used to adjust the left or right inputs independently. The front portion of the control adjusts the left channel and the rear portion of the control adjusts the right channel input volume.

The Mode Selector is of the momentary variety and selects the various output modes; high intensity multi colored LED's tally the function selected:

- Mute includes both the drivers and the headphone.
- L Ch.'the left channel is output through both drivers.
- Mono'the left and right channels are output monaurally.
- Signalindicates the amplitude of signalpresent at the input jacks.
- R Ch.'the right channel is output to both drivers.

Features

2 x stereo balanced inputs with Neutrik combo connectors

High intensity multi colored LEDs for mode tallies

On board electronic matrix switching for : L Ch, R Ch, Mono, Stereo and Mute

Front panel stereo gain control

Front panel headphone jack with gain control

A / B input select switch

Signal presence indicators

2 x 15W into 8 Ohms amplifiers

Technical Info

Specifications

Input

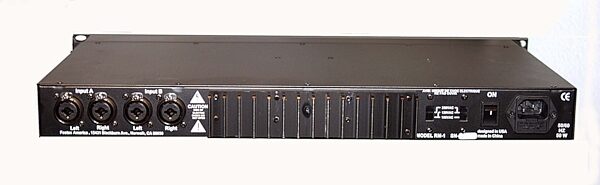

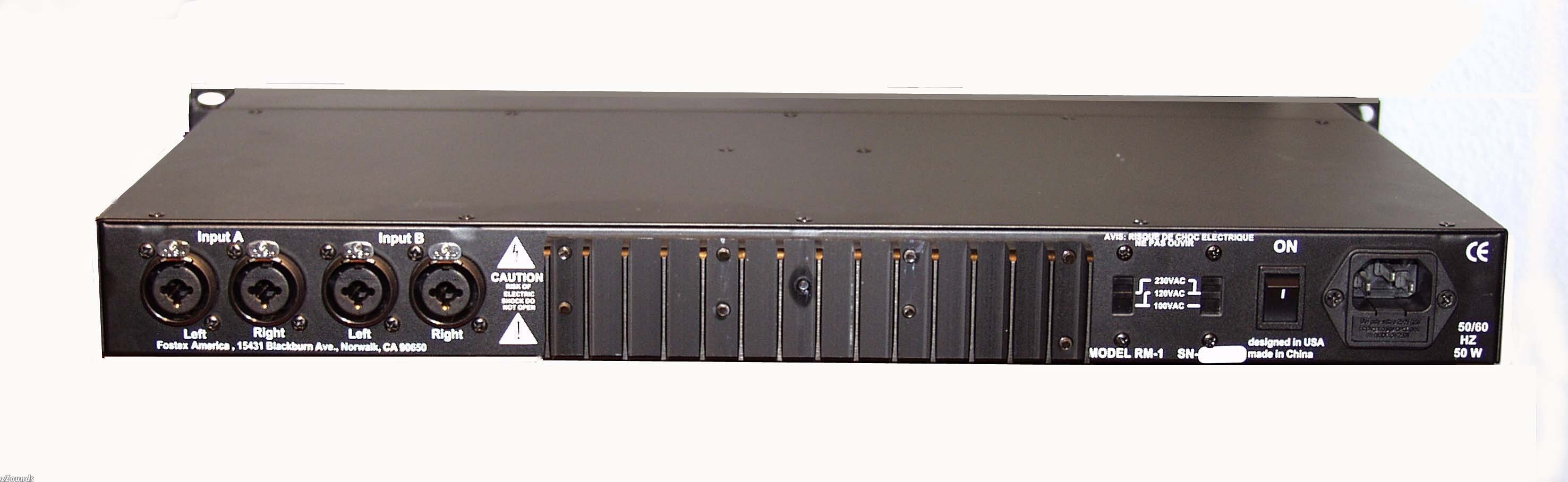

(A&B) Connectors: XLR & 1/4 in. TRS Phone combo connector (HOT: Pin 2/Tip)

Input Impedance:
- XLR: 78 kOhms or more
- TRS: 20 kOhms or more

Output

Amplifier: 2 x 15W into 8 Ohms @ 1kHz

Headphones: 10mW into 50 Ohms @ 1kHz

GENERAL

Frequency Response: 100Hz - 20kHz

S/N: 90dB

Input Signal LED Threshold: -20dBu

Common Mode Rejection Ratio: 40dB typical @60Hz

T.H.D.: 0.06% (both channels driven)

Physical

Dimensions: approx. 19 x 1.75 x 10 in. (483 x 44 x 254 mm)

Weight: 4.5kg (approx. 9.9 lbs.)

Power: 120V

Stereo 2x15-watt monitoring in a single rack space!
