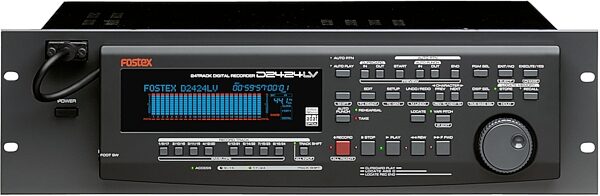

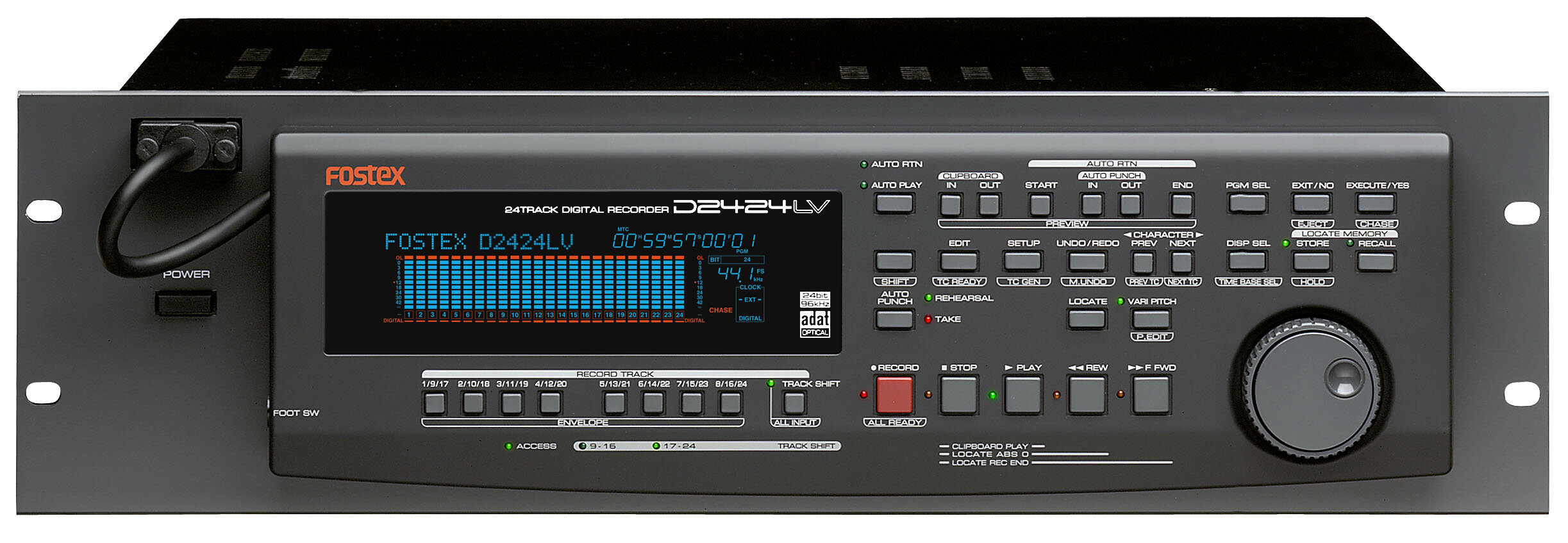

Fostex D2424LV 24-Track Recorder 24-Bit 96kHz

A computer-based digital multitrack set-up might be fine for studio use,where you can work around limited inputs and complex operational issues,but when it comes to live recording they simply don 't cut it. There's only one chance to capture the performance.One chance to capture the magic. You need a solution which is tough, reliable,proven,rack-mountable, expandable and with enough inputs for the whole band. In short,you need the new Fostex D2424LV. This ultra-high specification 24 track digital recorder is simply the most capable,most flexible,best sounding,and easy to use digital multitrack ever.

Incredible Ease of Use
The performance is about to start and the last thing you need is a machine which is difficult to use. Don

Technical Info

RECORDER SECTION
Recording medium
3.5inch,E-IDE type hard disk* 80GB

Recording format
FDMS-3 version 3

Save/Load format
SCSI,FDIO-1 version 2

Sampling frequency
44.1kHz,48kHz,88.2kHz,96kHz (selectable)

Quantisation
16bit /24bit

Data Save/Load
E-IDE HD,DVD-RAM or SCSI

A/D &D/A converters
24bit Delta Sigma 128 times over sampling

No.of recording tracks
56 (24 plus 32 additional tracks)

Simultaneous Recording Tracks
24 (8 at 24bit/96kHz,24bit/88.2kHz)

Simultaneous Playback Tracks
24 (8 at 24bit/96kHz,24bit/88.2kHz)

No.of programs
99

No.of locate memories
99

Pitch control
+/- 6%%(0.1%step)

Crossfade
10msec,(5msec at 24bit/96kHz,24bit/88.2kHz)

R/P frequency response:
20Hz -20kHz +/-1dB (20Hz to 43kHz +/-2dB at fs:96kHz)

Dynamic range
>105dB (typical)

Channel Separation
>80dB (at 1kHz,0dB,24bit)

T.H.D.
<0.04%(1kHz,-12dB)(typical)

INPUT/OUTPUT
Analog Input (1-24)
TRS phone jack x 24 (balanced)
Impedance >10k .
Input level balanced:+4dBu,unbalanced:+10dBV

Analog Output (1-24)
TRS phone jack x 24 (balanced)
Impedance >600 .
Output level balanced:+4dBu,unbalanced:-10dBV

Data In/Out
Optical x 6

Format
IEC 60958 Part 3 (=S/P DIF),Alesis Proprietary
Multichannel Optical Digital Interface (ADAT)
(selectable by setup mode)

WORD Input
BNC connector.TTL level

WORD Output
BNC connector.TTL level

RS422
D-sub 9pin.Sony 9 pin protocol ES buss

RS422 THRU
D-sub 9pin.Direct output of RS-422

MIDI In /Out /Thru
DIN 5 pin x 3

Punch In/Out
Phone jack x 1 (for option model 8051)

SCSI Port
D-SUB 50pin (half pitch)

PHYSICAL
Dimensions(mm)
482 (w)x 148 (h)x 381 (d)mm

Weight
Approx.7.0kg (with controller)

Power requirements
120V AC,230V AC -(50W)
