Can you swing? Are you traveling light? The Jazzmaster Ultralight Head is a 2-channel, 250-watt solid-state amplifier that effortlessly creates luscious tones great for everything from jazz to funk to Motownand it only weighs 7 lbs.! Pair it with the Jazzmaster Ultralight 112 Enclosure for the ultimate in portable amplification for a gig or the studio, or plug in the headphones for late-night practice sessions.
Features include individual DSP effects on each channel (reverb, delay, chorus, flange, Vibratone, tremolo and combinations), tube-emulated overdrive channel, professional speaker-emulated XLR line output with level control and ground lift, tuner output with mute, three-button channel selection footswitch, normal FX/drive FX on/off, voltage selector switch for worldwide use (with approved power cord), and Sunburst-finished solid maple side panels and trim strips. Padded shoulder bag and locking speaker cable included.
Applications:
City-dwellers who take a taxi to the gig
Direct recording enthusiasts
Anyone who travels light and desires an ultra-portable guitar amp!
Technical Info
Model Name: Jazzmaster Ultralight Head
Series: Ultralight
Type: Solid State
Output: 250 Watts Into 2 ohms
Ohms: 2 ohms
Speakers: None (Recommended Enclosure: Jazzmaster Ultralight 112 enclosure)
Channels: 2 Channels (Normal and Drive)
Features:
High- and Low-Gain Inputs

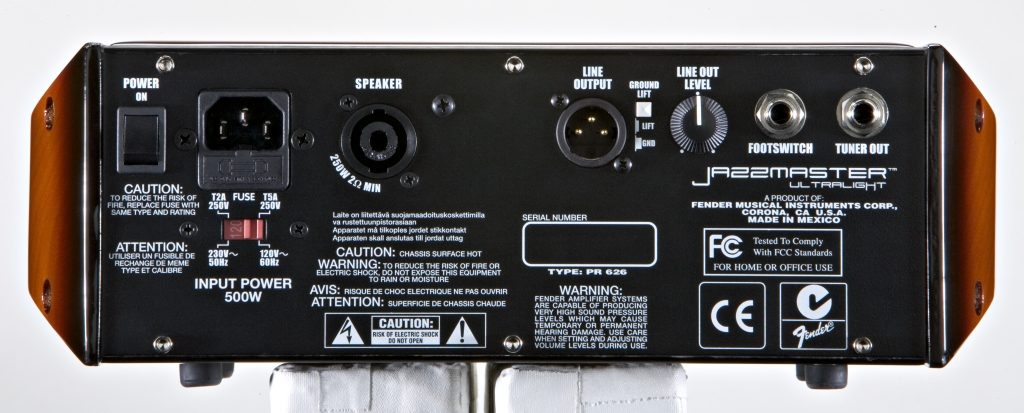

Professional XLR Line Output with Level Control and Ground Lift
3-Band EQ in Each Channel
Headphone Output
Tuner Output with Mute
DSP Effects (Reverb, Delay, Chorus, Flange, Vibratone, Tremolo, and Combinations)
Tube-Emulated Overdrive
3-Button Footswitch for Channel Selection, Normal FX, Drive FX On/Off
Patented Magnet Docking System Allows Secure Attachment of Amp to Jazzmaster
Ultralight Speaker Enclosure
Switchcraft(R) Locking Speaker Connectors (Compatible with Neutrik(R) Speakon(R))
Voltage Selector Switch for Worldwide Use (with Approved Power Cord)
16 DSP Stereo Effects Per Channel, Instrument Channel:
Select from 16 variations of 9 types of effects using the FX SELECT knob. Variations are defined going clockwise around the knob:
CHORUS 1 Slow
CHORUS 2 Fast
CHORUS + DELAY Fast + ~330ms
CHORUS + REVERB Slow + Room
FLANGE 1 Slow
FLANGE 2 Fast
TREMOLO 1 Low Intensity
TREMOLO 2 High Intensity
VIBRATONE Rotary Speaker
DELAY 1 ~130ms (Slapback)
DELAY 2 ~330ms
DELAY 3 ~450ms
REVERB 1 Room
REVERB 2 Hall
REVERB 3 Spring
REVERB + DELAY Room + ~300ms
Mic Channel: Select from 16 variations of 9 types ofeffects using the FX SELECT knob. Variations are defined going clockwise around the knob:
CHORUS 1 Slow
CHORUS 2 Fast
CHORUS + DELAY Fast + ~330ms
CHORUS + REVERB Slow + Room
FLANGE 1 Slow
FLANGE 2 Fast
TREMOLO 1 Low Intensity
TREMOLO 2 High Intensity
VIBRATONE Rotary Speaker
DELAY 1 ~130ms (Slapback)
DELAY 2 ~330ms
DELAY 3 ~450ms
REVERB 1 Room
REVERB 2 Hall
REVERB 3 Spring
REVERB + DELAY Room + ~300ms

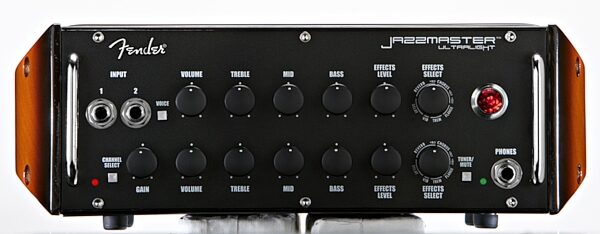

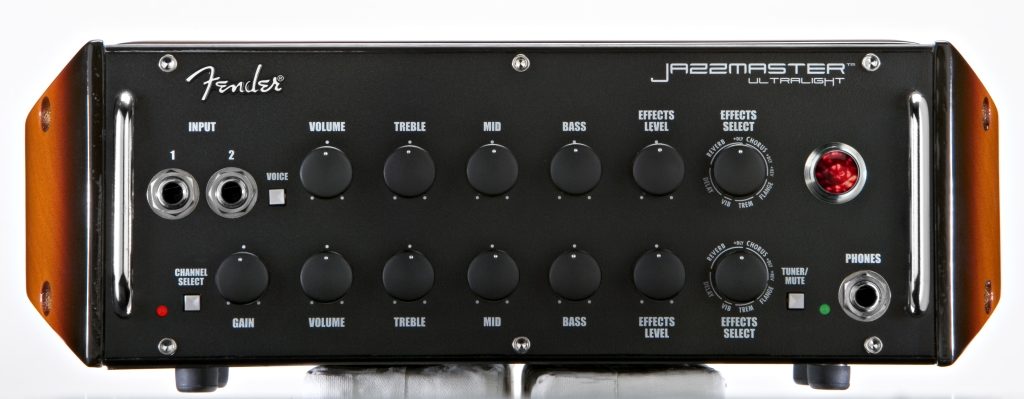

Controls:
Channel (1):
Input 1 and 2,
VOICE switch (for Normal or Twin voicing)
Volume,
Treble,
Mid,
Bass,
FX Level,
FX Select,
Channel (2):
Channel Select switch,
Gain,
Volume,
Treble,
Mid,
Bass,
FX Level,
FX Select,
Tuner/Mute Switch,
Headphone Jack
Covering: Black Anodized Aluminum with Maple Side Panels and Top Trim Strips, Finished in Sunburst
Weight: 7.5 lbs (3.40 Kg)
Dimensions:
Height: 4 in. (10.16 cm)
Width: 12 in. (30.48 cm)
Depth: 8.25 in. (20.9 cm)
Shipping Weight: 48 lbs.
Cover: Padded Gig Bag included, P/N 0069183000
Accessories: 22 in. Locking Speaker Cable Included, P/N 0069185000, Padded Gig Bag included, P/N 0069183000
Footswitch: Uses 3-Button Footswitch for Channel Select and Effects On/Off for Each Channel
Introduced: 1/2006
