Fender American Jazz Electric Bass (Rosewood, with Case)

Fender's versatile American Jazz Bass guitar features the innovative S-1 switching system, which gives you great Jazz Bass and Precsion Bass guitar tones from one instrument.

Pushing the S-1 switch reconfigures the pickup wiring from parallel to series, resulting in a fatter, almost humbucking sound similar to that of a Precision. Other features include a solid Alder or Ash body (depending on color) and a graphite-reinforced, modern C-shaped Maple neck with a satin polyurethane finish and Rosewood fingerboard.

Technical Info

Model Name: American Jazz Bass

Model Number: 019-3460-(Color #) and 019-3462-(Color #)

Series: American Series

Body:
Alder on:
(700)* 3-Color Sunburst
(706) Black

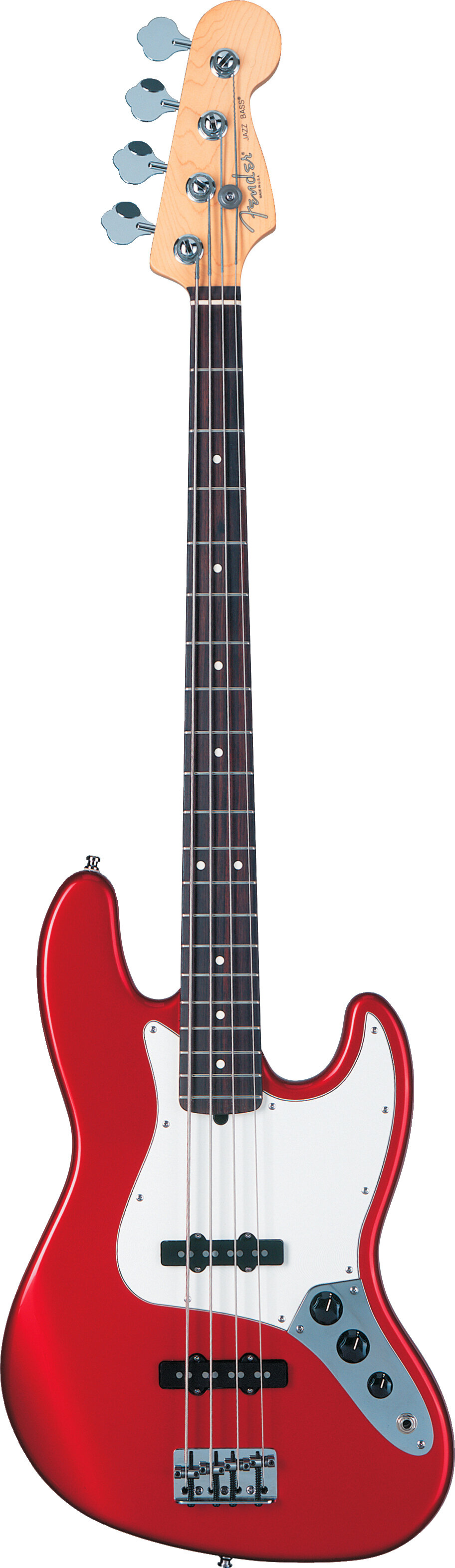

(725) Chrome Red
(744) Shoreline Gold
(750) Butterscotch Blonde
Ash on:

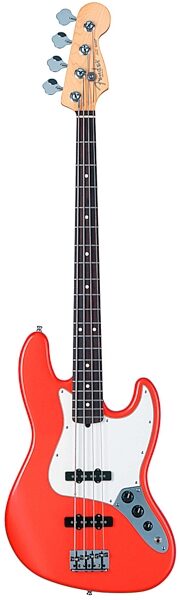

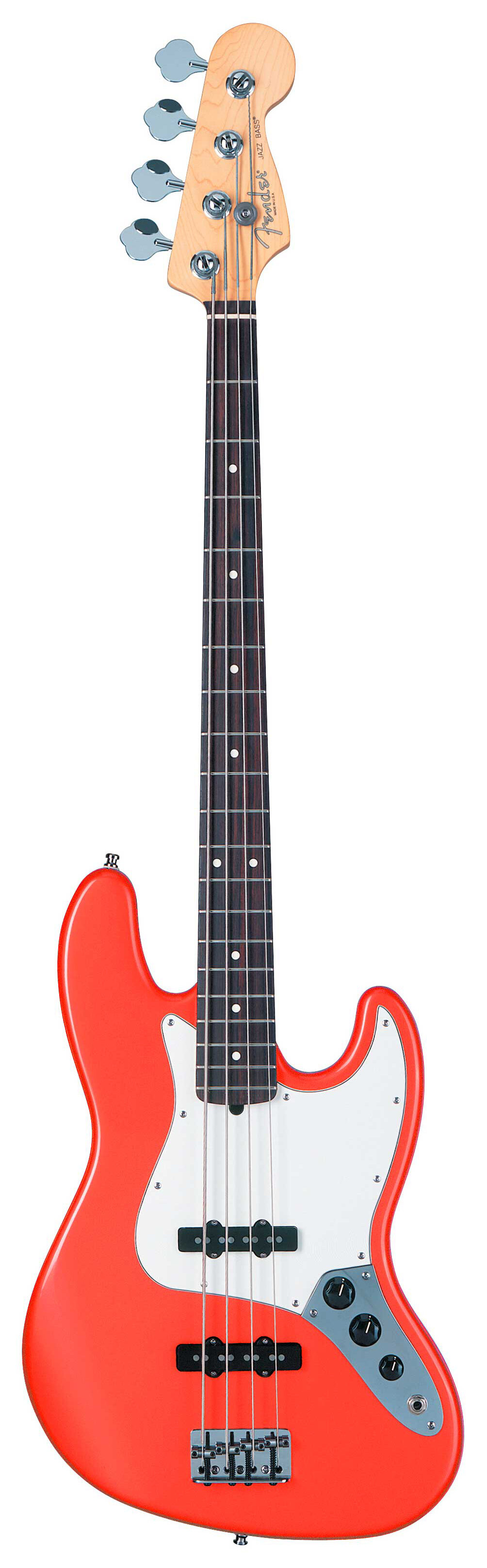

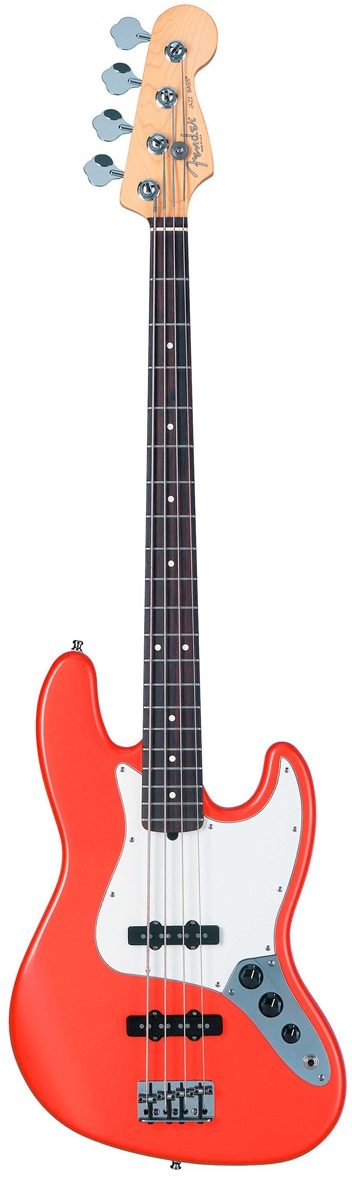

(722)** Sunset Orange Transparent

Neck: Graphite Reinforced Maple, Modern 'C' Shape, (Satin Polyurethane Finish)

Fingerboard: Rosewood p/n (019-3460), 9.5 in. Radius (241mm)

No. of Frets: 20 Medium Jumbo Frets

Pickups: 2 American Jazz Bass Single-Coil Pickups (Mid & Bridge)

Controls:
Volume 1. (with S-1 Switch) (Neck Pickup)
Volume 2. (Bridge Pickup)
Master Tone

Pickup Switching:
2-Position Push/Push S-1 Switch:
S-1 Switch Up: Pickups in Parallel
S-1 Switch Down: Pickups in Series

Bridge: American (Strings-Thru-Body)

Machine Heads: Cast / Open-Back

Hardware: Chrome

Pickguard:
3-Ply Parchment On:
(700)* 3-Color Sunburst
(706) Black
(722) Sunset Orange Transparent
(725) Chrome Red
(744) Shoreline Gold
1-Ply Black On:
(750) Butterscotch Blonde

Scale Length: 34 in. (864 mm)

Width at Nut: 1.50 in. (38mm)

Unique Features:
S-1 Switching
Posiflex Graphite Neck Support Rods
Rounded Body Shape
Rolled Fingerboard Edges

Strings: Super Bass 8250M NPS, p/n 073-8250-006, Gauges: .045, .065, .085, .110TW (Taperwound E)

Accessories: Standard Molded Case

Case: Standard Molded Case

Introduced: 7/2003

Notice: Product Prices, Features And Specifications Are Subject To Change Without Notice
