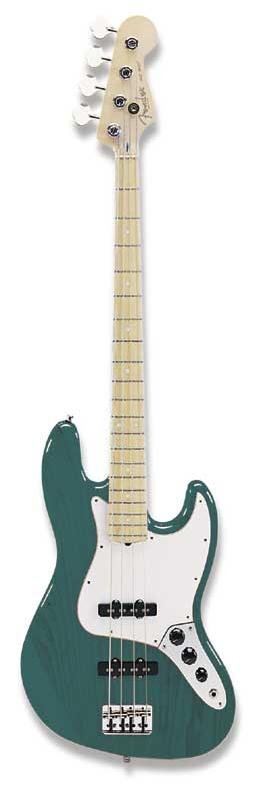

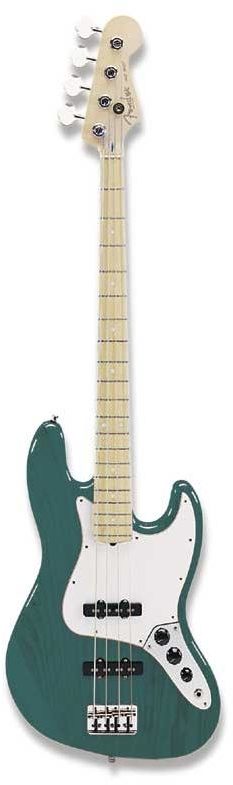

Fender American Deluxe Jazz Bass (Maple, With Case)

The latest version of the Fender Jazz Bass once-again captures the spirit of innovation with its classic features combined with the best that modern technology has to offer. A 3-band active EQ and special design Noiseless J-Bass pickups are featured along with a graphite reinforced neck, premium Alder or Ash body (depending on finish), and combination string-through-body / top-load bridge.

Technical Info

Series: American Deluxe Series

Dody: Select Alder or Premium Ash*
Alder on:
(700) 3-Color Sunburst
(706) Black
(725) Chrome Red
(782) Candy Tangerine,
Ash on:
(731)* Aged Cherry Sunburst
(748)* Teal Green Transparent

Neck: Maple, Modern 'C' Shape, (Satin Polyurethane Finish)

Machine Heads: Fender/Schaller Deluxe Lightweight Tuning Machines

Fingerboard: Rosewood p/n (019-5860) or Maple p/n (019-5862), (9.5 in. Radius/241 mm)

No. of Frets: 22 Medium Jumbo Frets

Pickups: 2 Dual-Coil Ceramic Noiseless Jazz Bass Pickups with Nickel Plated Pole Pieces

Controls:
Master Volume, Pan Pot, 3-Band Active EQ with:
Treble Boost/Cut: +/- 10 db @ 8kHz, a shift in the cut frequency, and about a 2dB slope per octave
Mid Boost/Cut: +10dB, -15dB @ 500Hz, and a wide band slope
Bass Boost/Cut: +/- 12 db @ 40 Hz, with a 4dB slope per octave

Bridge: Deluxe Chrome Plated Steel Bridge Plate (Strings-Thru-Body or Top Load), with Nickel Plated Brass Saddles

Pickup Switching: Pan Pot

Hardware: Chrome

Strings: Super Bass 8250M NPS, p/n 073-8250-006, Gauges: .045, .065, .085, .110TW (Taperwound E)

Case: Standard Molded Case

Pickguard:
4-Ply Brown Shell on (700),
3-Ply Mint Green on (706), (725), (731), (748), (782)

Scale Length: 34 in. (864 mm)

Width at Nut: 1.500 in. (38 mm)

Unique Features: Graphite Reinforced Maple Neck, 18-Volt Power Supply, 5-Bolt Neck Plate, Contoured Heel for Easier Access to Upper Frets, Abalone Dot Position Inlays, Rolled Fingerboard Edges, Highly Detailed Nut and Fret Work

Accessories: Standard Molded Case

Introduced: 1/2002
