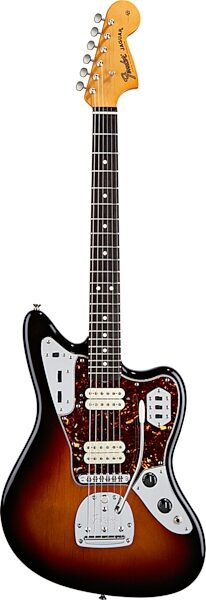

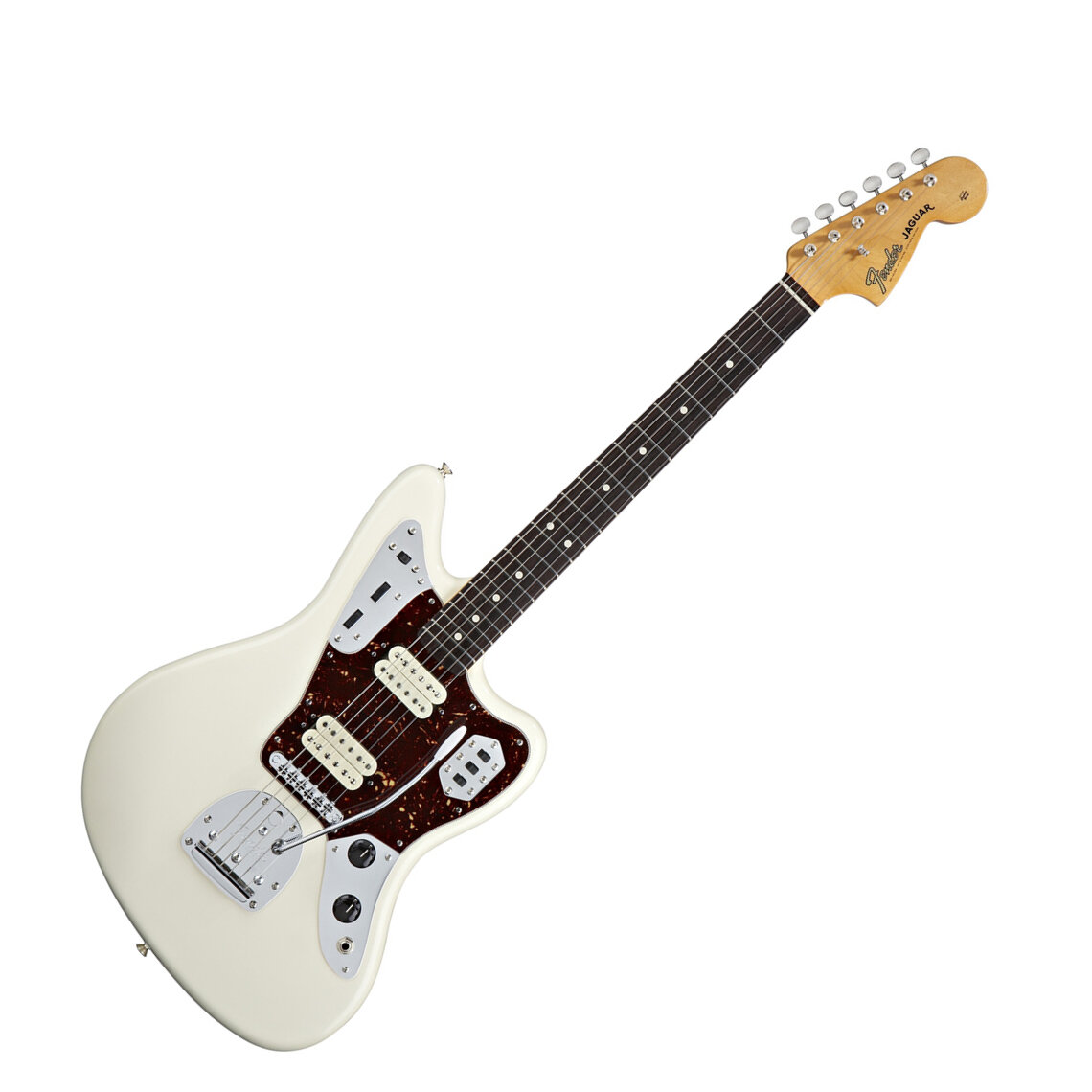

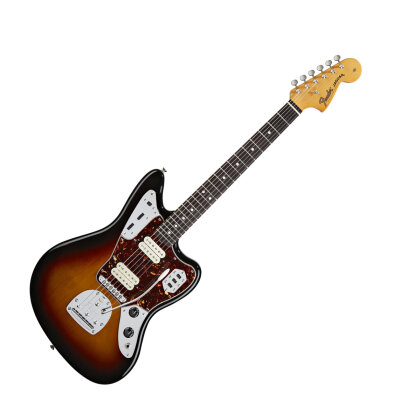

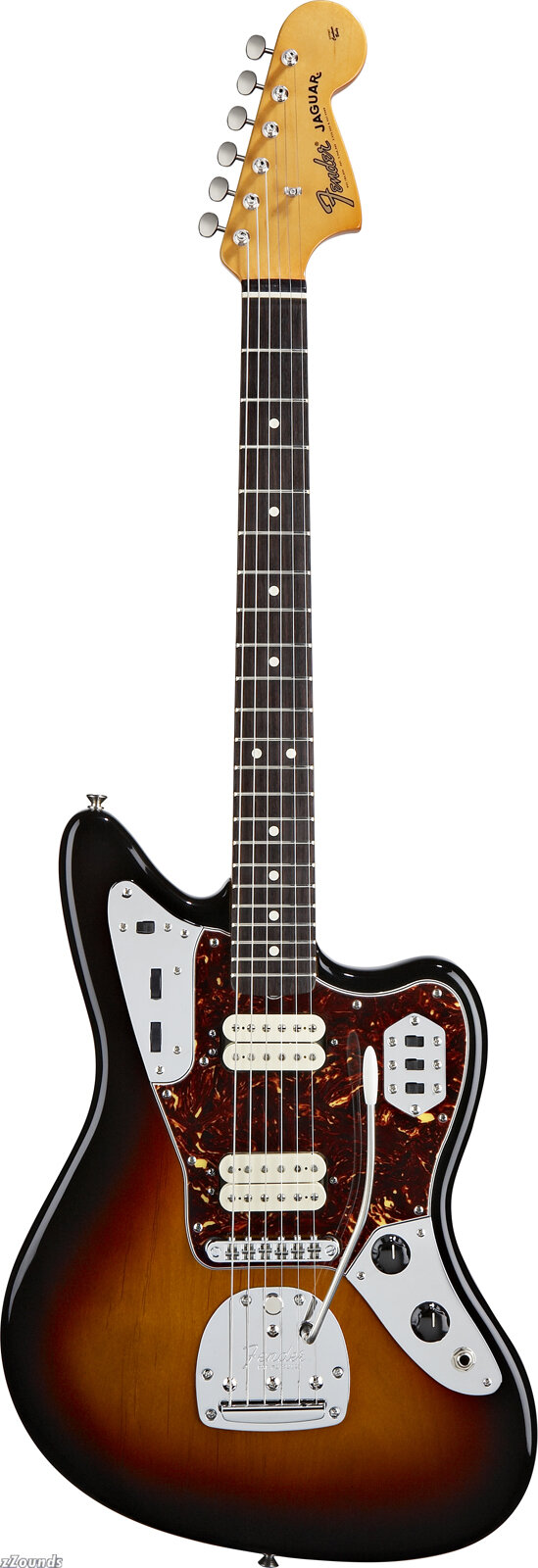

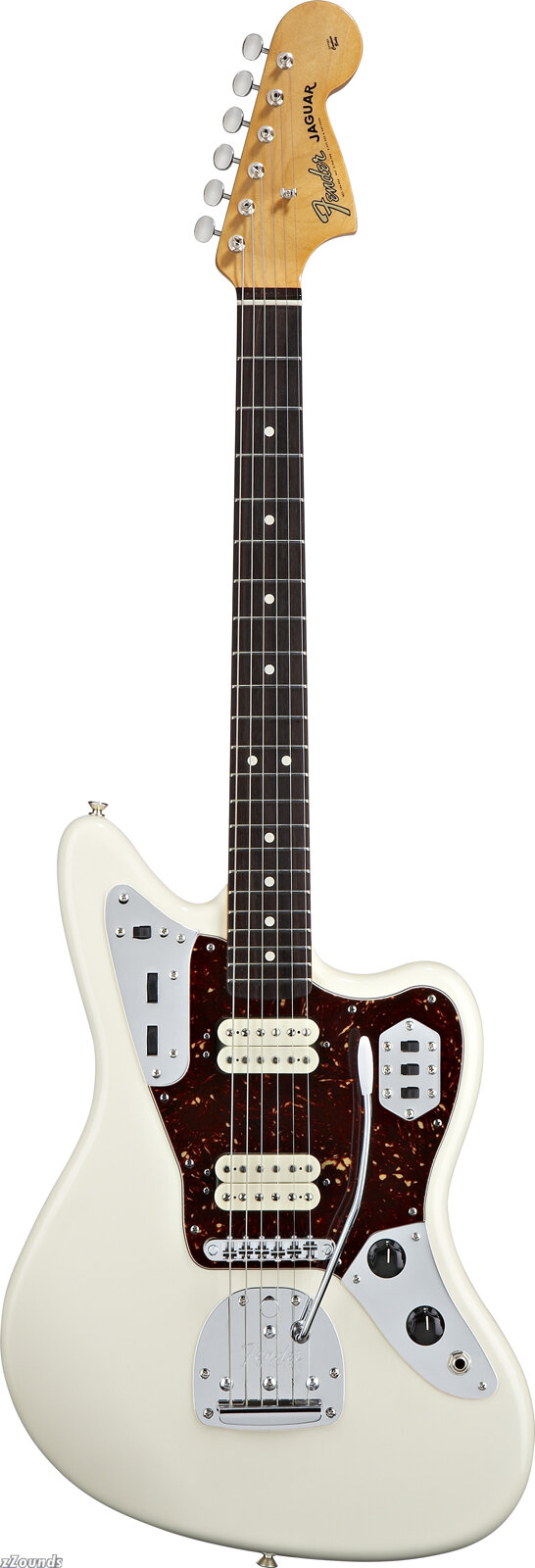

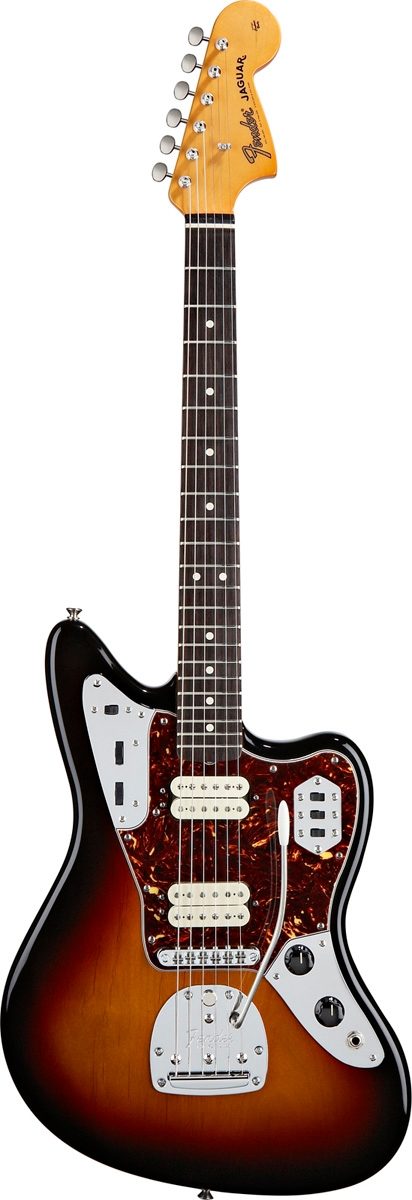

The Fender Jaguar HH combines the styling and functionality of a vintage Jaguar with a some strategically-chosen modern touches. Two Enforcer humbucking pickups are the heart of this 24-inch, short scale monster. Other features include an alder body, maple neck with a rosewood fingerboard, traditional Jaguar controls, vintage style tuning machines and an Adjusto-matic bridge with vintage style floating tremolo tailpiece.
Technical Info
Model Name: Jaguar Special HH
Model Number: 014-1710-(Color#)
Series: Classic Player Series
Colors: (300) 3-Color Sunburst, (305) Olympic White, (Polyester Finish)
Body: Alder
Neck: Maple, “C” Shape, (Nitrocellulose Lacquer Finish)
Fingerboard: Rosewood, 9.5 in. Radius (241mm)
No. of Frets: 22 Medium Jumbo Frets
Pickups: 2 Enforcer Humbucking Pickups (Neck & Bridge)
Controls: Master Volume, Master Tone
Pickup Switching:
- Upper: Master Kill Slide Switch, Neck Pickup Humbucking/Single-Coil Blend Control, Bridge Pickup Humbucking/Single-Coil Blend Control;
- Lower: Neck Pickup On/Off Slide Switch, Bridge Pickup On/Off Slide Switch, - Normal/Low Cut Slide Switch
Bridge: Fender Adjusto-Matic Bridge with Vintage Style “Floating” Tremolo Tailpiece and Tremolo Lock Button
Machine Heads: Fender/Ping Vintage Style Tuning Machines
Hardware: Chrome
Pickguard:
- 4-Ply Brown Shell on:
(800) 3-Color Sunburst,
(805) Olympic White,
(806) Black,
- 3-Ply Mint Green on:
(808) Ocean Turquoise,
(857) Surf Green,
(883) Ice Blue Metallic
Scale Length: 24 in. (610 mm)
Width at Nut: 1.650 in. (41 mm)
Unique Features:
- 2 Enforcer Humbucking Pickups,
- Adjusto-Matic Bridge,
- Medium Jumbo Frets,
- New Neck Pocket Cut Provides Better Pitch,
- 9.5 in. Radius,
- Trem Plate Moved Closer to Bridge to Increase Break Angle and Sustain,
- Screw-In Tremolo Arm,
- Black Plastic Knobs and Switches,
- Humbucker/Single-Coil Blend Controls,
- Black Plastic Knobs and Switches
Strings: Fender Super 250R, Nickel Plated Steel
Gauges: (.010, .013, .017, .026, .036, .046), p/n 073-0250-006
Accessories Included: Deluxe Brown Gig Bag
Case: Deluxe Brown Gig Bag
Introduced: 6/2008
Notice: Product Prices, Features, Specifications and Availability Are Subject To Change Without Notice
