The Fender Jazzmaster was first introduced to the world in 1958 with its uniquely contoured body, incorporating a snappy 25.5-inch scale length with warm-sounding pickups. Original lead and rhythm circuit switching incorporates independent volume and tone controls, and the floating tremolo with tremolo lock adds to the distinctive look and sound of the Jazzmaster.
Technical Info
Model Name: Classic Player Jazzmaster Special
Model Number: 014-1600-(Color#)
Series: Classic Player Series

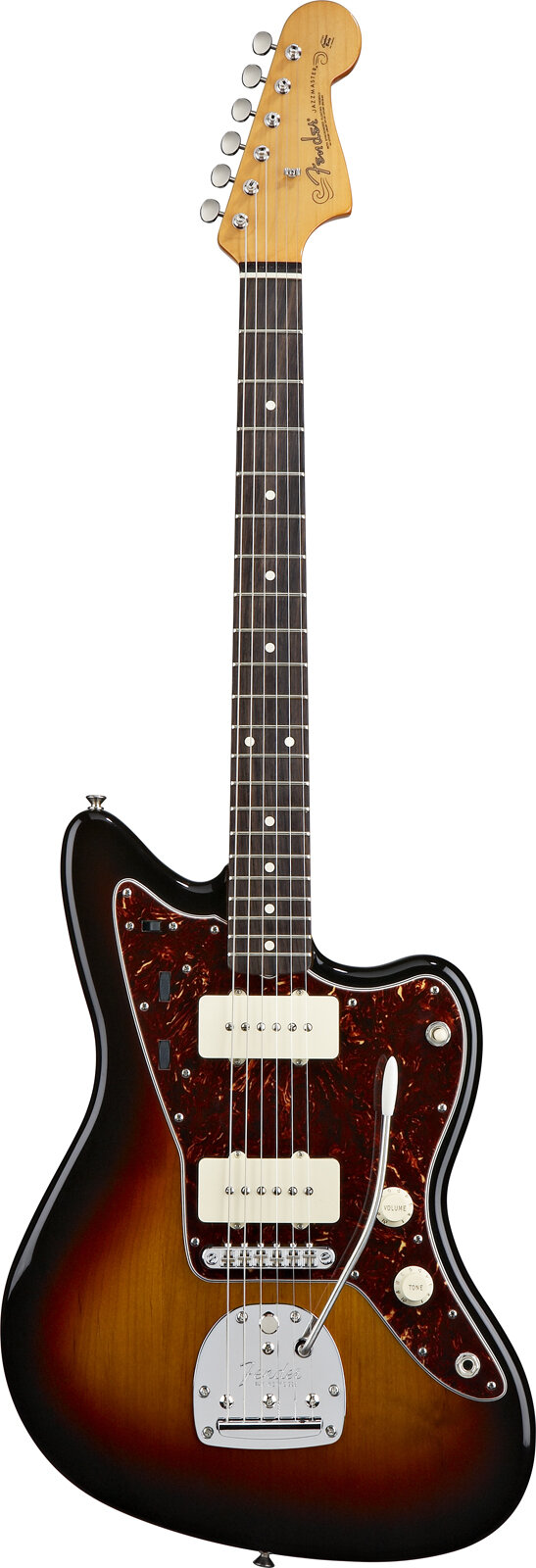

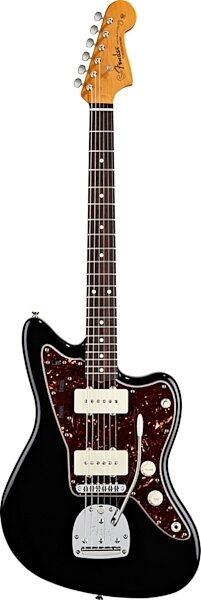

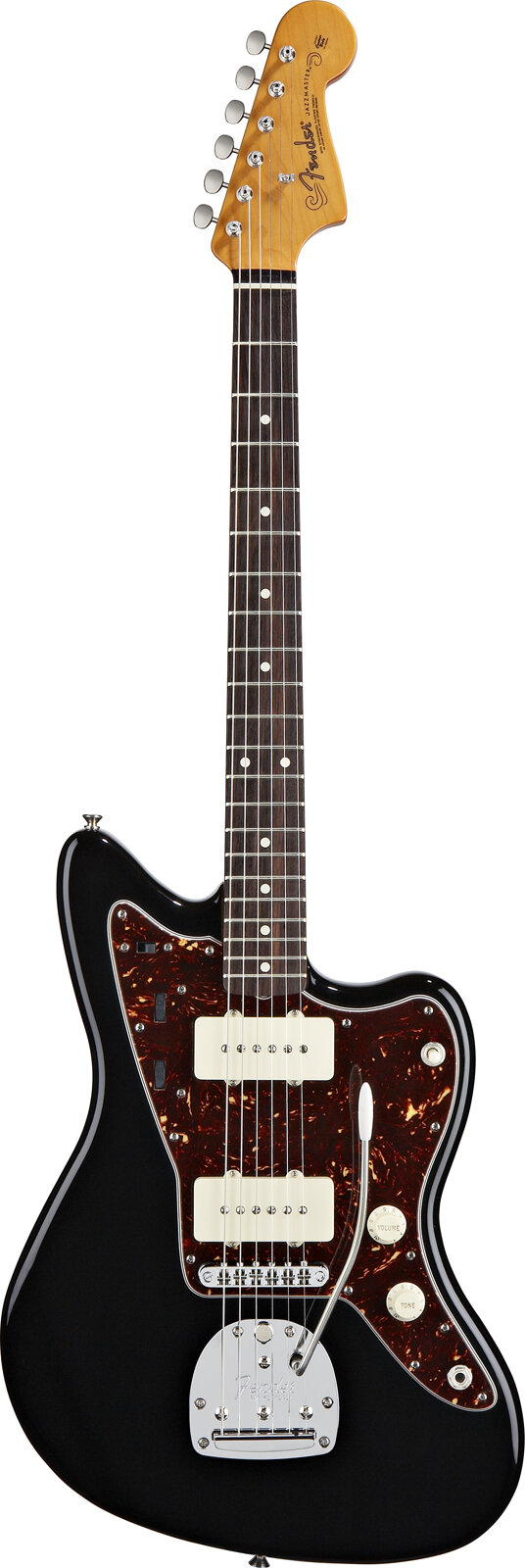

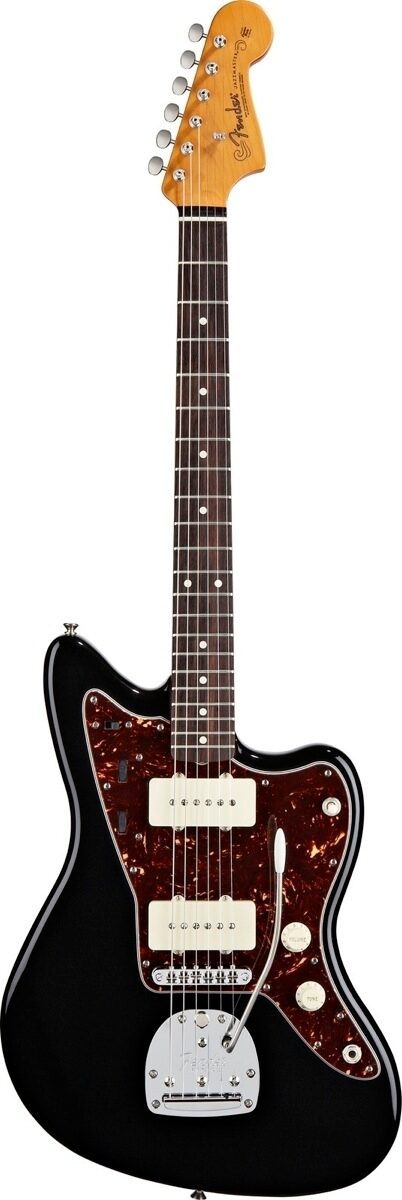

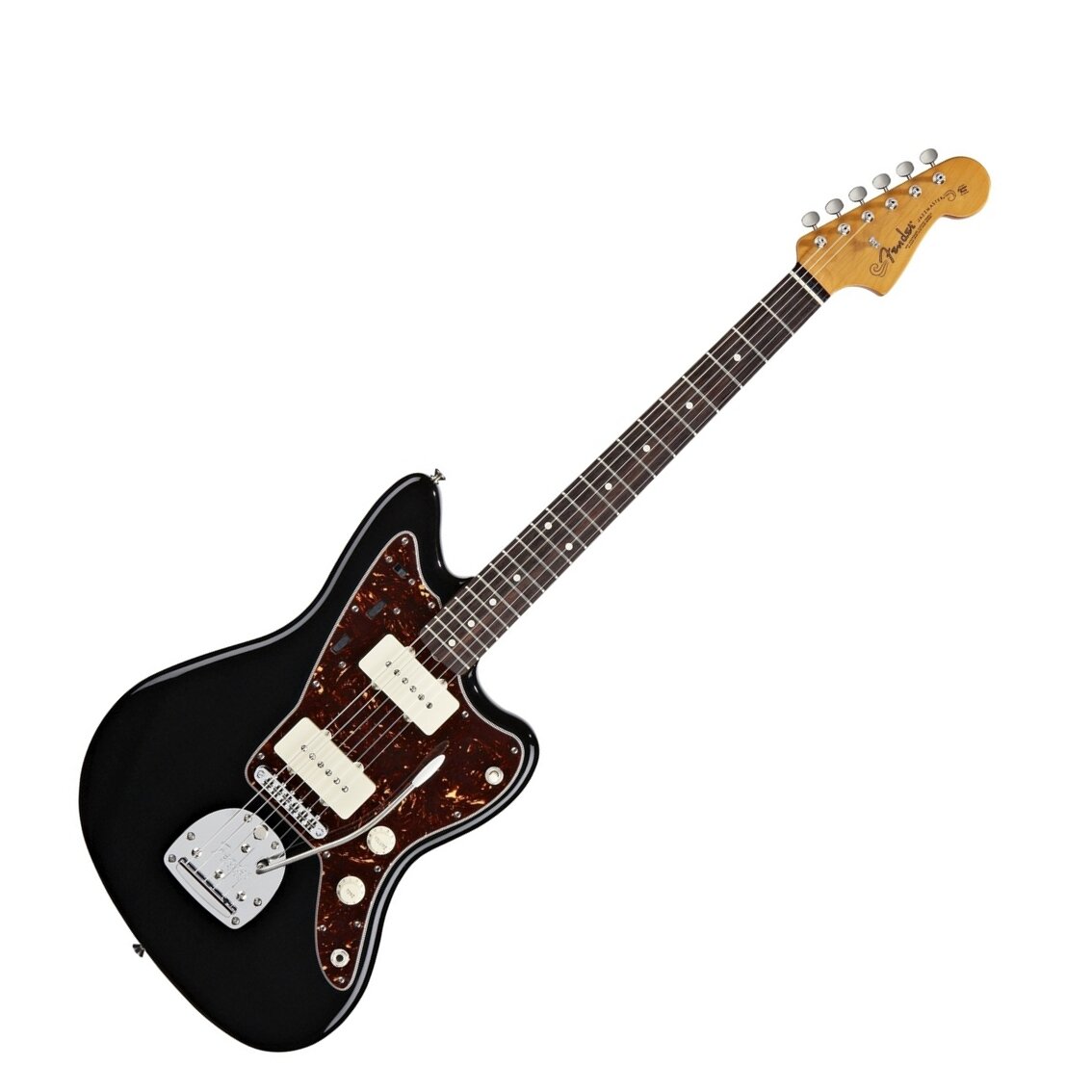

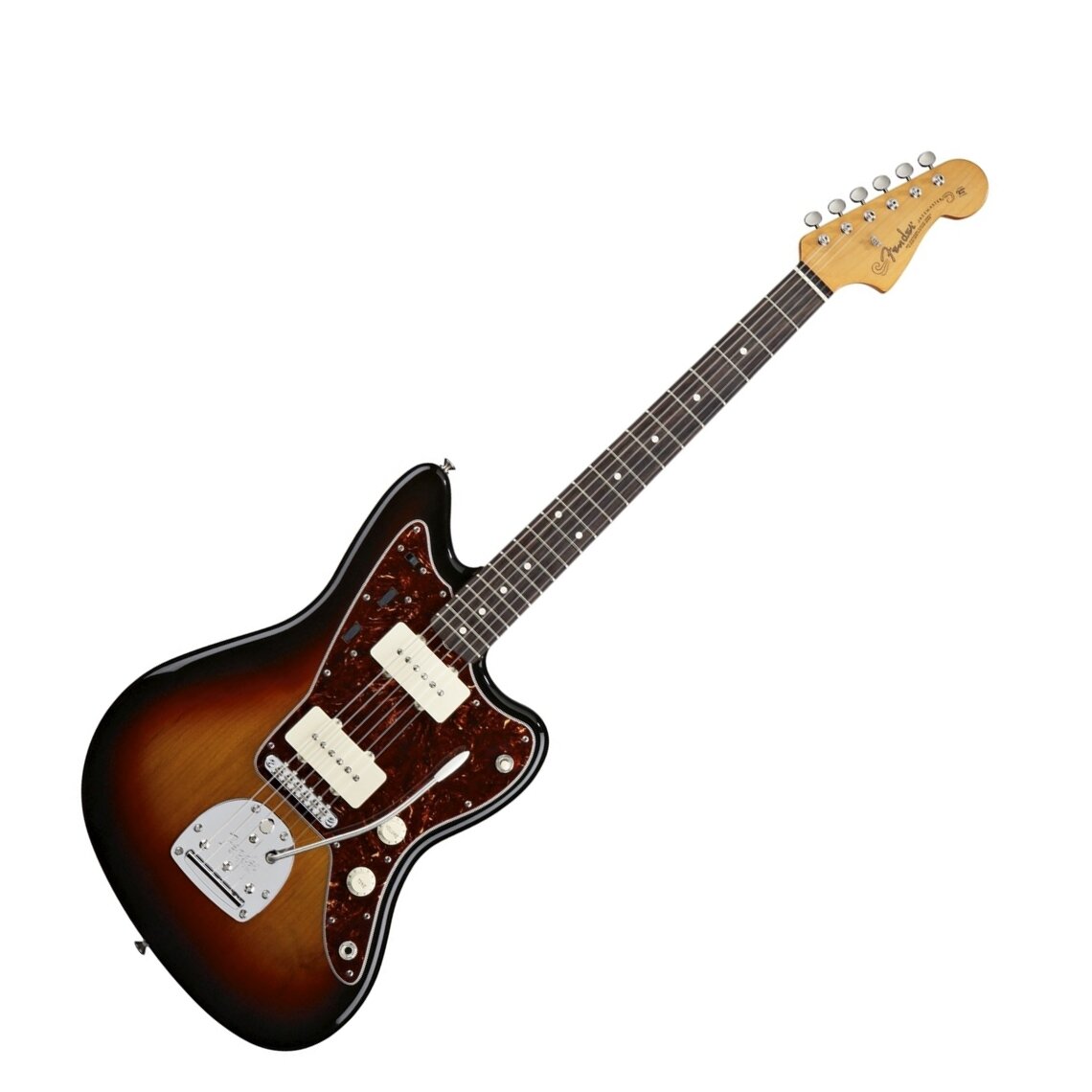

Colors: (300) 3-Color Sunburst, (306) Black, (Polyester Finish)
Body: Alder
Neck: Maple, “C” Shape, (Nitrocellulose Lacquer Finish)
Fingerboard: Rosewood, 9.5 in. Radius (241mm)
No. of Frets: 21 Medium Jumbo Frets
Pickups: 2 Special Design Hot Jazzmaster Single-Coil Pickups (Neck & Bridge)
Controls:
- “Lead” Circuit: Volume, Tone,
- “Rhythm” Circuit: Volume, Tone
Pickup Switching: 3-Position Toggle:
- Position 1. Bridge Pickup
- Position 2. Bridge and Neck Pickups
- Position 3. Neck Pickup
(Lead Circuit)
2-Position Slide:
- Up: Lead Tone Circuit
- Down: Rhythm Tone Circuit
Bridge: Fender Adjusto-Matic Bridge with Vintage Style “Floating” Tremolo Tailpiece and Tremolo Lock Buttonn
Machine Heads: Fender/Ping Vintage Style Tuning Machines
Hardware: Chrome
Pickguard: 4-Ply Brown Shell
Scale Length: 25.5 in. (648 mm)
Width at Nut: 1.650 in. (41 mm)
Unique Features:
- New Pickups with Fatter Tone and More Output,
- Adjusto-Matic Bridge,
- Medium Jumbo Frets,
- New Neck Pocket Cut Provides Better Pitch,
- 9.5” Radius,
- Trem Plate Moved Closer to Bridge to Increase Break Angle and Sustain,
- Screw-In Tremolo Arm,
- White Plastic Knobs and Switches
Strings: Fender Super 250R, Nickel Plated Steel,
Gauges: (.010, .013, .017, .026, .036, .046), p/n 073-0250-006
Accessories Included: Deluxe Gig Bag
Case: Deluxe Gig Bag
Introduced: 6/2008
Notice: Product Prices, Features, Specifications and Availability Are Subject To Change Without Notice
