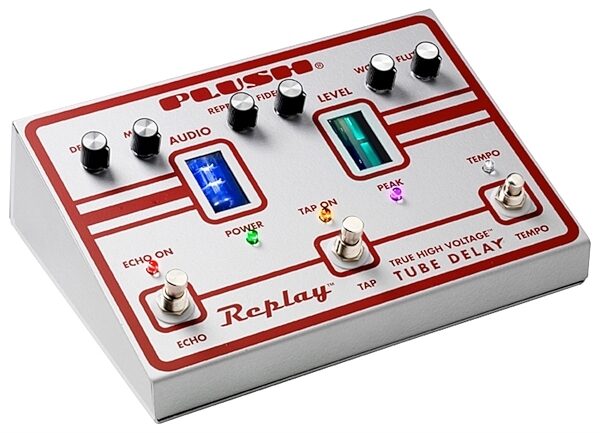

Fuchs Plush Replay Tube Delay Pedal
No longer available at zZounds
Running 300 volts into a tube-powered audio stage and tube level indicator, the Replay delay sings with rich, saturated delays of up to a full second.
Overview
The Plush Replay Tube Delay Pedal features up to one second of pure warm delay. Using a unique circuit topology like our Verbrator and Tube-FX-Loop pedals, The Replay has a True High Voltage power supply providing 300 volts to a genuine tube audio stage as well as a real tube level indicator. The Replay was designed as a replacement for tube delay pedals. The objective was to free the player from maintenance, the cost of replacing tapes, and to provide a simple to operate, musical platform for your musical expression.
Check out our exclusive demo of the Gilmour-esque tones within the Fuchs Replay:
The unit is a full function unit, which can operate with pedal or rack level effects and is built from the finest premium parts, and will give you years of enjoyment and high performance with no maintenance required. All connectors are Neutrik quality, the case is a solid 16 gauge steel enclosure with an industrial powder coat and baked on silk screening for long life and durability during use. The internal circuit boards are G-10 glass-epoxy and the circuit boards are double sided.
The Replay Tube Delay also features the same proprietary great-sounding digital technology used in many of other Plush pedals, for the delay line. The control panel is angled, and features ultra-bright LEDS for highest visibility on stage or even outdoors. The control panel features: LEDS for: Power, peak signal, tap tempo on, tempo indicator, echo mute. Replay's operation is as simple as a tape delay.… read more No fancy programming, or software silliness. Designed by musicians for musicians.
A discrete (delay only) effects loop, allows you to process the delayed signal through a reverb, or outboard device, prior to mixing within the tube audio stage. This output may also be used for a remote footswitch. While the Replay can be used on a pedal board in-front of an amplifier, for best performance, we encourage its use in an effects loop. The Replay is simple to operate its unique retro styling is equally at-home in a studio, as it is on a stage. read less
Check out our exclusive demo of the Gilmour-esque tones within the Fuchs Replay:
The unit is a full function unit, which can operate with pedal or rack level effects and is built from the finest premium parts, and will give you years of enjoyment and high performance with no maintenance required. All connectors are Neutrik quality, the case is a solid 16 gauge steel enclosure with an industrial powder coat and baked on silk screening for long life and durability during use. The internal circuit boards are G-10 glass-epoxy and the circuit boards are double sided.
The Replay Tube Delay also features the same proprietary great-sounding digital technology used in many of other Plush pedals, for the delay line. The control panel is angled, and features ultra-bright LEDS for highest visibility on stage or even outdoors. The control panel features: LEDS for: Power, peak signal, tap tempo on, tempo indicator, echo mute. Replay's operation is as simple as a tape delay.… read more No fancy programming, or software silliness. Designed by musicians for musicians.
A discrete (delay only) effects loop, allows you to process the delayed signal through a reverb, or outboard device, prior to mixing within the tube audio stage. This output may also be used for a remote footswitch. While the Replay can be used on a pedal board in-front of an amplifier, for best performance, we encourage its use in an effects loop. The Replay is simple to operate its unique retro styling is equally at-home in a studio, as it is on a stage. read less
Specs
- Dimensions: 6 x 9" (front panel) x 3" at rear 1" inch at front
- Weight: 3.8 lbs.
- Cabinet Material: Solid 16 Gauge Steel
- Covering: Industrial Grade powder coating. Heat cured silk screening
- Circuitry: Selected low noise 12AX7 tube, EM-80 Level indicator tube, True High Voltage switching power supply, regulated 6 volts to tube filaments.
- Power: 500 ma from 9VDC external power supply (included) via 2.1 MM tip negative connector.
- Input impedance: 1-M Mix Output impedance approximately 10-K. Delay Loop output impedance 10-K Fx Loop return impedance 1-Meg Delay: 32-Khz Clock 15-K
- Bandwidth: with up to 1-Second of delay time.
- Input: 1-Meg impedance signals from 500 to 1-Volt level.
- Mix output: 10-K output impedance 1-volt level max.
- Loop level: 1-V maximum output and inputs: 10-K Send impedance 1-M return impedance.
- Tube compliment: 1-12AX7 premium audio tube 1-EM-84 Bar Graph display tube. Tube life estimated at 5-years of normal service.
- Construction: Premium Neutrik jacks, Cliff switches, Alpha or Bourns metal-shaft potentiometers.
- Digital delay technology: 32-Khz clock speed, 16 Khz bandwidth. 20-ms to 1-second delay range.
- Tap Temp circuit: Designed by Ron Menelli of RJM Music Products.
- Weight: 3.8 lbs.
- Cabinet Material: Solid 16 Gauge Steel
- Covering: Industrial Grade powder coating. Heat cured silk screening
- Circuitry: Selected low noise 12AX7 tube, EM-80 Level indicator tube, True High Voltage switching power supply, regulated 6 volts to tube filaments.
- Power: 500 ma from 9VDC external power supply (included) via 2.1 MM tip negative connector.
- Input impedance: 1-M Mix Output impedance approximately 10-K. Delay Loop output impedance 10-K Fx Loop return impedance 1-Meg Delay: 32-Khz Clock 15-K
- Bandwidth: with up to 1-Second of delay time.
- Input: 1-Meg impedance signals from 500 to 1-Volt level.
- Mix output: 10-K output impedance 1-volt level max.
- Loop level: 1-V maximum output and inputs: 10-K Send impedance 1-M return impedance.
- Tube compliment: 1-12AX7 premium audio tube 1-EM-84 Bar Graph display tube. Tube life estimated at 5-years of normal service.
- Construction: Premium Neutrik jacks, Cliff switches, Alpha or Bourns metal-shaft potentiometers.
- Digital delay technology: 32-Khz clock speed, 16 Khz bandwidth. 20-ms to 1-second delay range.
- Tap Temp circuit: Designed by Ron Menelli of RJM Music Products.
