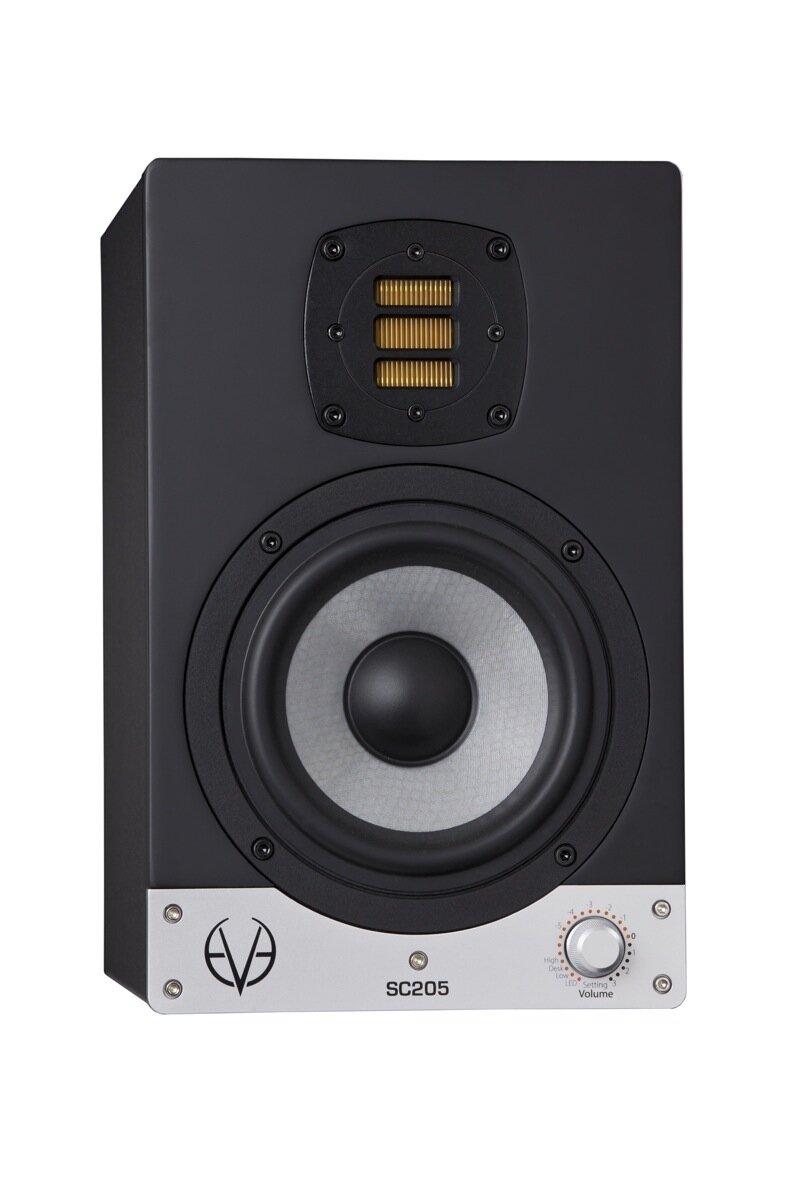

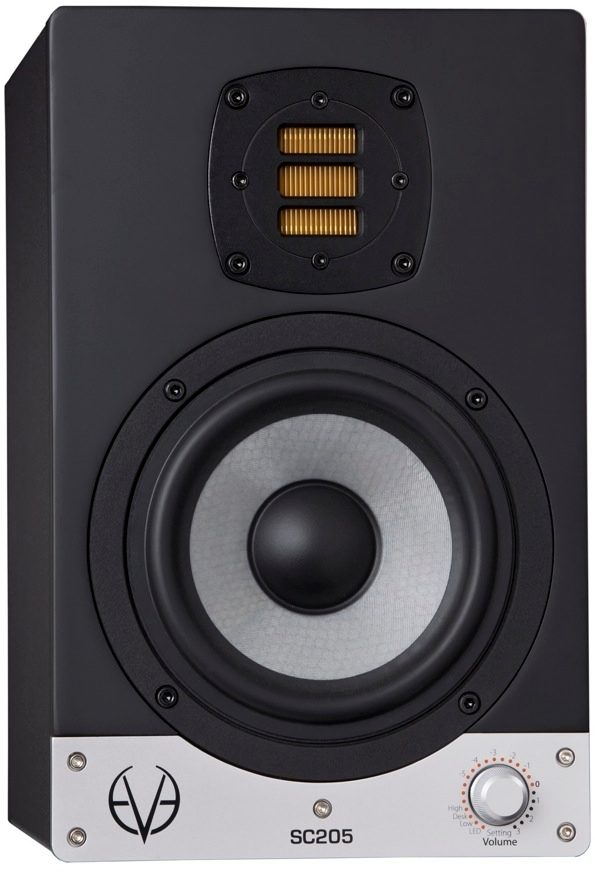

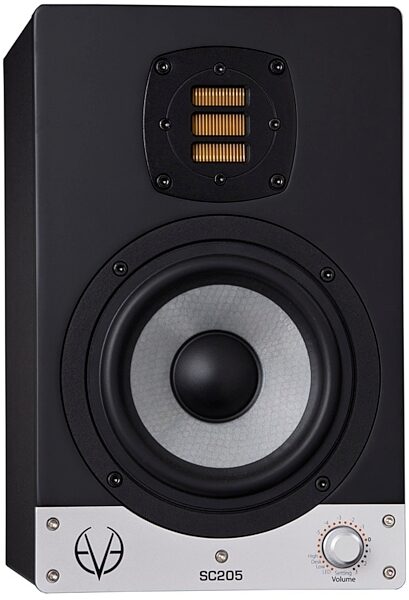

Eve Audio SC205 Active Studio Monitor, 2-Way

Product Description

Second in line of Eve Audio studio monitors is the SC205. Like the name implies, it's a SilverCone two-way system with a 5" woofer. But don't let your eyes deceive you. The SC205 might seem like a small speaker, but it definitely packs a punch. With an extended bass frequency response and an astounding output level, the SC205 will easily fill your room with exceptional sound.

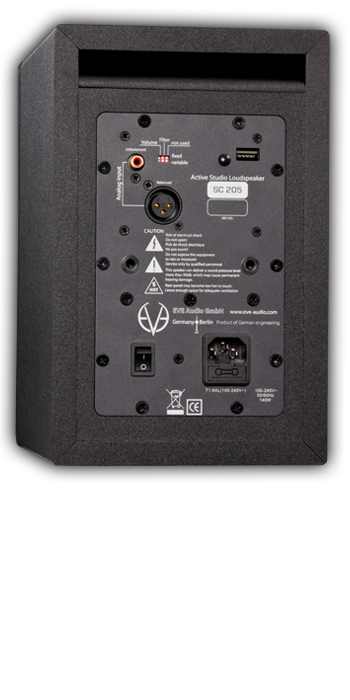

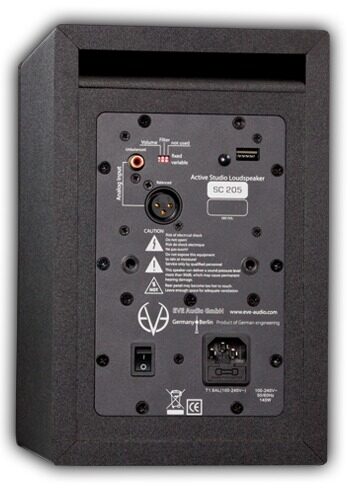

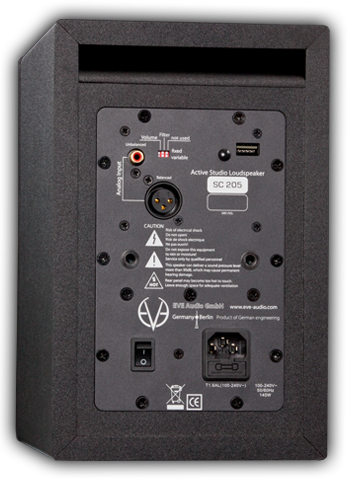

The SC205 also comes with the convenience of threaded screw inserts on the bottom and the back. That way, you can mount your SC205 on a regular microphone or speaker stand, or use the back plate for different wall mounting options available on the market.

Tech Talk

The SC205 uses a 5" SilverCone woofer for an extended bass response. This very stiff diaphragm is honeycomb structured and glass fibre coated. Like in other models, such as the smaller SC204, the SC205 is driven by a sophisticated magnet system that uses a 1" voice coil responsible for delivering a greater linear excursion. All in all, this produces a bigger dynamic range than you would naturally assume from a speaker of these proportions. The result is an unsurpassed audio transparency that, when coupled with our proprietary AMT tweeter and PWM amplifier, will surprise you with a very powerful and precise low end.

The AMT (Air Motion Transformer) tweeter is our a proprietary technology that follows the rule of not using "off-the-shelf" components when looking for the best possible results. The preciseness and detail in the high frequency, along with the general tightness of the bass and mid-range frequencies, will make the SC205 equally adequate for use on the road or in studio.

DSP

With every EVE Audio speaker, you also get high resolution DSP electronics. One push knob operation and you will have access to accurate volume control and several different filter settings that will help you tailor your monitors to the way you work.

The DSP engine is supported with a high quality A/D converter from Burr-Brown, which delivers a pristine signal to the DSP section. And since the PWM amplifiers are directly connected to the DSP, no additional conversion is necessary.

Bass Port Design

It's all in the geometry. One of the downside effects of port compression is bass distortion. As you turn up the volume, the efficiency of the port reduces and distortion will increase.

The SC205 opts for a large rear rectangular port with no hard edges for the bass port designs. That's one of the reasons EVE monitors have a high efficiency on the lower frequencies.

The results? High sound pressures with tight and punchy bass frequencies that don't cause port distortion. Crank up the volume, and EVE will deliver a round bass. With no holes to look at every time you glance at your speakers. zZounds is an authorized dealer of Eve Audio products.

- Dimensions (WxHxD) [mm]: 175 x 275 x 233
- Dimensions (WxHxD) ["]: 6.89 x 10.83 x 9.17
- Free-field frequency range (-3dB): 53Hz - 21kHz
- Tweeter: AMT RS1
- Mid-Woofer: 130mm/5"
- Cross-over frequency: 3000Hz
- Maximum SPL @ 1m: 101dB
- Number of amplifiers: 2
- Total short-term output power: 100W
- Output power (woofer): 50W
- Output power (tweeter): 50W
- Protection limiter:
- Settings:
- Volume: -inf. - +6dB
- High-shelf filter (-5dB - +3dB): > 3kHz
- Desk filter boost (0dB - +3dB): 80Hz
- Desk filter cut (-5dB - 0dB): 180Hz
- Low-shelve filter (-5dB - +3dB): < 300Hz
- Level-fix dip switch:
- Filter-fix dip switch:
- Connectors:
- XLR in (impedance): (10k)
- RCA in (impedance): (10k)
- Power consumption:
- Standby: < 1W
- Full output: 70VA
- Misc.:
- Backmounting thread inserts:
- Mic stand thread inserts:
- Weight kg/lb.: 5 / 11

Dimensions and Weight in Packaging

Base Item

Shipping Weight: 14 lbs

Shipping Dimensions: 16 x 13 x 11 in
