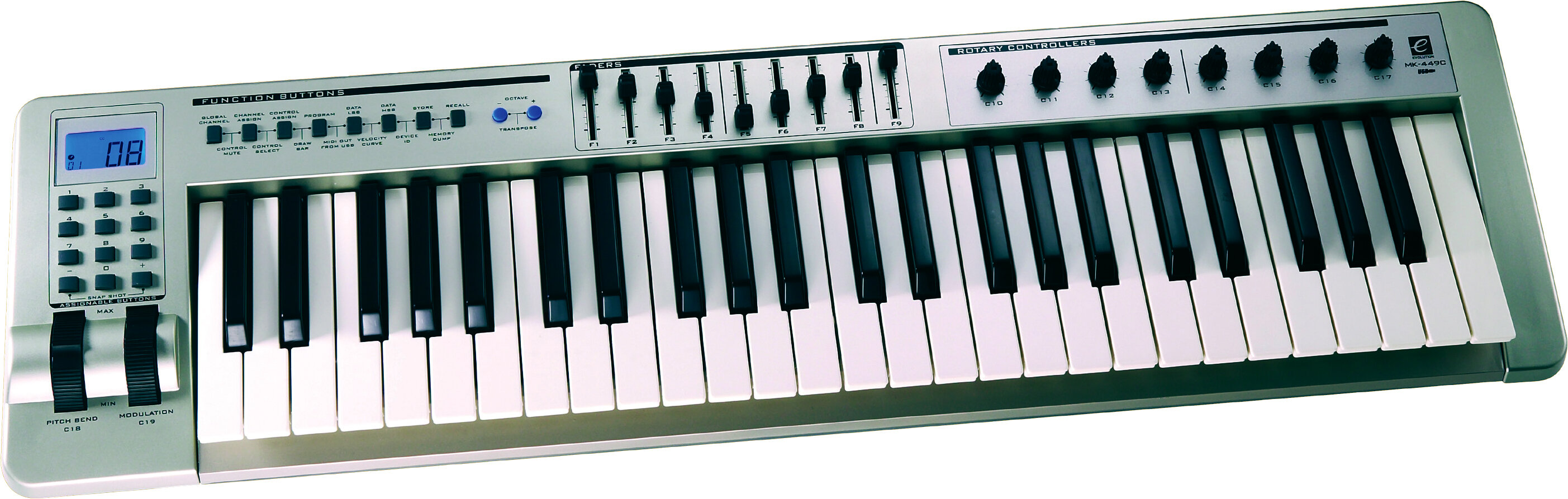

The MK-449C features 9 assignable 35mm sliders, 8 assignable rotary knobs, 10 assignable buttons and 49 full-size touch sensitive keys, giving computer music enthusiasts extreme hands-on control of their favorite software and hardware. Both the pitch bend and modulation wheels are fully assignable, as is the sustain pedal input, adding up to a total of 30 assignable controllers. The MK-449C's unique controller mute function mutes the output of all controllers, allowing you to position them before tweaking, thereby eliminating jumping filters or levels during your performance. The keyboard also features a drawbar mode for the 9 faders, which greatly enhances the experience of playing virtual instruments such as Native Instruments B4 Organ. The MK-449C ships with 10 pre-configured settings, making it instantly usable with today's most popular plug-ins, virtual instruments and host applications. Creating your own custom setups is also quick and easy, as all 30 real-time controllers can be programmed via the numerical keypad. Each controller can also be set up to transmit on separate MIDI channels, and complete setups can be stored in any of the 10 memory locations.
In addition to standard controller numbers, the MK-449C has RPN/NRPN and pre-programmed Sys-Ex messages for real-time access to parameters beyond immediate reach on products such as SoundBlaster, XG and GM-compatible soundcards. The Sys-Ex dump command allows the entire content of the memory to be sent from the keyboard to a location of your choice. A librarian program for PC users is included for saving, editing and sharing keyboard setups.
The MK-449C connects to a PC or Mac using the included USB cable. The keyboard can be powered via USB, or alternatively with an optional power supply. As with all Evolution controllers, the MK-449C is Class Compliant, so no drivers are required when using Windows XP or Mac OSX.
A conventional MIDI output on the back of the MK-449C has been included for operation with traditional MIDI gear or non-USB computer setups. Used in USB mode, the MIDI output acts as a USB to MIDI output interface.
Features
Function buttons make programming quick and easy, even while you're playing
Independent channel assign for all 30 controllers
Controller mute function mutes the output of all controllers so you can position before tweaking
Backlit LCD display clearly shows controller information
10 MIDI assignable buttons double up as an essential data entry pad
Global channel assign allows controllers to command up to 16 different channels at the touch of a button
Snap Shot mode sends out current status for all controllers
10 memory locations store user setups
Memory dump facility
Sys-Ex librarian software allows PC users to load, save, send and receive any combination of setups
Assignable pitchbend and modulation wheels allow thumb control effects
Separate octave shift buttons provide instant access to 10 octaves
MIDI-assignable sustain pedal input can be used with any polarity switch
Technical Info
Software Requirements
Pentium II 300MHz 128Mb RAM or better, USB port, Windows 98/ME/2000/XP, approved MME or ASIO compliant soundcard
iMac, Power Mac G3 or better with USB running OS9/OSX
Keyboard powered by USB (cable included) or 9V DC, 250-300mA center positive power adaptor (not included)
Keyboard Requirements: PC/Mac or MIDI hardware with USB or MIDI In
Dimensions (W x H x D): 32 x 8.4 x 4 in.
