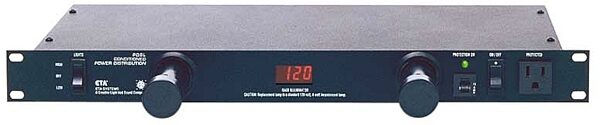

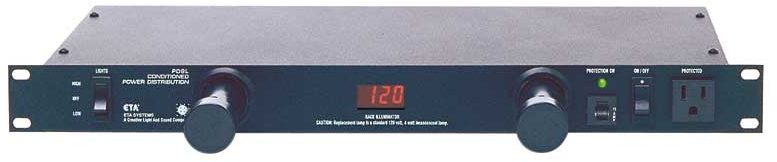

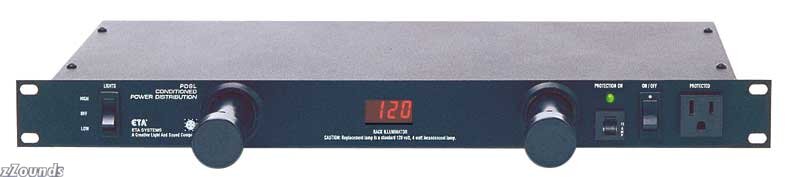

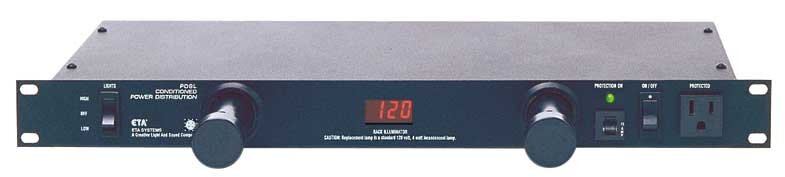

ETA Systems PD11LV Conditioned Power Distributor

For over 25 years ETA has developed, manufactured and sold high amperage theatrical lighting systems from which evolved an extensive line of rack mounted conditioned power distribution products designed to protect today's sensitive electronic, digital equipment.

The "PD" Conditioned Power Distribution Series easily deals with normal AC line power fluctuations as well as the more drastic abnormalities of the spike and surge variety. Also, filtering of airborne interferences caused by electromagnetic and radio frequency transmissions is routinely accomplished. More sophisticated ETA models utilize microprocessor technology to regulate AC power and sequence power turn-on to reduce high in-rushes of power.

ETA's sophisticated electronic protection technology is the favorite of professionals who demand flawless operation of digital mixers, processors, amplifiers and PC's whether in the studio, in the boardroom, on tour or in a home entertainment environment.

ETA Power Distribution is the benchmark by which professionals compare.

Features:
10 protected U-grounded power outlets, 8 switched, 2 "always on"

4 dual 15-amp U-grounded outlets

1 "always on" dual 15 amp U-grounded outlet on back panel

Full 15 amps, 1800 watts capacity per unit

Protected "always on" 15 amp AC power outlet on the front panel

Total unit 15 amp circuit breakers located on front panel

Digital voltmeter readout

Dual swivel rack high output illuminators with High/Low settings and easy-to-change bulb accessibility

Spike and surge protection

EMI/RFI filtration

1 rack space

3 year limited warranty

Typical Uses
All Professional Permanent Installations, Recording Studios, Theaters, Schools, Clubs, Churches, any entertainment venue, business board rooms, and audio/visual multi-use presentation rooms.

Portable Applications: On-The-Road Concert Tours, Bands, and D.J. services.

Other Important Applications: A/V racks, computer networks, and home entertainment centers.

Technical Info

Dimensions: 19 in. L x 7-1/2 in. D x 1-3/4 in. H

Weight: 7 lbs. (less packaging)

Housing: Quality Black powder coated chassis

Electrical: 120V, 50/60 Hz, single phase

Max. amps: 15/unit

Max. watts: 1800/unit

Spike/surge protection: Line to neutral, neutral to ground, line to ground

Response time: < 1 nanosecond

Max. Clamping Voltage: 330V

Max. Spike Current: 6500 amps

Max. Surge Energy: 630 joules total

Noise Filter (EMI/RFI): Frequency 150 kHz -200 MHz

Attenuation: Up to 20 dB

Certification: ETL Listed
