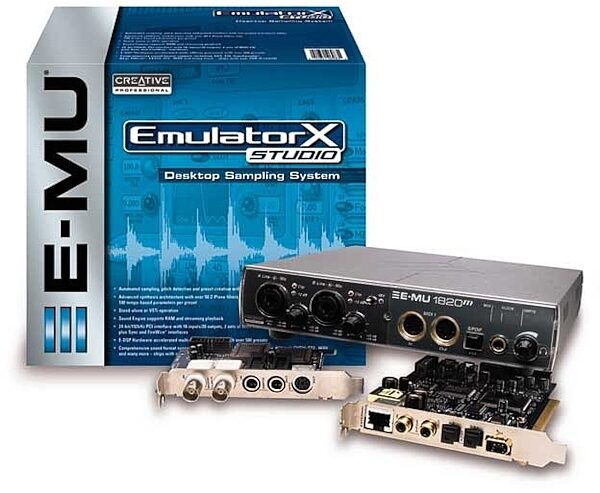

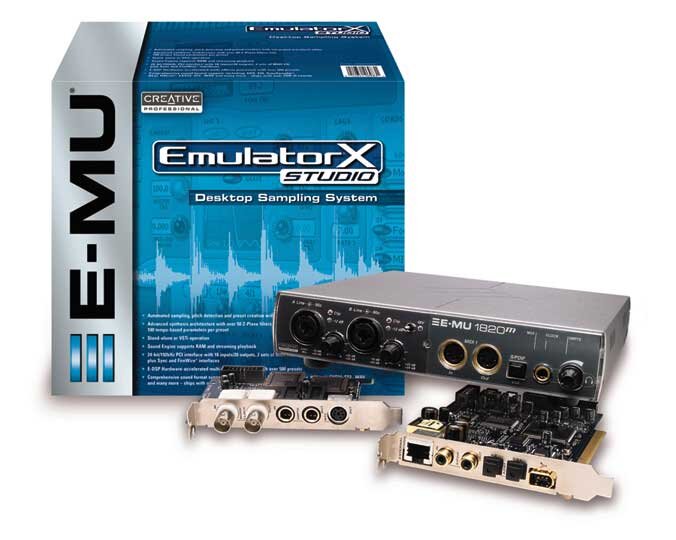

Emu Emulator X Studio Sampling System with 1820M (Windows)

Emulator X Studio is a 24-bit/192kHz software sampler with comprehensive integrated I/O, sync interfaces and hardware-accelerated effects for Windows XP and 2000. You can run the Emulator X software as a VST instrument within your favorite sequencer application or standalone, from RAM or streaming from hard disk. Emulator X is the culmination of over 30 years of sampler and synthesizer development, offering musicians and sound designers the sampling technologies, powerful DSP and pristine sound quality of E-MU's hardware samplers with the latest disk streaming, file management and graphical interface advantages of software.

Automated Sample Acquisition and Preset Creation
Emulator X makes sampling as easy as loading a preset by offering intelligent, automated sampling and preset creation from both external audio and batch files, allowing you to turn a .WAV file into a fully functioning preset in seconds with a single click of your mouse.

Advanced Synthesis Architecture
No software sampler can match the depth of the Emulator X synthesis engine, with 36 patchcords per voice, over 50 patented Z-Plane morphing filters, multi-wave LFO's, conditional voice modulation, clock modulation and a host of other synthesis features and parameters. You can even save your favorite synth setups as templates for quick editing.

Standalone or VSTi Operation
You can use Emulator X as a VSTi instrument within your favorite sequencer program or run it standalone for maximum system performance.

RAM and Streaming Playback
Emulator X offers you playback from both RAM and hard disk for total flexibility in optimizing the performance of your system.

24-bit/192kHz PCI Interface 18 Inputs, 20 Outputs, Sync, MIDI and FireWire
Emulator X ships with comprehensive I/O and sync, featuring mastering-grade 120dB SNR converters, two TFPro mic preamps, a turntable input (w/ ground and RIAA preamp), 2 sets of MIDI I/O and a host of other analog and digital I/O, as well as Word Clock, SMPTE and MTC sync.

E-DSP Multi-Effects Processor
The powerful 32-bit E-DSP Processor provides you with an arsenal of hardware-accelerated plug-in effects (over 500 presets) with no CPU overhead, saving your system resources for maximum polyphony and synthesis.

PatchMix DSP
Emulator X ships with PatchMix DSP- software that delivers 32 channels of zero latency hardware mixing and monitoring with a flexible virtual patchbay- no external mixer needed.

Integrated Waveform Editor
Emulator X provides you with a host of professional DSP tools that you've come to expect from E-MU (i.e. Gain Change, Time Compression/Expansion, Reverse, Pitch Change, Sample Calculation w/automatic digital tuning, etc.), giving you total control over your samples

Comprehensive Sound Format Support
Emulator X supports EOS, EIII, GigaSampler, Akai, HALion, EXS24, SoundFont 2.1, .WAV and many more sound formats- ships with over 2GB of sounds.

Automated Preset Cataloging Across Network Drives
Emulator X automatically catalogs and tracks all of your presets across your entire network- no wasted time looking for sounds

I/O Configuration:
2 TFPro Mic/Line/Hi-Z preamps (w/48V phantom power)

6 x 1/4 in. balanced inputs

8 x 1/4 in. balanced outputs

Turntable input (w/ground lug and hardware RIAA preamp)

24-bit/192kHz ADAT In/Out (switchable to S/PDIF)

24-bit/96kHz coaxial S/PDIF In/Out (switchable to AES/EBU)

24-bit/96kHz optical S/PDIF Out (switchable to AES/EBU)

2 sets of MIDI In/Out

4 stereo 1/8 in. speaker outputs (configurable from stereo to 7.1)

Stereo headphone output

FireWire interface

Sync Configuration:
Word Clock In/Out

SMPTE In/Out

MTC Out

Technical Info

General
Sample Rates: 44.1, 48, 96, 192kHz from internal crystal or externally supplied clock (no sample rate conversion)

Bit Depth: 16 or 24 bits

PCI Bus-Mastering DMA subsystem reduces CPU usage

Zero-latency direct hardware monitoring w/effects

Analog Line Inputs (6)
Type: servo-balanced, DC-coupled, low-noise input circuitry

Level (software selectable):
- Professional: +4dBu nominal, 20dBu maximum (balanced)
- Consumer: -10dBV nominal, 6dBV maximum (unbalanced)

Frequency Response: +/- .05dB, 20Hz - 20kHz

THD+N (1kHz at -1dBFS): -110dB (.0003%)

SNR (A-weighted): 120dB

Dynamic Range (1kHz, A-weighted): 120dB

Stereo Crosstalk (1kHz at -1dBFS): < -115dB

Common-Mode Rejection (60Hz): > 40dB

Analog Line Outputs (8)
Type: balanced, low-noise, 3-pole low-pass differential filter

Level (software selectable):
- Professional: +4dBu nominal, 20dBu maximum (balanced)
- Consumer: -10dBV nominal, 6dBV maximum (unbalanced)

Frequency Response: 0.0/-.35dB, 20Hz - 20kHz

THD+N (1kHz at -1dBFS): -105dB (.0006%)

SNR (A-weighted): 120dB

Dynamic Range (1kHz, A-weighted): 120dB

Stereo Crosstalk (1kHz at -1dBFS): < -115dB

Combo Microphone Preamplifier/Line Inputs (2)
Type: TFPro combination microphone preamp and line input

Frequency Response: +0.8/-0.1dB, 20Hz - 20kHz

Stereo Crosstalk (1kHz min gain, -1dBFS): < -120dB

Line Input:
- Gain Range: -12 to +28dB
- Max Level: +17dBV (19.2dBu)
- THD+N (1kHz at -1dBFS, min gain): -94dB (.002%)
- Dynamic Range (A-weighted, 1kHz min gain): 100dB
- SNR (A-weighted, min gain): 100dB
- Input Impedance: 10K ohm
- Common-mode Rejection Ratio (60Hz): > 40dB

Microphone Preamplifier
- Gain Range: +10 to +50dB
- Max Level: -12dBV (-9.8dBu)
- THD+N (1kHz at -1dBFS, min gain): -95dB (.0018%)
- SNR (A-weighted, min gain): 100dB
- Input Impedance: 330 ohms
- Common-mode Rejection Ratio (60Hz): > 80dB

Headphones (stereo)
Type: linear power amplifier

Frequency Response: +0.0/-0.35dB, 20Hz - 20kHz

THD+N (1kHz, max gain)
- 33 ohm load: -70dB (0.032%)
- 600 ohm load: -85dB (0.006%)

SNR (A-weighted): 112dB

Dynamic Range (A-weighted): 117dB

Stereo Crosstalk (1kHz at -1dBFS, 600 ohm load):< -100dB

Maximum Output Power: 500mW

Output impedance: 22 ohms

Gain Range: 85dB

Phono Input (stereo)
Type: RIAA equalized phono input

Frequency Response: +/-0.5dB, 50Hz - 20kHz

THD+N (1kHz, 10mV RMS unbal input): -76dB (.015%)

SNR (10mV RMS unbal input, A-weighted): 90dB

Stereo Crosstalk (1kHz at -1dBFS): < -80dB

Maximum level:
- Professional: 80mV RMS
- Consumer: 20mV RMS

Input capacitance: 220 pF

Input impedance: 47K ohm

Digital I/O
S/PDIF:
- 2 in/2 out coaxial (transformer coupled)
- 2 in/3 out optical (software switched with ADAT)
- AES/EBU or S/PDIF format, switchable under software control

ADAT:
- 8 channels, 24-bit @ 44.1/48kHz
- 4 channels, 24-bit @ 96kHz (S-MUX compatible)
- 2 channels, 24-bit @ 192kHz

FireWire:
- 400 Mbps 1394a port (6-pin)
- Compatible with DV cameras, storage peripherals, etc.

MIDI
- 2 in, 2 out

Synchronization
Internal crystal sync at 44.1, 48, 96, 192kHz

External sample rate sync
- ADAT
- S/PDIF (opt. or coax)
- Word clock (75 ohm termination, switchable)

SMPTE LTC Timecode
- Converts between longitudinal time code (LTC) to MIDI time code (MTC)
- Regen, stripe, and conversion modes
- 24, 25, 30 drop, 30 non-drop frames/sec
- Compatible with 29.97 fps timecode
- Input level: 0.5 - 4V p-p
- Output levels: +4dBu, -10dBV (software selectable)
- Input Impedance: 10K ohms

Retail Box Contents

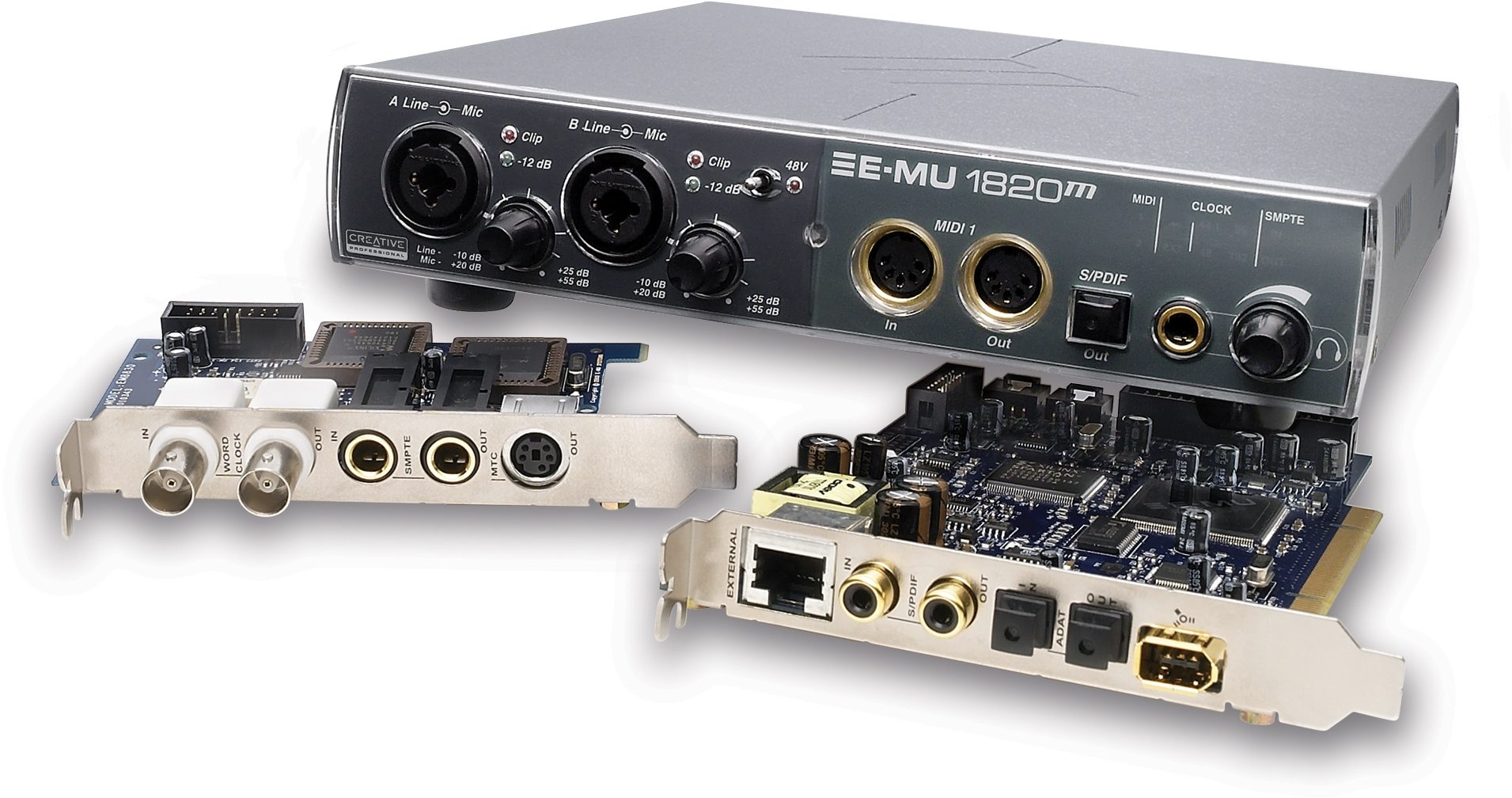

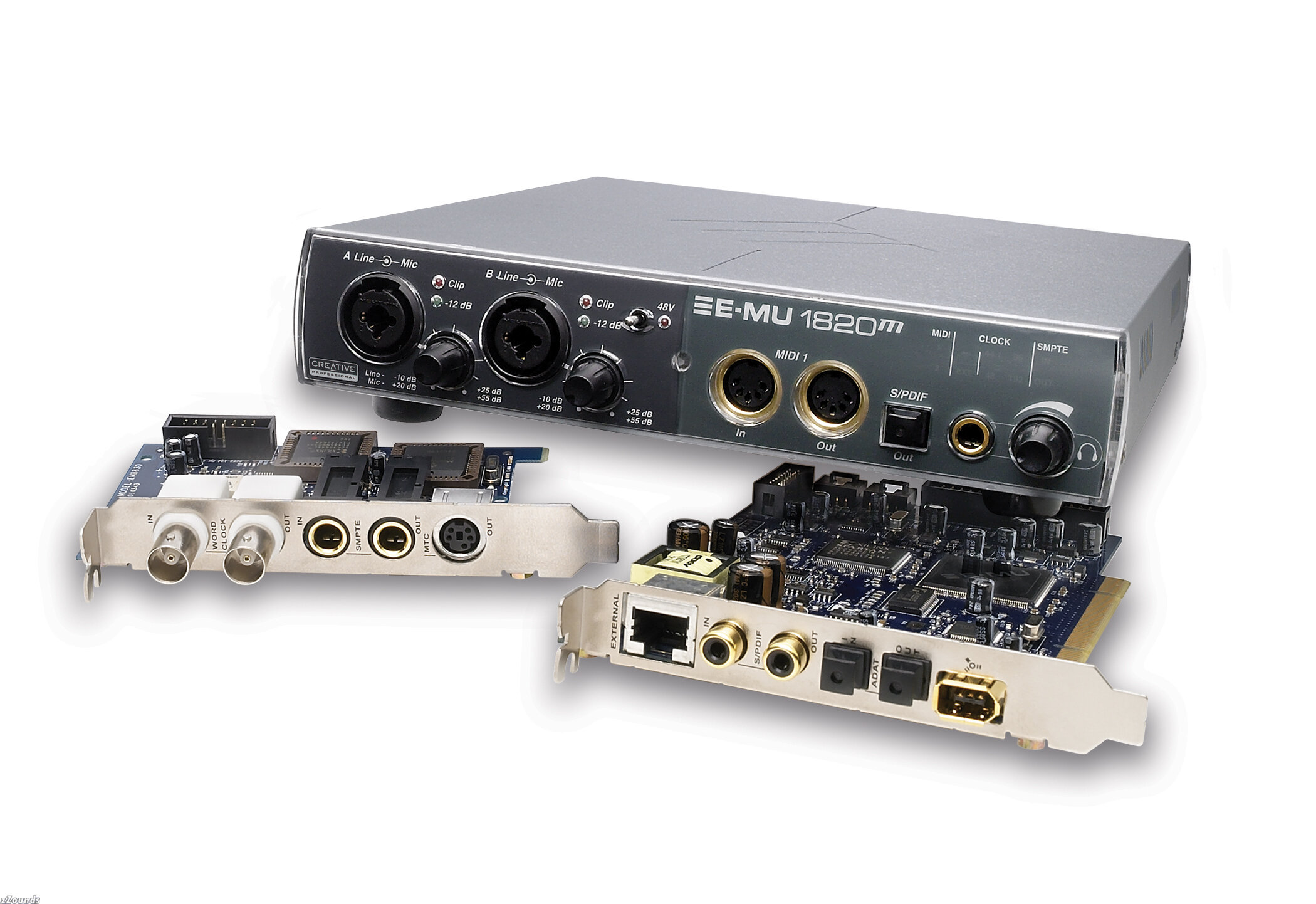

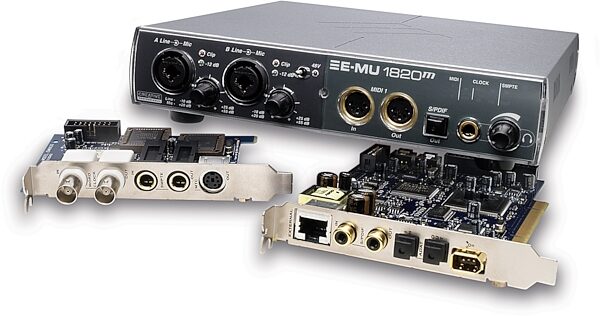

E-MU 1010 PCI card

E-MU AudioDock M

E-MU Sync daughter card

EDI (E-MU Digital Interface) cable (3 meters)

Sync cable

Mini-DIN MIDI adapter cable

Headphone splitter cable

PC power cable

Quick Start guides for Emulator X and E-MU 1820M

Emulator X Software CD-ROM

Four Emulator X Sounds CD-ROMs

Operation Manual on CD-ROM

Creative Professional Software CD-ROM
- Windows 2000 and XP Drivers
- E-MU PatchMix DSP
- E-MU E-DSP FX Library

Audio software package on CD-ROM

*This product is protected by a one year limited hardware warranty.
