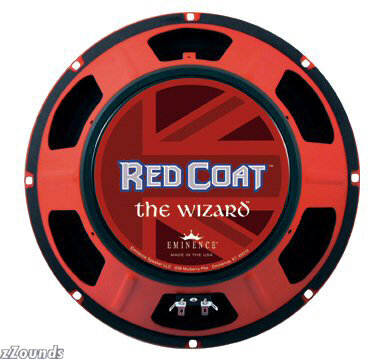

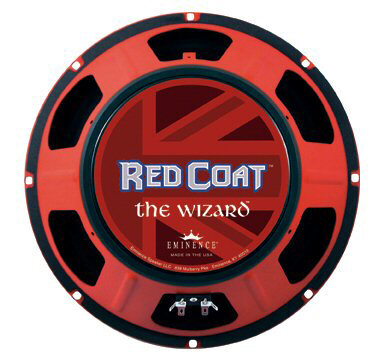

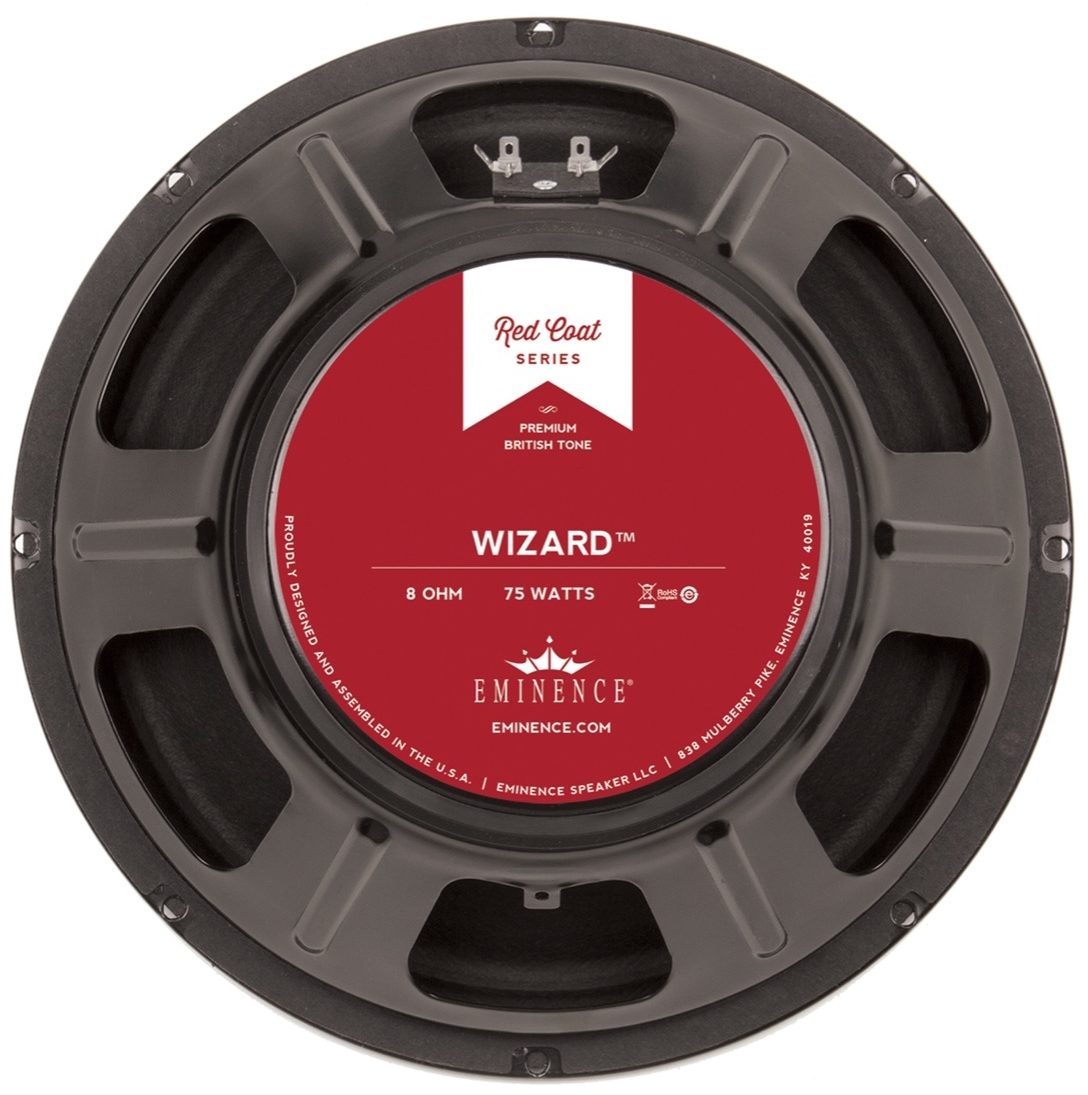

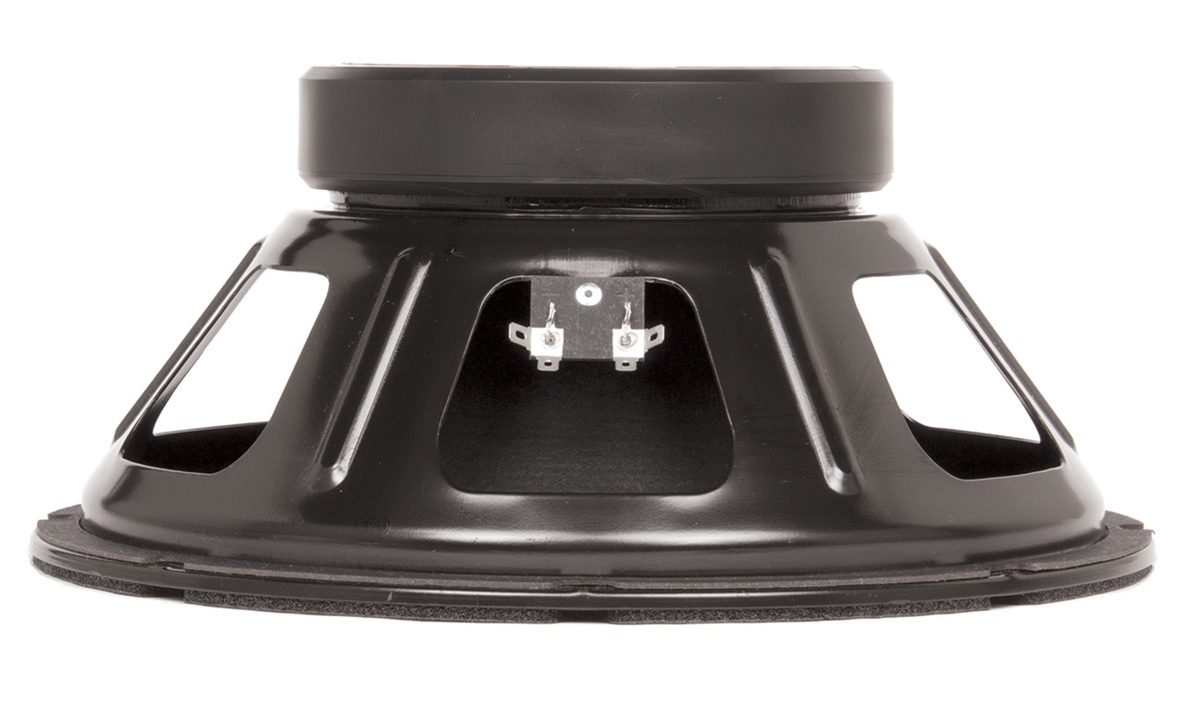

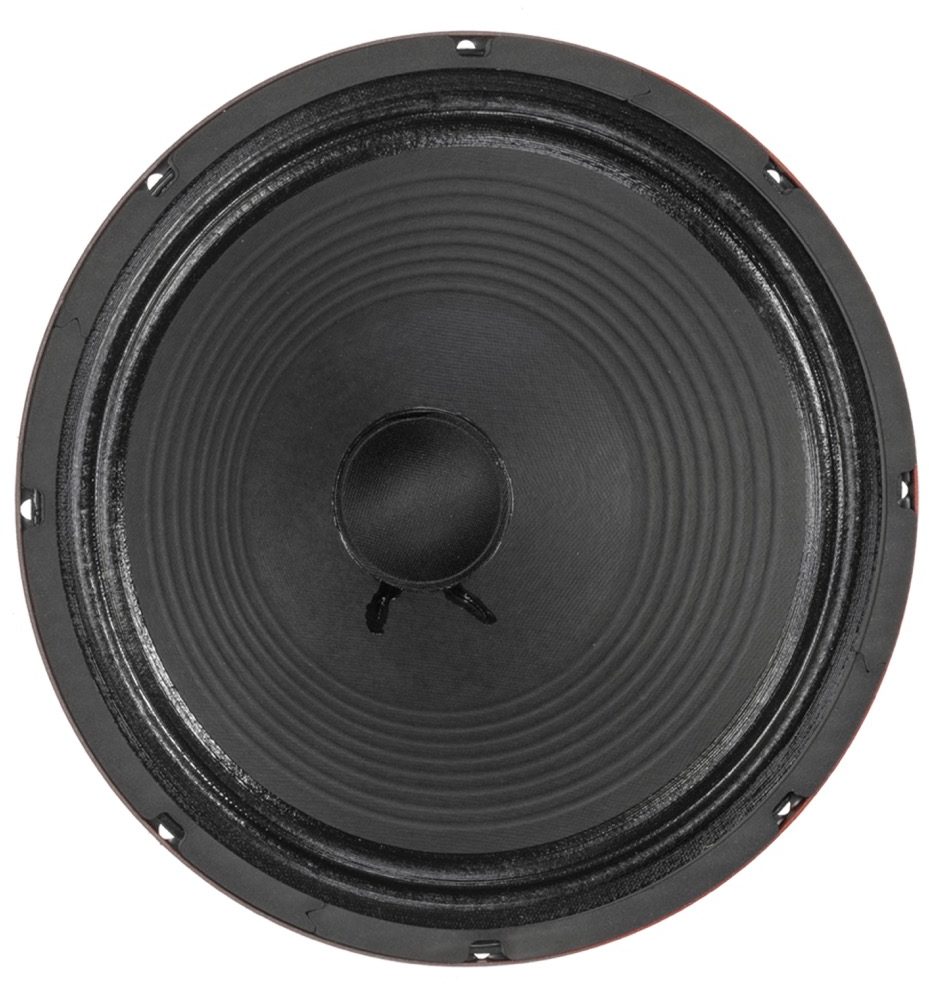

Eminence Wizard 8 Guitar Speaker (75 Watts, 12 in.)

Certain items must be exchanged directly through the manufacturer if they are found to be defective. This includes tubes, strings, pickups, raw frame speakers, drum heads, drumsticks, cymbals, cowbells, and harmonicas. These items can only be returned to us if they are unopened. details

About This Product!

Description

Like magic, a healthy brewing of the key features of the Private Jack and the Governor Eminence conjures up the Wizard 8 speaker. The Eminence Wizard has great coloration: very articulate, but with a hint of grit. Nice sustain and exceptionally good tight bottom.

If you've ever wanted to get that great classic rock sound from the 60s and 70s, here's the perfect spell!

Technical Info

Nominal Basket Diameter: 12 inches, 304.8mm

Nominal Impedance*: 8 ohms

Watts: 75W

Resonance: 89Hz

Usable Frequency Range: 70Hz-5.5kHz

Sensitivity***: 103

Magnet Weight: 56 ounces

Gap Height: 0.312 inches, 7.92mm

Voice Coil Diameter: 1.75 inches, 44.5mm

Thiele & Small Parameters DC Resistance (Re): 6.13

Coil Inductance (Le): 0.38mH

Mechanical Q (Qms): 11.48

Electromagnetic Q (Qes): 0.49

Total Q (Qts): 0.47

Compliance Equivalent Volume (Vas): 41.5 liters / 1.5 cubic feet

Peak Diaphragm Displacement Volume (Vd): 42cc

Mechanical Compliance of Suspension (Cms): 0.11mm/N

BL Product (BL): 14.4 T-M

Diaphram Mass inc. Airload (Mms): 30 grams

Efficiency Bandwidth Product (EBP): 181

Maximum Linear Excursion (Xmax): 0.8mm

Surface Area of Cone (Sd): 519.5 cm2

Mounting Information Recommended Enclosure: Sealed or Vented Acceptable

Overall Diameter: 12.02 inches, 305.3mm

Baffle Hole Diameter: 10.97 inches, 278.6mm

Front Sealing Gasket: fitted as standard

Rear Sealing Gasket: fitted as standard

Mounting Holes Diameter: 0.25 inches, 6.4mm

Mounting Holes B.C. D.: 11.63 inches, 295.4mm

Depth: 5.2 inches, 132mm

Net Weight: 10.8 pounds, 4.9 kg

Shipping Weight: 12.5 pounds, 5.7 kg

Materials of Construction Coil Construction: Copper voice coil

Coil Former: Nomex former

Magnet Composition: Ferrite magnet

Core Details: Non-vented core

Basket Materials: Pressed steel basket

Cone Composition: Paper Cone

Cone Edge Composition: Paper cone edge

Dustcap Composition: Zurette dust cap
