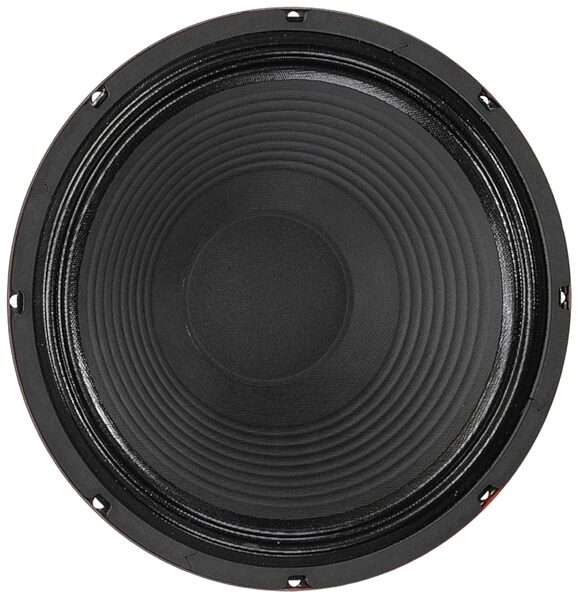

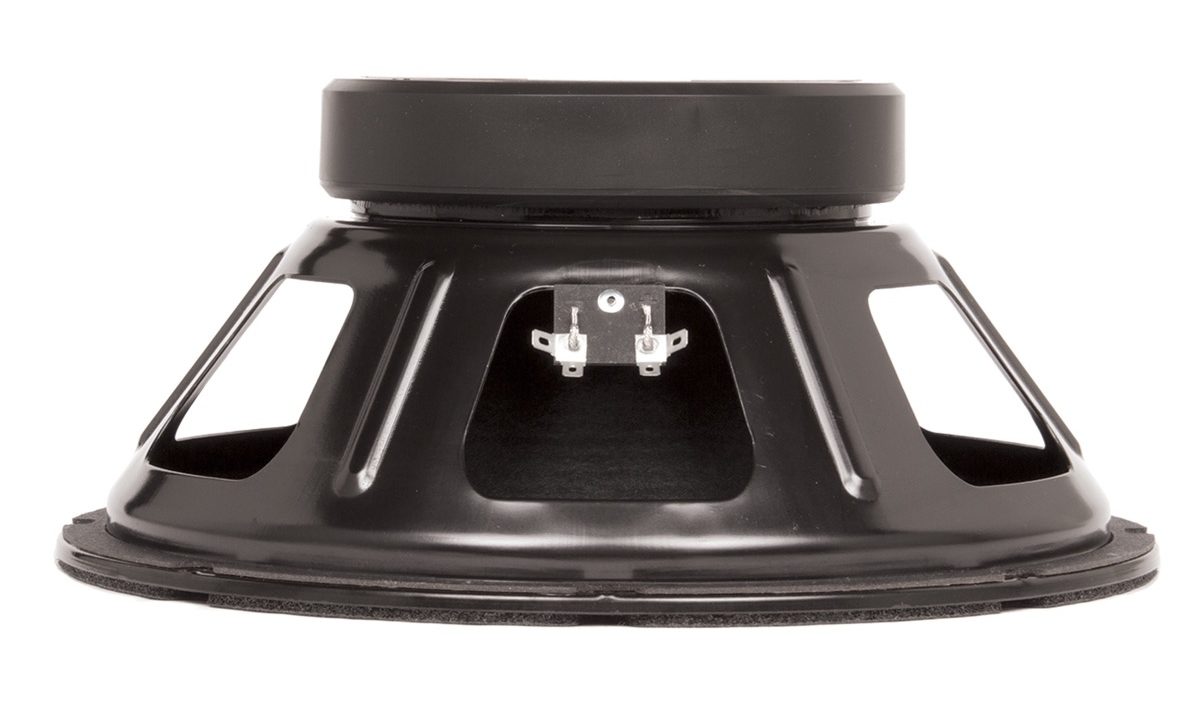

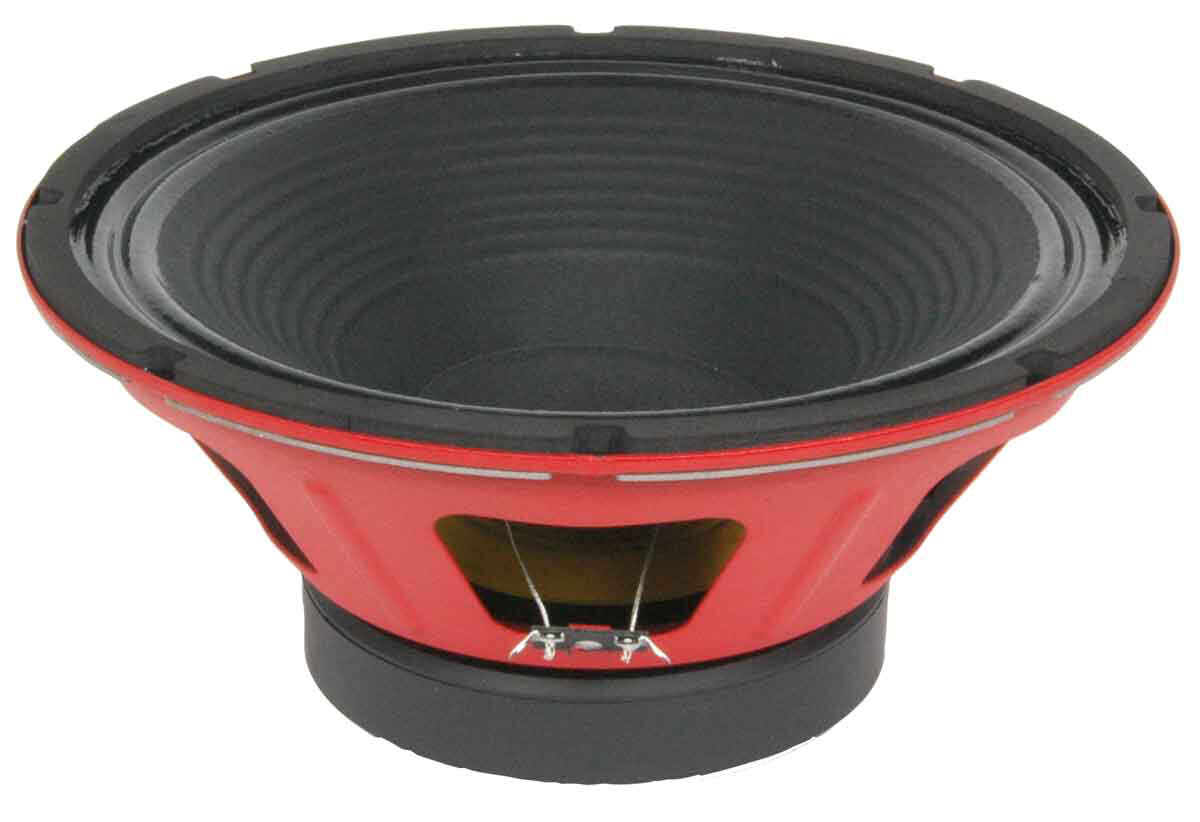

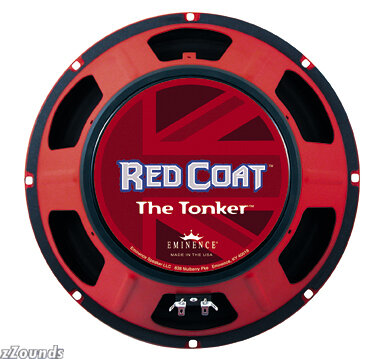

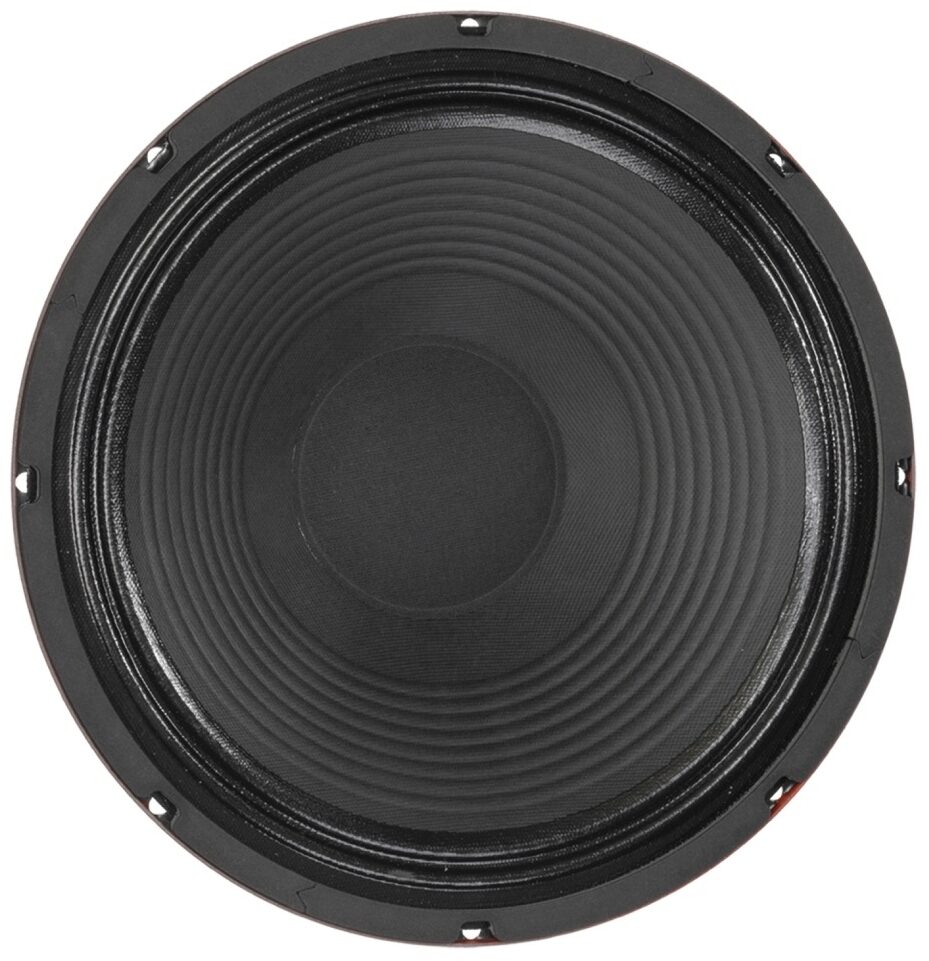

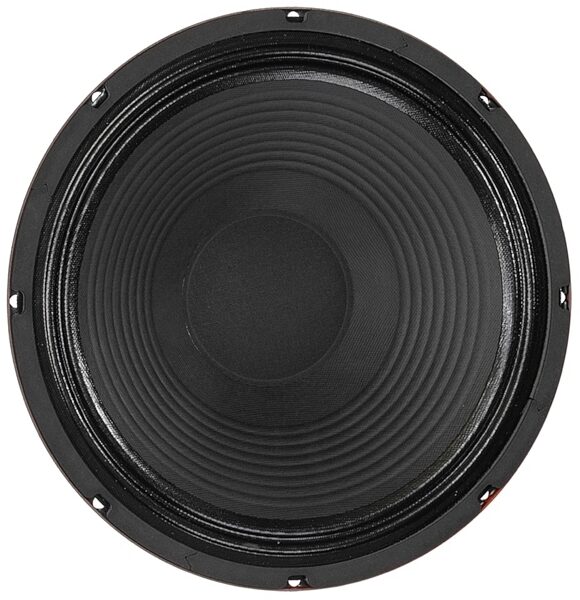

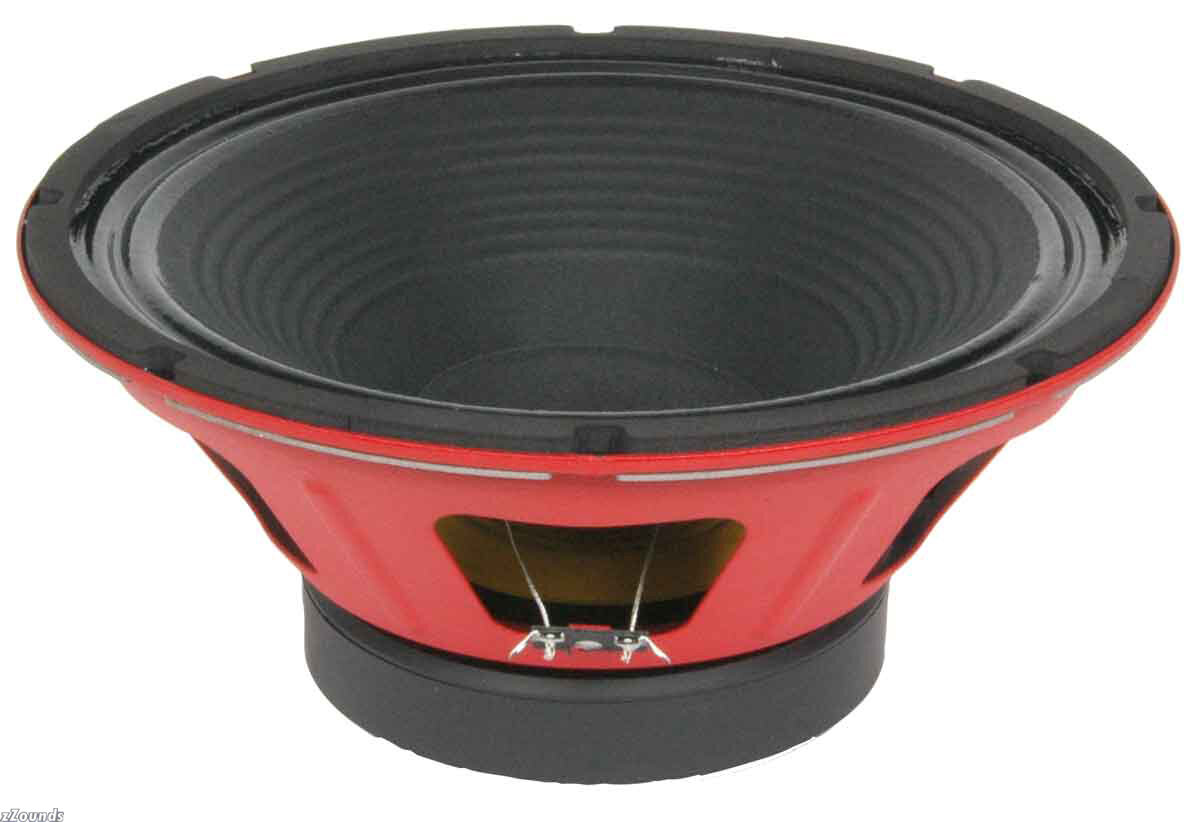

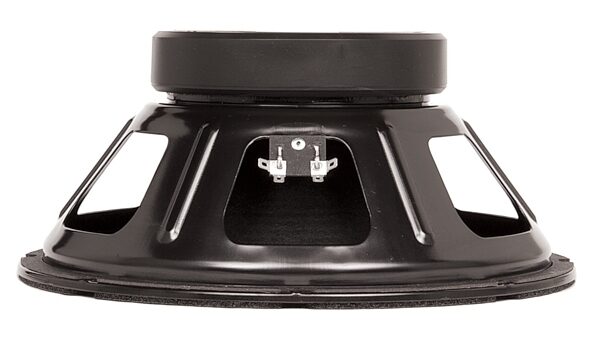

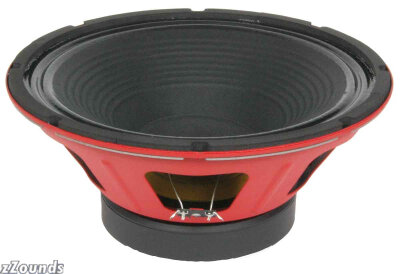

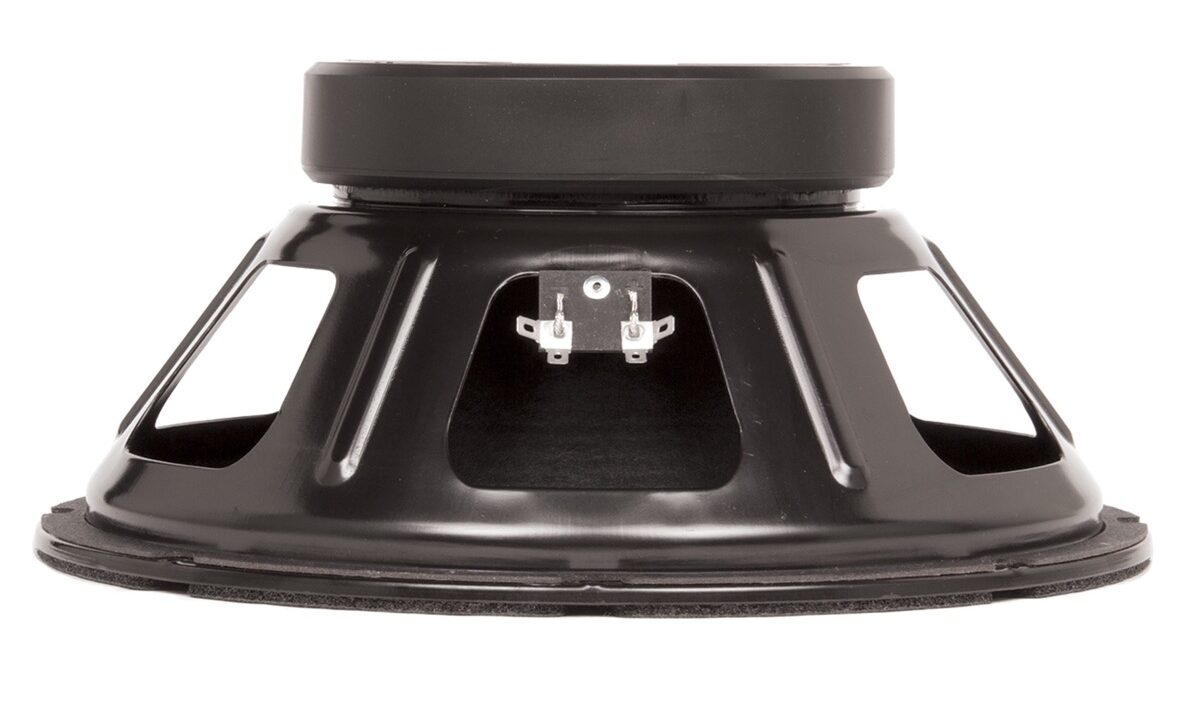

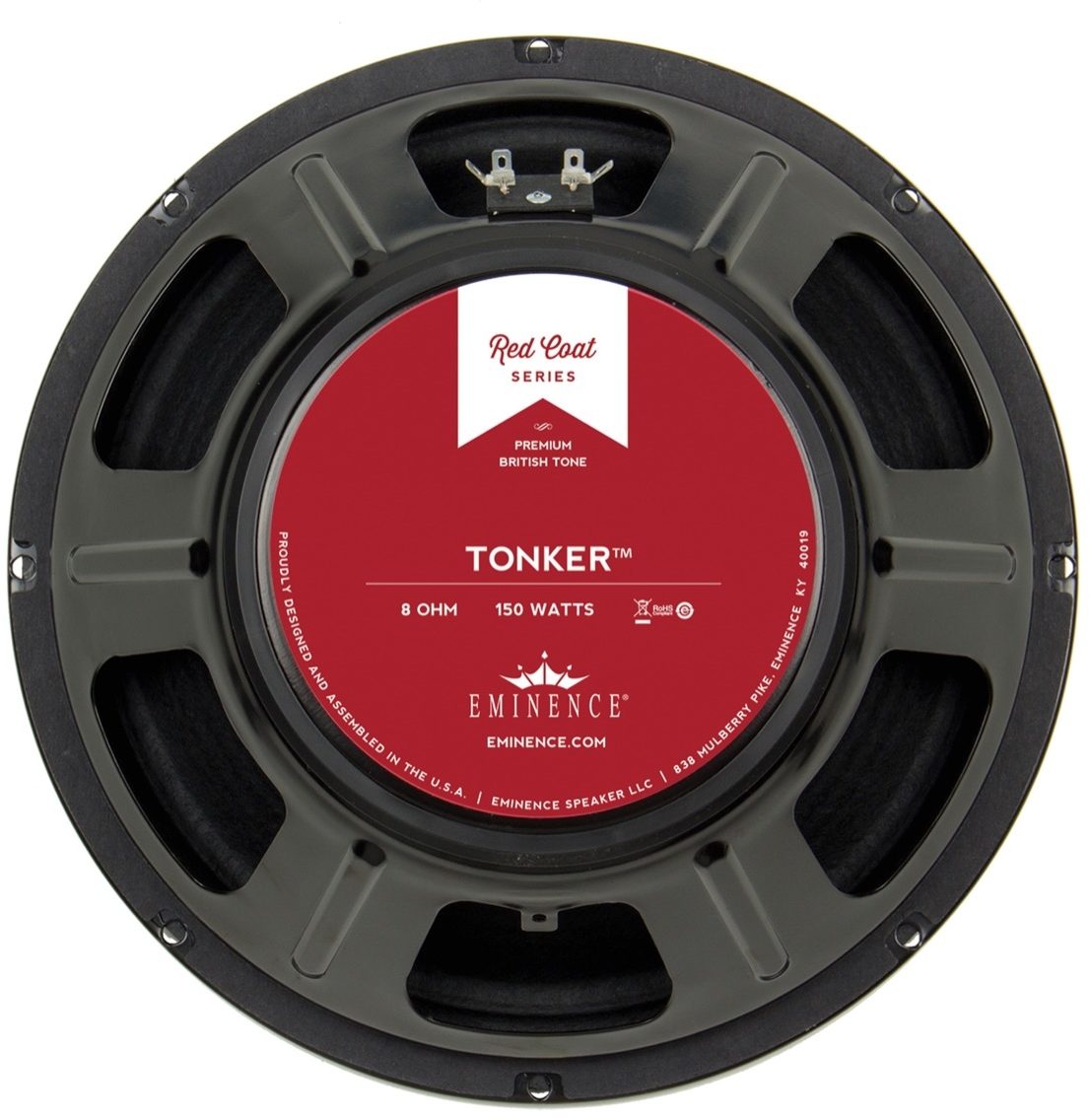

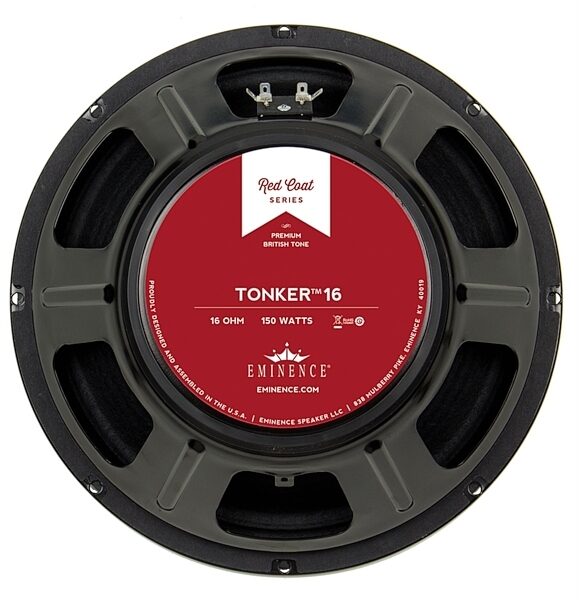

Eminence Tonker Vintage Guitar Speaker (150 Watts, 12in.)

Direct from the Eminence Red Coat series arrives the Tonker. The Tonker is a hard hitting 12 in. speaker that provides that British flavor players crave for but the harmonic balance to properly tackle any genre. This speaker excels in English, Southern and Country rock genres for that reason. If you own a Telecaster your tone will thank you for using the Tonker.

When Eminence was asked to create a speaker with a very fat clean sound in the mid-range but still a very smooth top end they created the Tonker. Available in 16 and 8 ohms versions.

Technical Info

Specification
Nominal Basket Diameter: 12 in, 304.8mm
Nominal Impedance: 8 ohms
Power Rating: 150W
Music Program Resonance: 89Hz
Usable Frequency Range: 70Hz-5.5kHz
Sensitivity: 102
Magnet Weight: 59 oz.
Gap Height: 0.312 in., 7.92mm
Voice Coil Diameter: 2 in., 50.8mm

Thiele and Small Parameters
Resonant frequency (fs): 89Hz
DC resistance (Re): 7.36
Coil Inductance (Le): 0.47mH
Mechanical Q (Qms): 10.02
Electromagnetic Q (Qes): 0.49
Total Q (Qts): 0.47
Compliance equivalent volume (Vas): 34.1 liters / 1.2 cu. ft.
Peak diaphragm displacement volume (Vd): 42cc
Mechanical compliance of suspension (Cms): 0.09mm/N
BL product (BL): 17.4 T-M
Diaphram mass inc. airload (Mms): 36 g
Efficiency bandwidth product (EBP): 181
Maximum linear excursion (Xmax): 0.8mm
Surface area of cone (Sd): 519.5 cm2
Maximum mechanical limit (Xlim)

Mounting Information
Recommended Enclosure
Sealed: Acceptable
Vented: Acceptable
Overall Diameter: 12.02 in., 305.3mm
Baffle hole diameter: 10.97 in., 278.6mm
Front sealing gasket: fitted as standard
Rear sealing gasket: fitted as standard
Mounting holes diameter: 0.25 in., 6.4mm
Mounting holes B.C.D.: 11.63 in., 295.4mm
Depth: 5.2 in., 132mm
Net Weight: 11.1 lbs., 5 kg
Shipping Weight: 13.2 lbs., 6 kg

Materials of Construction
Coil construction: copper voice coil
Coil former: polyimide former
Magnet composition: ferrite magnet
Core details: non-vented core
Basket materials: pressed steel basket
Cone composition: paper Cone
Cone edge composition: paper cone edge
Dustcap composition: zurette dust cap

Important Note

Watts: The guaranteed long term power rating throughout the usable frequency range of the speaker.

(Translation: the speaker will operate continuously at any frequency within the speakers specified frequency range when driven at this power. The "Watts" rating is similar to RMS, but is really more indicative of long term thermal capability.)

Music Program: The speaker will safely and reliably handle the varying frequencies of musical content at this power rating. The "Music Program" rating is more indicative of what you can expect in the real world with the speaker operating within the appropriate enclosure reproducing music or vocal audio program.
