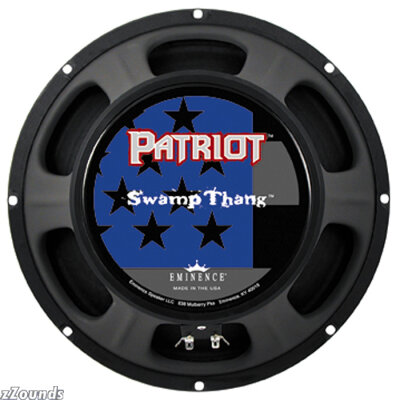

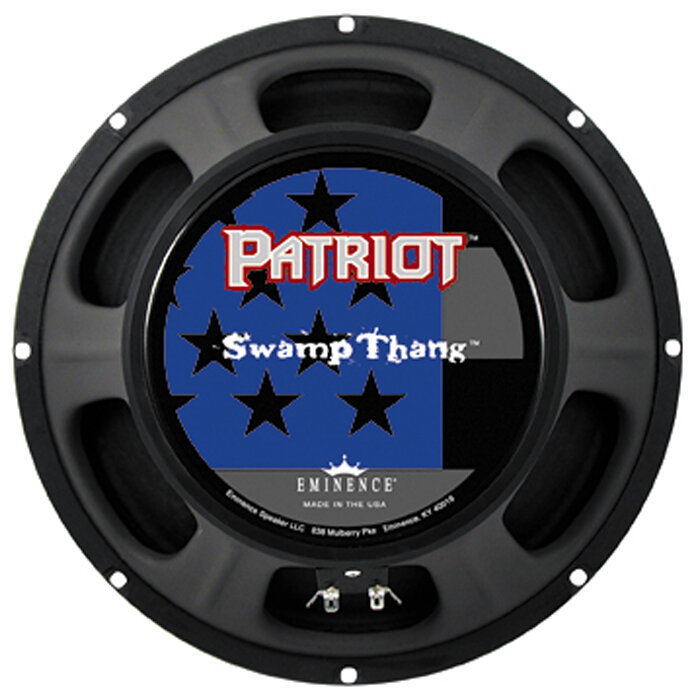

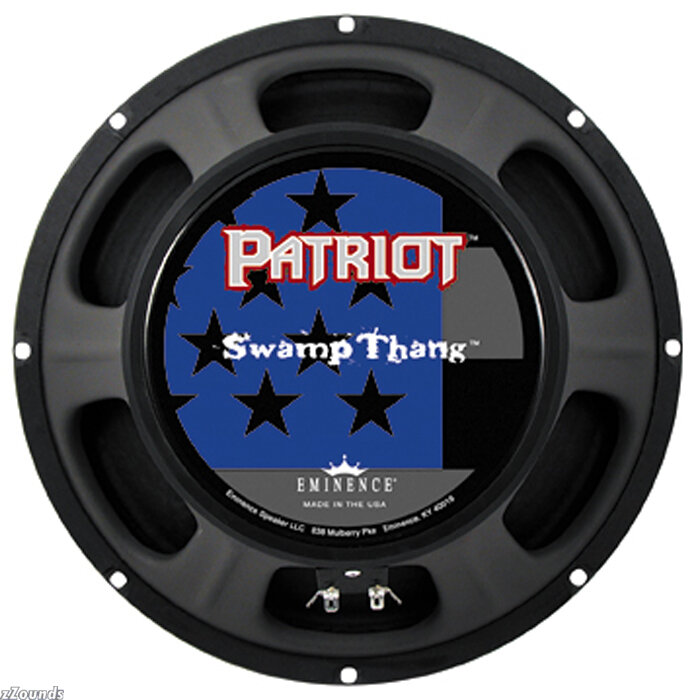

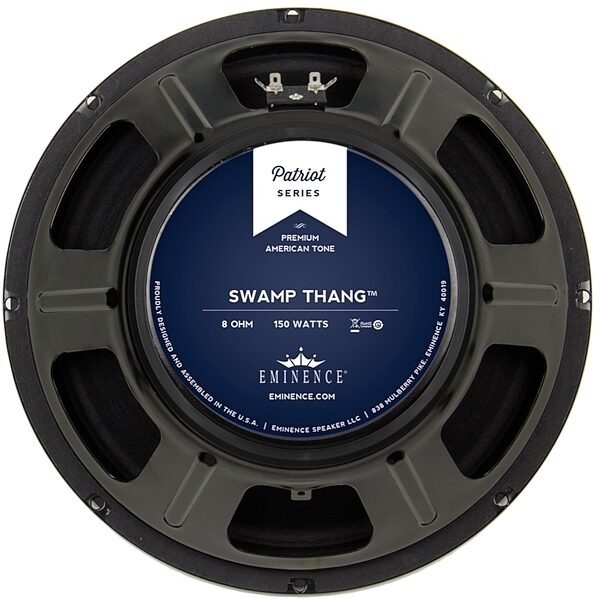

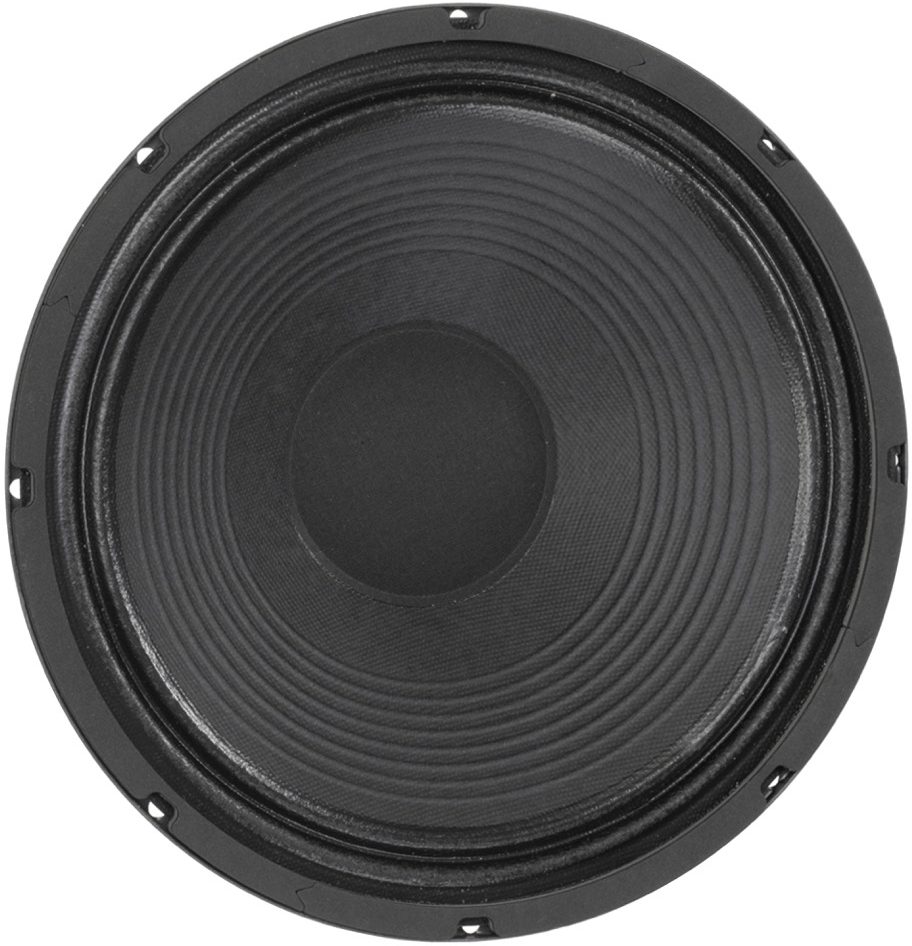

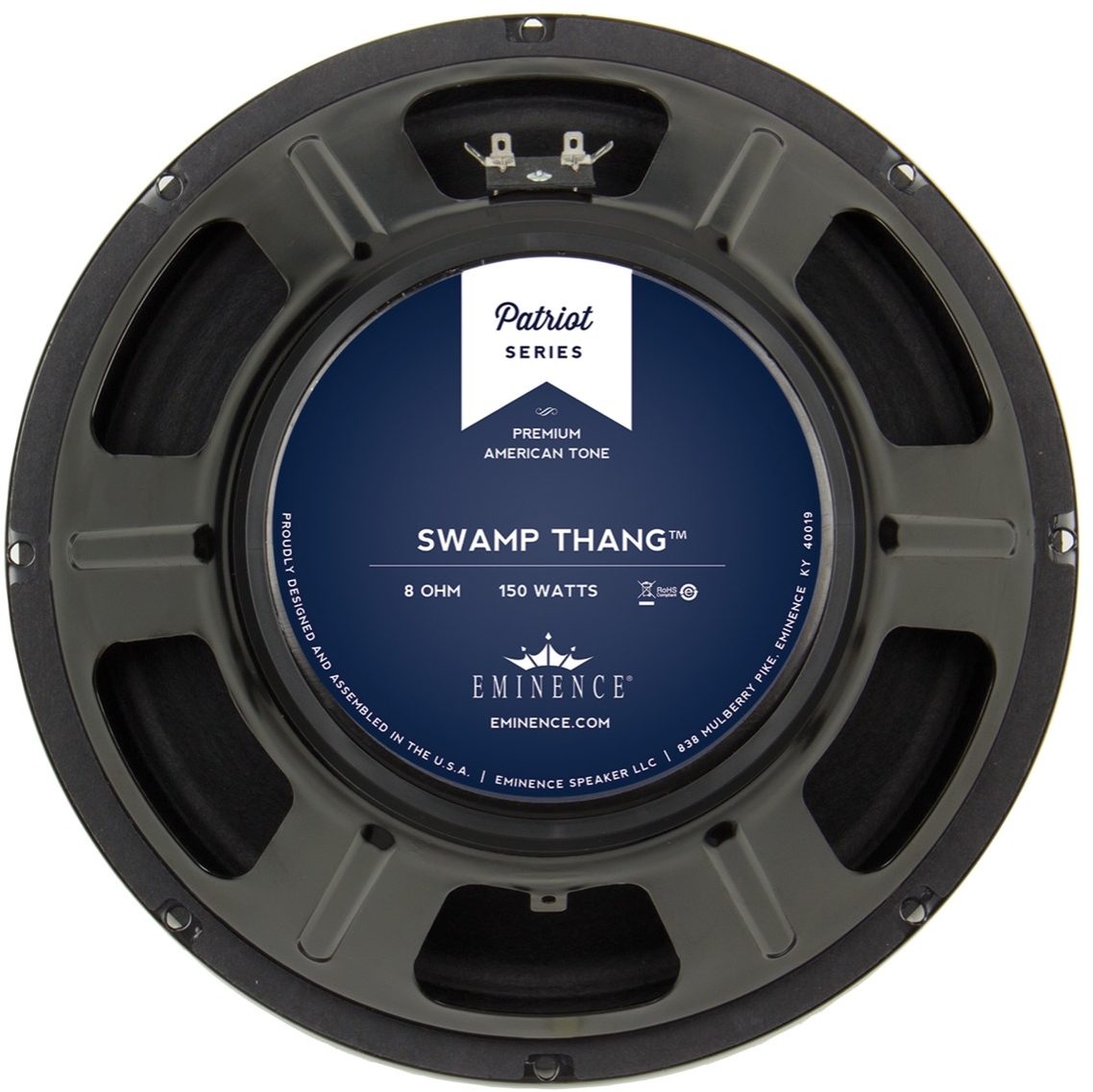

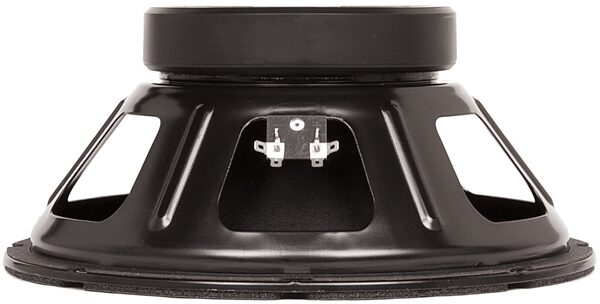

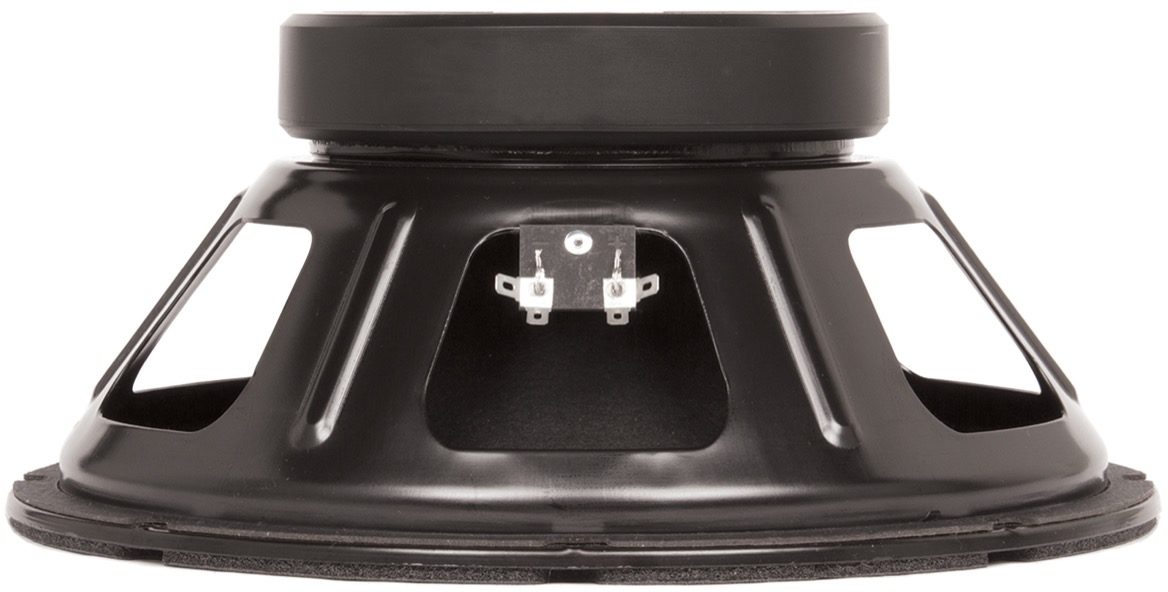

Eminence Swamp Thang Guitar Speaker (150 Watts, 12 in.)

The Eminence Swamp Thang is perfect for that time where you gotta run through a jungle. Thick dirty bite or searing smooth tone are both things this speaker excels at.

Technical Info

Specifications

Nominal Basket Diameter: 12 inch, 304.8mm

Nominal Impedance*: 8 ohms

Power Rating - Music: Watts 150W, Program: n/a

Resonance: 97Hz

Usable Frequency Range: 70Hz-5kHz

Sensitivity***: 102

Magnet Weight: 59 oz.

Gap Height: 0.312 inch, 7.92mm

Voice Coil Diameter: 2 inch, 50.8mm

Thiele & Small Parameters
Resonant Frequency (fs): 97Hz

DC Resistance (Re): 6.92

Coil Inductance (Le): 0.42mH

Mechanical Q (Qms): 14.43

Electromagnetic Q (Qes): 0.55

Total Q (Qts): 0.53

Compliance Equivalent Volume (Vas): 41.3 liters / 1.5 cu. ft.

Peak Diaphragm Displacement Volume (Vd): 43cc

Mechanical Compliance of Suspension (Cms): 0.10mm/N

BL Product (BL): 14.2 T-M

Diaphram Mass inc. Airload (Mms): 26 grams

Efficiency Bandwidth Product (EBP): 177

Maximum Linear Excursion (Xmax): 0.8mm

Surface Area of Cone (Sd): 532.4 cm2

Maximum Mechanical Limit (Xlim):

Mounting Information
Recommended Enclosure: Sealed: Acceptable, Vented: Acceptable

Overall Diameter: 12.01 inch, 305.1mm

Baffle Hole Diameter: 10.95 inch, 278.1mm

Front Sealing Gasket: fitted as standard

Rear Sealing Gasket: fitted as standard

Mounting Holes Diameter: 0.25 inch, 6.4mm

Mounting Holes B.C. D.: 11.63 inches, 295.4mm

Depth: 5.2 inches, 132mm

Net Weight: 11.1 lbs., 5 kg

Shipping Weight: 12.8 lbs., 5.8 kg

Materials of Construction
Coil Construction: Copper voice coil

Coil Former: Polyimide former

Magnet Composition: Ferrite magnet

Core Details: Non-vented core

Basket Materials: Pressed steel basket

Cone Composition: Paper Cone

Cone Edge Composition: Paper cone edge

Dustcap Composition: Zurette dust cap

Footnotes

** Multiple units exceed published rating evaluated under EIA 426A noise source and test standard while in a free-air, non-temperature controlled environment.

*** The average output across the usable frequency range when applying 1W/1M into the nominal impedance. Ie: 2.83V/8ohms, 4V/16ohms. Eminence response curves are measured under the following conditions: All speakers are tested at 1w/1m using a variety of test set-ups for the appropriate impedance | LMS using 0.25” supplied microphone (software calibrated) mounted 1m from wall/baffle | 2ft. X 2ft. baffle is built into the wall with the speaker mounted flush against a steel ring for minimum diffraction | Hafler P1500 Trans-Nova amplifier | 2700 cu.ft. chamber with fiberglass on all six surfaces (three with custom-made wedges).

**** BETA 8CX, 10CX, 12CX and ACOUSTINATOR CX2008 are coaxial speakers with tweeter sold separately. Published Usable Frequency response contingent upon use of APT 50 HF Driver.
