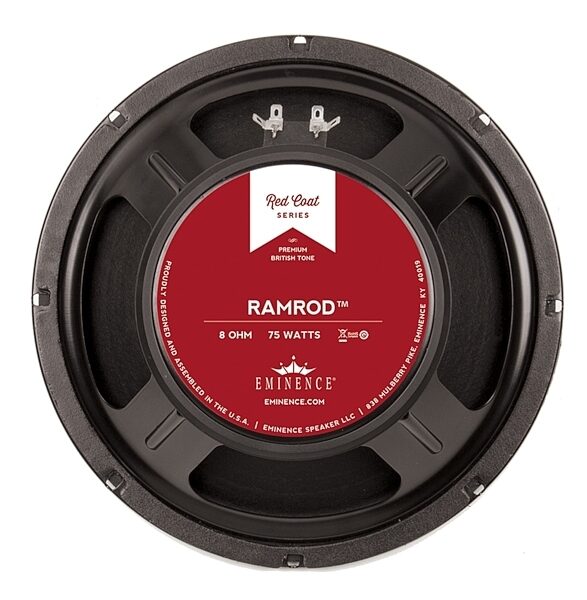

Eminence Ramrod Red Coat Guitar Speaker (75 Watts, 10 in.)

Very loud, gutsy, and meaty tone with singing highs and nice, clear overtones.

Technical Info

Specifications

Impedance: 8 or 16 ohms

Power Rating**: 75W RMS

Voice Coil Diameter: 1.5 in., 38.1mm

Coil Material: Copper

Flat/Round Coil Wire: Round

Coil Former Material: Kapton

Basket Type: Stamped

Cone Surround Material: Paper

Dust Cap Material: Zurette

Magnet Weight: 30 oz.

Usable Bandwidth (Fs to -3dB): 70Hz - 5kHz

SPL*: 100dB

* = Published sensitivity is an average of multiple points representing the measured output of the device (1W-1m) across the usable frequency range from 200Hz-5kHz.

** = EIA 426A noise source and test standard. Eminence voice coil technology often results in guitar speakers that dramatically exceed the power rating of other manufacturer's products. Such ratings are not meant to imply the Eminence woofers are not equally suitable for lower-power "Class A" valve amplifiers as they are for high gain valve and transistor amplification.

Mounting Information

Nominal Basket Diameter: 10.11 in. (256.8 mm)

Baffle Hole Diameter: 9.125 in. (231.8 mm)

Mounting Holes Diameter: 0.225 in. (5.7 mm)

Mounting Holes B.C.D.: 9.5 in. (243.8 mm)

Depth: 4.3 in. (109.2 mm)

Shipping Weight: 9 lbs. (4.1 kg.)

Important Note

Watts: The guaranteed long term power rating throughout the usable frequency range of the speaker.

(Translation: the speaker will operate continuously at any frequency within the speakers specified frequency range when driven at this power. The "Watts" rating is similar to RMS, but is really more indicative of long term thermal capability.)

Music Program: The speaker will safely and reliably handle the varying frequencies of musical content at this power rating. The "Music Program" rating is more indicative of what you can expect in the real world with the speaker operating within the appropriate enclosure reproducing music or vocal audio program.
