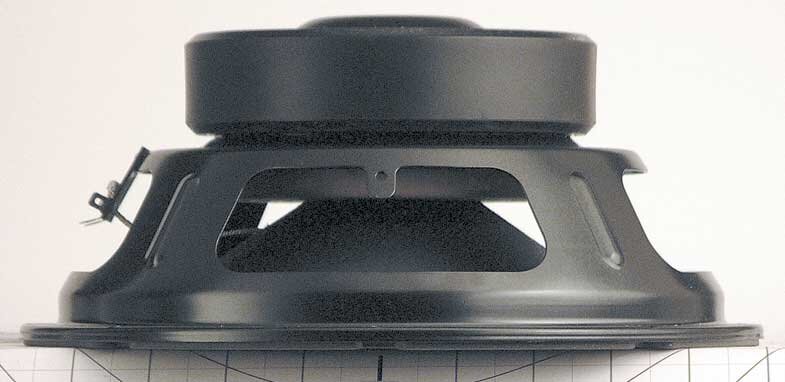

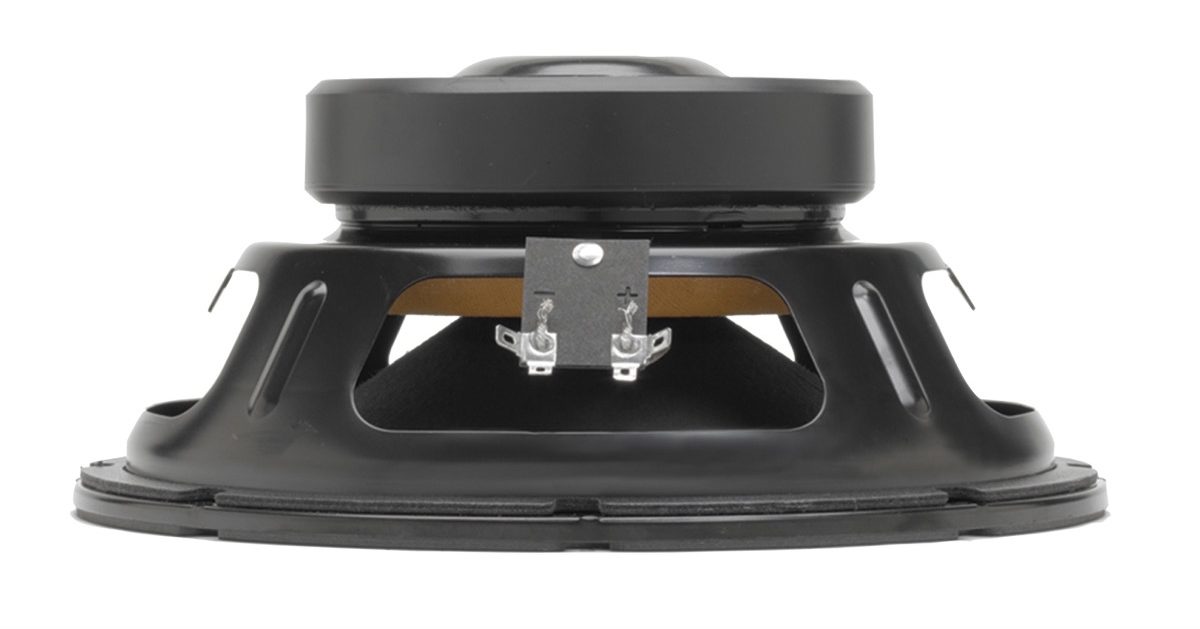

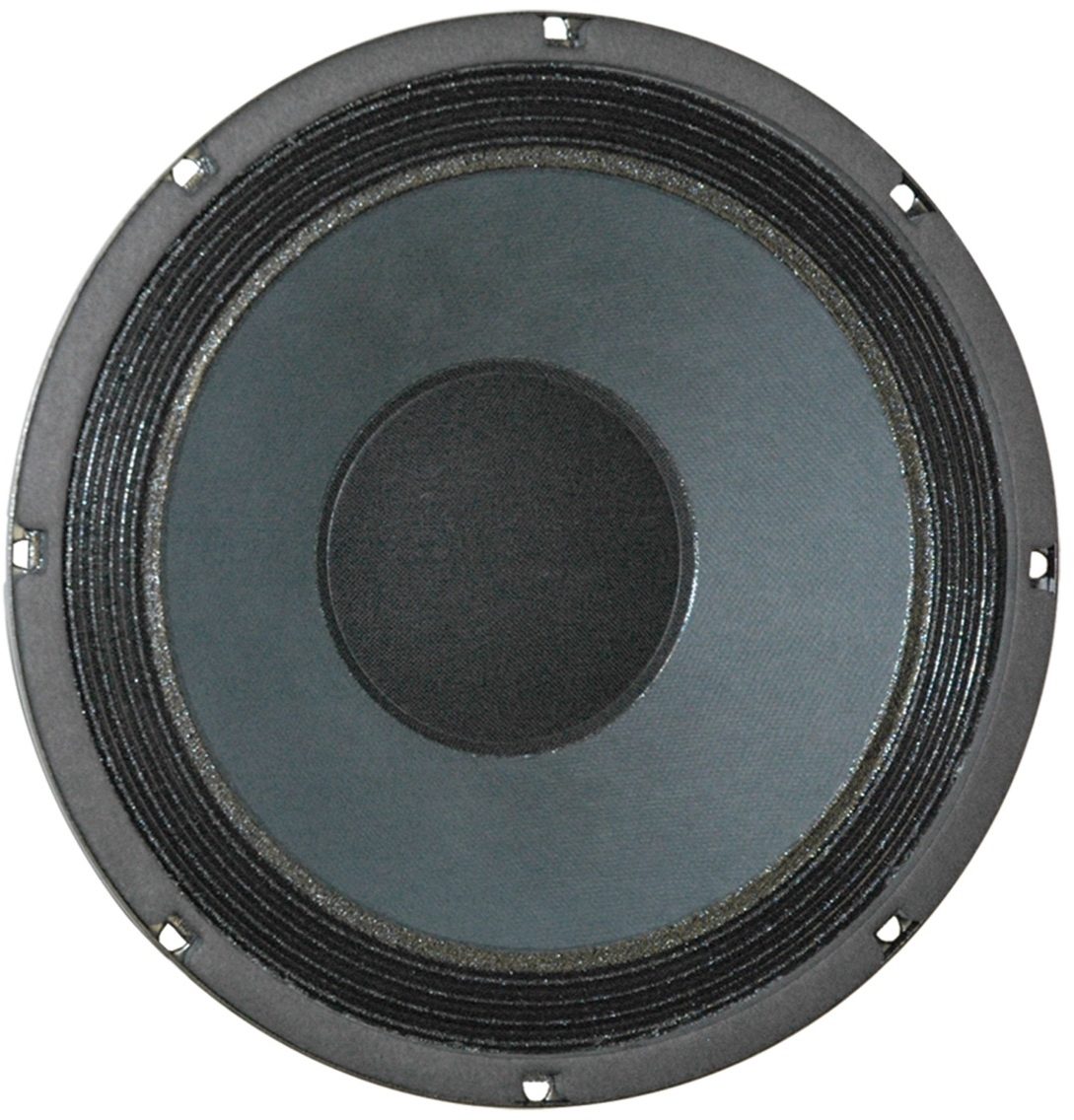

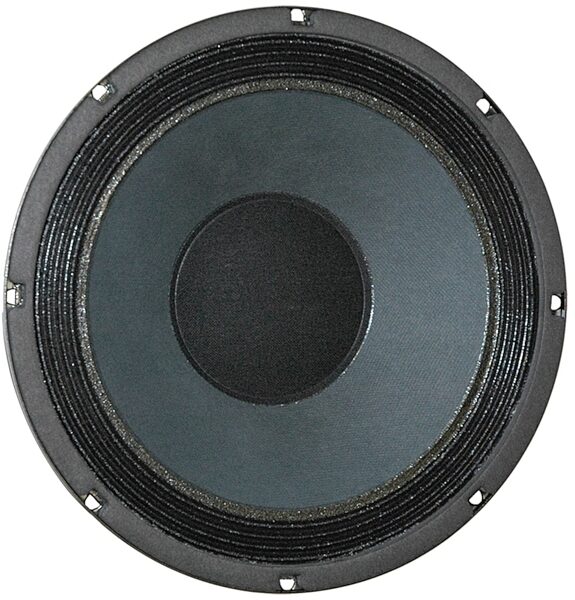

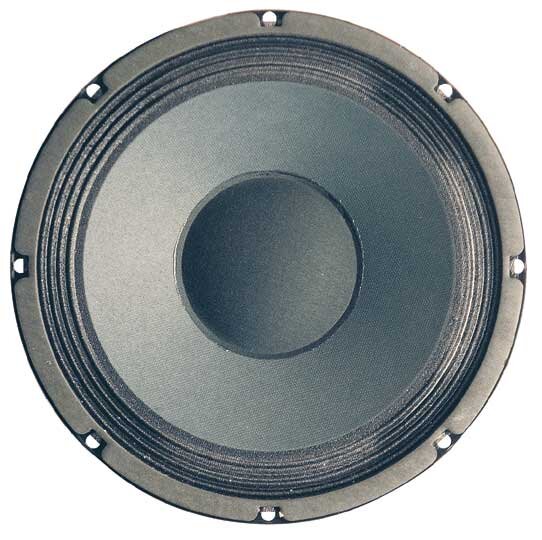

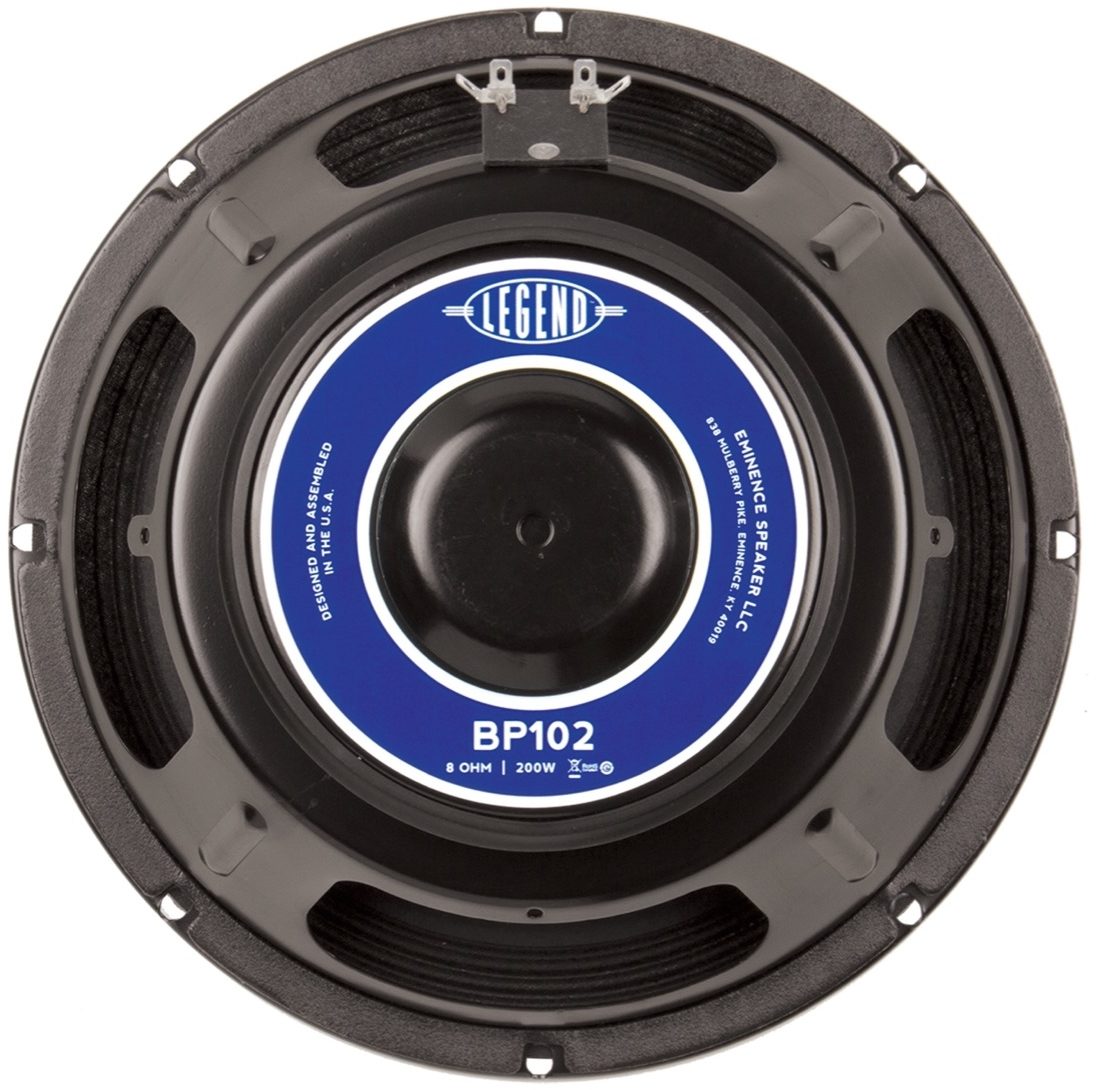

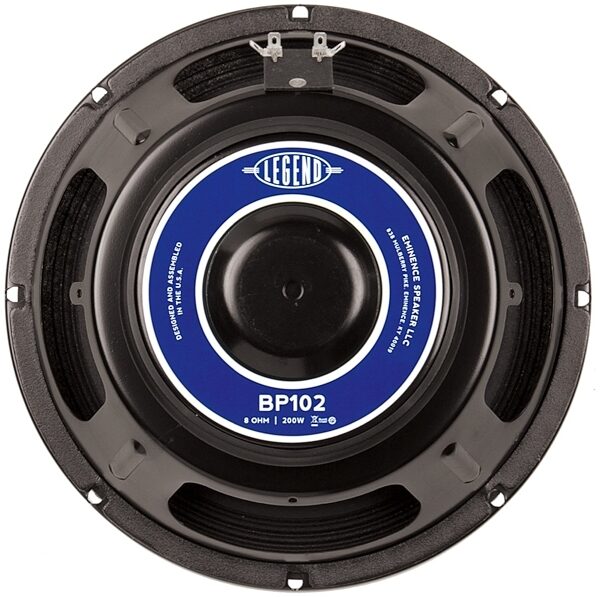

Eminence Legend BP102 Bass Speaker (200 Watts, 10 in.)

Eminence Legend BP102 Bass Speaker (200 Watts, 10 in.)
Back by popular demand! The Legend BP102 has been a staple product for many bass guitar wonders over the past 10 years. Eminence has had so many requests for this speaker, Eminence couldn't refuse to put it in their catalog. This is a favorite for 3X, 4X, and 8X10 cabinets! Don't let the sensitivity fool you, this speaker will really punch out the bass with authority. It also works great as a mid in PA applications or in a three-way bass cabinet.

Eminence Guitar Legends are specially designed for electric guitar amplifiers. Tuned by skilled ears, these hand-built specials feature a range of materials and ideas from nearly 40 years experience. Models such as the LEGEND B15, 121 and Modeling 12 are state of the art designs which meet the modern-day demand for power handling while other models feature vintage magnet and cone materials to recreate the traditional sounds of lead and jazz guitar.

The most difficult aspect of presenting a guitar speaker to the world is being able to describe its tonal characteristics. Your choice of guitar speakers is at least as important as your choice of pickups or strings. Just as you customize a guitar to suit your sound, so too can you customize - or 'hot rod' - your combo with Eminence loudspeakers.

Technical Info

Specifications

Impedance: 8 ohms
Power Rating: 200Wrms
Music Program: 400W
Voice Coil Diameter: 2 in., 50.8mm
Coil Material: Copper
Flat/Round Coil Wire: Round
Coil Former Material: Kapton
Basket Type: Stamped Steel
Cone Surround Material: Cloth
Dust Cap Material: Zurette
Magnet Weight: 38oz.
Usable Bandwidth (Fs to -3dB): 40Hz - 3.5kHz
SPL: 91dB

Mounting Information

Nominal Basket Diameter: 10.08 in., 256.0mm
Baffle Hole Diameter: 9.05 in., 229.9mm
Mounting Holes Diameter: 0.25 in., 6.4mm
Mounting Holes B.C.D.: 9.67 in., 245.6mm
Depth: 4.25 in., 108mm
Shipping Weight: 8.7 lbs., 4.0 kg.
Thiele-Small Parameters

Resonant Frequency (fs): 40Hz
Impedance (Re): 5.54 ohms
Coil Inductance (Le): 1.27mH
Electromagnetic Q (Qes): 0.5
Mechanical Q (Qms): 5.5
Total Q (Qts): 0.46
Compliance Equivalent Volume (Vas): 64 liters, 2.26 cu. ft.
Mechanical Compliance of Suspension (Cms): 0.41mm/N
BL Product (BL): 10.44 T-M
Diaphragm Mass inc. Airload (Mms): 39 grams
Equivalent Resistance of Mechanical Suspension Loss (Rms): 1.78N*sec/M
Efficiency Bandwidth Product (EBP): 80
Voice Coil Overhang (Xmax): 6.2mm
Surface Area of Cone (Sd): 334.5cm^2

Important Note

Watts: The guaranteed long term power rating throughout the usable frequency range of the speaker.

(Translation: the speaker will operate continuously at any frequency within the speakers specified frequency range when driven at this power. The "Watts" rating is similar to RMS, but is really more indicative of long term thermal capability.)

Music Program: The speaker will safely and reliably handle the varying frequencies of musical content at this power rating. The "Music Program" rating is more indicative of what you can expect in the real world with the speaker operating within the appropriate enclosure reproducing music or vocal audio program.
