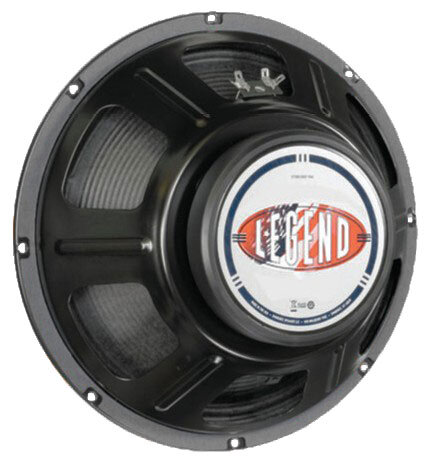

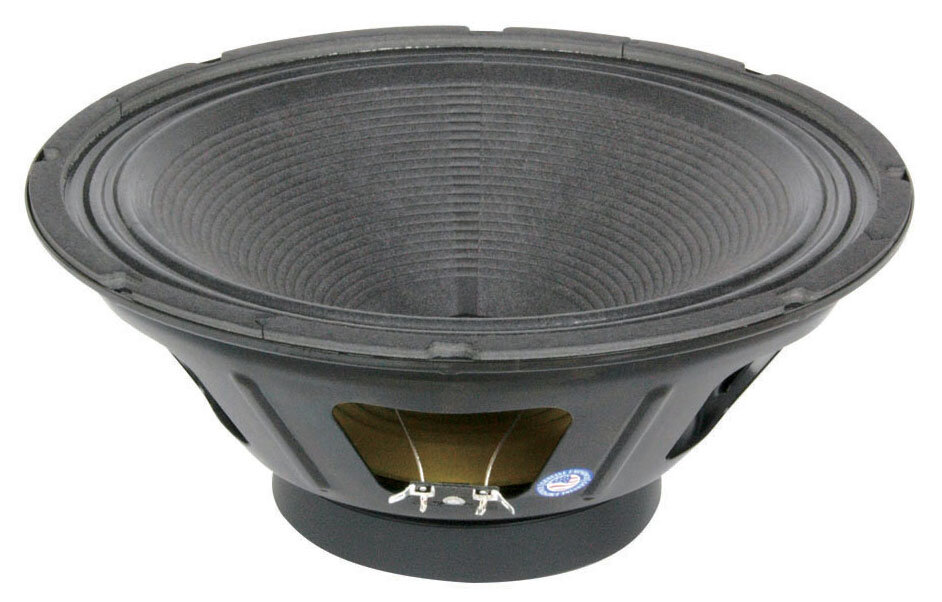

Eminence Guitar Legend 125 Speaker (75 Watts, 12")

Eminence Guitar Legend 125 Speaker (75 Watts, 12"), 8 Ohms, Side

Load your cabinet with the 8-ohm Eminence Legend 125 speaker for smooth response and vintage tone, thanks to its ferrite magnet and Kapton coil former.

Overview

Producing a pure vintage tone, the Eminence Guitar Legend 125 Speaker is used in reissues of some of your favorites. Its nice, smooth response curve produces superb, classic blues tonal characteristics. It can be used as a replacement or upgrade.

Features:

- Kapton coil former
- Ferrite magnet
- Pressed steel basket
- Polyamide-imide coated copper voice coil
- Paper cone/paper cone edge
- Solid composition paper dust cap

Take an in-depth tour of the Eminence speaker factory:

The World's Favorite Guitar Speakers

Eminence Guitar Legends are specially designed for electric guitar amplifiers. Tuned by skilled ears, these hand-built specials feature a range of materials and ideas from over 30 years of experience.

Specs

- Impedance: 8 ohms
- Power Rating: 75W rms
- Usable bandwidth (Fs - 3db): 80Hz - 5kHz
- Average Sensitivity 1w @ 1m: 102 dB
- Magnet Weight: 34 oz.
- Voice Coil Diameter: 1.5", 38.1mm

Mounting Information
- Nominal Basket Diameter: 12.02", 305.2mm
- Baffle Hole Diameter 10.97", 278.6mm
- Mounting Holes Diameter: 0.25", 6.4mm
- Mounting Hole B.C.D.: 11.63", 295.3mm
- Depth: 4.9", 124mm
- Shipping Weight: 9.4 lbs., 4.3 kg

Thiele-Small Parameters
- Resonant Frequency: 94Hz
- Impedance (RE): 7.44 ohm
- Coil Inductance (Le): 0.70mH
- Electromagnetic Q (Qes): 1.18
- Mechanical Q (Qms): 6.15
- Total Q (Qts): 0.99
- Compliance Equivalent Volume (Vas): 32.5 liters/1.15 cu. ft.
- Peak Diaphragm Displacement Volume (Vd): 24cc
- Mechanical Compliance of suspension (Cms): 0.09mm/N
- BL Product (BL): 10.9 T-M
- Diaphragm Mass inc. Airload (Mms): 32 grams
- Equiv. Resistance of mechanical suspension loss (Rms): 3.07N*sec/M
- Efficiency Bandwidth Product (EBP): 79
- Voice Coil Overhang (Xmax): 0.5mm
- Surface Area of Cone (Sd): 506.7cm2
- Impedance at Resonance (Zmax): 46 ohm

Dimensions and Weight in Packaging
8 Ohms: Shipping Weight: 9.75 lbs; Shipping Dimensions: 14 x 14 x 7 in; Manufacturer Part Number (MPN): LG1258

Documents and Manuals

For support or warranty questions, please contact the manufacturer:
Phone: 502-845-5622

Reviews

(1 ratings)

Submitted October 14, 2017 by Pete G in San Andreas, CA

"Good upgrade from Celestion 70/80"

Overall:

(see rating details)

Verified Customer zZounds has verified that this reviewer made a purchase from us.

Upgrade from Celestion 70/80. USA made high quality material. This speaker weighs 3 lbs more than the one being replaced. Tighter bottom and smother highs just enough mids and my strat sounds balanced throuigh it.
