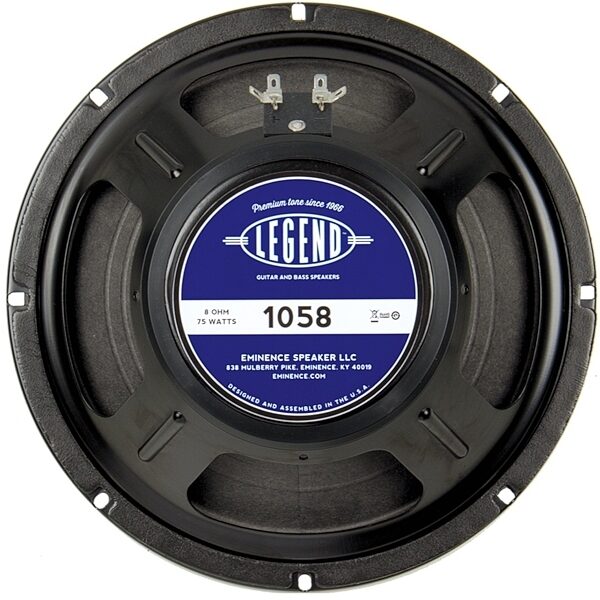

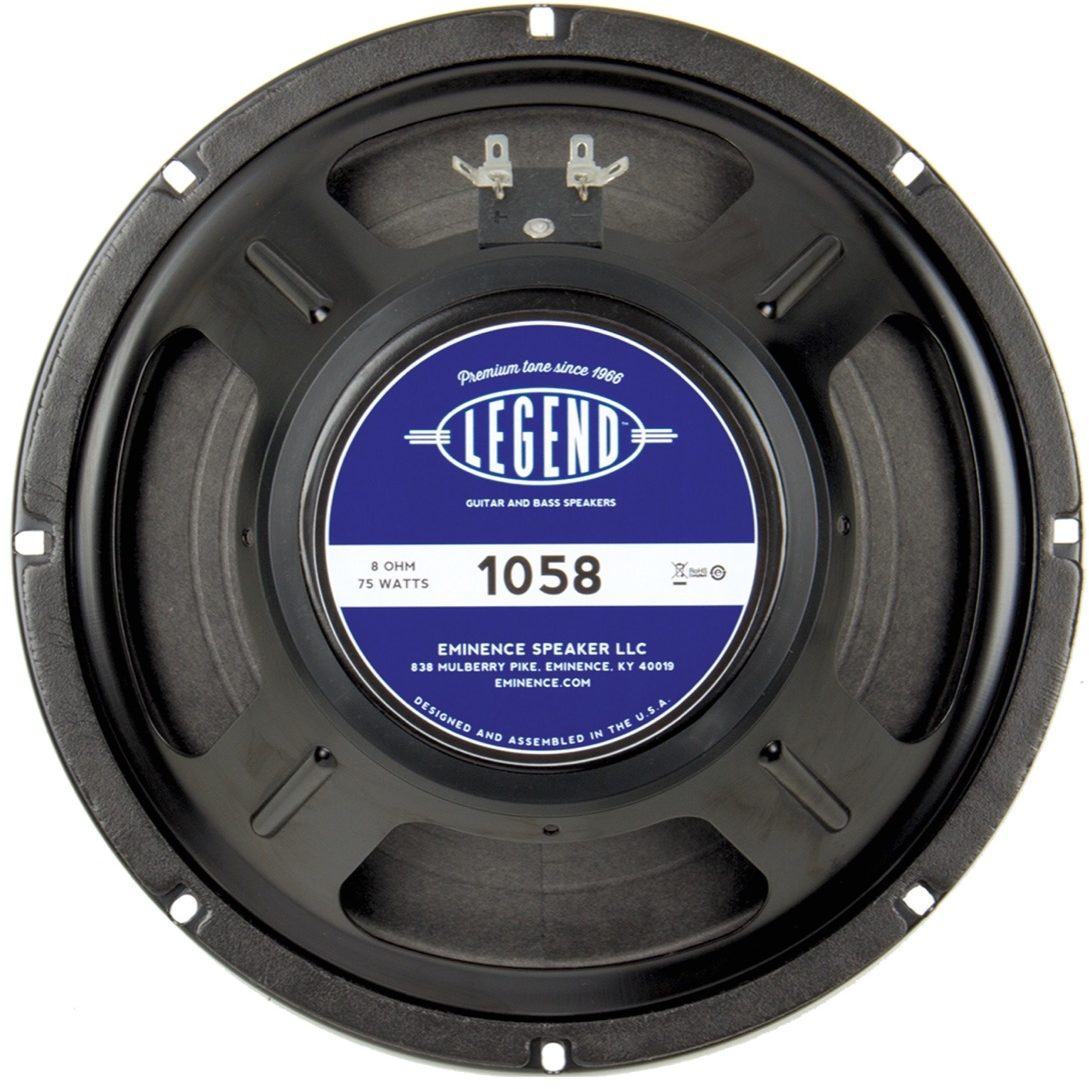

When you need a little extra power, this model is perfect as a general replacement. It has been and continues to be original equipment in many of your favorites. Lots of punch and crunch!
This is Greg Martin's favorite 10 in. He has them loaded in his Super Reverb! He suggests using this speaker in recording studios as well as in 4X10 cabinets for live gigs. Greg describes the tone as very 'jangly' with a meaty low-end and lots of honk. It would be a perfect speaker for anyone playing Country, Blues, or Rockabilly. This speaker works well with Rickenbacker guitars, a Super Reverb or a Super.
Technical Info
Impedance: 8 ohms or 16 ohms
Power Rating: 75Wrms
Voice Coil Diameter: 1.5 in., 38.1mm
Coil Material: Copper
Flat/Round Coil Wire: Round
Coil Former Material: Kapton
Basket Type: Stamped Steel

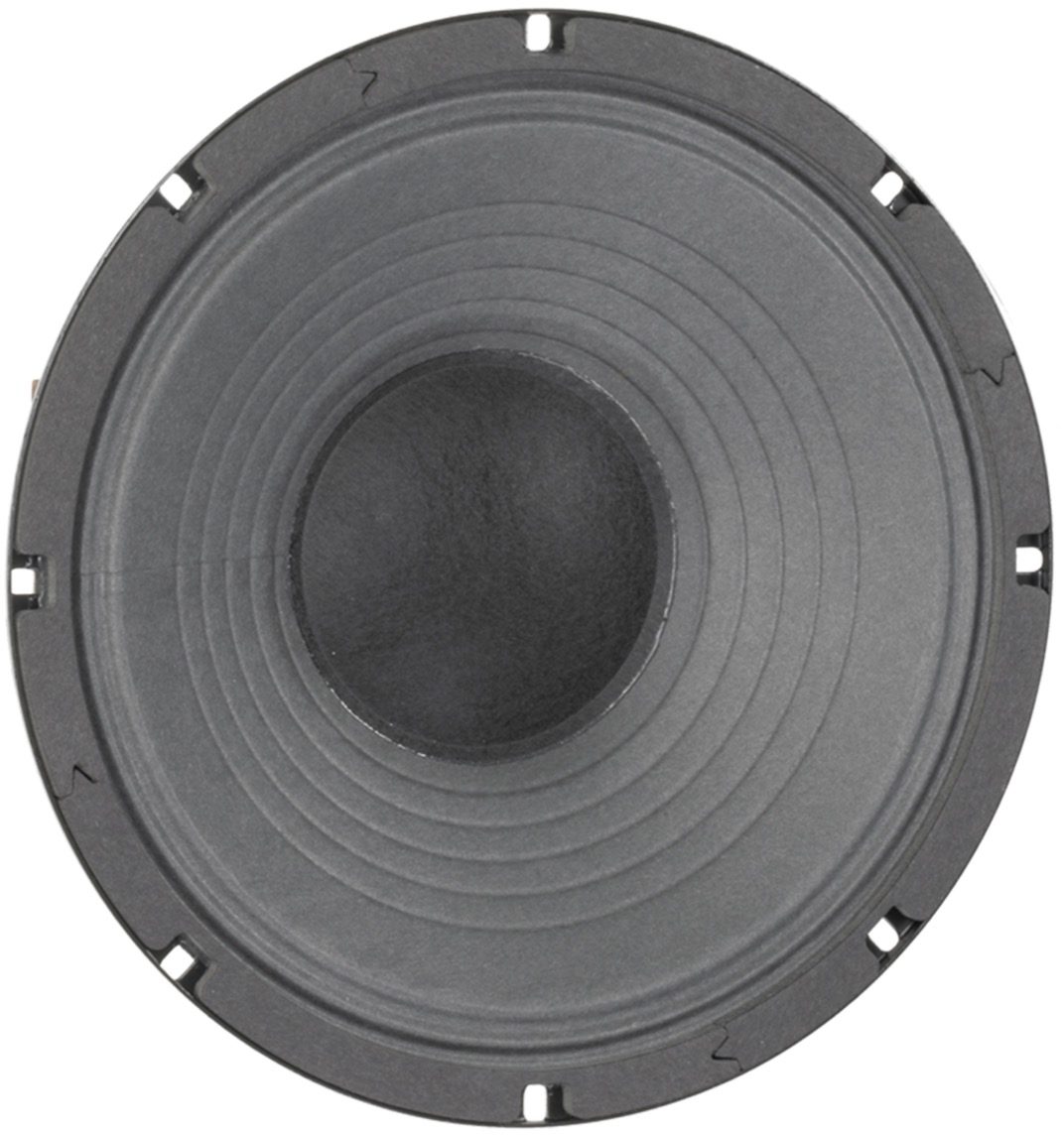

Cone Surround Material: Paper
Dust Cap Material: Felt
Magnet Weight: 16oz.

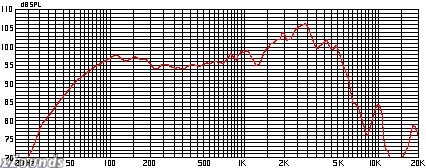

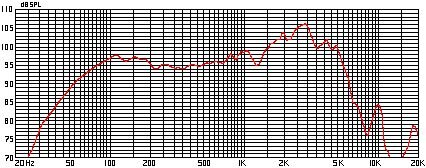

Usable Bandwidth (Fs to -3dB): 100Hz - 6kHz
SPL: 99dB

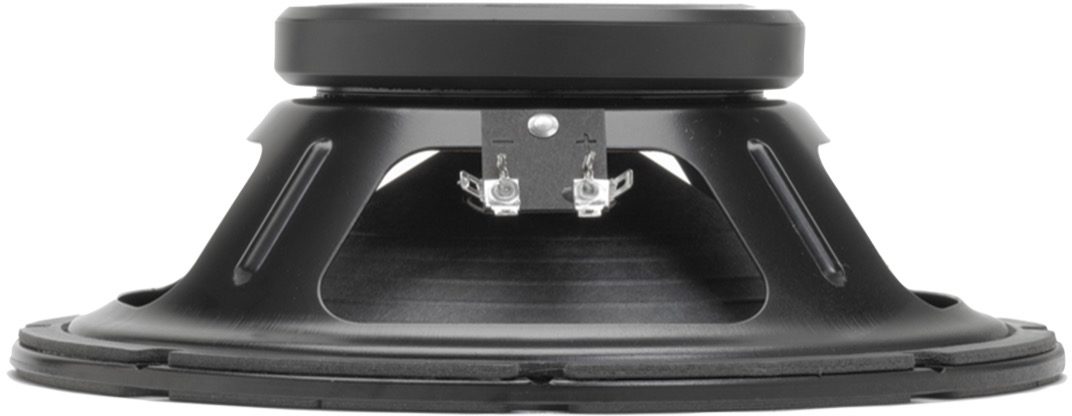

Mounting Information
Nominal Basket Diameter: 10.11 in., 256.8mm
Baffle Hole Diameter: 9.13 in., 231.8mm
Mounting Holes Diameter: 0.225 in., 5.7mm
Mounting Holes B.C.D.: 9.6 in., 243.8mm
Depth: 4.1 in., 103mm
Shipping Weight: 5.6 lbs., 2.6 kg.
Thiele-Small Parameters
Resonant Frequency (fs): 97Hz
Impedance (Re): 7.49 ohms
Coil Inductance (Le): 0.56mH
Electromagnetic Q (Qes): 1.21
Mechanical Q (Qms): 17.78
Total Q (Qts): 1.13
Compliance Equivalent Volume (Vas): 26.36 liters, 0.93 cu. ft
Peak Diaphragm Displacement Volume (Vd): 0cc
Mechanical Compliance of Suspension (Cms): 0.16mm/N
BL Product (BL): 8.0 T-M
Diaphragm Mass inc. Airload (Mms)
Equiv. Resistance of Mechanical: 17 grams
Suspension Loss (Rms): 0.58N*sec/M
Efficiency Bandwidth Product (EBP): 80
Voice Coil Overhang (Xmax): 0mm
Surface Area of Cone (Sd): 344.9cm2
Impedance at Resonance (Zmax): 118 Ohms
Important Note
Watts: The guaranteed long term power rating throughout the usable frequency range of the speaker.
(Translation: the speaker will operate continuously at any frequency within the speakers specified frequency range when driven at this power. The "Watts" rating is similar to RMS, but is really more indicative of long term thermal capability.)
Music Program: The speaker will safely and reliably handle the varying frequencies of musical content at this power rating. The "Music Program" rating is more indicative of what you can expect in the real world with the speaker operating within the appropriate enclosure reproducing music or vocal audio program.
