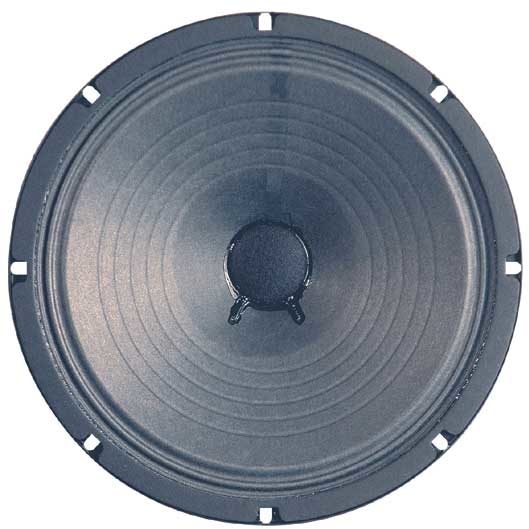

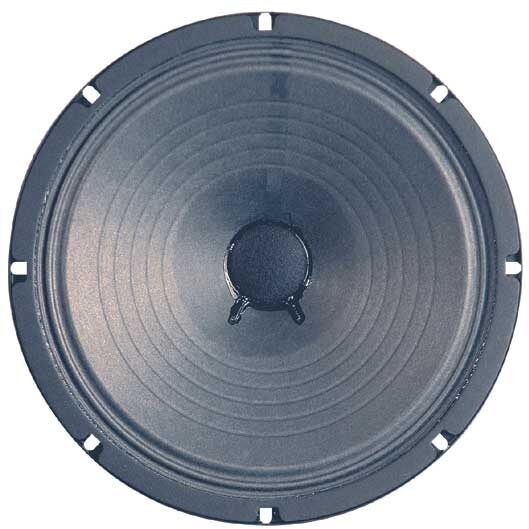

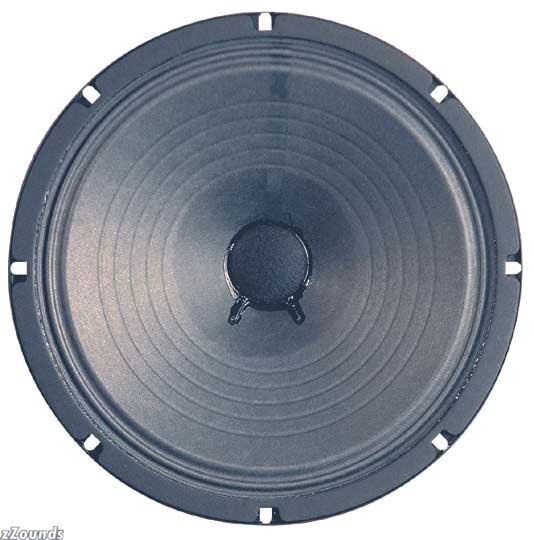

Eminence Legend 102 Guitar Speaker (35 Watts, 10 in.)

Eminence has been producing this AlNiCo model for some of the world's finest amplifier manufacturers for years. Even more popular than its AlNiCo sister, the 122, this classic lends that warm blues tone that has helped in making many of its users legendary. Like the 12 in. AlNiCo, this speaker was created for lower power, vintage amplifier applications where a thinner 'Jensen' tone is desired.

Make that old amp new again, or take a new one and make it sound old!

Technical Info

Impedance: 8 ohms or 16 ohms
Power Rating: 35Wrms
Voice Coil Diameter: 1 in., 25.4mm

Coil Material: Copper
Flat/Round Coil Wire: Round
Coil Former Material: Paper or Kapton
Basket Type: Stamped Steel
Cone Surround Material: Paper
Dust Cap Material: Felt
Magnet Weight: 6oz. ALNICO
Usable Bandwidth (Fs to -3dB): 100Hz - 6kHz
SPL: 98dB

Mounting Information
Nominal Basket Diameter: 10.01 in., 254.3mm
Baffle Hole Diameter: 9.05 in., 229.9mm
Mounting Holes Diameter: 0.22 in., 5.6mm
Mounting Holes B.C.D.: 9.6 in., 243.8mm
Depth: 4.8 in., 123mm
Shipping Weight: 4.4 lbs., 1.9 kg.

Thiele-Small Parameters (for 8 ohm/kapton former)
Power Rating: 35Wrms
Resonant Frequency (fs): 95Hz
Impedance (Re): 5.81 ohms
Coil Inductance (Le): 0.51mH
Electromagnetic Q (Qes): 1.61
Mechanical Q (Qms): 17.96
Total Q (Qts): 1.47
Compliance Equivalent Volume (Vas): 31.5 liters, 1.11 cu. ft.

Mechanical Compliance of Suspension (Cms): 0.19mm/N
BL Product (BL): 5.68 T-M
Diaphragm Mass inc. Airload (Mms): 15.0 grams
Equiv. Resistance of Mechanical
Suspension Loss (Rms): 0.50N*sec/M
Efficiency Bandwidth Product (EBP): 59.0
Voice Coil Overhang (Xmax): 2.0mm
Surface Area of Cone (Sd): 344.9cm2
