Eminence Beta-10CBMRA PA Speaker (400 Watts, 10")

No longer available at zZounds
This is a carousel with one large image and a track of thumbnails on the left side. Select any of the thumbnail buttons to change the main image. You may also use the left and right arrow keys to navigate between images.

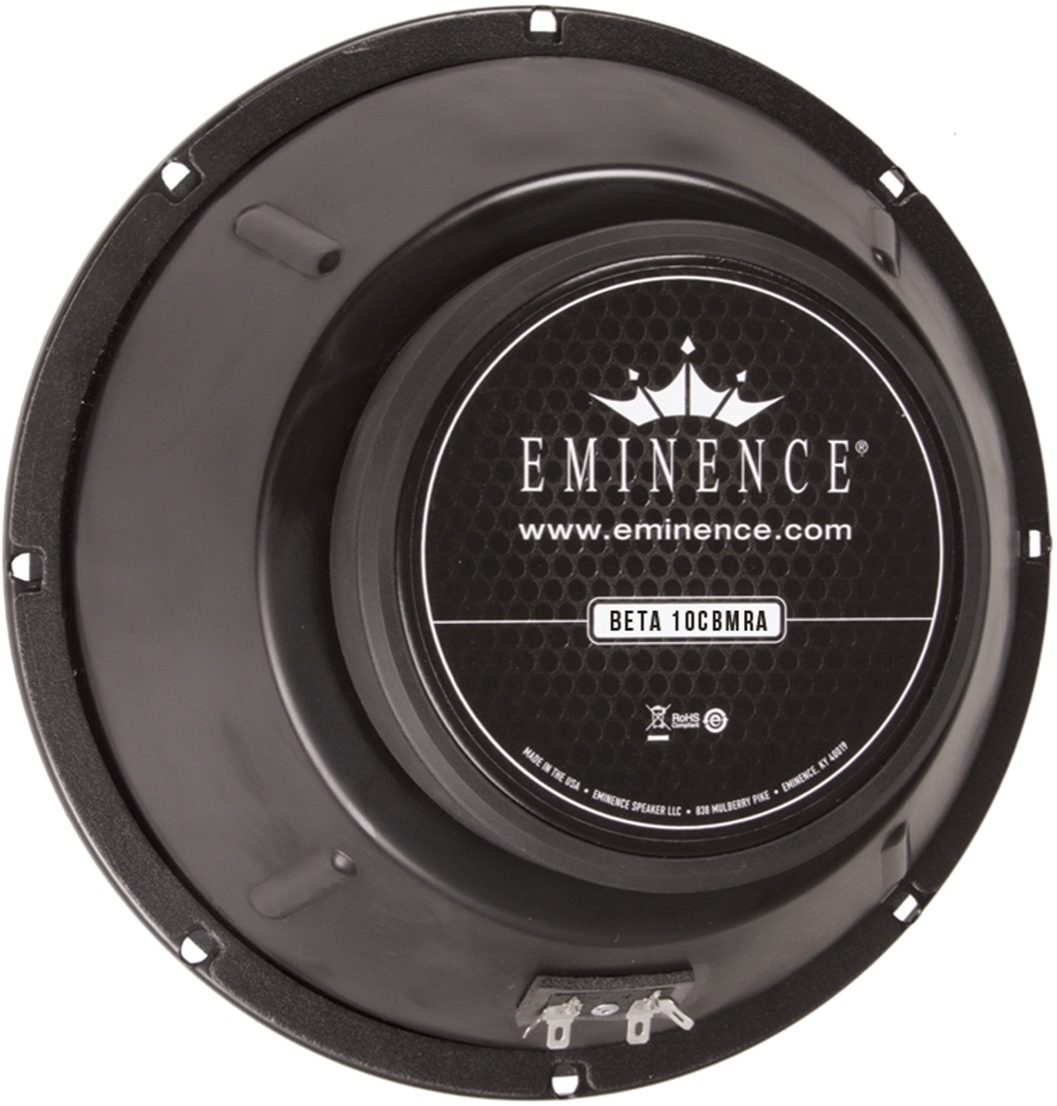

open zoom image for Eminence Beta-10CBMRA PA Speaker (400 Watts, 10"), Main

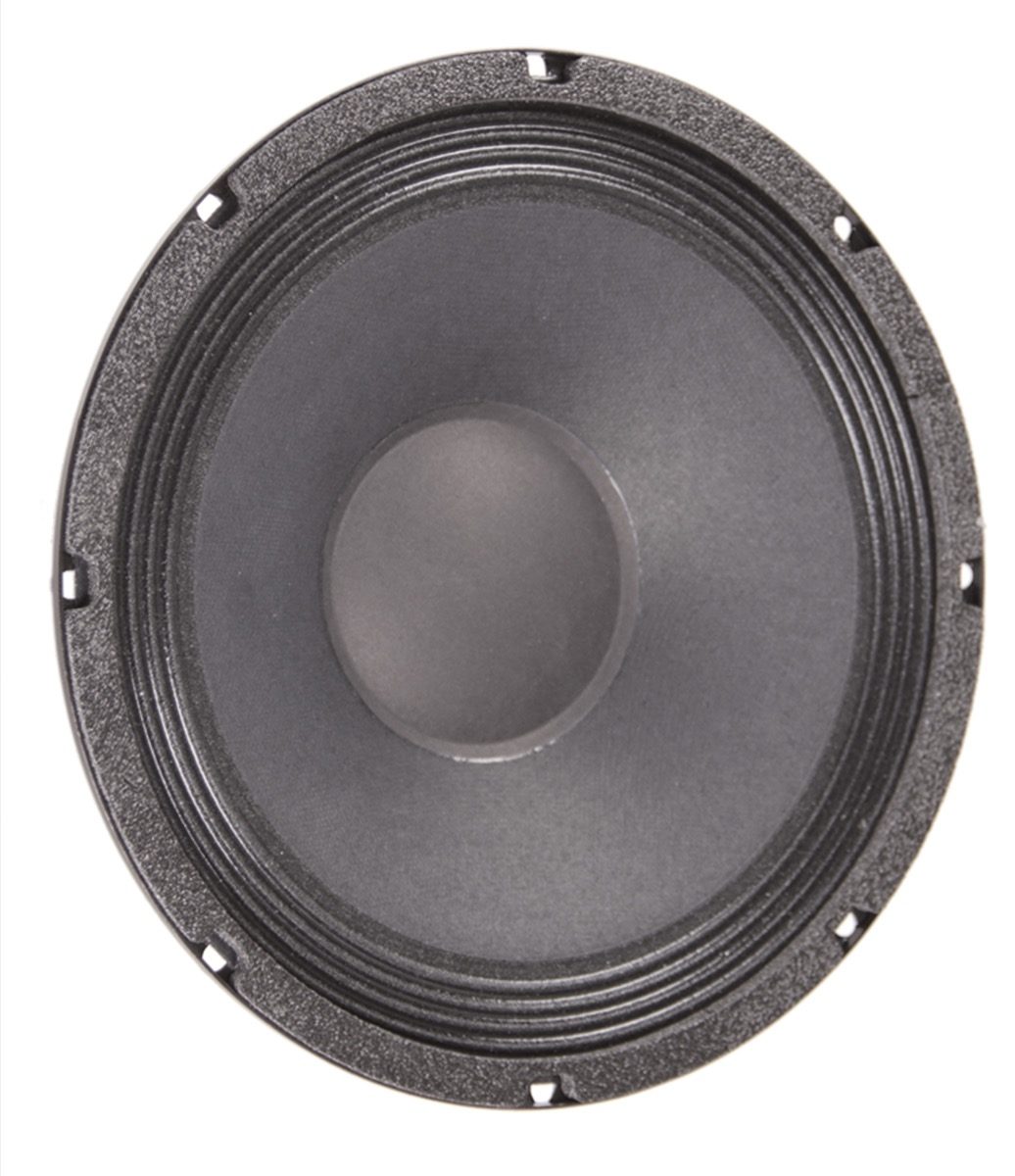

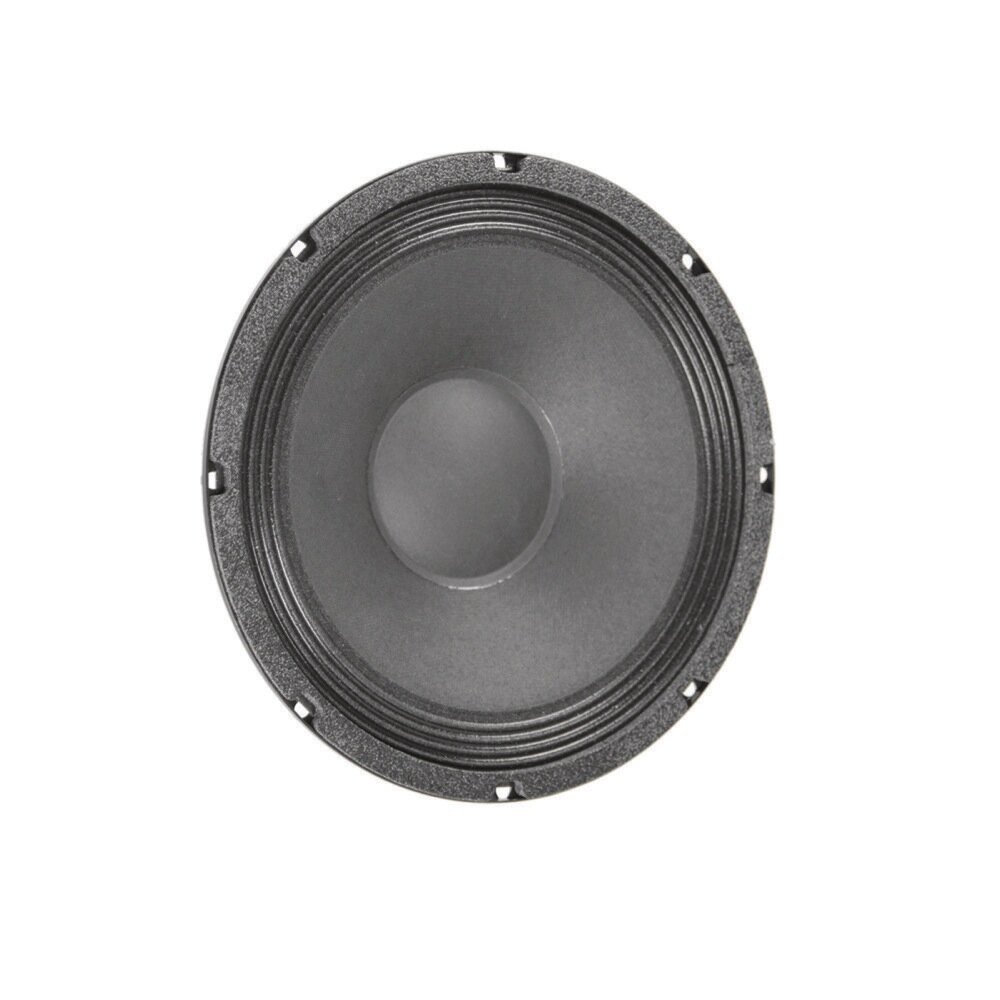

open zoom image for Eminence Beta-10CBMRA PA Speaker (400 Watts, 10"), Front

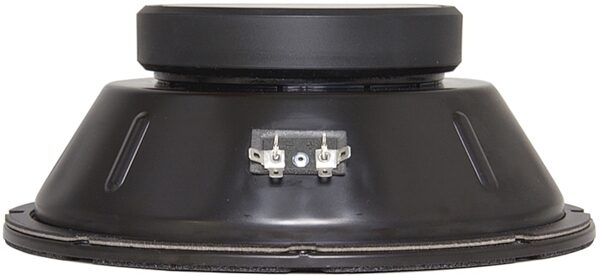

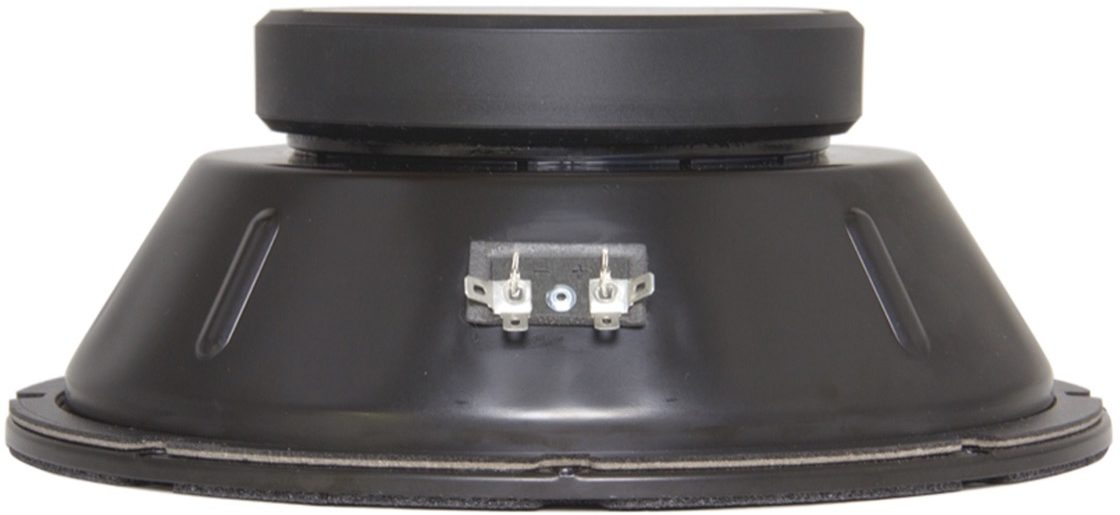

open zoom image for Eminence Beta-10CBMRA PA Speaker (400 Watts, 10"), Side

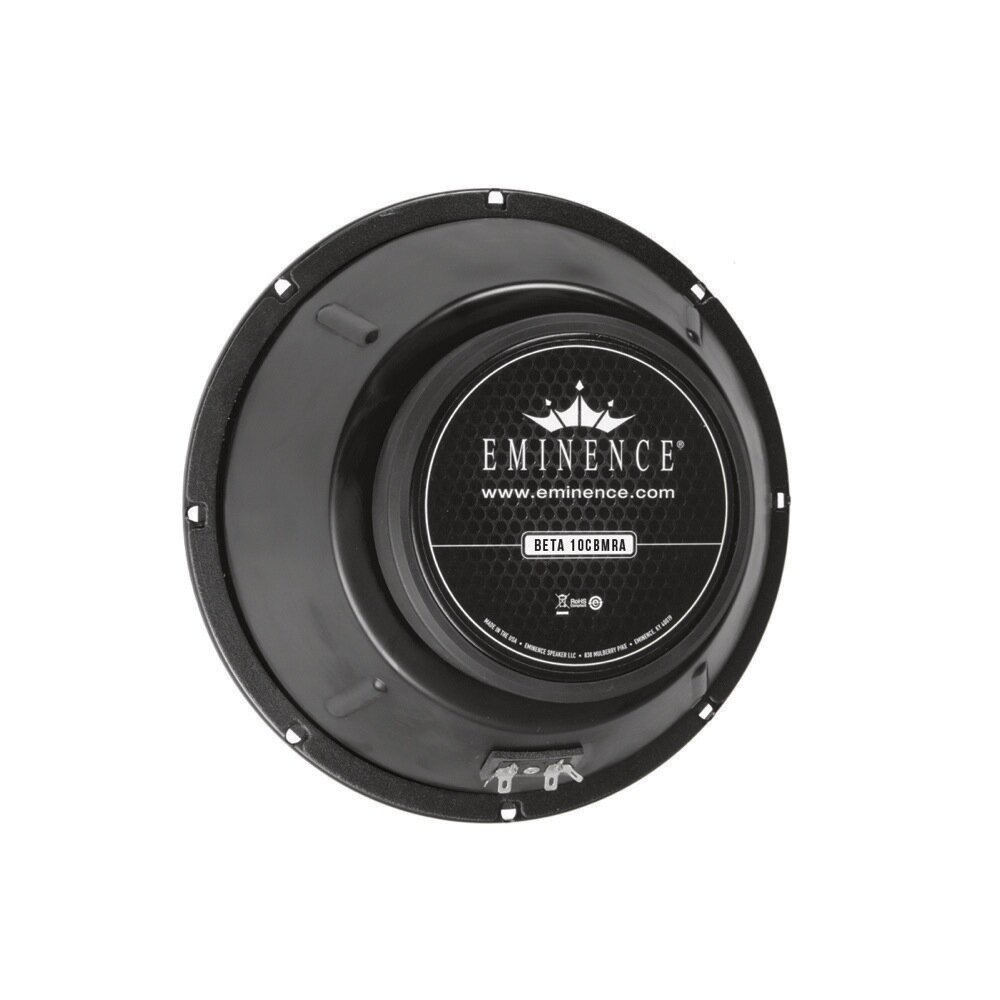

Eminence Beta-10CBMRA PA Speaker (400 Watts, 10"), Main Eminence Beta-10CBMRA PA Speaker (400 Watts, 10"), Front Eminence Beta-10CBMRA PA Speaker (400 Watts, 10"), Side
zZounds Gear Experts Say...
Add 400 watts of clear, accurate lows and mids with the Eminence Beta-10CBMRA. This speaker's sealed basket makes it easy to install -- no backbox required.

The Eminence Beta-10CBMRA is recommended for high-powered pro audio and car audio midrange applications. The sealed basket requires no backbox for easy installation in multiple driver cabinets or car panels. Very accurate, 400-watt music program capability, 8 ohms. This speaker is recommended for high power pro audio and car audio midrange applications. Sealed basket affords this speaker cabinet independence.

- Nominal Basket Diameter: 10" / 254 mm
- Impedance: 8 Ohms
- RMS Power Rating: 200 Watts
- Program Power Handling: 400 Watts
- Frequency Response: 300Hz - 4kHz
- Sensitivity (1W/1m): 99.6dB
- Voice Coil Diameter: 2" / 50.8 mm
- Max. Crossover Frequency: 4kHz
- Overall Diameter: 10.09" / 256.3 mm
- Bolt Circle Diameter: 9.66" / 245.4 mm
- Baffle Cutout Diameter: 9.18" / 233.2 mm
- No. Of Mounting Holes: 8
- Mounting Hole Diameter: 0.25" / 6.35 mm
- Overall Depth: 3.56" / 90.4 mm
- Magnet Weight: 34 oz.
- Net Weight: 7.3 lbs. / 3.31kg.
- Shipping Weight: 8.3 lbs. / 3.76kg.
- Resonant Frequency (fs): 326.4 Hz
- Impedance (Re): 5.68 ohms
- Coil Inductance (Le): 0.48mH
- Electromagnetic Q (Qes): 2.27
- Mechanical Q (Qms): 7.14
- Total Q (Qts): 1.73
- Compliance Equivalent Vol. (Vas): .06-cubic feet
- Voice Coil Overhang (Xmax): 1.5 mm
- BL Factor (BL) 9.5 T-M
- Surface area of Cone (Sd): .03501m2

For support or warranty questions, please contact the manufacturer:
Phone: 502-845-5622
