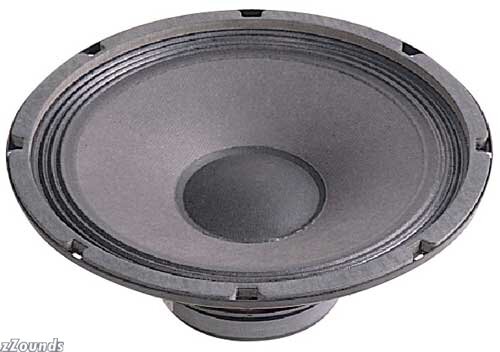

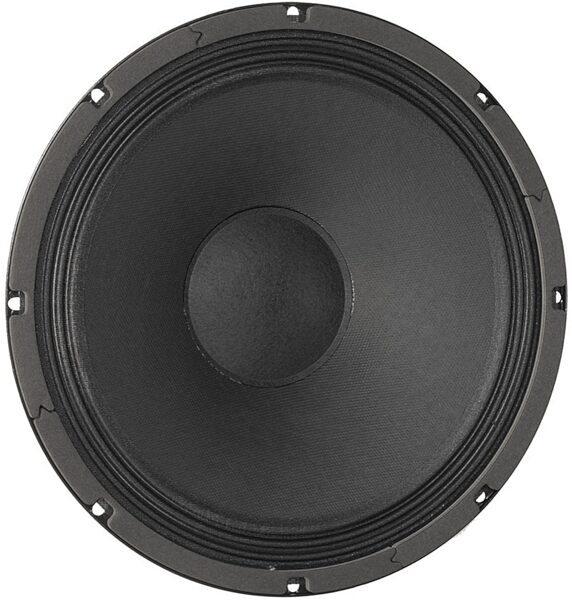

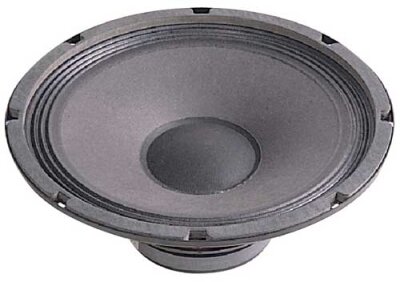

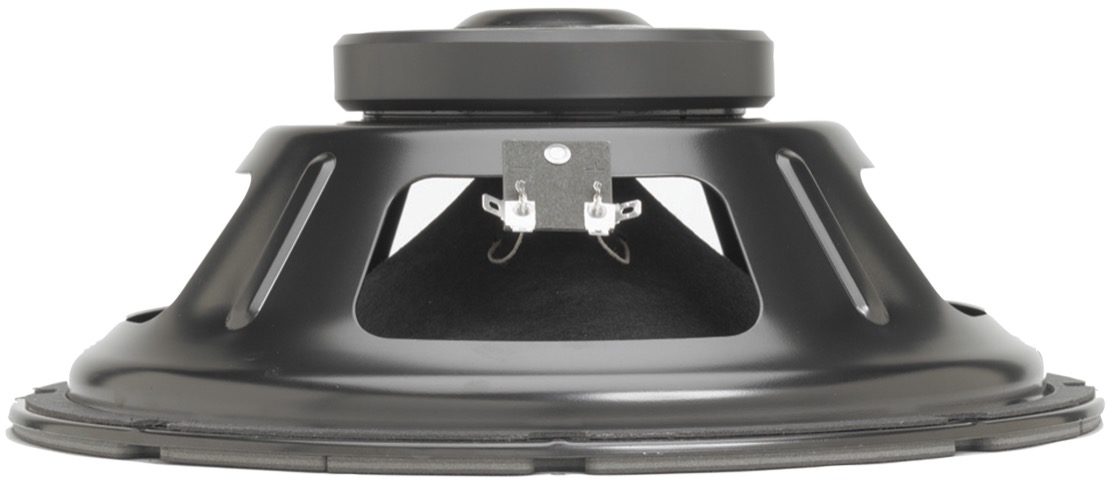

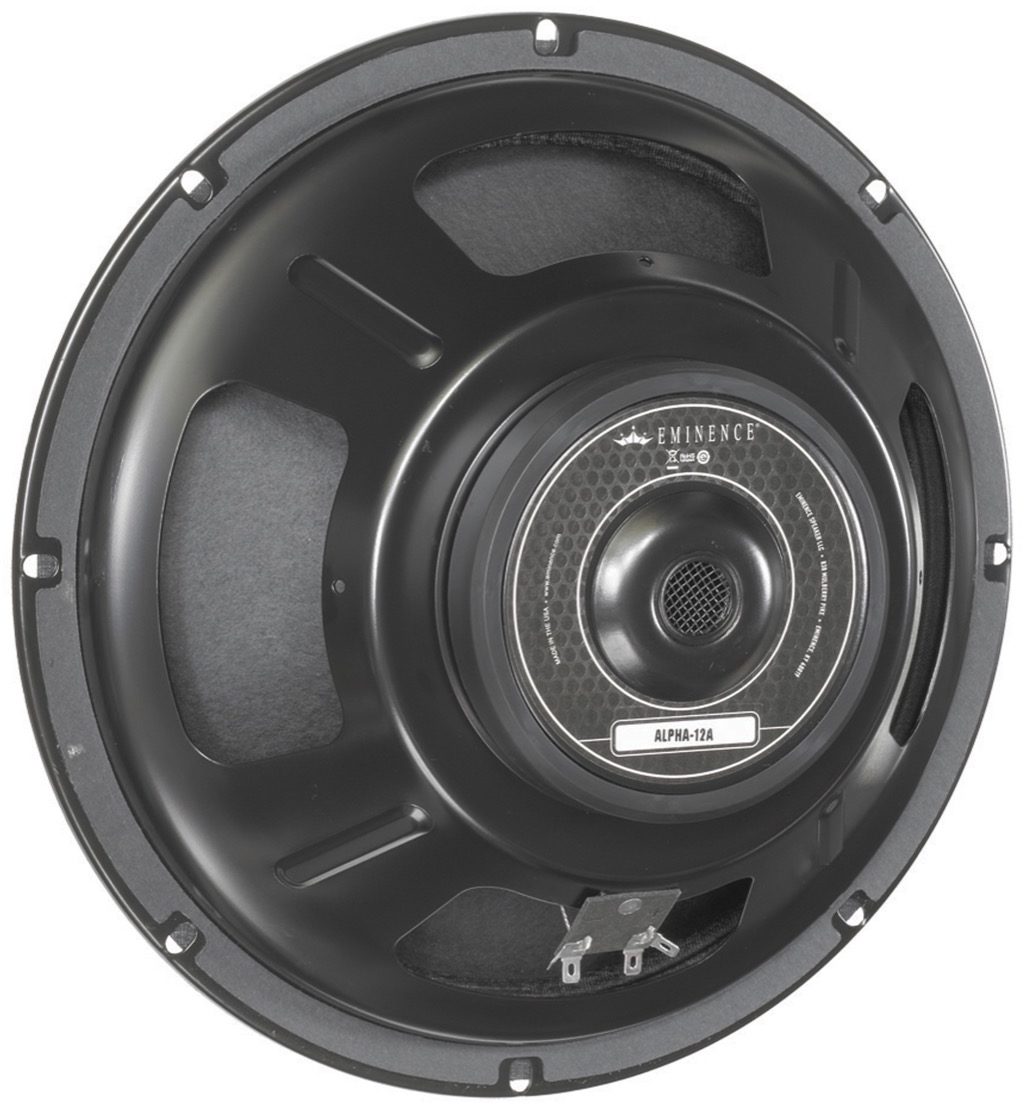

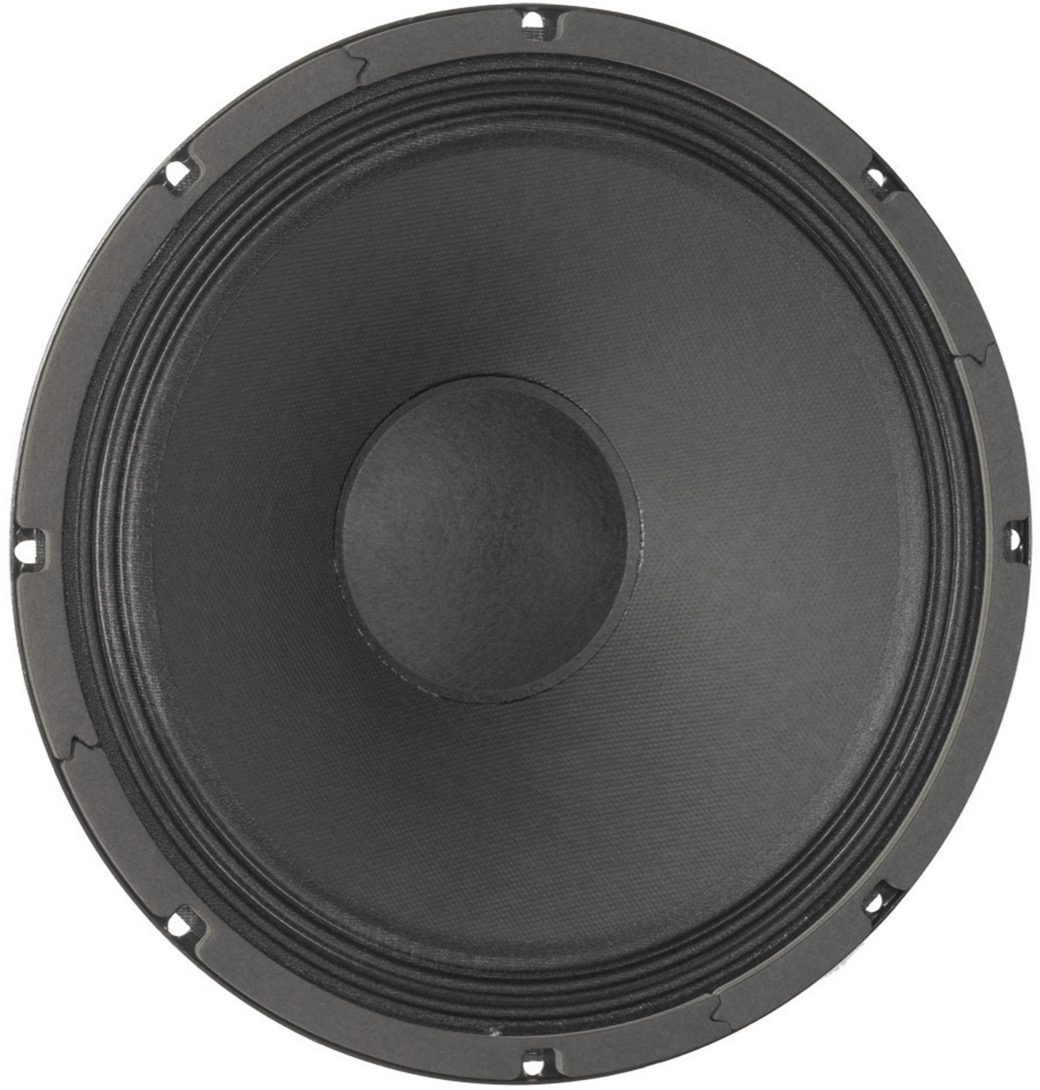

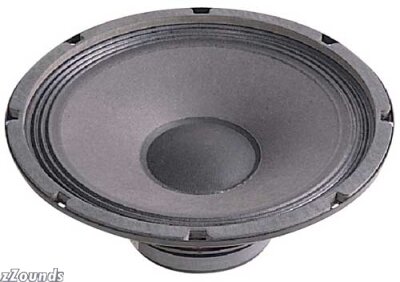

Ideal for two-way sound reinforcement systems, keyboard, guitar combos.
Technical Info
Nominal Basket Diameter- 12 in., 304.8mm
Impedance- 8 ohm
Power Rating- 150W rms
Music Program- 300W
Resonance- 49Hz

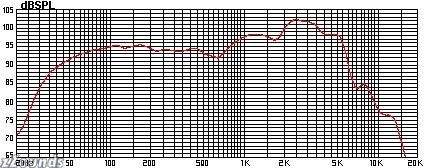

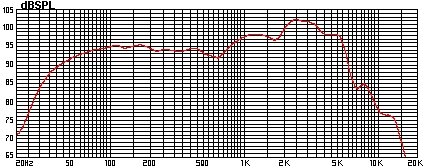

Usable Frequency Range- 45Hz - 5kHz
Average Sensitivity- 1W @ 1m 98 dB
Magnet Weight- 20oz.
Gap Height- 0.25", 6.35mm
Voice Coil Diameter- 1.5", 38.1mm
Resonant Frequency- 49Hz
Impedance (RE)- 6.30 ohm
Coil Inductance (Le)- 0.79mH
Electromagnetic Q (Qes)- 0.88
Mechanical Q (Qms)- 6.53
Total Q (Qts)- 0.77
Compliance Equivalent Volume (Vas)- 121.5 liters (4.29 cu.ft.)
Peak Diaphragm Displacement- Volume (Vd) 125cc
Mechanical Compliance of suspension (Cms)- 0.32mm/N
BL Product (BL)- 8.5 T-M
Diaphragm Mass inc. Airload (Mms)- 33 grams
Equiv. Resistance of mechanical suspension loss (Rms)- 1.54N*sec/M
Efficiency Bandwidth Product (EBP)- 56
Voice Coil Overhang (Xmax)- 2.4mm
Surface Area of Cone (Sd)- 519.5cm2
Impedance at Resonance (Zmax)- 53 ohm
Important Note
Watts: The guaranteed long term power rating throughout the usable frequency range of the speaker.
(Translation: the speaker will operate continuously at any frequency within the speakers specified frequency range when driven at this power. The "Watts" rating is similar to RMS, but is really more indicative of long term thermal capability.)
Music Program: The speaker will safely and reliably handle the varying frequencies of musical content at this power rating. The "Music Program" rating is more indicative of what you can expect in the real world with the speaker operating within the appropriate enclosure reproducing music or vocal audio program.
