- Nominal Basket Diameter: 10"
- Impedance: 8 ohm
- Power Rating: 150W rms
- Music Program: 300W
- Resonance: 50Hz

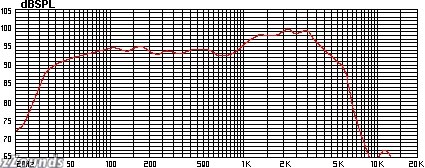

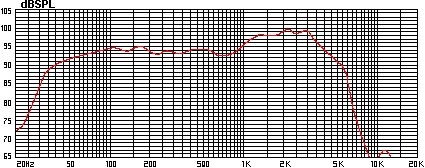

- Usable Frequency Range: 45Hz - 5kHz
- Average Sensitivity: 1W @ 1m 97 dB
- Magnet Weight: 20oz.
- Gap Height: 0.25"
- Voice Coil Diameter: 1.5"Mounting Information:
- Overall Diameter: 10.11"
- Baffle Hole Diameter: 9.13"
- Front Sealing Gasket: fitted as standard
- Rear Sealing Gasket: fitted as standard
- Mounting Holes Diameter: 0.225"
- Mounting Hole B.C.D.: 9.6"
- Depth: 3.90"
- Shipping Weight: 5.8 lbsThiele-Small Parameters:
- Resonant Frequency: 50Hz
- Impedance (RE): 5.31 ohm
- Coil Inductance (Le): 0.66mH
- Electromagnetic Q (Qes): 0.66
- Mechanical Q (Qms): 5.21
- Total Q (Qts): 0.59
- Compliance Equivalent Volume (Vas): 82.2 liters, 2.9 cu. ft.
- Peak Diaphragm Displacement Volume (Vd): 113cc
- Mechanical Compliance of Suspension (Cms): 0.46mm/N
- BL Product (BL): 7.5 T-M
- Diaphragm Mass inc. Airload (Mms): 22 grams
- Equiv. Resistance of Mechanical Suspension Loss (Rms): 1.33N*sec/M
- Efficiency Bandwidth Product (EBP) 75
- Voice Coil Overhang (Xmax) 3.2mm
- Surface Area of Cone (Sd) 355.4cm2
- Impedance at Resonance (Zmax) 47 ohmImportant Notes:
- Watts: The guaranteed long term power rating throughout the usable frequency range of the speaker. (Translation: the speaker will operate continuously at any frequency within the speakers specified frequency range when driven at this power. The "Watts" rating is similar to RMS, but is really more indicative of long term thermal capability.)
- Music Program: The speaker will safely and reliably handle the varying frequencies of musical content at this power rating. The "Music Program" rating is more indicative of what you can expect in the real world with the speaker operating within the appropriate enclosure reproducing music or vocal audio program.
