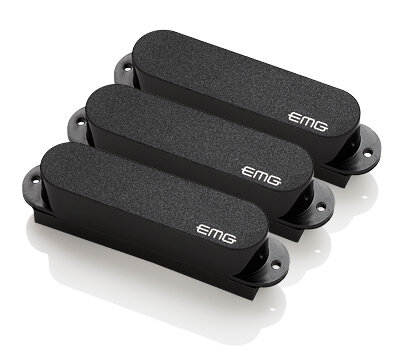

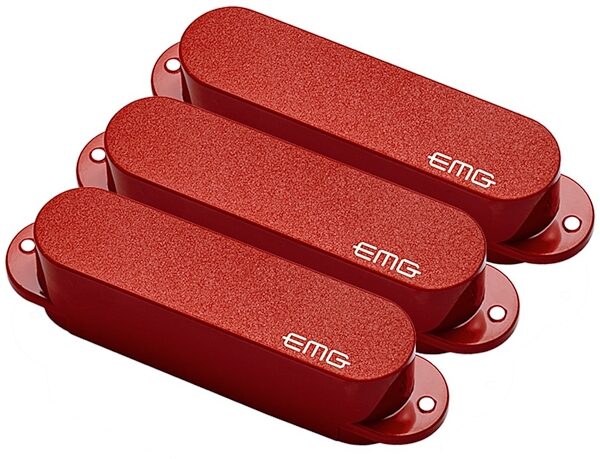

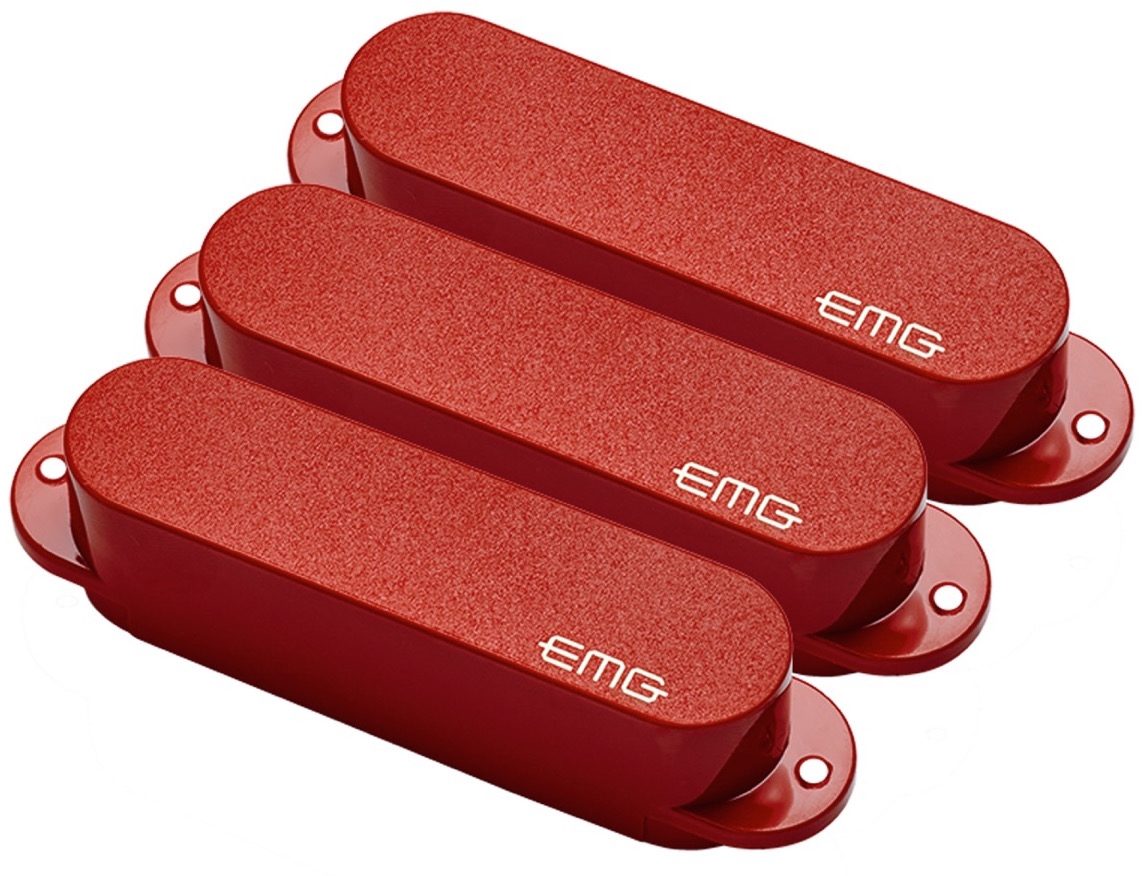

EMG SA Set Electric Guitar Pickup Set

Certain items must be exchanged directly through the manufacturer if they are found to be defective. This includes tubes, strings, pickups, raw frame speakers, drum heads, drumsticks, cymbals, cowbells, and harmonicas. These items can only be returned to us if they are unopened. details

About This Product!

Description

Docs

EMG's most popular system for Stratocaster-type* guitars was originally developed in 1974 but was redesigned along with all the other models in 1979. It was voiced with the help of guitar Repairman/Luthier John Carruthers and his professional clientele. The first professional who spread the gospel about the EMG-SA was Peter Frampton who visited EMG in 1979. By 1985, Peter had turned Steve Lukather on to the system along with a host of others. We can't recall when David Gilmour got his first SA System, but Rob remembers delivering a system in L.A. for David and meeting Phil Taylor (David's main man) for the first time. Over the years we've sent David all of the newer models, but he's maintained his support of the SA System, thus the DG20.

The EMG-SA combines the attributes of the early Strat* sound but with an added midrange response and higher output. It's "bell-like" ringing harmonics and increased sustain give the SA greater versatility than normally found in single-coil pickups. A single Alnico bar magnet delivers classic overdrive with a smooth midrange distortion, while still retaining the familiar high-end of a single-coil pickup. The internal preamp rejects every bit of hum and buzz for noiseless operation. Only three connections are necessary to complete the assembly.

Package Includes: EMG's exclusive Quik-Connect cables (3), prewired control set including volume, 2 tone controls, 5-way selection switch (black & white knobs), output jack, and battery clip, screws & springs.

Technical Info

Logo Color: Gold

Resonant Frequency (Khz): 3.75

RMS Output Voltage: 0.6

Peak Output Voltage: 0.85

Output Noise (dBV): -90

Output Impedance (Kohm): 10

Current @ 9V (Microamps): 80

Battery Life (Hours): 3000
