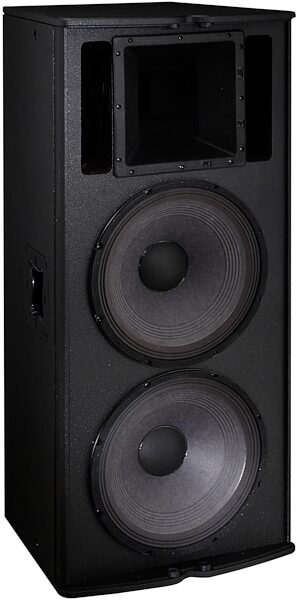

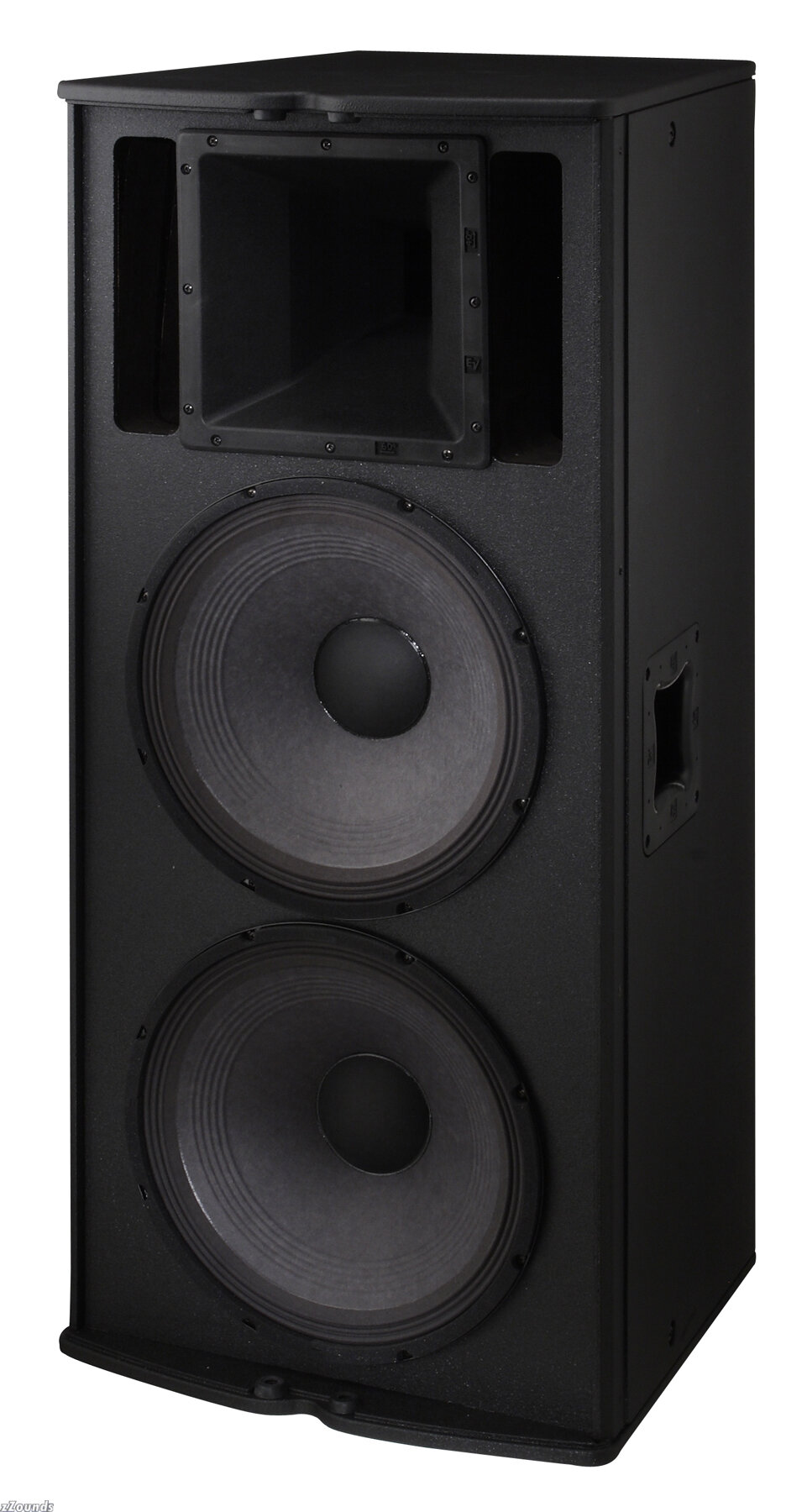

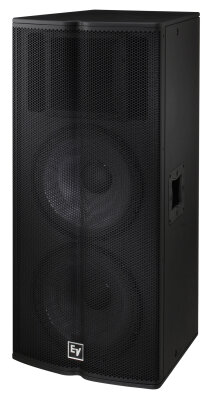

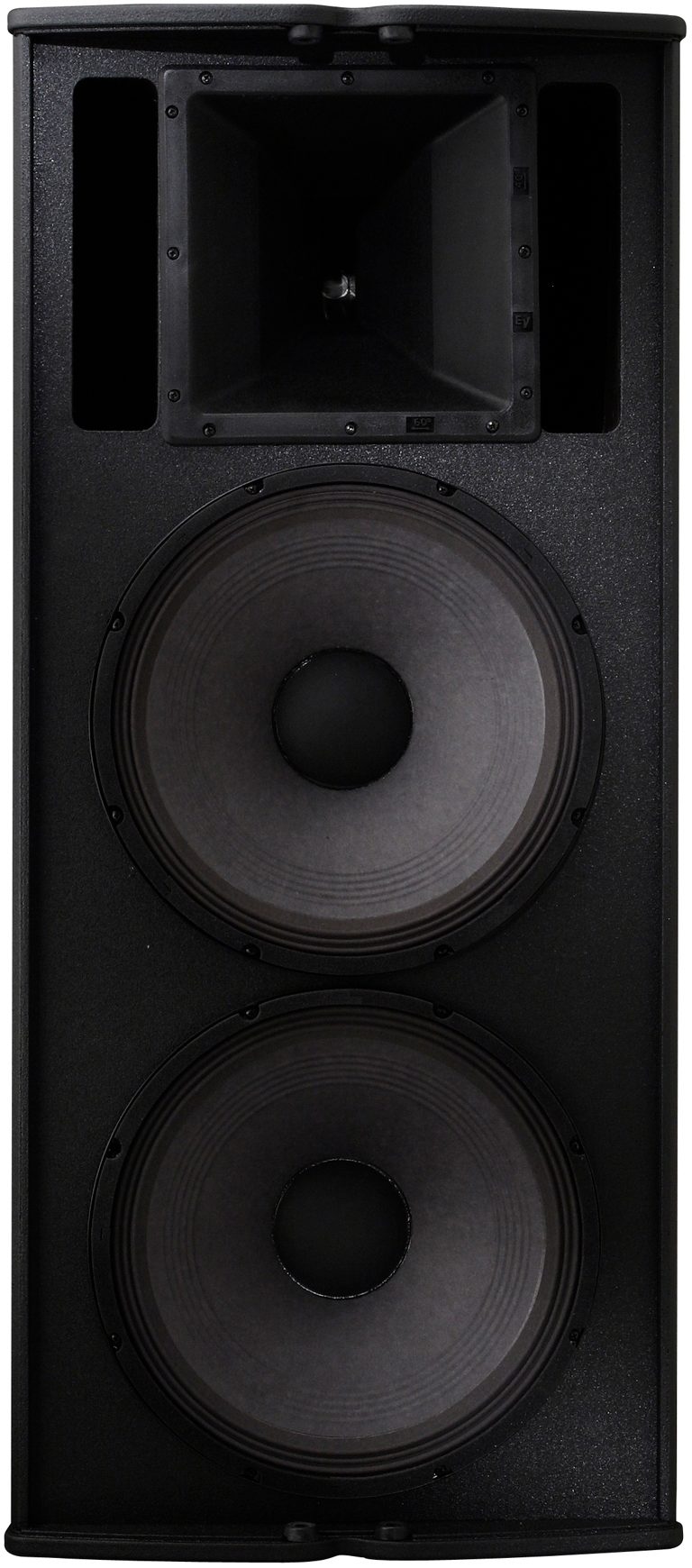

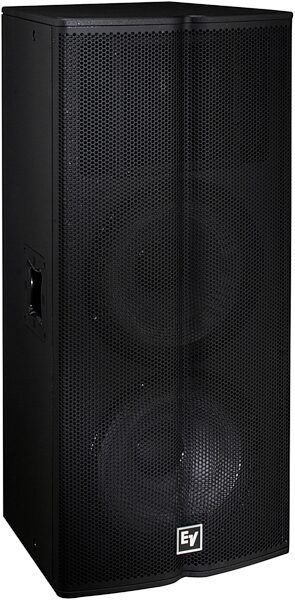

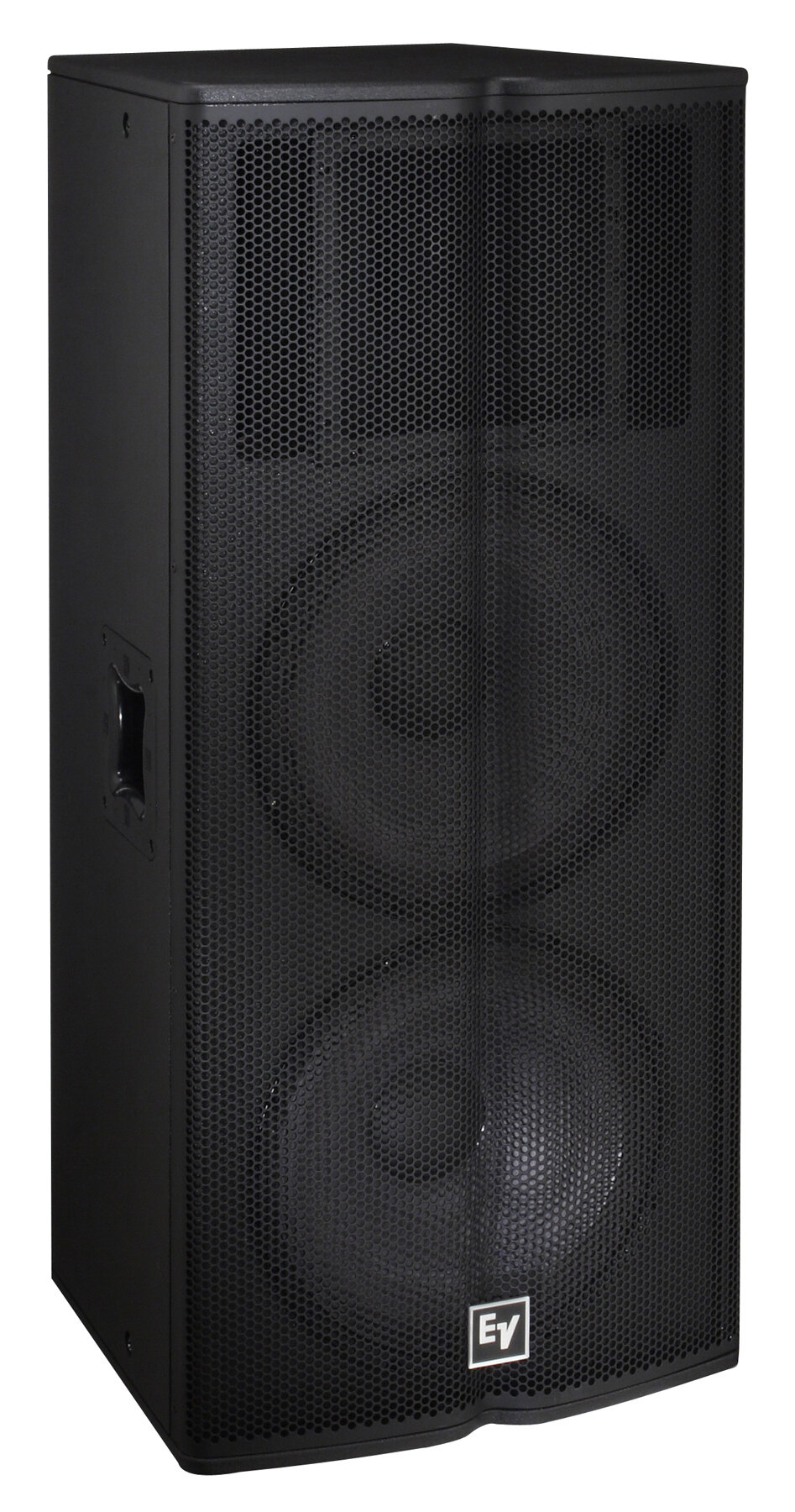

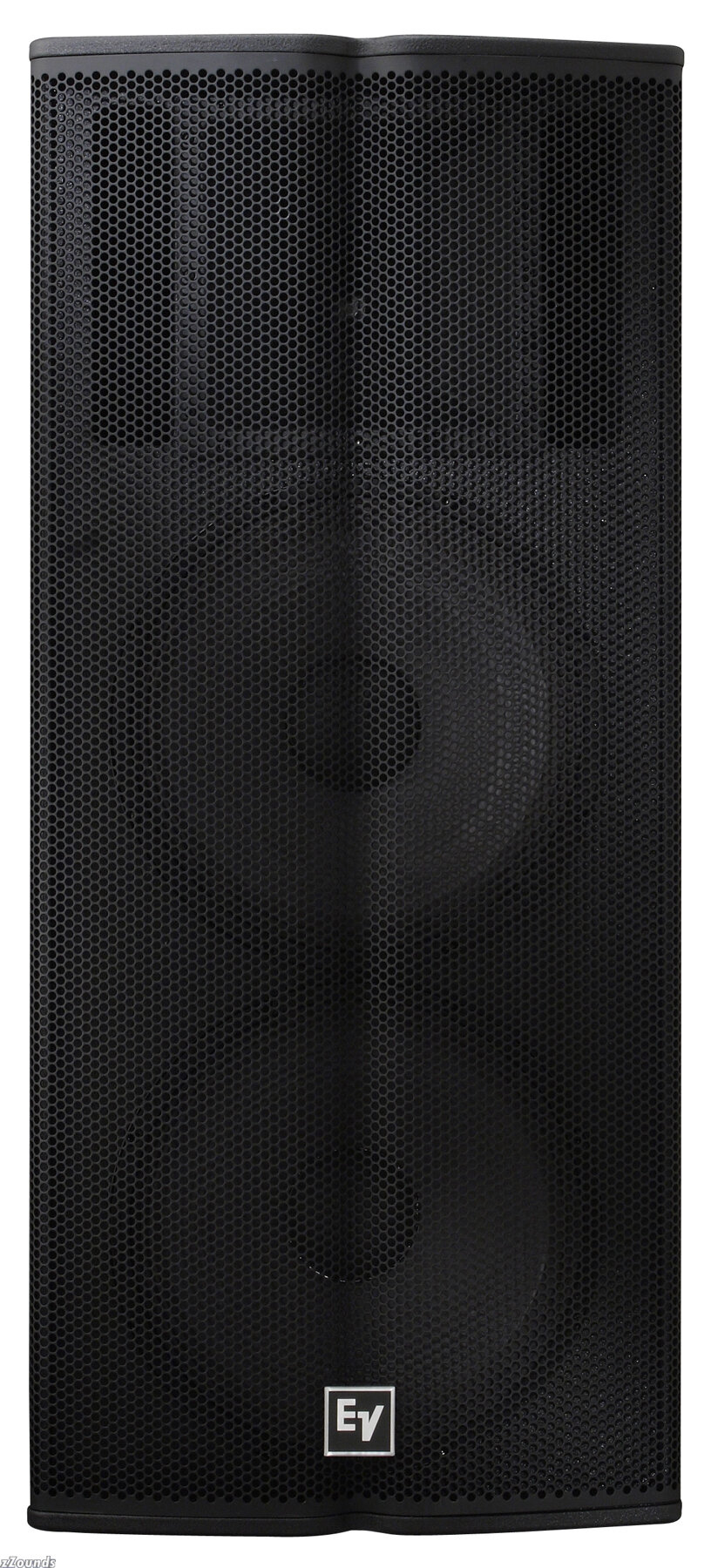

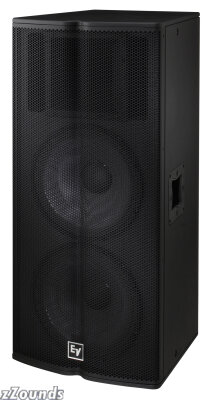

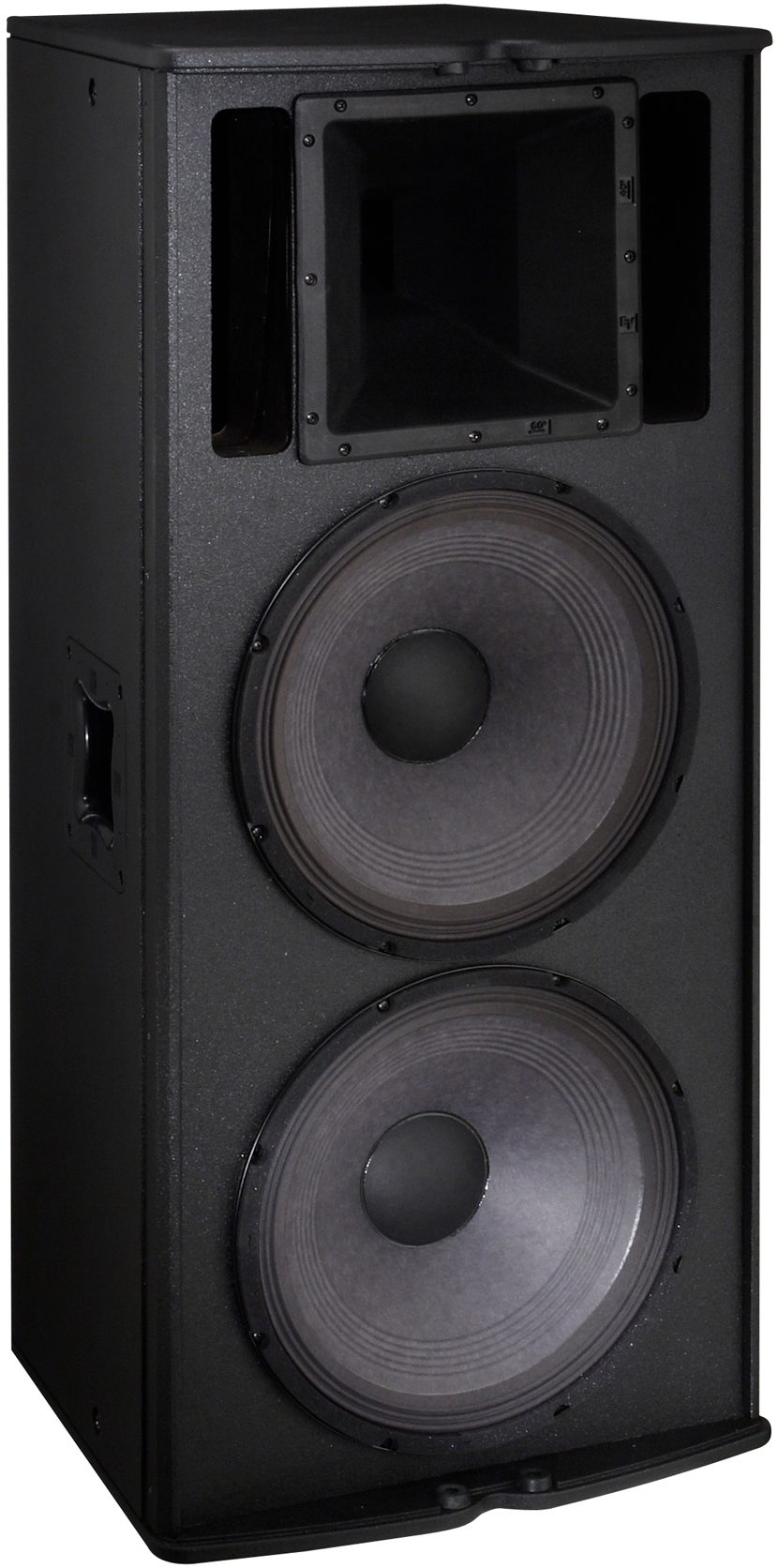

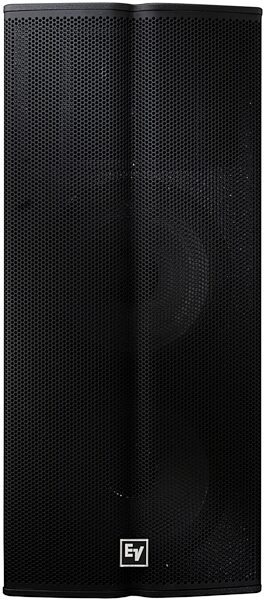

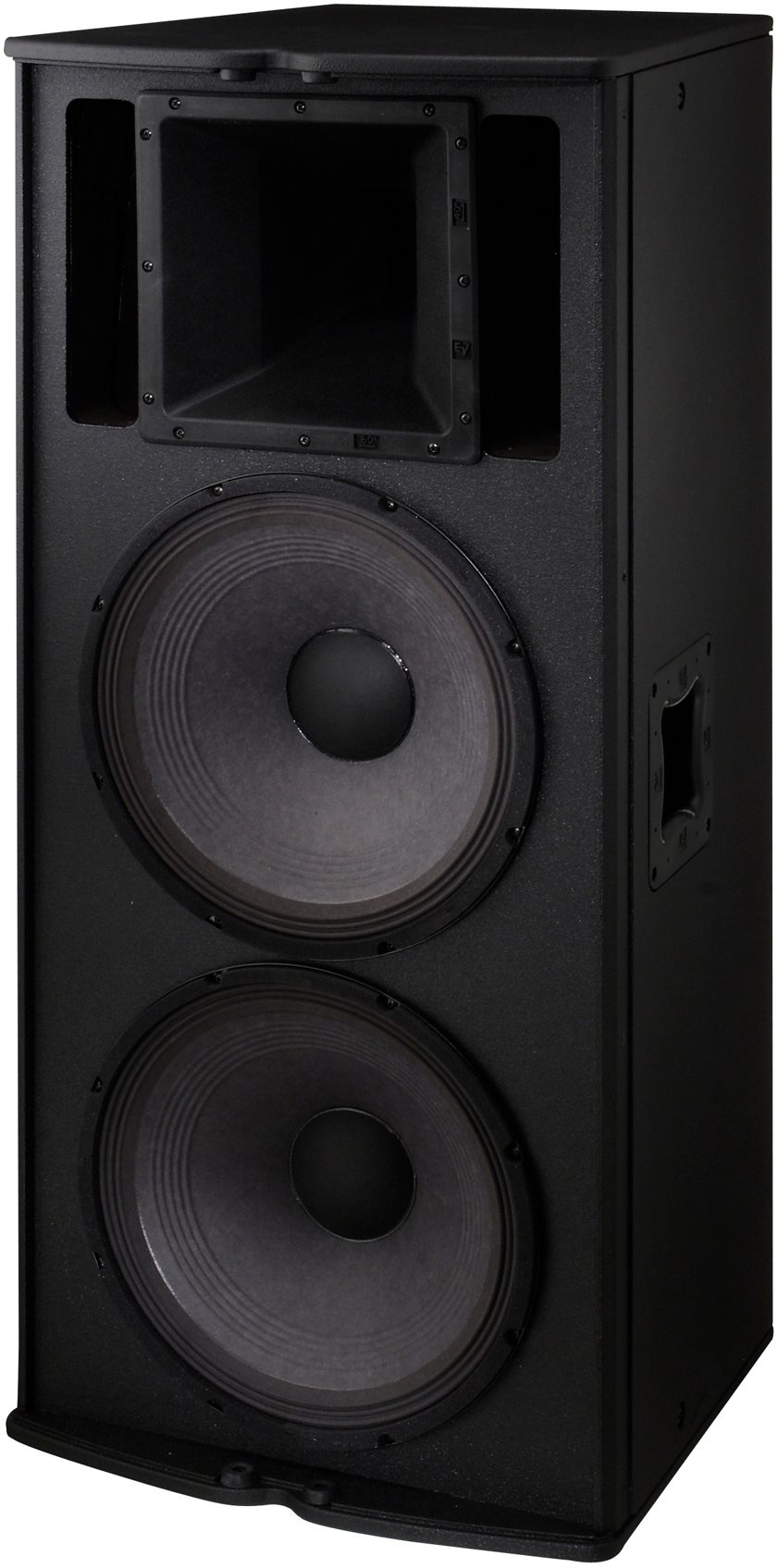

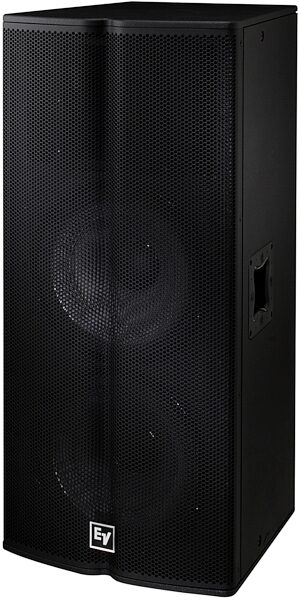

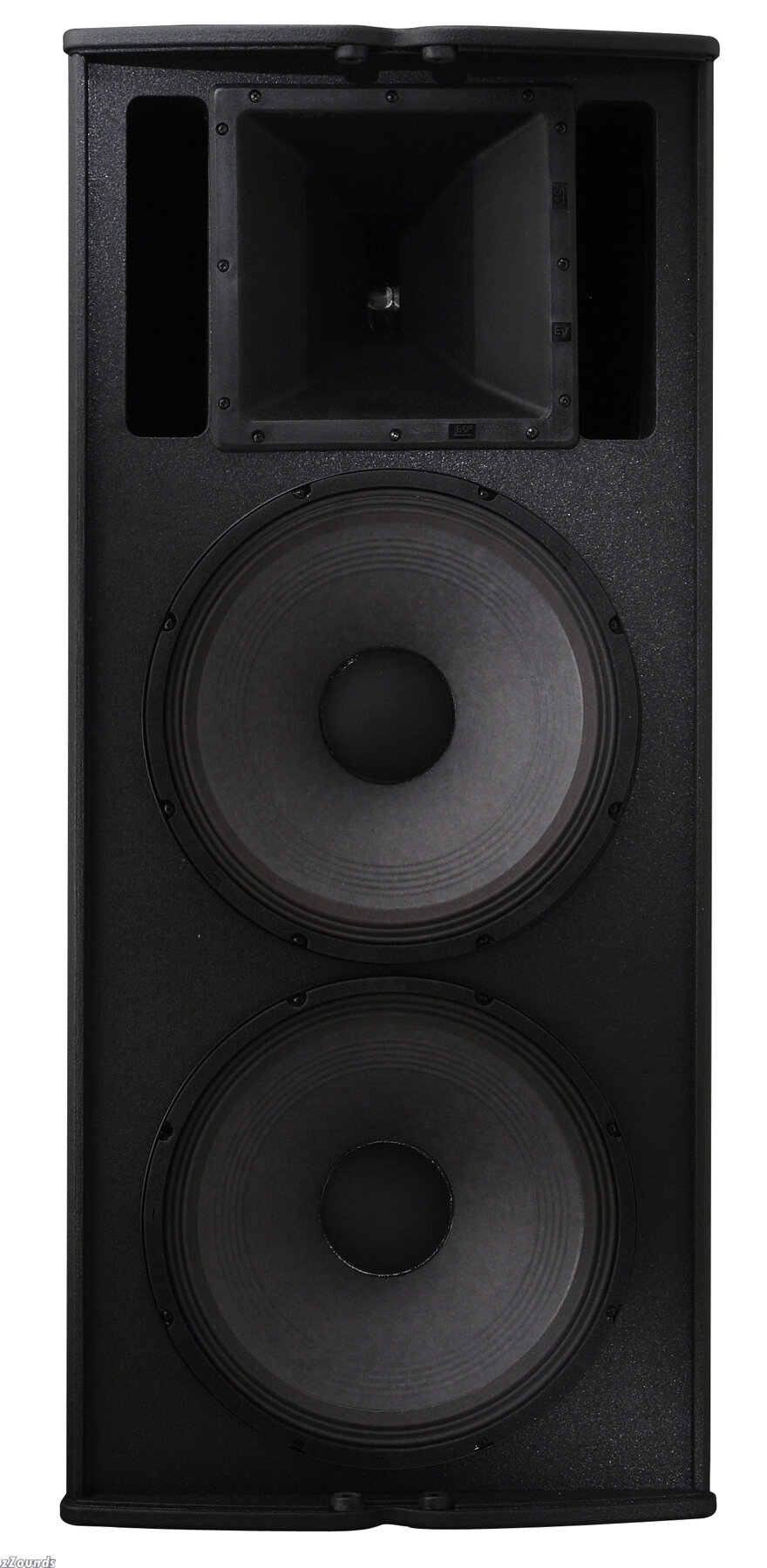

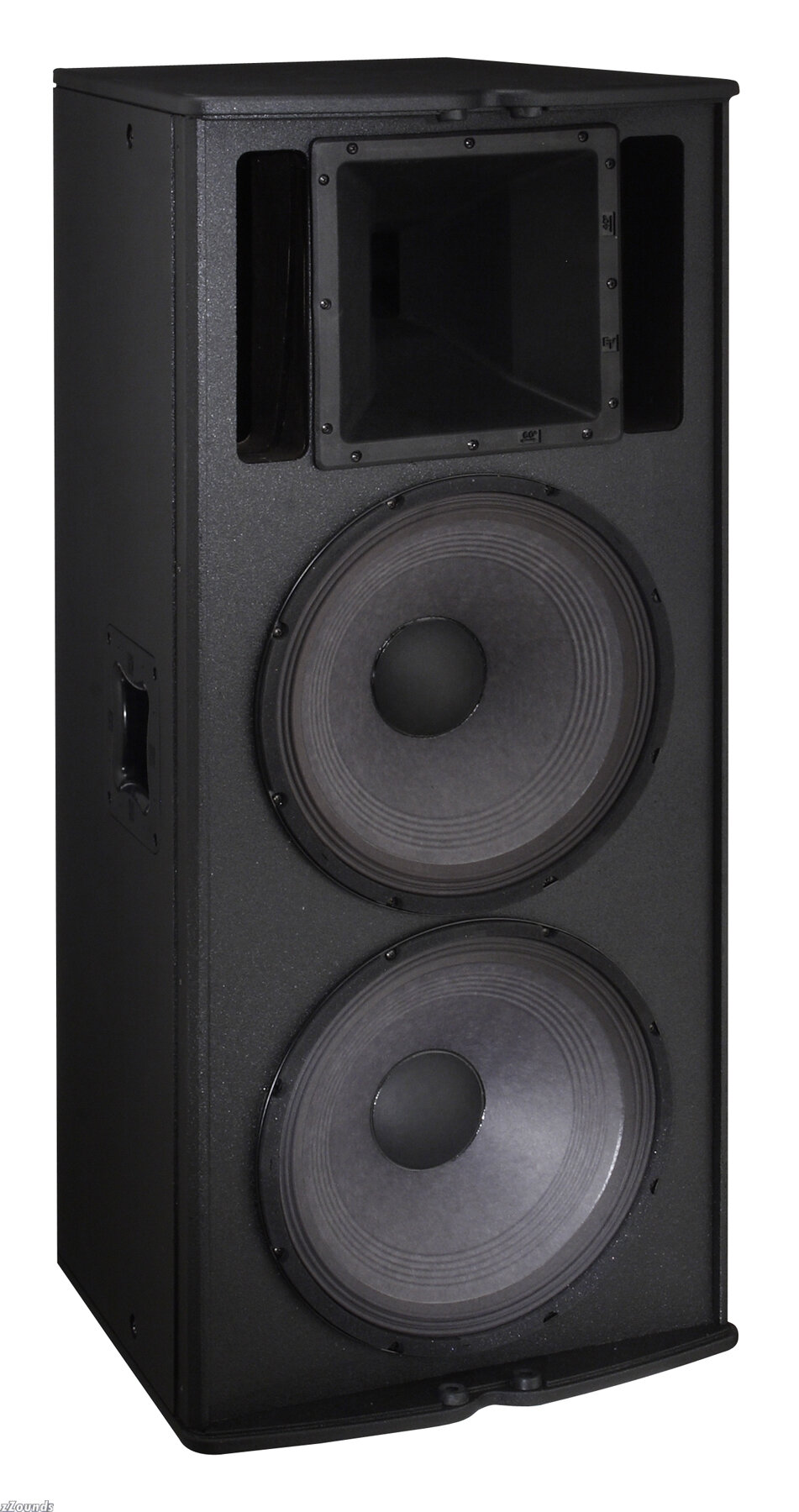

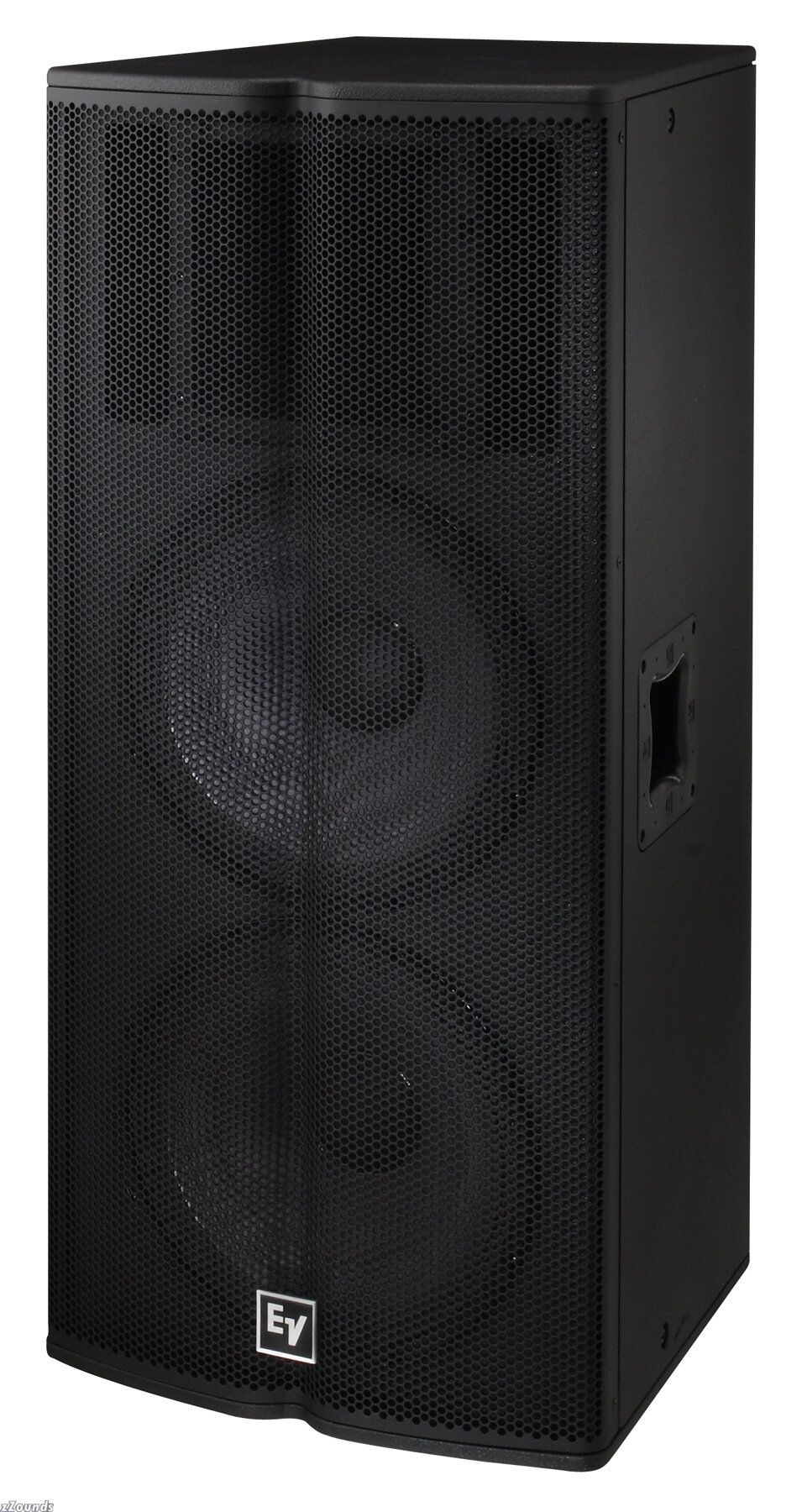

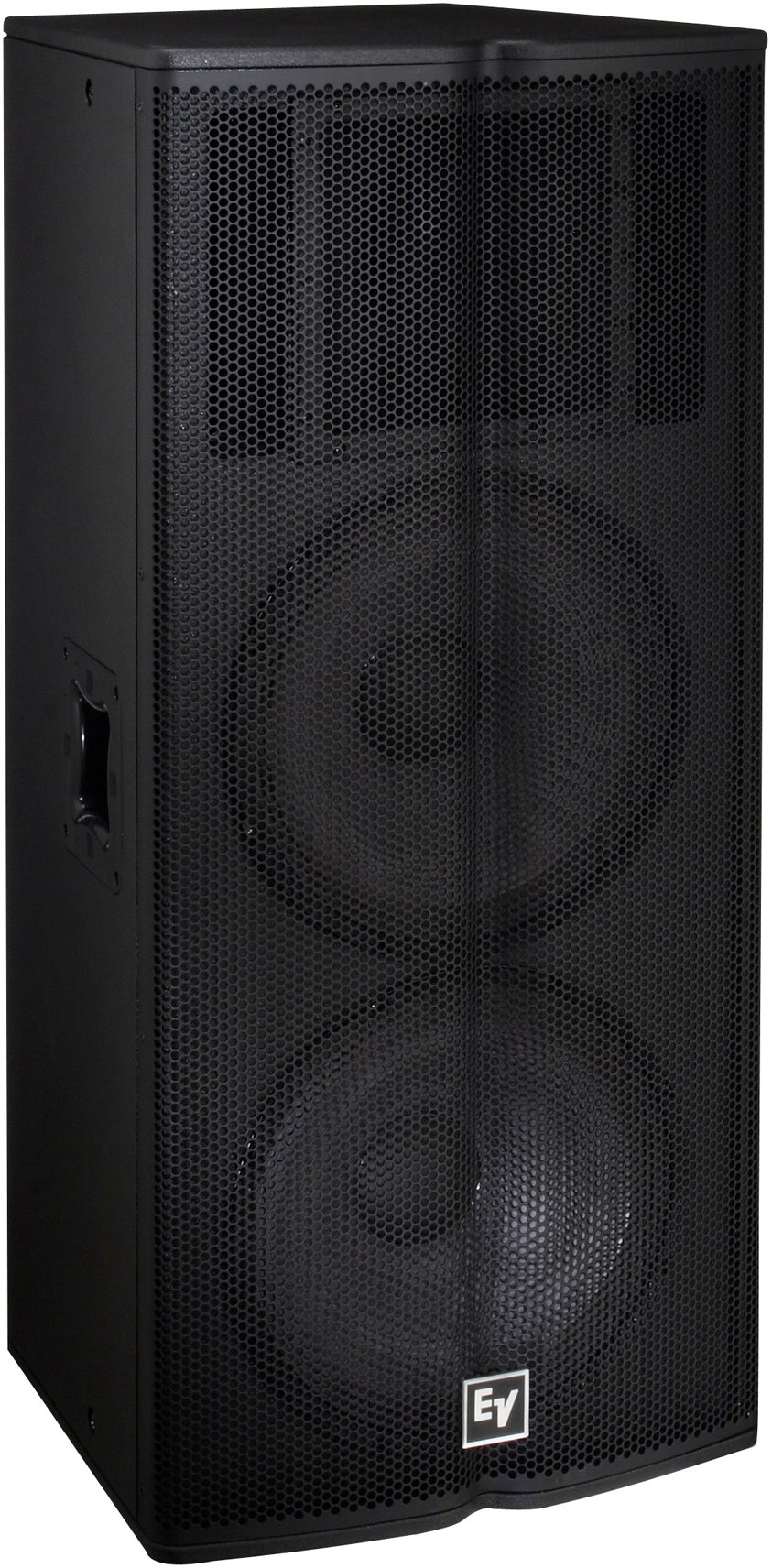

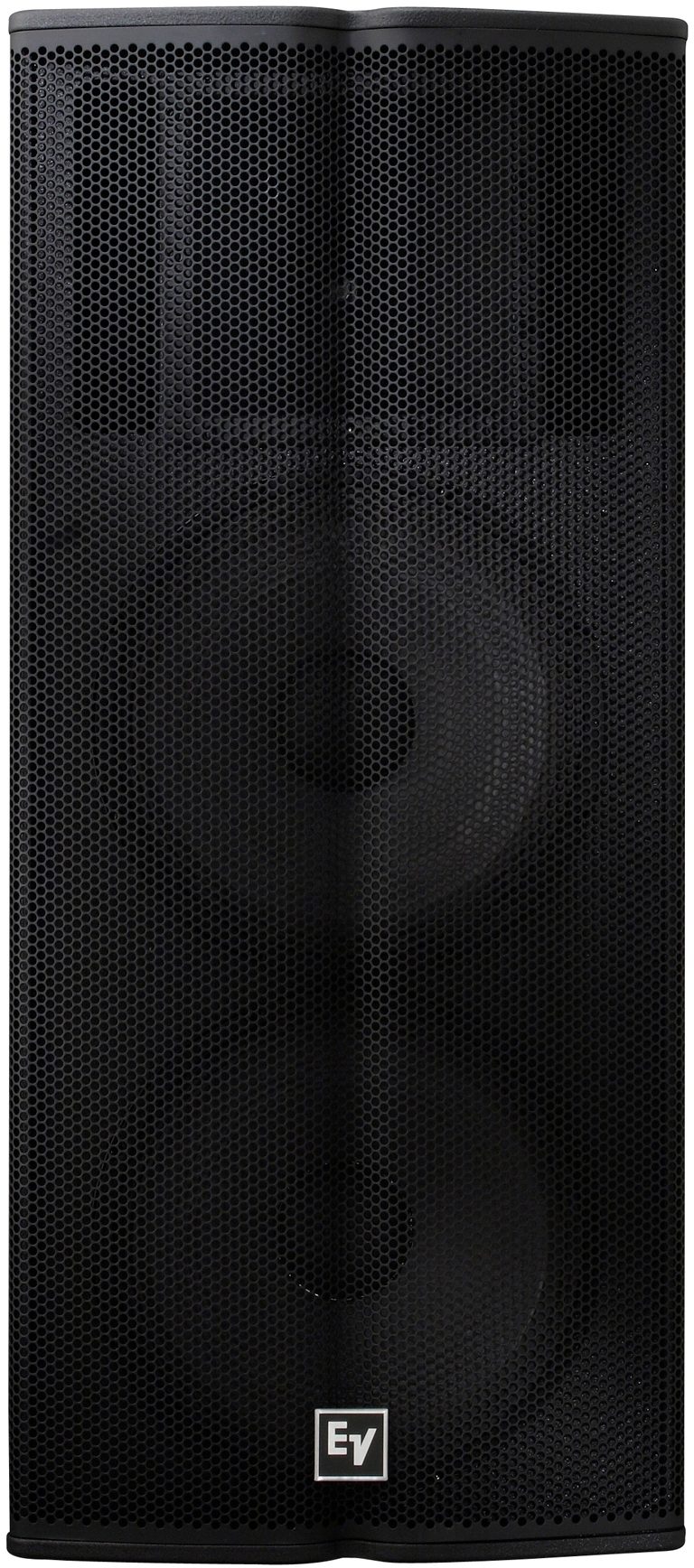

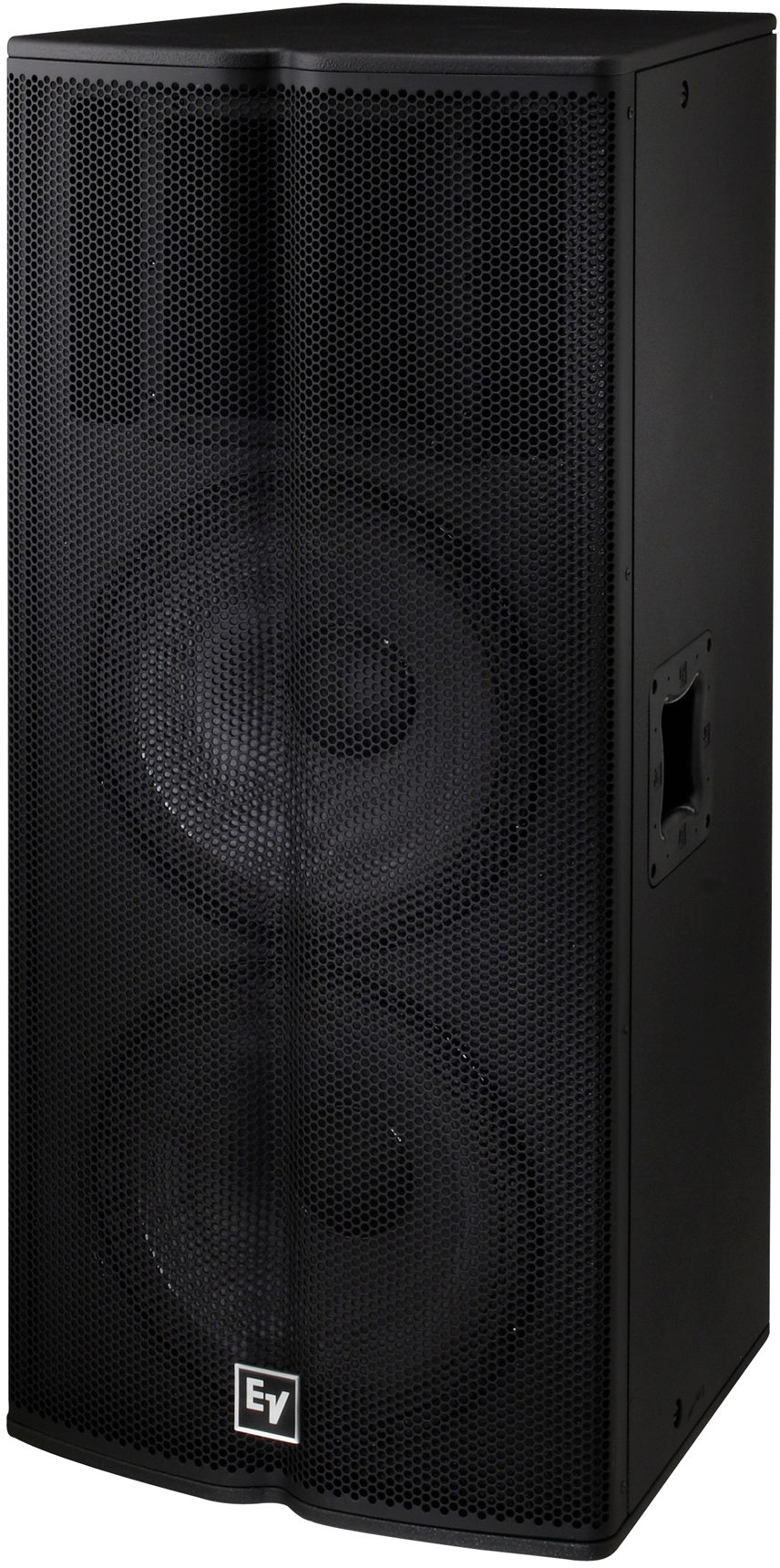

The ElectroVoice TX2152 excels where all other competitive dual 15-inch loudspeakers fail - transient detail. The secret is the combination of dual SMX2150 low distortion woofers with an integrated analog crossover utilizing elliptical filters that achieve 36dB per octave slopes at the crossover frequency. The result is crossover performance that rivals, or exceeds, that of many electronic DSP devices and bi-amping. To keep up with all this output, the TX2152 is the only Tour X model that employs the neodymium ND2 compression driver found in EV small and medium size line arrays. The TX2152 also benefits from the outstanding pattern control of the rotate-able, larger 60 x 40 degree horn. The aesthetically unique Backbone grille not only looks great, but also provides greater strength and damage resistance than simple grille block designs. Proprietary ergonomically correct handles and angled input panels, and (6) 3/8-inch threaded suspension inserts make the TX2152 easy to transport and employ in a variety of applications.
Tour X
ElectroVoice engineering ensures the World's biggest tours and events sound their best. The experience we've gained from 80 years spent shaping and influencing the professional sound reinforcement business makes its way into every loudspeaker we manufacture, including the new Tour X.
Tour X embodies the same ElectroVoice engineering excellence and aesthetic design found in its world class tour systems. Its form is seamlessly integrated into practical, functional elements that make a bold statement about its multi-application purpose and breakthrough performance.
A host of innovative features and patent pending designs make Tour X the most exciting loudspeaker series available today:
- Breakthrough SMX woofers achieve incredibly low levels of woofer distortion without sacrificing sensitivity
- Aesthetically unique, patent pending Backbone grille design for superior strength and damage resistance
- Steep slope analog crossovers with elliptical filters that provide up to 36dB per octave slopes
- All new proprietary EV designed ergonomic handles and angled input panels
Technical Info
Frequency Response (-3dB): 55 - 13000 Hz
Frequency Response (-10dB): 50 - 18000 Hz
Recommended High-Pass Frequency: 40 Hz
Sensitivity 1W/1m: 103 dB
Max. SPL / 1m (calc): 139 dB
Coverage (nominal -6dB) H degree: 60 degrees
Coverage (nominal -6dB) V degree: 40 degrees
Rotatable Horn: Yes
System Power Handling (continuous/program/peak): 1000/2000/4000 Watts
LF Transducer: (2) SMX2151
HF Transducer: ND2
Crossover Frequency: 1750 Hz
Nominal Impedance (Passive): 4 Ohms
Minimum Impedance: 3.1 Ohms
Enclosure Material: Plywood and MDF with EVCOAT
Suspension: (6) 3/8-inch threaded inserts
Color: Black
Flying: Yes
Input Connections: Parallel Neutrik(R) NL4
Internal Crossover: Yes
Speaker Type: Fullrange
Weight Net: 42.8 kg ( 94.36 lbs )
Dimensions (HxWxD): 1154 x 508 x 471 mm (45.43 x 20 x 18.54 in.)
