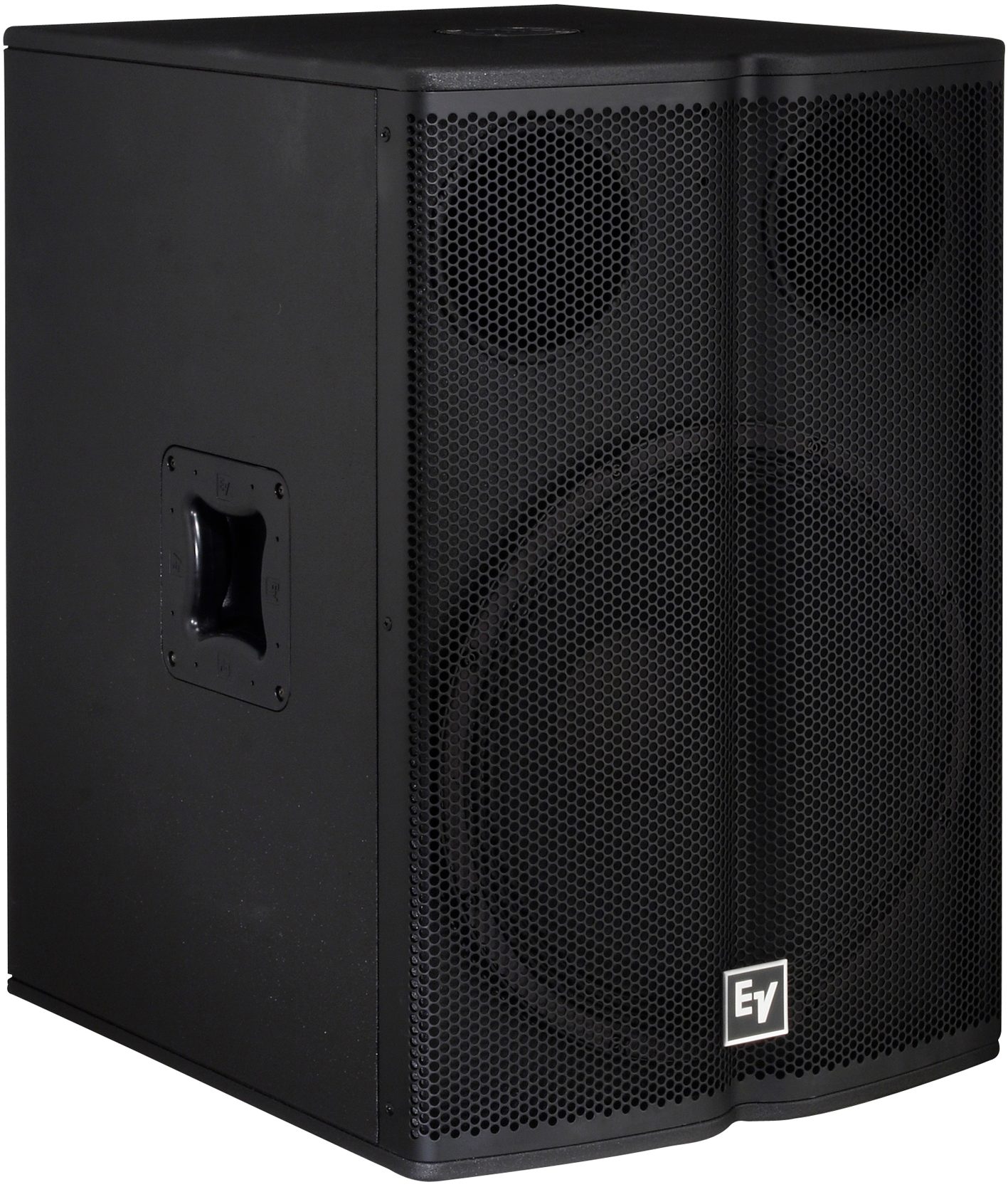

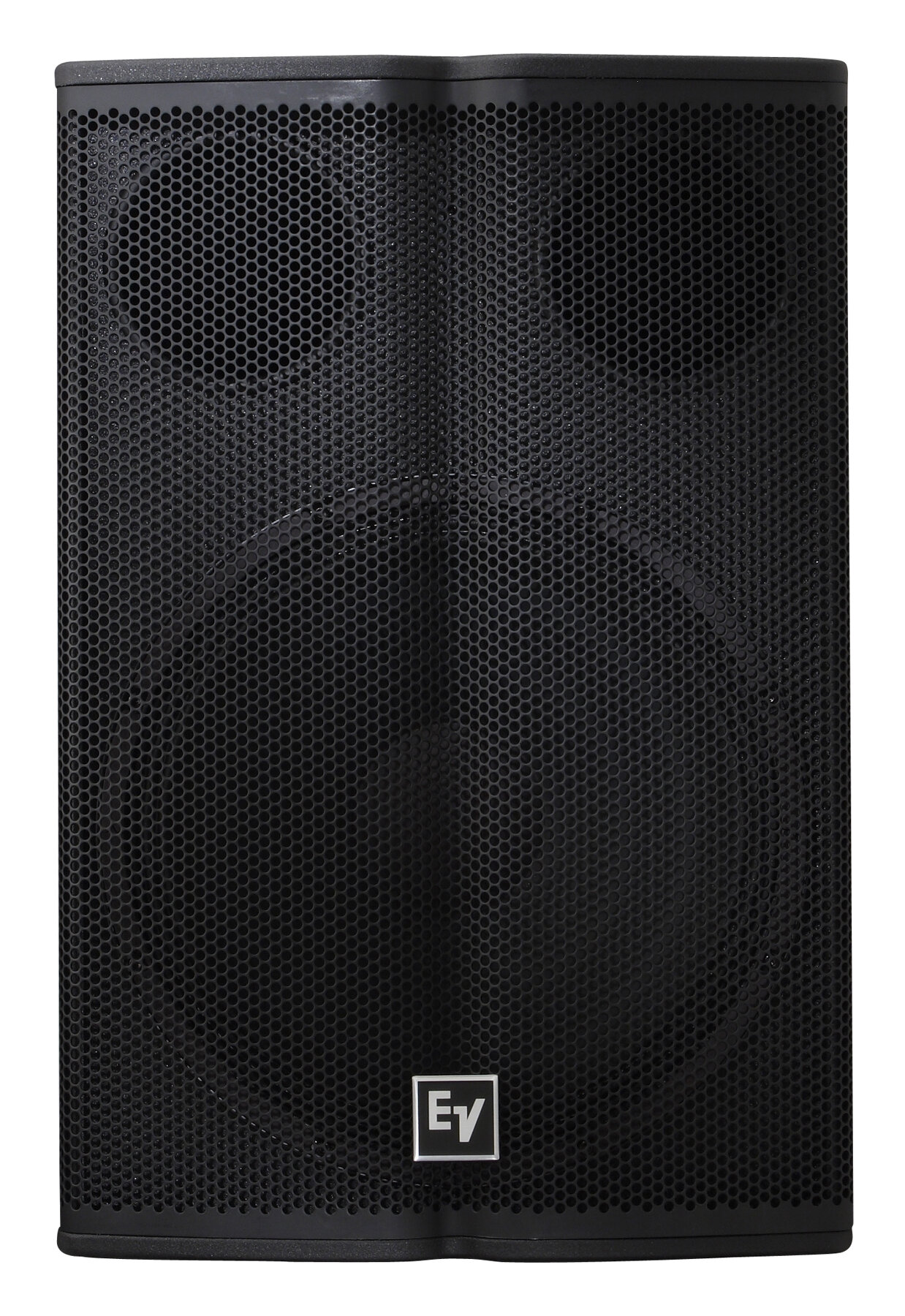

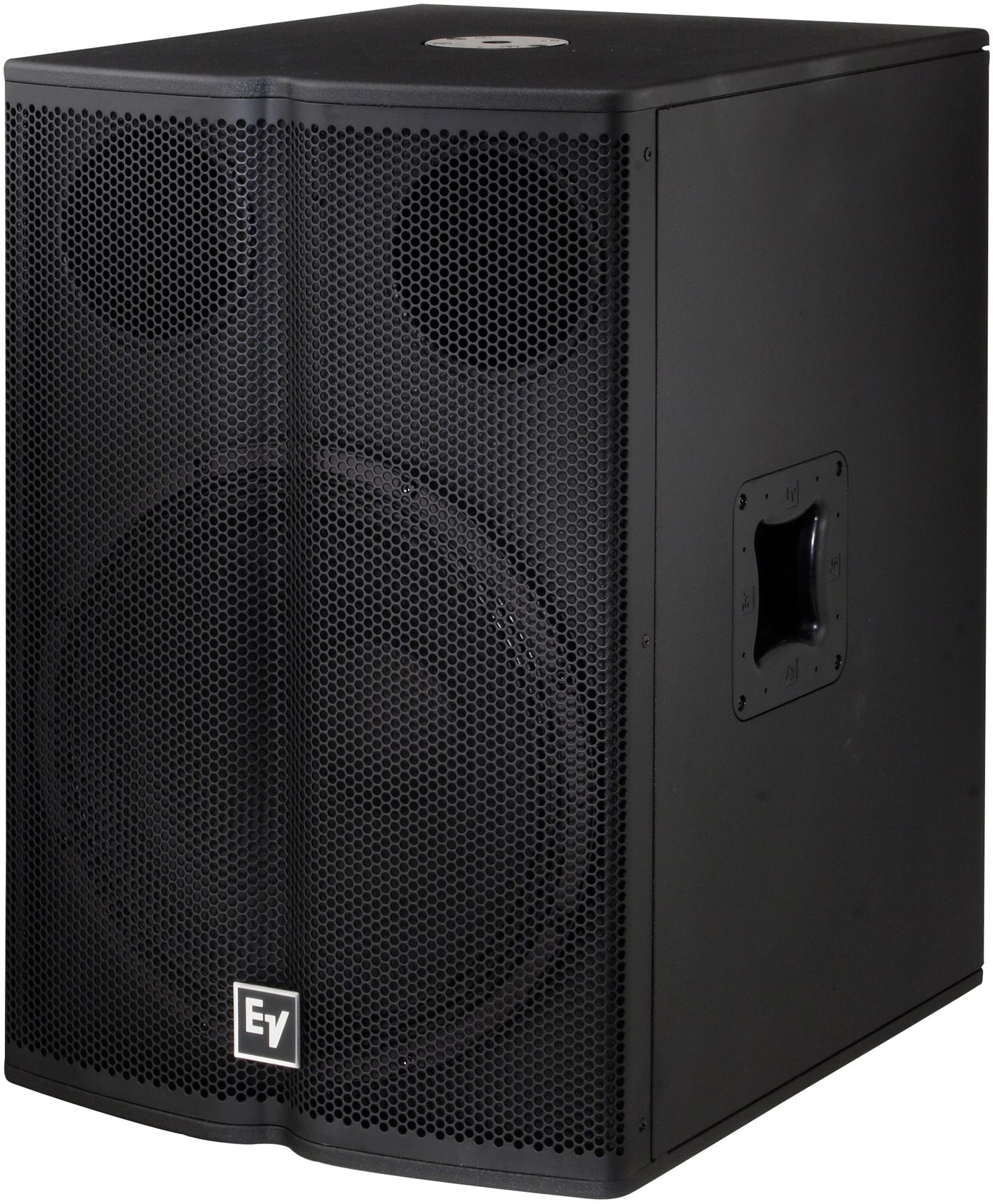

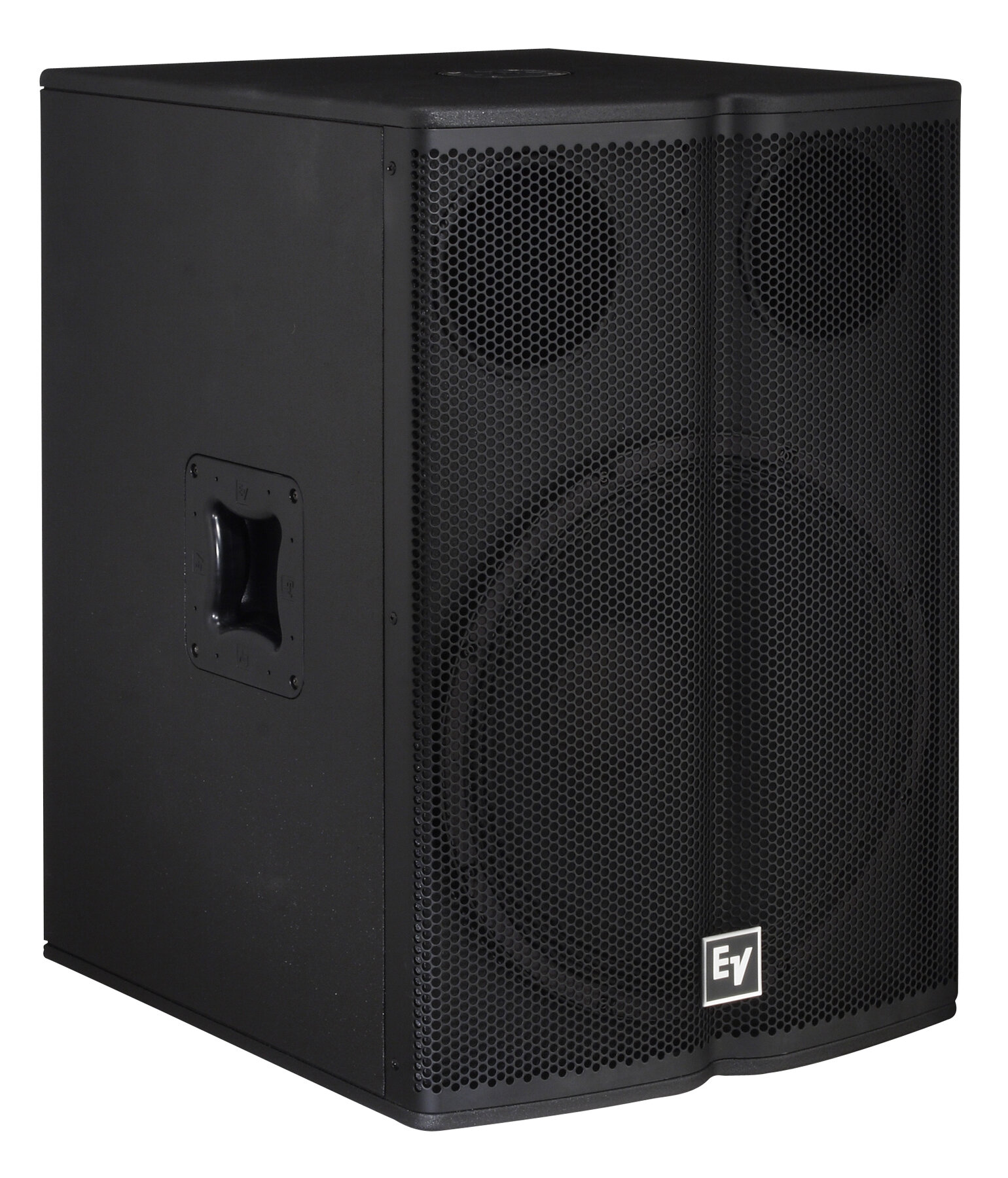

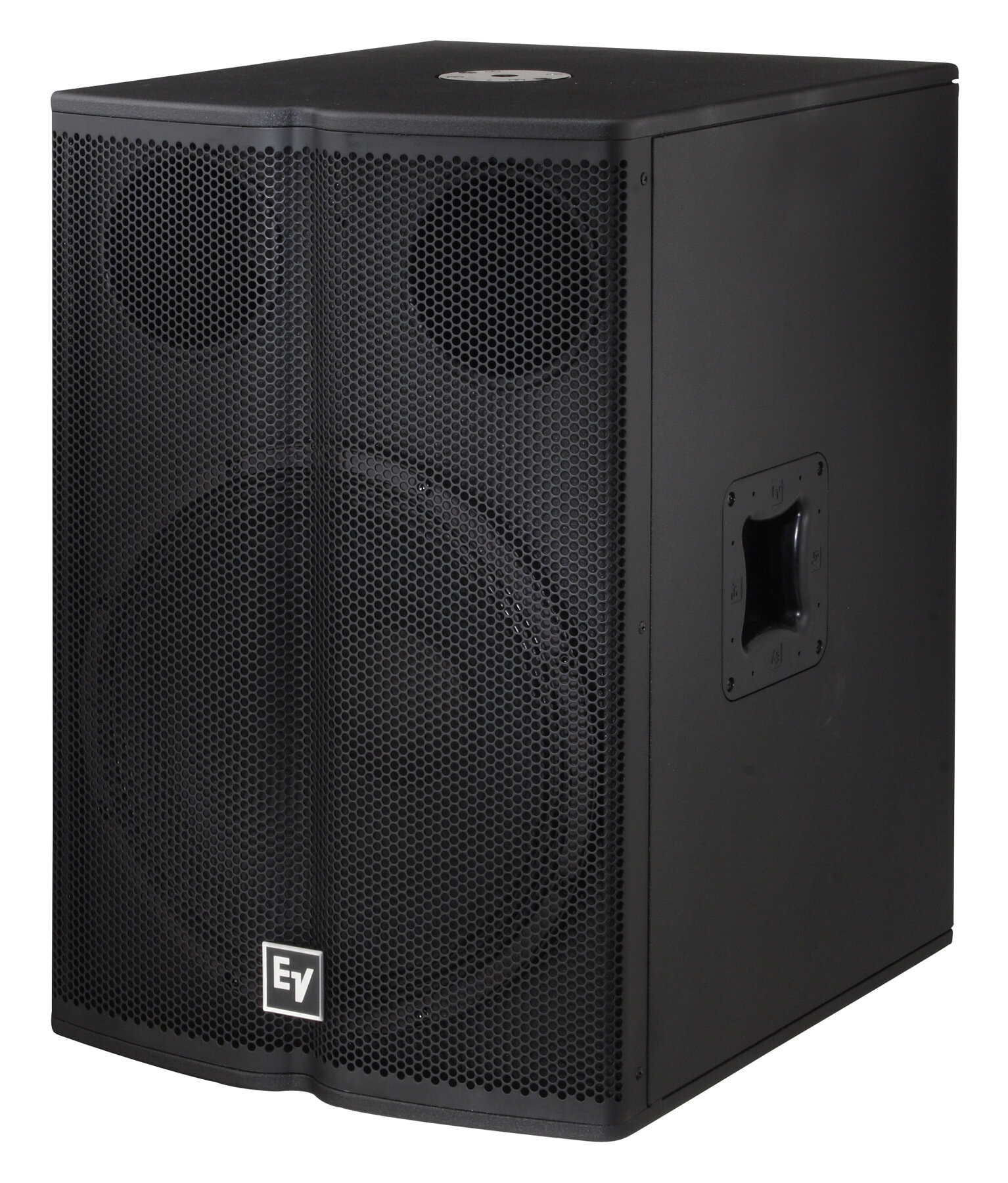

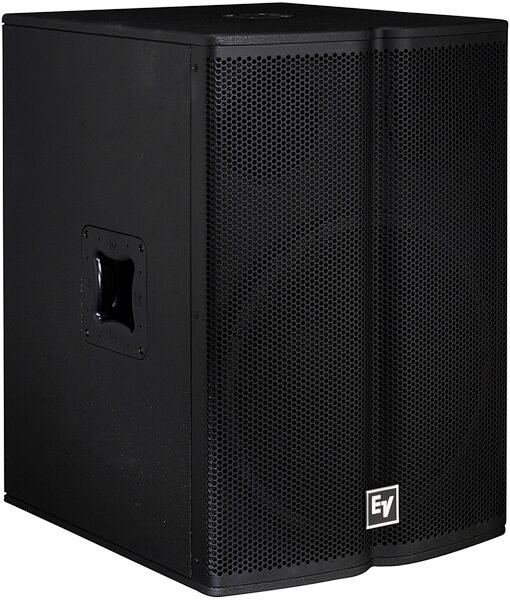

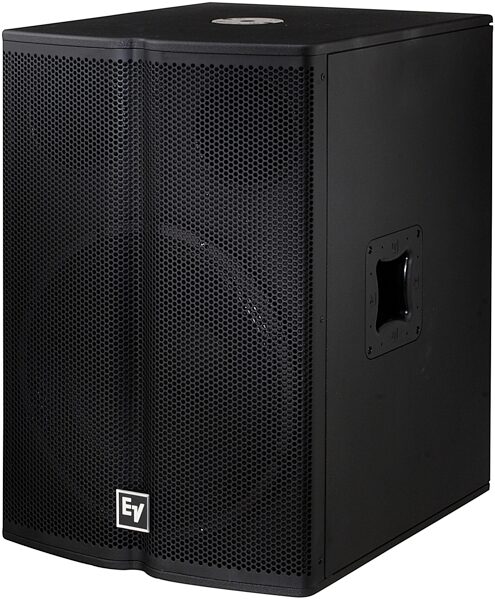

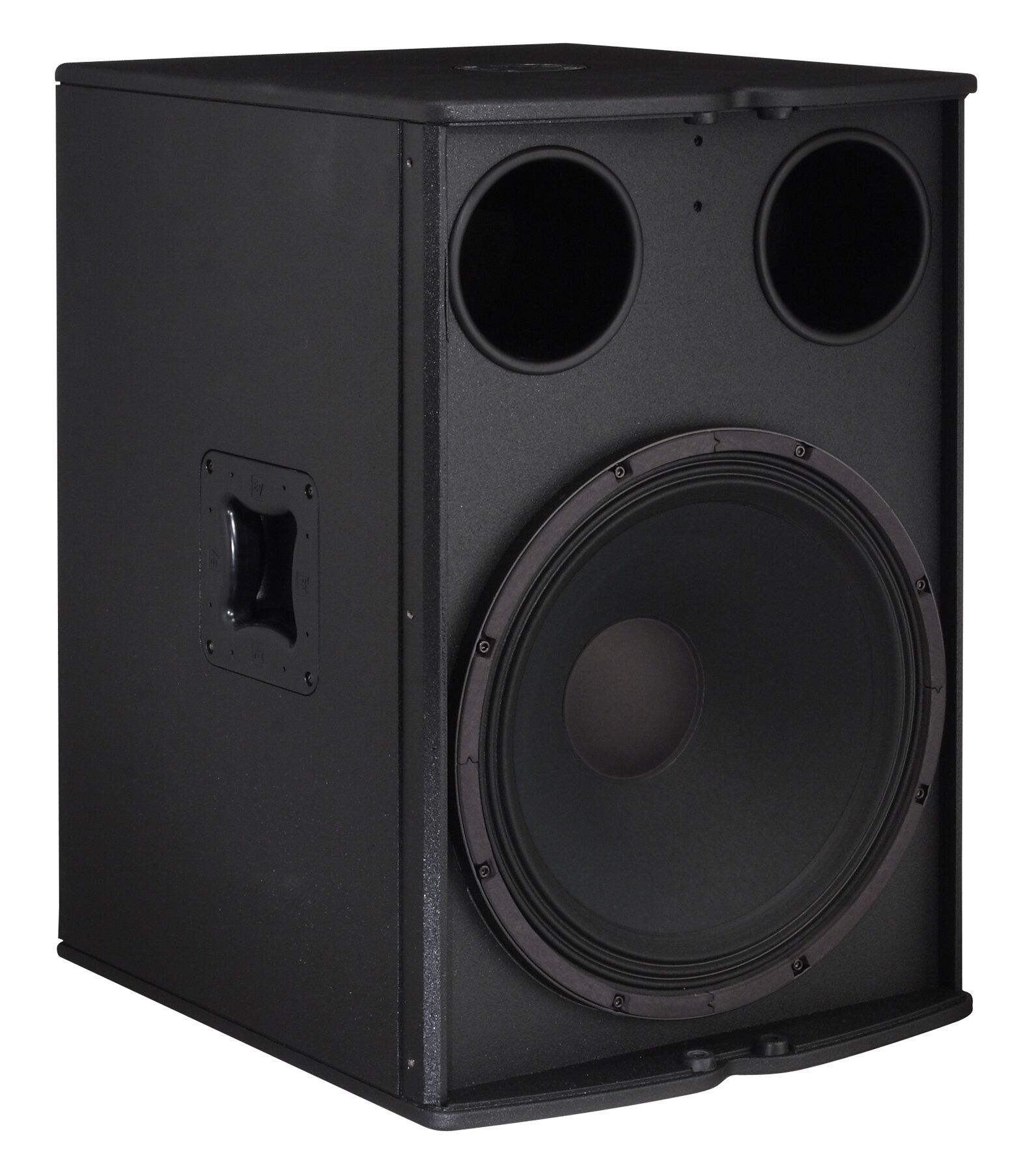

ElectroVoice TX1181 TourX Subwoofer (500 Watts, 1x18 in.)

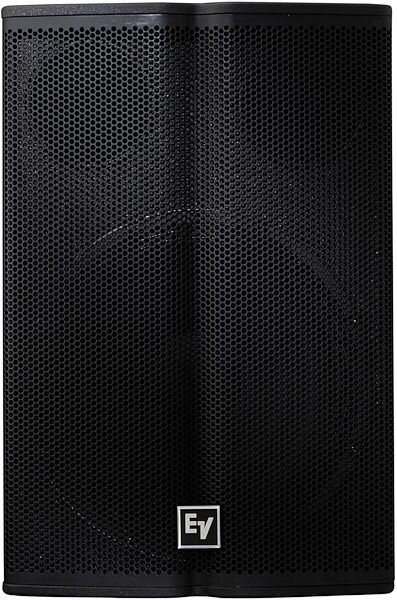

The TX1181 is the perfect companion sub to the TX1122 and TX1152 when compact and portable performance is required. Utilizing the proven EVS18S woofer, the TX1181 effortlessly provides the low frequency energy needed to keep up with Tour X top boxes, as well as many other EV loudspeaker products. The integrated low-pass input filter allows for "single amp drive", and the high sensitivity and excellent power handling don't require an enormous, expensive amplifier to generate high SPL. The aesthetically unique Backbone grille not only looks great, but also provides greater strength and damage resistance than simple grille block designs. Proprietary ergonomically correct handles and angled input panels, and integrated screw-in style pole mount make the TX1181 easy to transport and employ in a variety of applications.

Tour X
ElectroVoice engineering ensures the World's biggest tours and events sound their best. The experience we've gained from 80 years spent shaping and influencing the professional sound reinforcement business makes its way into every loudspeaker we manufacture, including the new Tour X.

Tour X embodies the same ElectroVoice engineering excellence and aesthetic design found in its world class tour systems. Its form is seamlessly integrated into practical, functional elements that make a bold statement about its multi-application purpose and breakthrough performance.

A host of innovative features and patent pending designs make Tour X the most exciting loudspeaker series available today:
- Breakthrough SMX woofers achieve incredibly low levels of woofer distortion without sacrificing sensitivity

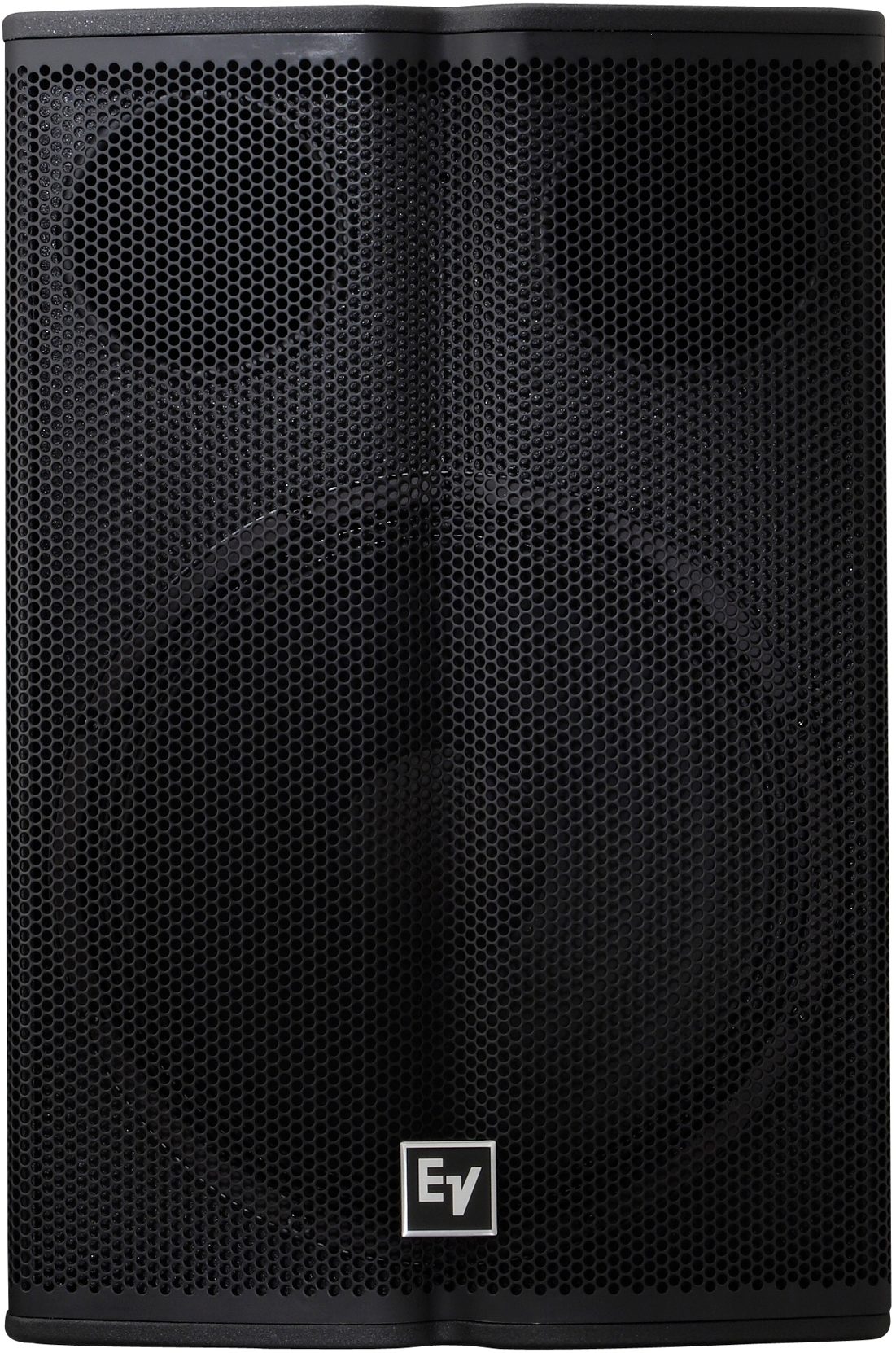

- Aesthetically unique, patent pending Backbone grille design for superior strength and damage resistance
- Steep slope analog crossovers with elliptical filters that provide up to 36dB per octave slopes
- All new proprietary EV designed ergonomic handles and angled input panels

Technical Info

Frequency Response (-3dB): 50 - 160 Hz

Frequency Response (-10dB): 45 - 700 Hz

Recommended High-Pass Frequency: 30 Hz

Sensitivity 1W/1m: 100 dB

Max. SPL / 1m (calc): 132 dB

System Power Handling (continuous/program/peak): 500/1000/2000 Watts

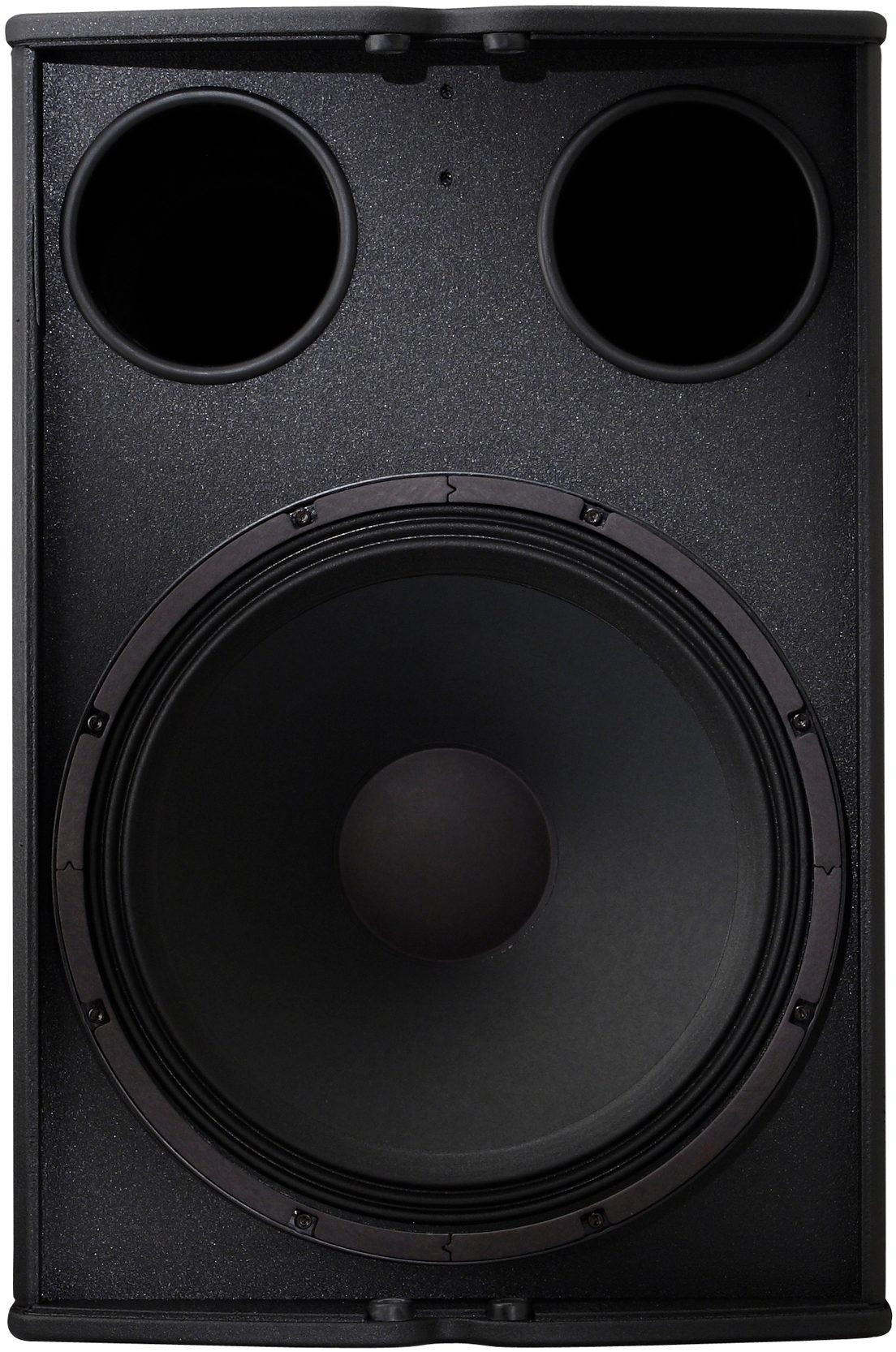

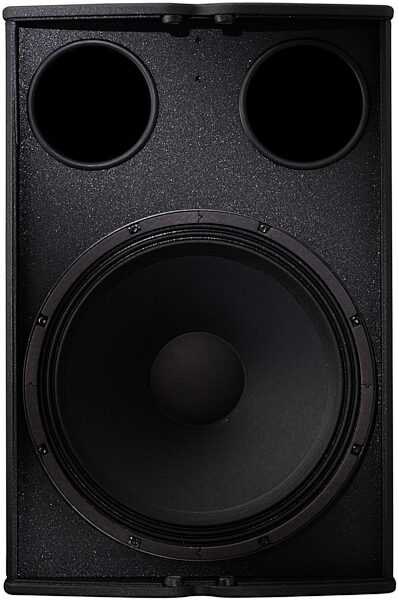

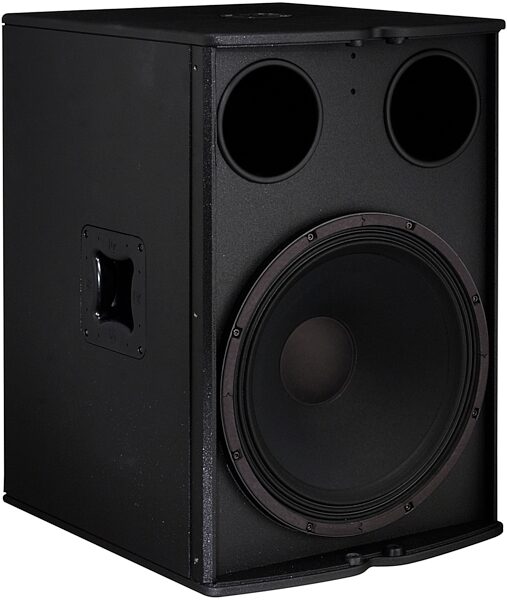

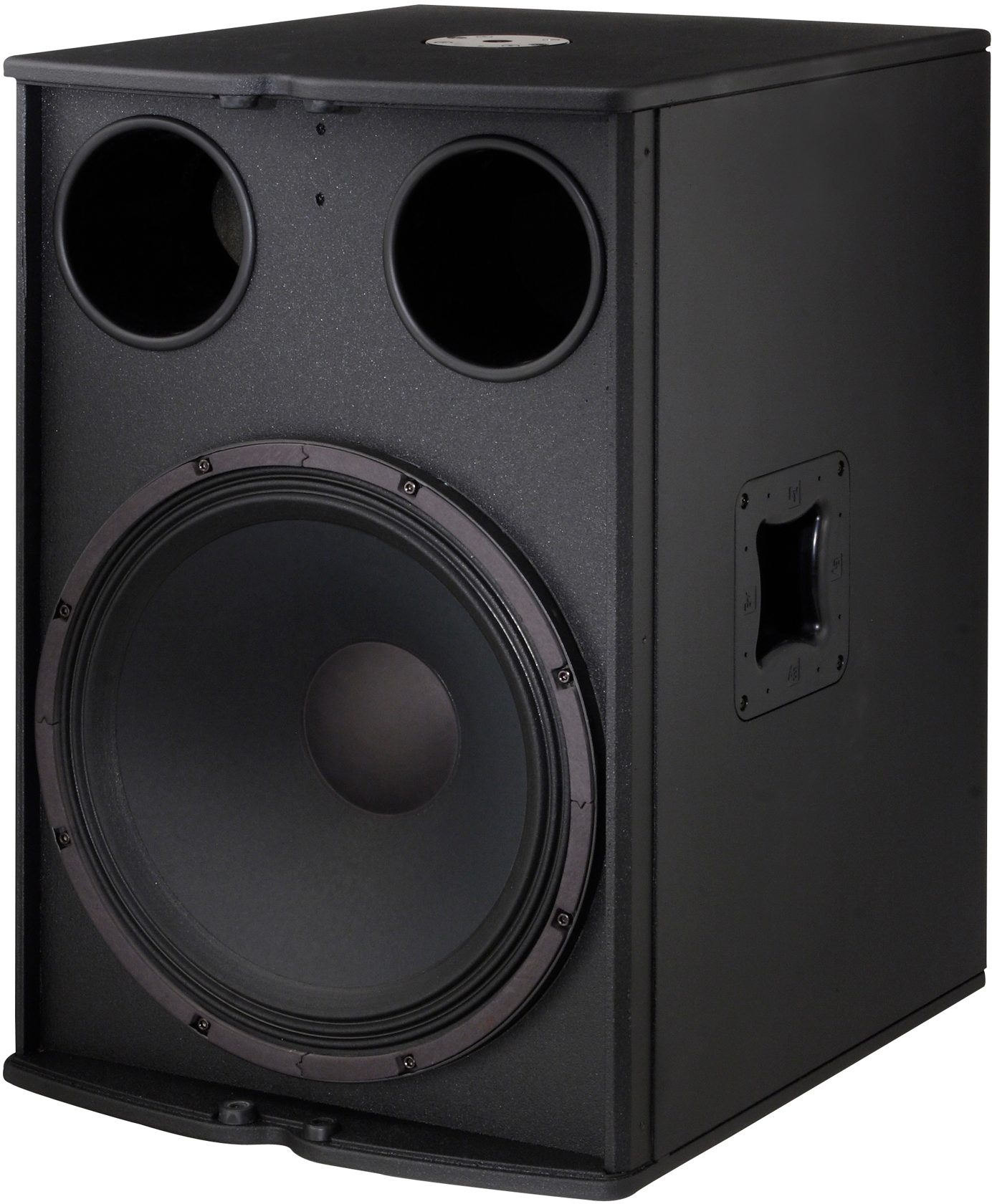

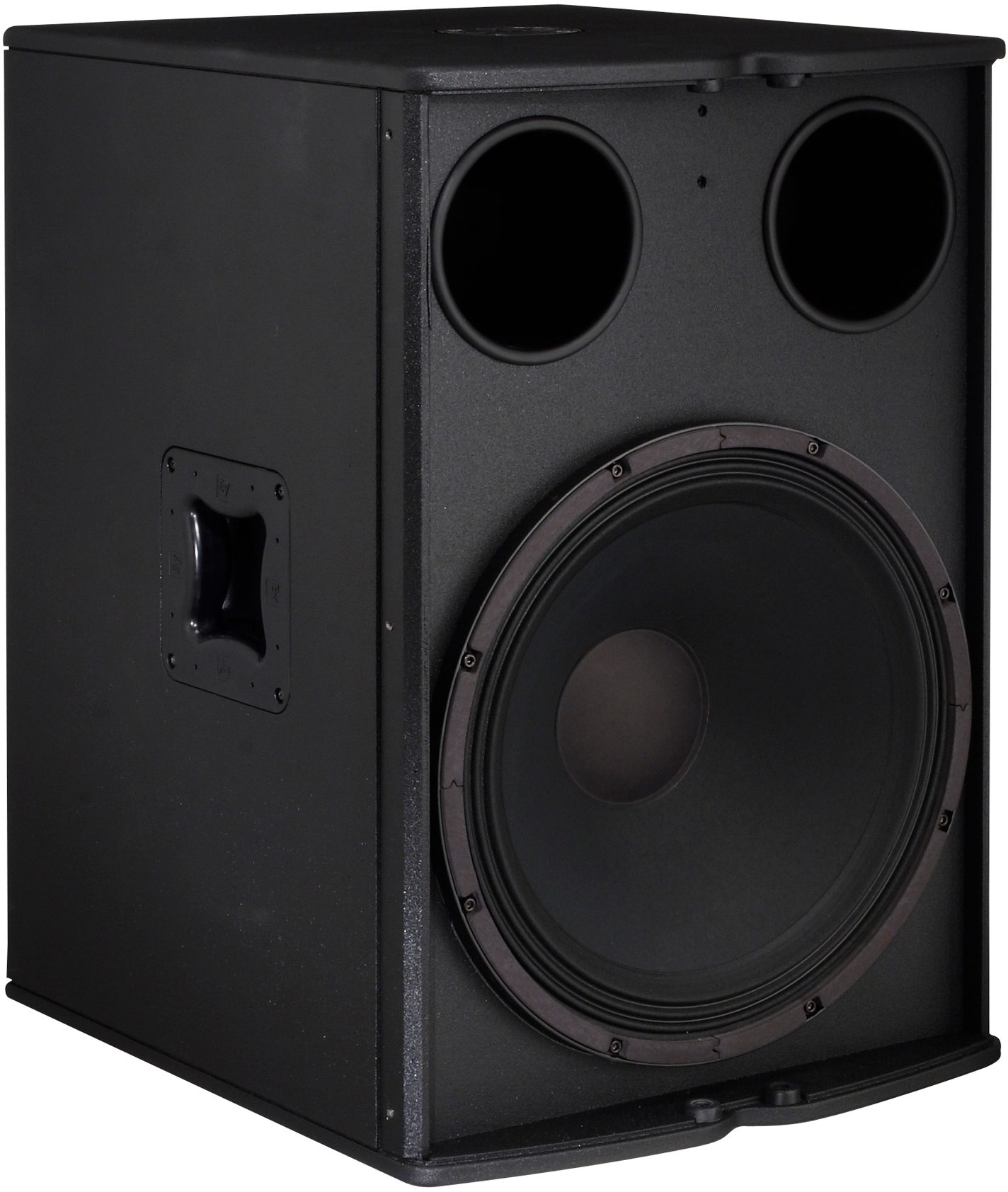

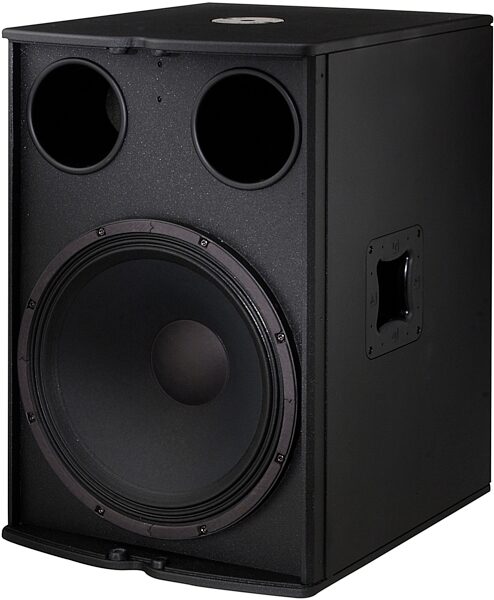

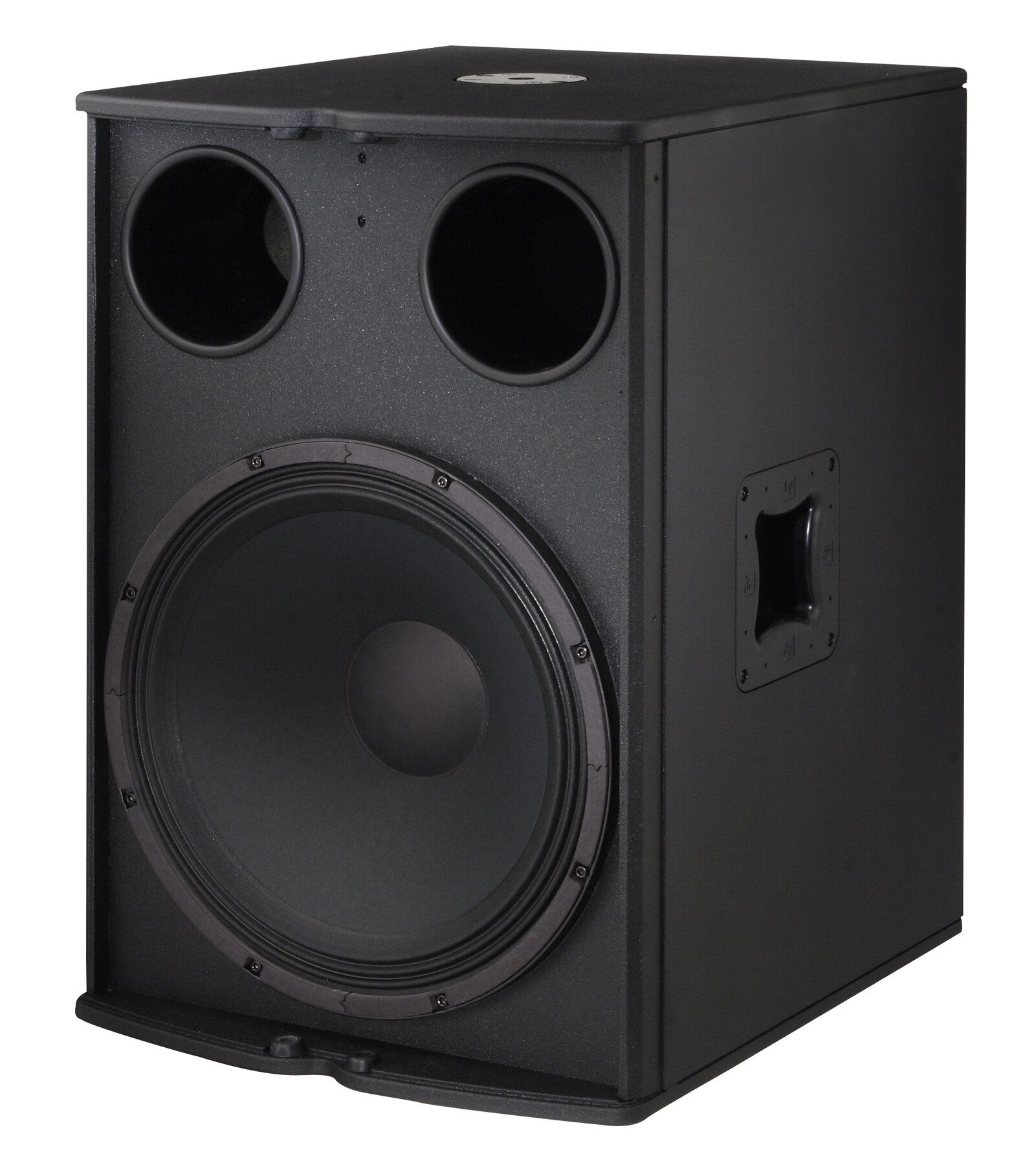

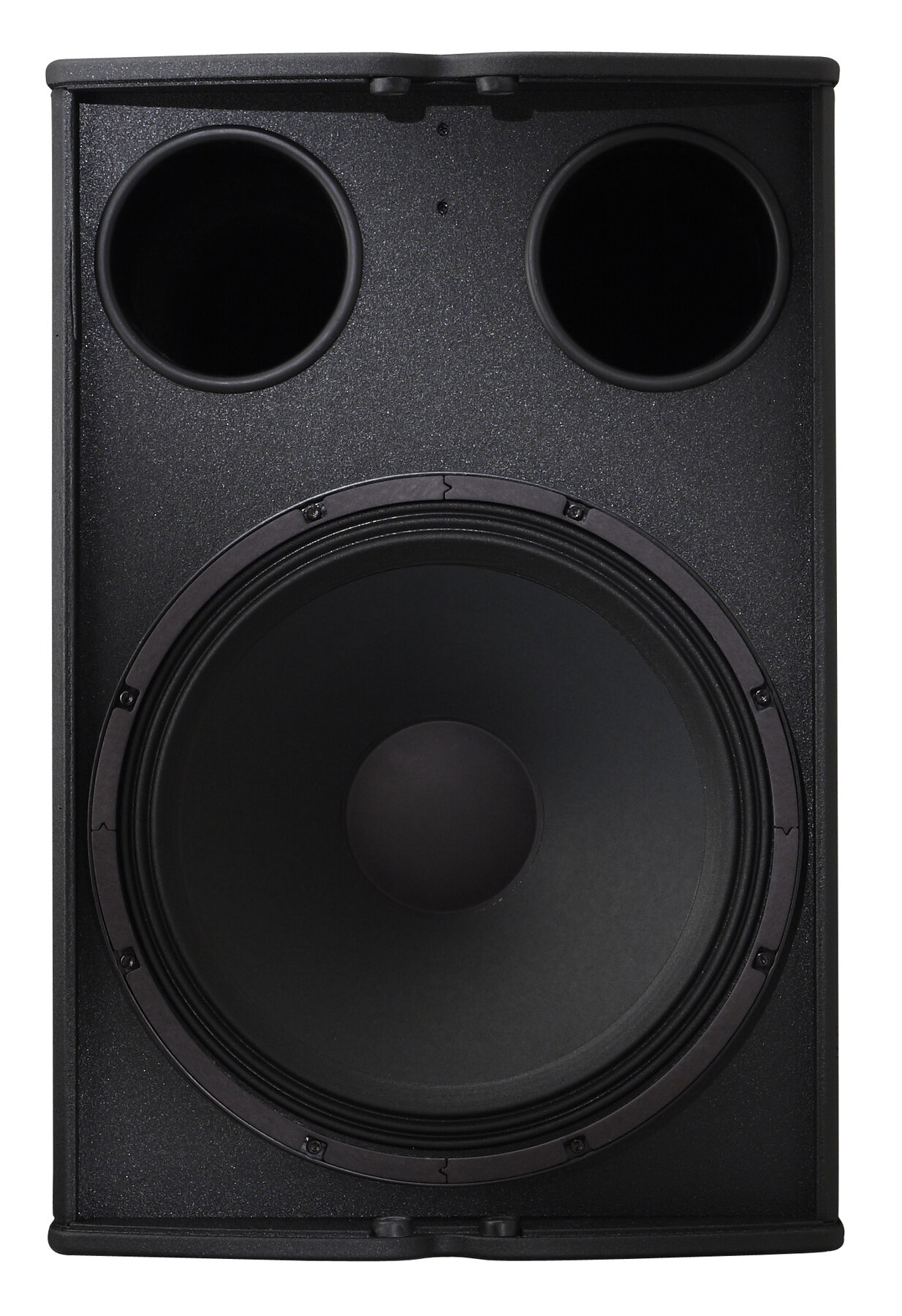

LF Transducer: EVS18S

Nominal Impedance (Passive): 8 Ohms

Minimum Impedance: 7.5 Ohms

Enclosure Material: Plywood and MDF with EVCOAT

Color: Black

Flying: No

Input Connections: Parallel Neutrik(R) NL4

Internal Crossover: Yes

Speaker Type: Subs

Weight Net: 33.8 kg ( 74.52 lbs )

Dimensions (HxWxD): 769 x 439 x 591 mm, (30.28 x 17.28 x 23.27 in.)

18" woofer, 500 watts.
