Packaged RE-2 Wireless Systems
The RE-2 Wireless product is available in eleven different system configurations packed in a hard plastic carrying case. The systems include transmitters and micriphones as indicated.
Whether you're performing at the local rock club, lecturing at a corporate seminar, or speaking in a house of worship, the Electro-Voice RE-2 brings ease-of-use, clear sound, and clean channels to wireless.

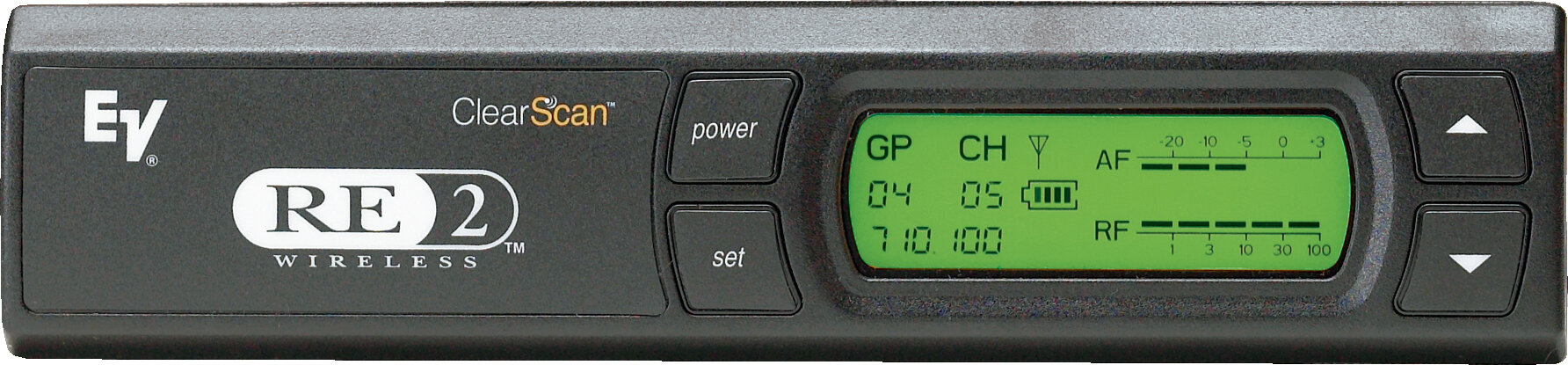

RE-2 Receiver
The RE-2 Series Wireless Microphone System brings sophisticated professional features to an affordable price point. The RE-2 is a completely programmable frequency agile system with one-touch Auto-ClearScan, operates over 28MHz (6 TV channels), XLR Mic or Line level output and many other features.

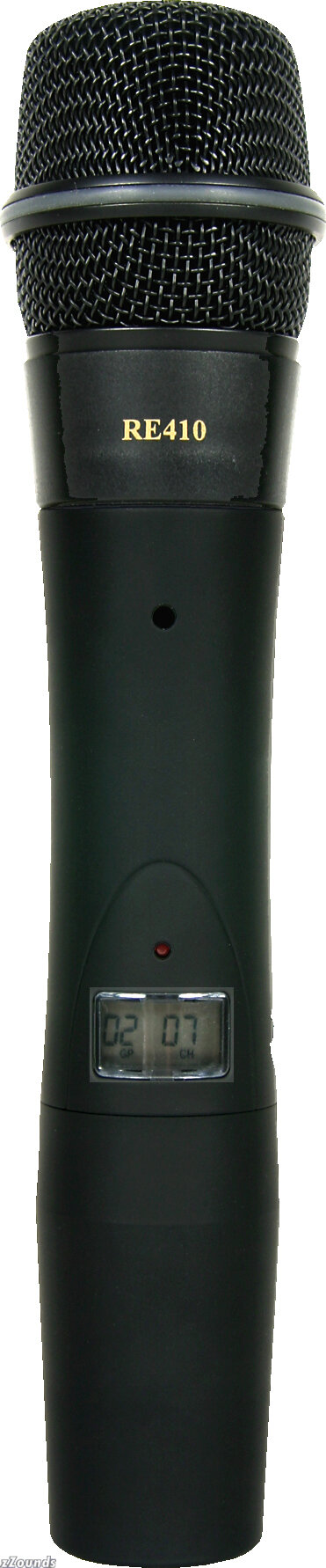

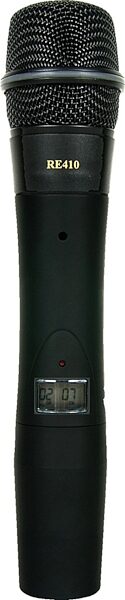

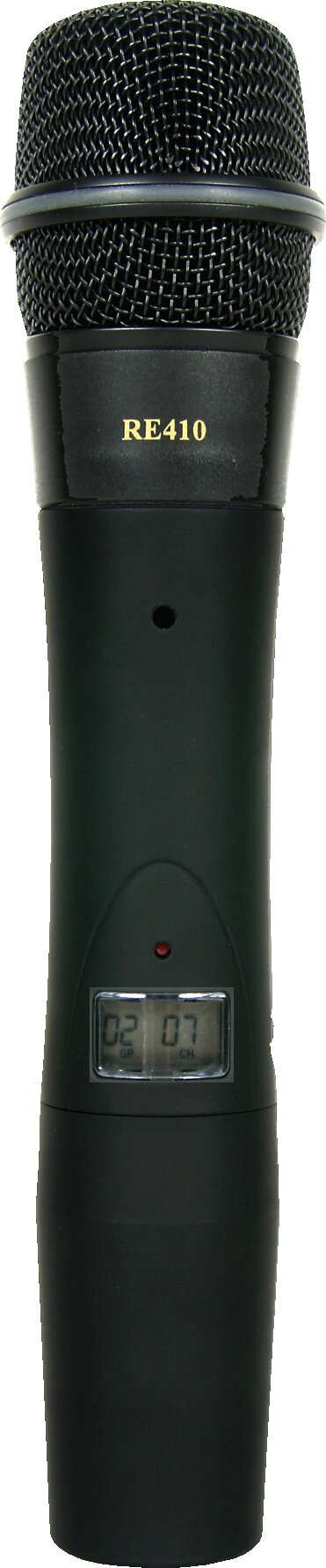

HTU2 Handheld Transmitter
The HTU2 handheld transmitter is a rugged high impact ABS plastic handle available with EV N/D267a, N/D767a, RE410 or RE510 microphone elements. One button on/off/mute button makes the HTU2 easy to use and the smart battery feature makes it easy to maintain.
Technical Info
RE-2 Receiver
RF Specifications: A Band 648 - 676 MHz (TV Ch. 43-48) B Band 696 - 724 MHz (TV Ch. 51-56)
Connector Type: 1/4 in. unbalanced
Connector Type: 3-pin XLR
Antennas: External 1/4 wave detachable
Diversity: Digital Posi-Phase True Diversity
Indicators LCD: Group, Channel, Frequency, AF Meter, RF Meter, Battery Level
Number of channels: 1112 possible (programmable in 25kHz steps) per band
Power Requirement: 12 V AC/DC 300mA
Squelch: Tone Code plus Amplitude
Wired/Wireless: Wireless
Finish: Non-reflecting Black
Case Material: Metal
Dimensions (HxWxD): 43.7 x 190.5 x 150 mm (1.72 in. x 7.5 in. x 5.91 in.)
HTU2 Handheld Transmitter
Antennas: Internal 1/2 wave
Mic Type: Handheld
Power Requirement: 9V Battery
Wired/Wireless: Wireless
Finish: Non-reflecting Black
Case Material: High-Impact ABS Plastic
Dimensions (Height X Max Diameter): 240 x 52 mm (9.45 in. x 2.05 in.)
Microphone Applications: Female Vocal, Jazz, Male Vocal, Rock, Speech

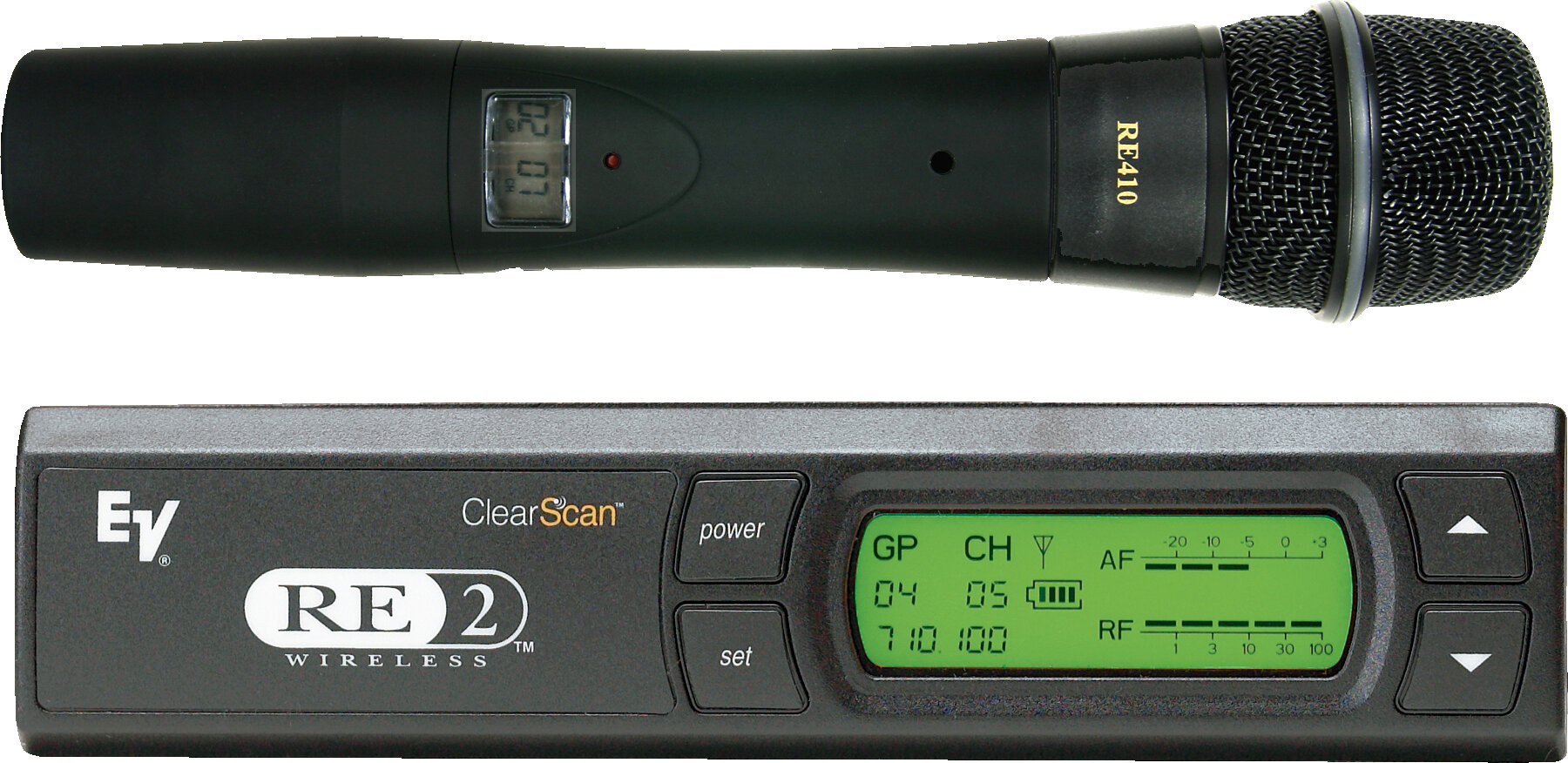

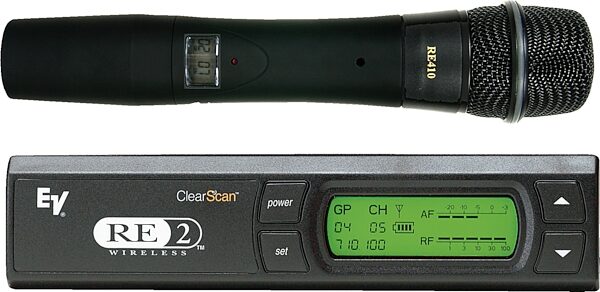

With RE-2 receiver and handheld transmitter fitted with RE410 cardioid condenser mic capsule.
