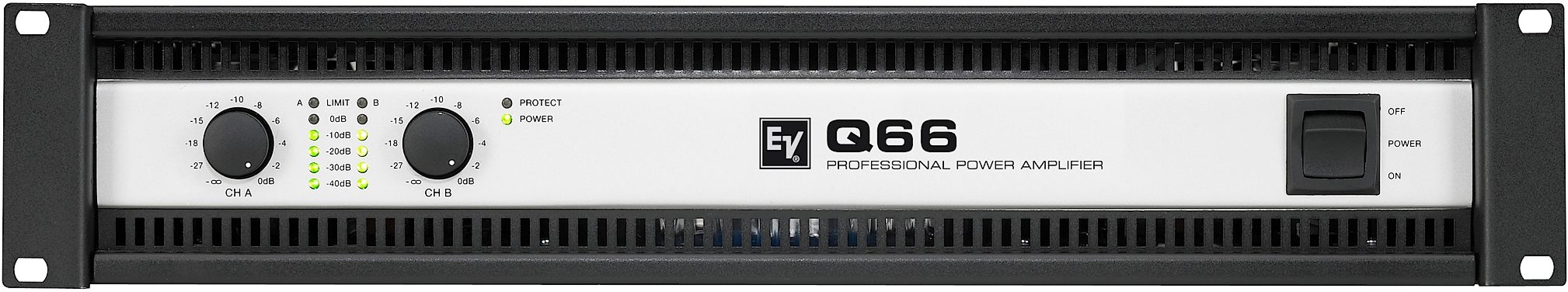

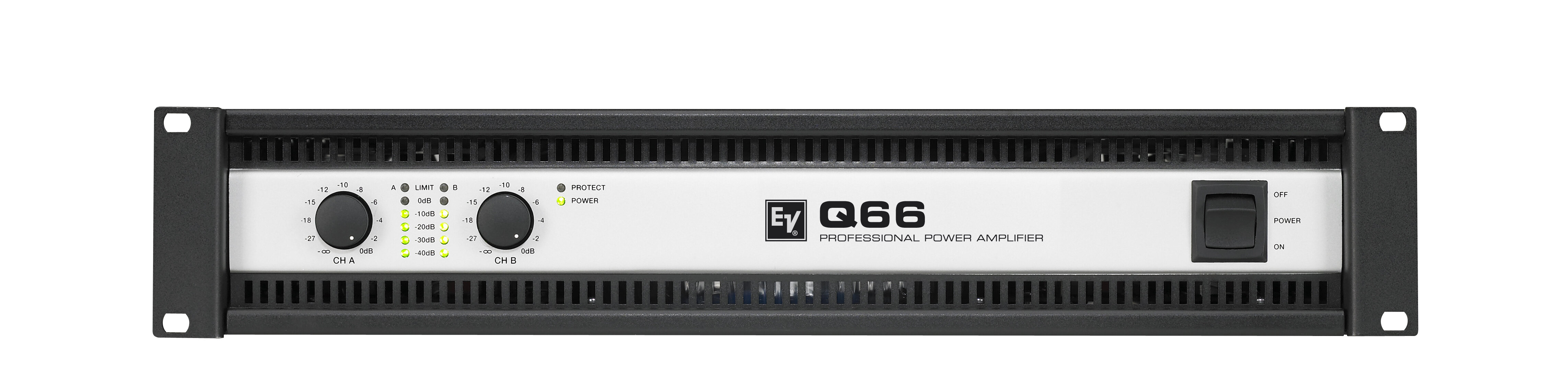

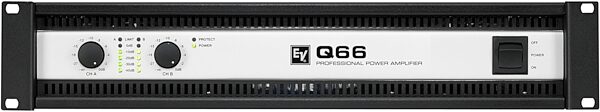

Electro-Voice Q66 MKII Power Amplifier (600 Watts)

No longer available at zZounds
zZounds Gear Experts Say...
Upgrade your setup with this ElectroVoice power amp. It uses switchable Low-Pass Notch filter circuitry to ensure vivid, full-toned sound.

ElectroVoice Q66 MKII - the versatile workhorse of the new Q series amplifiers delivers 2 x 600W @4Ohms / 2 x 900W @2Ohms and provides flexible drive capability for a huge variety of speaker systems, including Sx300, ZX4, SB122 etc. Switchable LPN(Low-Pass Notch) filter circuitry provides extra tonal fundament and kick, with protective Low-Cut for using smaller passive 12 or 15 inch cabinets without additional subwoofers.

Q Series Amplifiers MK II
Each new generation of Electro-Voice amplifiers inherits more than 60 years of experience in amplifier design and manufacturing. From the beginning, Electro-Voice has always considered the audio quality of and amplifier to be as important as the output power and reliability. An EV amp will do more that just work through the toughest conditions; it will ensure your system sounds its best while running safely.

In the 1990s, EV launched its Precision Series amplifiers. The flagship P3000's success was built upon its groundbreaking headroom, accomapanied by electrcal and thermal stability under all load conditions. Failure was literally not an option with the P3000.

As direct decendants of the legendary P3000, Q Series amplifiers take Electro-Voice's unique amplifier design philosophy to a new level of performance, power, effiency and value.

With Q Series' efficient Class-H design, the permanent voltage rail is designed to cover the average music signal, rather than supplying the voltage for maximum output power. If dynamic peaks require read more a higher output voltage, the voltage rail is switched to the maximum. This process saves up to 50% of the power consumption found in conventional amplifier designs, and results in a dramatic reduction in heat output. Q Series combines the sonic excellence and ruggedness of its Precision Series predecessors with Class-H innovation, all in a compact and affordable package. read less

Specifications
Amplifier Gain (dB): 32

Continuous rated power (1k Hz, THD 1%) 2 Ohm: 900 Watts

Continuous rated power (1k Hz, THD 1%) 4 Ohm: 600 Watts

Input Impedance (balanced): 20 k Ohm

Continuous rated power (1k Hz, THD 1%) 8 Ohm: 380 Watts

Continuous rated power
(20-20k Hz, THD<0,2%) 4 Ohm: 500 Watts

Continuous rated power
(20-20k Hz, THD<0,2%) 8 Ohm: 250 Watts

Maximum bridged output 4 Ohm: 1700 Watts

Maximum bridged output 8 Ohm: 1200 Watts

Slew Rate: > 26 V / us

Electronics Type: Amplifier

Network Control (IRIS-Net): No

Total harmonic distortion: < 0.03 %

Intermodulation Distortion (SMTPE): < 0.1 %

Signal-to-noise ratio (A-weighted): > 107 dB

Input Sensitivity: +3.1 dBu

Weight Net: 14.8 kg ( 32.63 lbs )

Dimensions (HxWxD): 88.1 x 483 x 421.5 mm (3.47 x 19.02 x 16.59 in.)

Output at 8 ohms stereo: 380 watts per channel

For support or warranty questions, please contact the manufacturer:
Phone: 800-289-0096
Email: technical.support@us.bosch.com
Web: https://electrovoice.com/contact-us/

No longer available at zZounds

In most cases, a product is unavailable because it has been discontinued by the manufacturer
