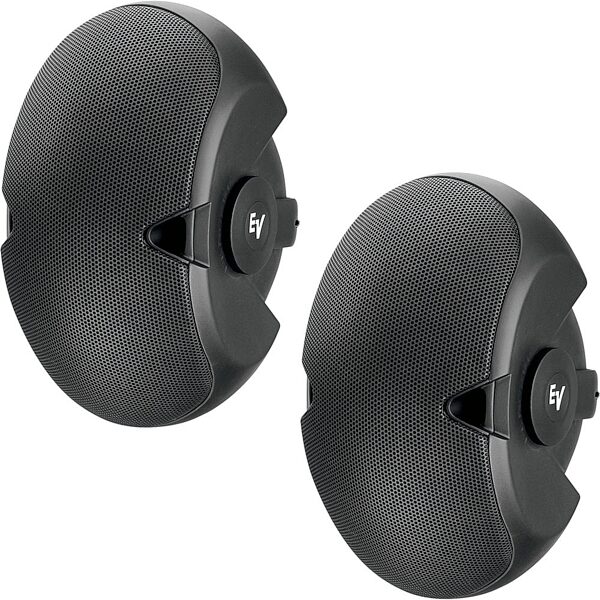

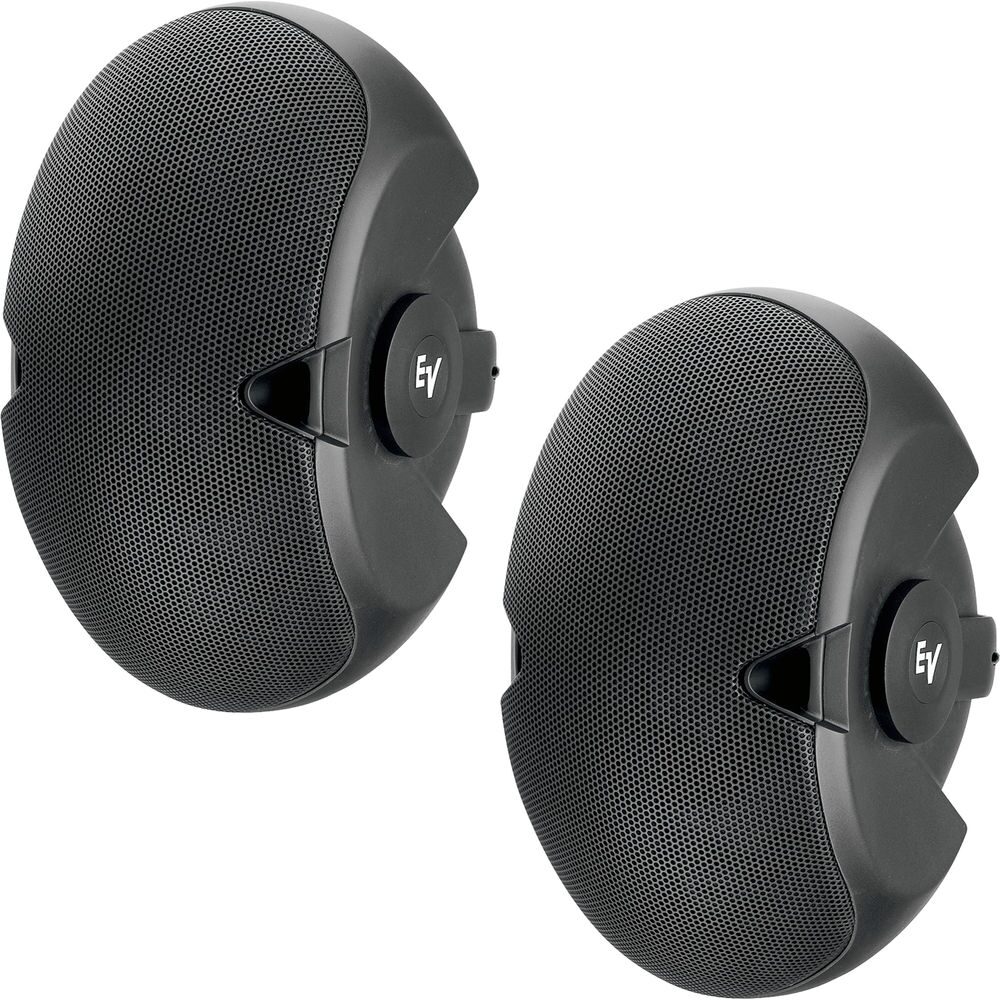

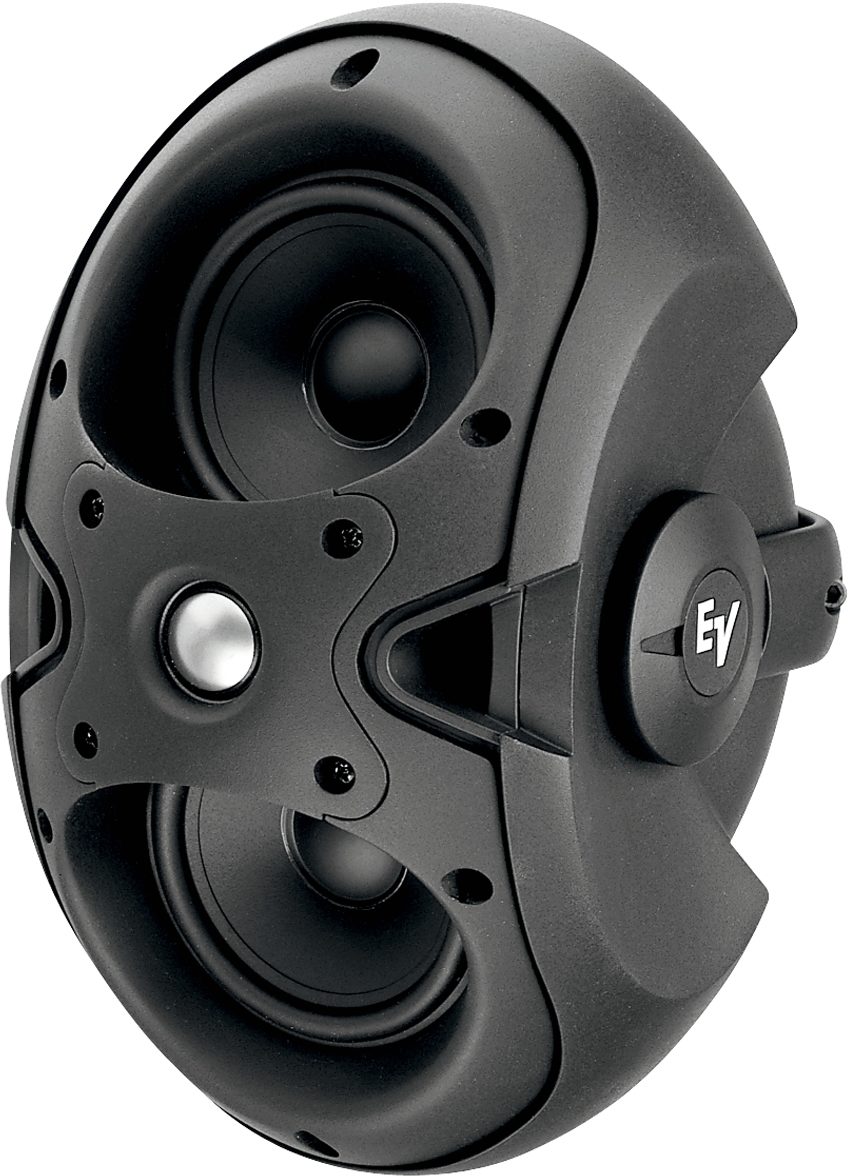

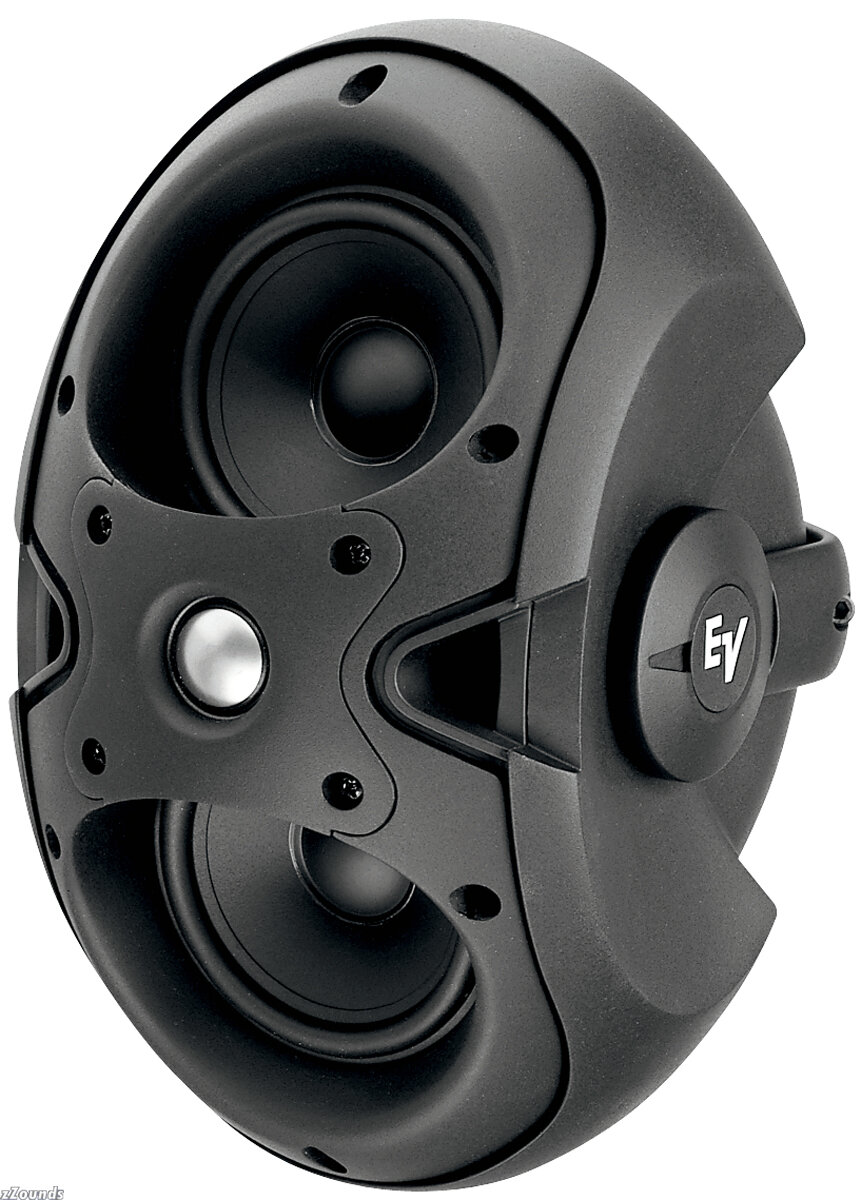

The EVID32 monitor is loaded with dual 3.5-inch LF drivers and a 3/4-inch Ti direct radiator, the EVID32 produces sound that defies its small size. Its unobtrusive profile is ideal for background music and paging support in a wide variety of environments (e.g., offices, retail stores, restaurants, etc.) Coupled with the 12.1 Subwoofer, two to four EVID32 speakers deliver amazing SPL levels for foreground music.
EVID Systems
The ID in EVID is for innovative design of high quality foreground/background music systems. 13 models comprise the EVID series. Four surface mount speakers include the 6.2 with dual 6 in. LF drivers and a 1 in. Ti /waveguide, the 4.2 with dual 4 in. LF drivers and a 1 in. Ti /waveguide, the 3.2 with dual 3 in. LF drivers with a .75 in. Ti direct radiator. The 12.1 and 12.1p subwoofers are designed to augment and extend the fullrange model's low frequency response and completes the line.
Two new EVID InWall systems are now available. Featuring fully sealed enclosures, the FM4.2 and FM6.2 provide consistent performance when mounted in any style room and their sealed enclosures dramatically reduce adjacent room sound leakage.
Six ceiling speaker models comprise the EVID line and include the compact powerful C4.2, The C8.2 and 8.2LP high output models, the C8.2HC controlled coverage high ceiling model, the C12.2 12" high performance system and the C10.1 high performance ceiling subwoofer.
Surface Mount Systems With Innovation
EVID surface mount speakers are not just another box, or trapezoidal system, EVID is different. It's unique design concept combines style with audio performance for several benefits. An aesthetic design using organic curves fits into many decors and themes, it does not look like a traditional loudspeaker. This allows better integration for a more invisible sound system, while not distracting from a commercial or theme environment. All models all available in black or white, and can easily be painted the match the decor.
Ceiling Systems For Every Application
EVid ceiling speaker systems are high performance, easy to install, visually attractive systems designed for background/foreground audio support in a wide variety of applications such as retail storefronts, hotels, auditoriums, office spaces and shopping malls. EVid systems offer specific, tailored acoustic solutions for these applications through their unique design.
Technical Info
Frequency Response (-10dB): 85 - 20000 Hz
Sensitivity 1W/1m: 87 dB
Max. SPL / 1m (calc): 112 dB
Coverage (nominal -6dB): H degrees - 140 degrees
Coverage (nominal -6dB): V degrees - 100 degrees
Nominal Impedance (Passive): 8 Ohms
Minimum Impedance: 6 Ohms
Color: Black

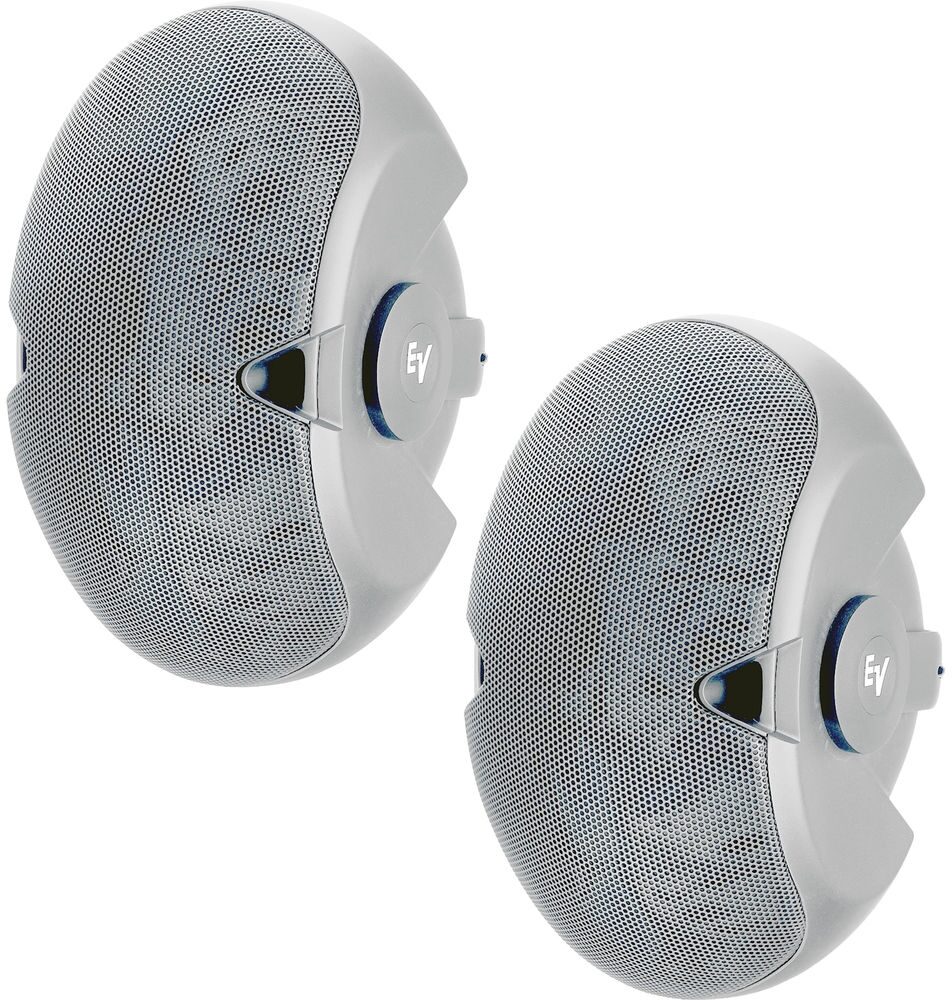

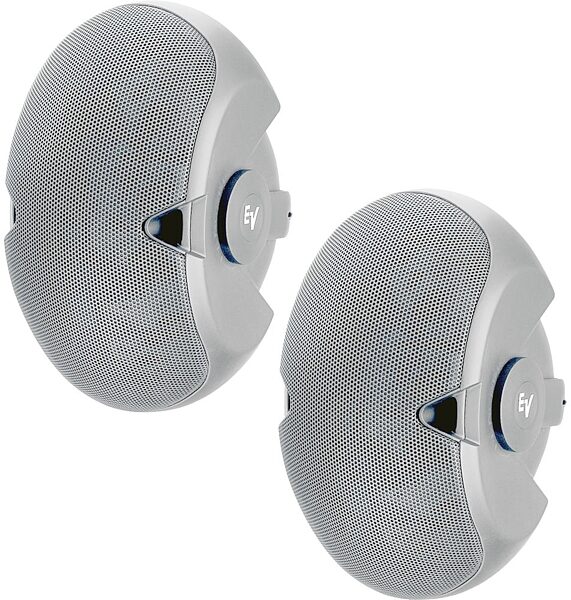

Color: White
Input Connections: Spring Terminal
Outdoor: Yes
Transformer Taps (Transformer Version Only): 70V:5W, 100V:10W
Chassis Size: 3.5 inches
Speaker Type: Fullrange, Mid-High, Two-Way
Weight Net: 1.5 kg ( 3.31 lbs )
Dimensions (HxWxD): 234 x 127 x 165 mm (9.21 x 5 x 6.5 in.)
