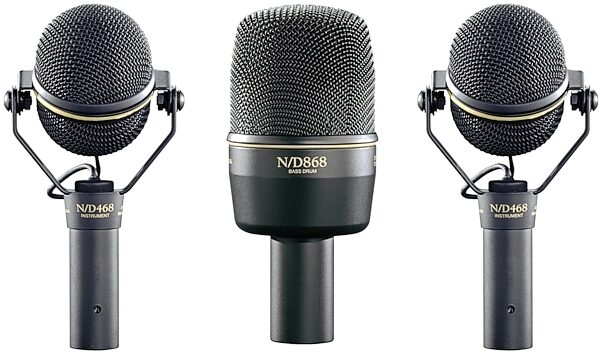

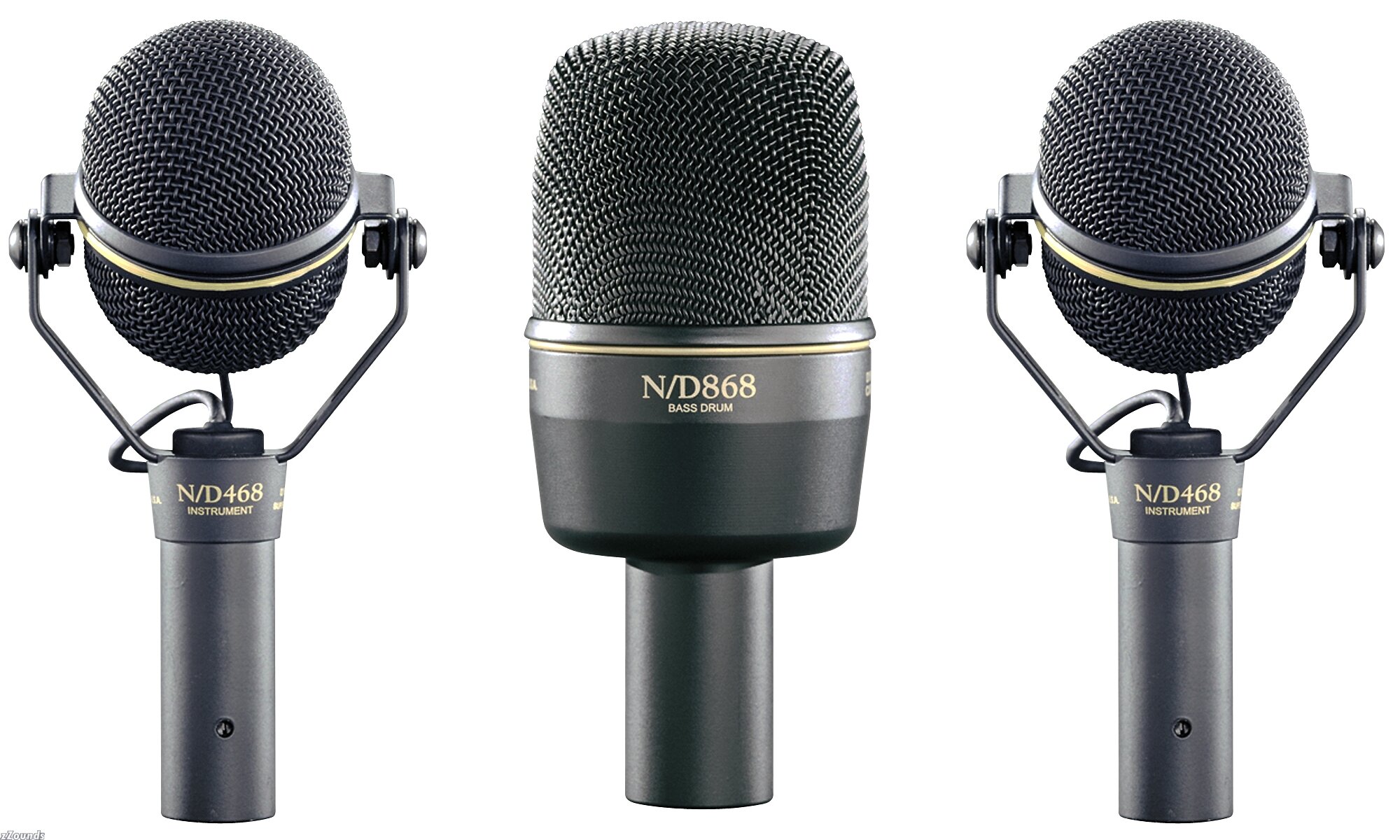

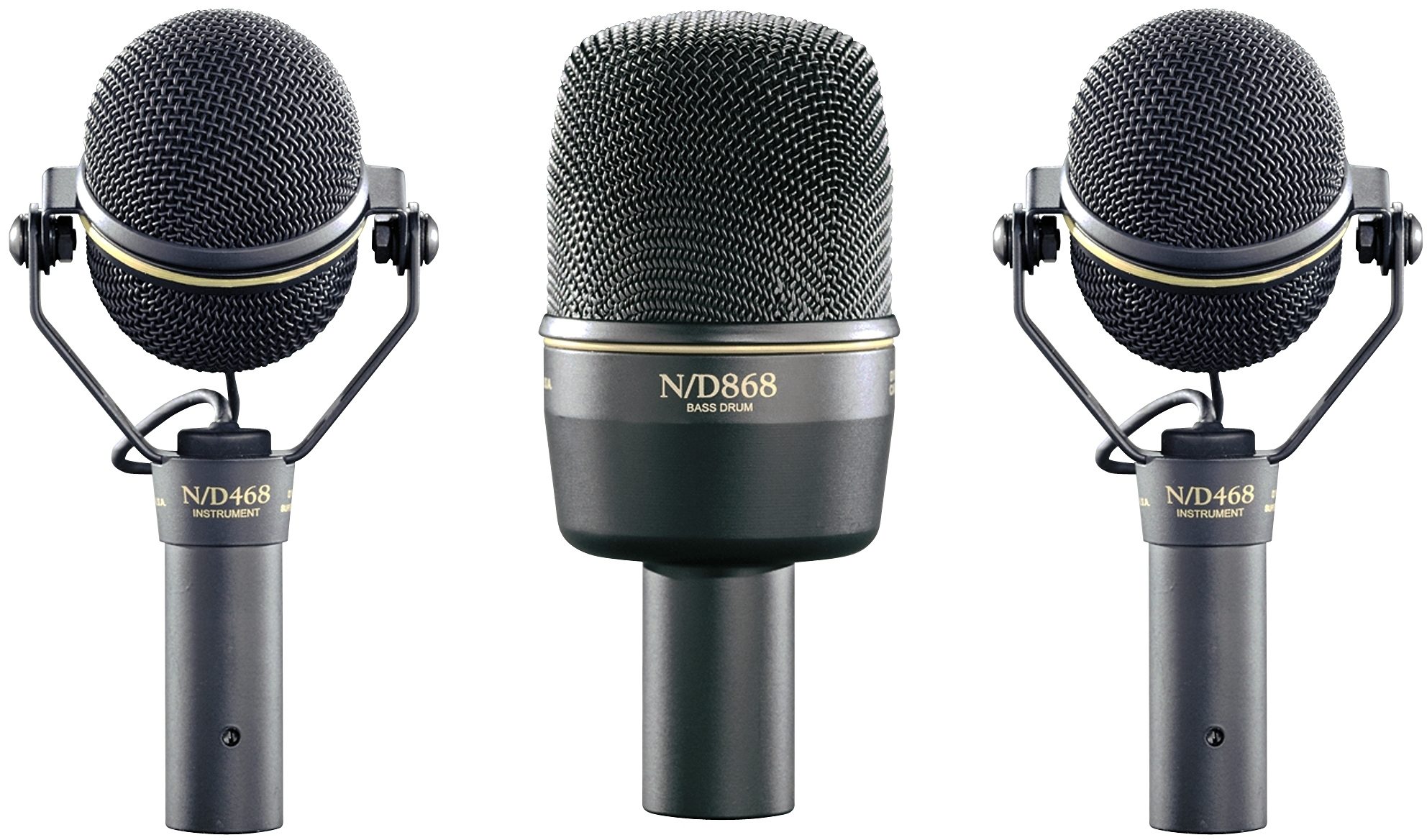

ElectroVoice Drum Pack (1xND868, 2xND468)

N/D468
The Electro-Voice N/D468, Part of a New Generation of N/DYM microphones, is specifically designed to accurately capture the sound of horns, acoustic and electric guitars, and the percussive energy of drums in both live performance and studio recording. The N/D468 is a member of a family of microphones manufactured to enhance sonic smoothness, improve gain-before-feedback, and provide more consistent performance with greater durability than earlier generations of N/DYM microphones. EV's microphone designers created a smooth, extended response with an open top end to reproduce instrumental sounds with natural acoustic accuracy. The N/D468s reduced size and exclusive pivoting yoke gives you maximum mechanical versatility on any instrument. The N/D468 is the musician's choice for a microphone with unsurpassed mechanical flexibility and studio-quality acoustics.

Characteristic of all N/DYM microphones is the outstanding neodymium-iron-boron magnetic structure. This structure provides greater sensitivity for exceptional signal-to-noise ratio and improved recording quality. Combining the N/DYM magnetic structure with a large, reinforced diaphragm results in a transducer manifesting a warm, open, and transparent sound quality normally found in studio-quality microphones. The N/D468 also includes a highly effective humbucking coil that reduces hum interference from lighting and other electrical power sources.

N/DYM microphones feature EV's AcoustiDYM shock-mount system. This unique vibration isolating system works as a multistage device. At low frequencies, a rear sound wave cancels the diaphragm motion while, at high frequencies, the specially designed rubber shock mount isolates the transducer from motion. Combined with the windscreen bumper, the shock mount forms an advanced technology, vibration-isolating system that dramatically reduces all forms of handling noise for the most demanding situations.

To ensure superior gain-before-feedback in live performance and acoustic isolation in recording studio environments, the N/D468 is constructed with a supercardioid polar pattern. The supercardioid pattern yields greater rejection and acoustic isolation to off-axis sounds than the typical heart-shaped cardioid pattern. For enhanced clarity, the polar response is also unusually uniform with frequency. The impact of the supercardioid polar design is to reduce the likelihood of feedback in live performance conditions, particularly with typical monitor speaker placements.

The N/D468 pop filters unique design utilizes a specially processed Acoustifoam filter to minimize wind noise and vocal pops. This design makes the pop filter an integral part of the microphones removable front grille assembly, allowing easy cleaning for continued top performance.

Operation
The N/D468s low-frequency response varies with the distance of the sound source to the microphone. This is known as proximity effect. Maximum bass response is produced in close-up use with the microphone 1/4 in. from the sound source. Minimal bass response is experienced at distances greater than 24 inches. By working closer to the microphone, the instrument will sound more robust. The pivoting yoke designed for the N/D468 allows this type of versatile microphone placement.

Close miking will also reduce the potential for feedback from a PA sound system. This benefit is in addition to the feedback-reducing supercardioid polar pattern. When close-talked, the substantial bass boost provides an increase in overall microphone output level. The mixer gain may be proportionately reduced, resulting in a reduction of the systems sensitivity to feedback caused by sound entering the microphone from the loudspeakers.

The dynamic element of the N/D468 will provide reliable operation in extreme temperature, humidity, and other adverse conditions that would render typical condenser microphones useless. These N/D468 features will provide years of trouble-free operation.

About Advanced Neodymium Microphones
The new generation of N/DYM microphones from EV gives you the flexibility to choose exactly the right mic for high-quality vocal and instrumental reproduction live on stage or in the studio.

Each N/DYM mic is optimized for one specific application. Four vocal mics let the individuality of the performer's voice come through in any setting; the 3 instrumental mics enhance the virtuosity of a any instrumental performance

Features
- N/DYM magnetic geometry with large reinforced diaphragm for smooth extended frequency response and a warm, transparent sound
- AcoustiDYM shock-mount system for excellent vibration isolation
- Lower feedback
- P-pop prevention
- Lower distortion
- Patented DynaDamp pneumatic-pump shock
- 2-year unconditional limited lifetime warranty

N/D868
The Electro-Voice ND868 is a cardioid dynamic mic with only one purpose in life - to make your kick drum sound incredible. No, the ND868 isn't what you'd call versatile. In fact, this is one of the most single-minded mics you'll ever meet. And that's why it sounds so great. If you want the bass drum to penetrate the crowd, if you want full, air-pushin' KICK from a mic that won't distort no matter what kind of John Bonham is behind the skins, this is it!

Perfect for live or studio settings, the ND868 boasts the kind of frequency response you have to "tune" other mics for in a bass drum application. In other words, this mic is plug and play! Its low-sensitivity design keeps it from distorting in the high-sound-pressure bass drum environment. Its humbucking coil effectively cancels hum interference from lighting and other power sources. Its cardioid design picks up only the sound in front of it. In other words, no unwanted frequencies, distortion, hum, or outside noise allowed. The EV ND868 gives you nothing but kick.

Technical Info

ND868
Frequency Response: 20 Hz to 10 kHz

Polar Pattern: Cardioid

Impedance: Low-Z balanced (150 Ohms)

Microphone Connector: 3-pin, XLR-type

Polarity: Positive pressure on diaphragm causes positive voltage on pin 2 ref. pin 3

Finish: Non-reflecting black

Sensitivity
Open Circuit Voltage: 1 mV/Pascal @ 1.0 kHz

Power Level: (0 dB=1mW/pascal) -51.7 dB @ 1.0 kHz

Materials
Memraflex grille screen

Steel Case

Dimensions
Length @ 5.22 in. (132.6 mm)

Diameter @ 2.36 in. (60 mm)

Shank @ 1.0 in. (25.4 mm)

Weight
Net @ 10.4 oz. (295 g)

Shipping @ 26.5 oz. (750 g)

Accessories Included
320 stand clamp

Soft zippered gig bag

ND468
Dynamic N/DYM Magnet Structure: Yes

Frequency Response: Close 30-22,000 Hz, Far 60-22,000 Hz

Polar Pattern: Supercardioid

Input Impedance: Low-Z balanced (150 ohms)

Sensitivity: Open-Circuit Voltage 3.1 mV/Pascal at 1 kHz

Power Level*: -51.0 dB

Accessories (included with product): Stand clamp (black) and soft, zippered gig bag
