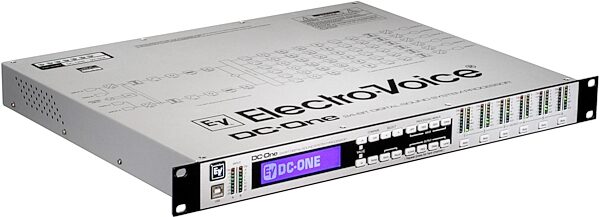

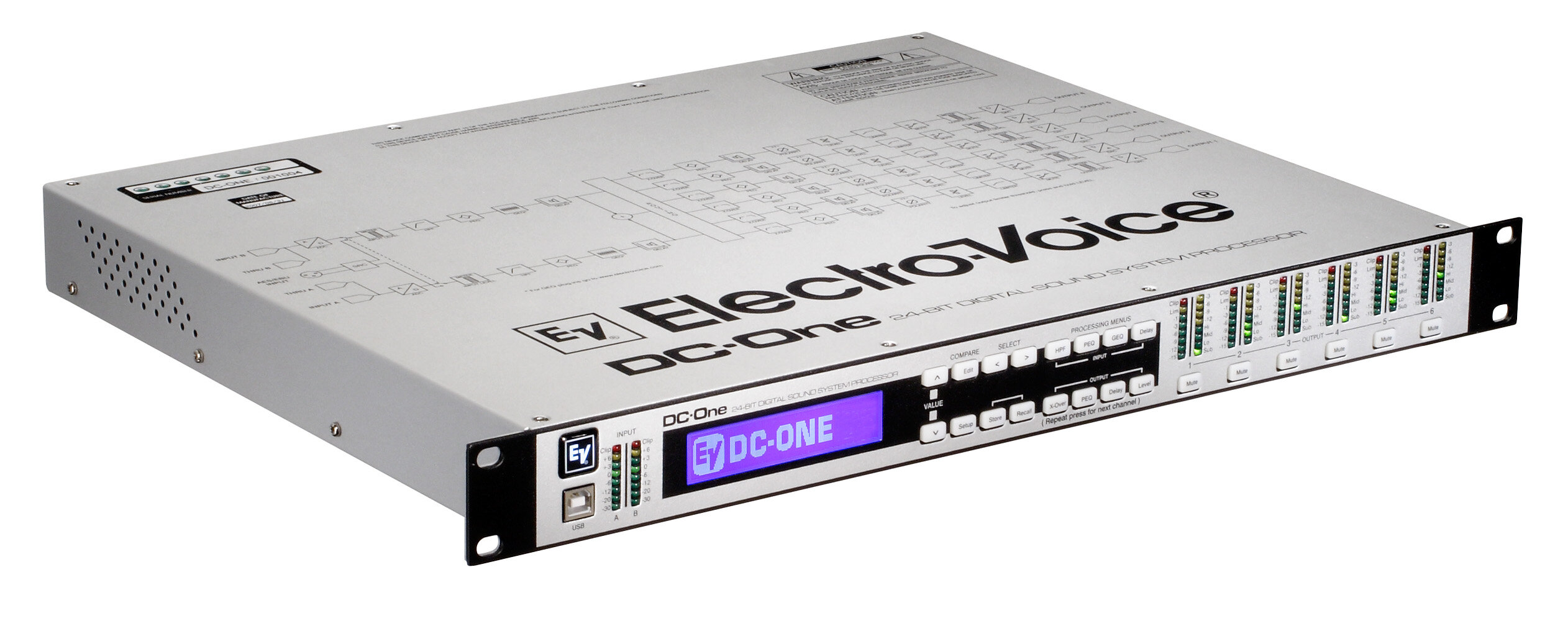

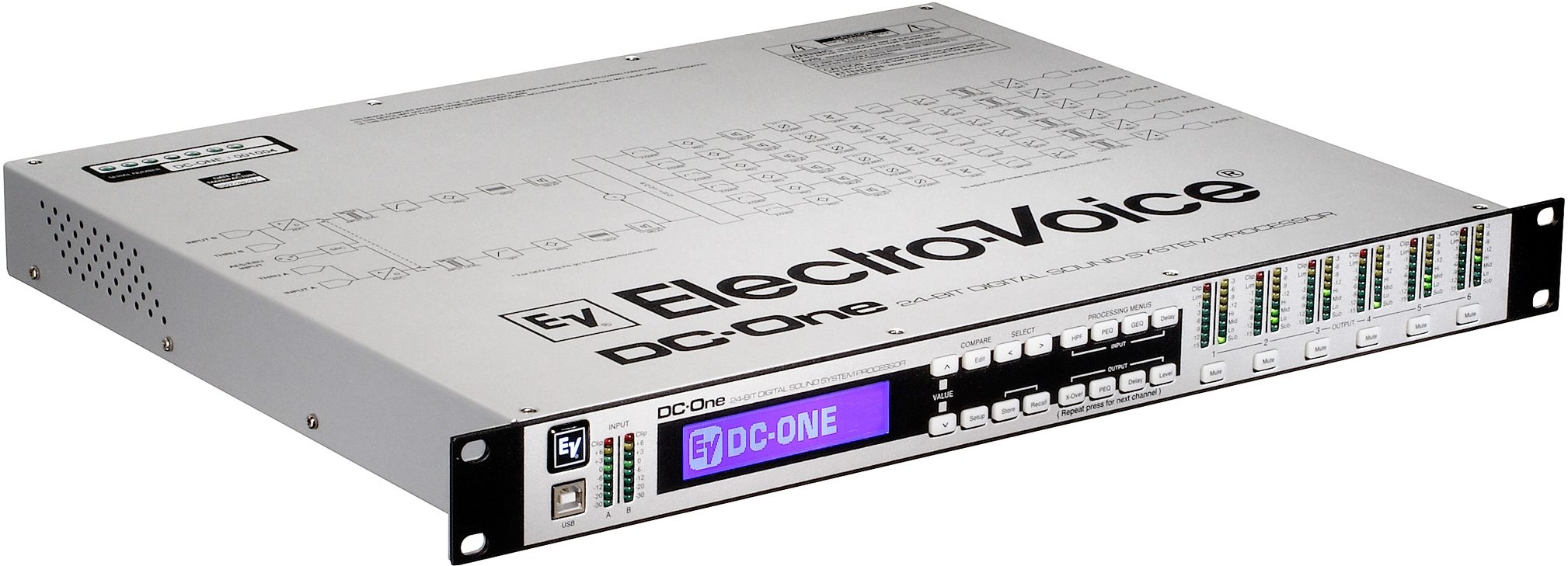

Electro-Voice DC-One Loudspeaker Controller Processor

No longer available at zZounds
Tune your PA system with this 2-in/6-out loudspeaker processor. Adjust crossovers, dynamics, EQ and delays from the front panel, or with software on your PC.

Get your PA sounding its best in any room with the Electro-Voice DC-One loudspeaker controller processor! With tools for limiting, EQ, crossover, and delays, this do-it-all PA processor can remedy many sonic problems so that your loudspeakers outperform your expectations -- and it's all controllable from the front panel or your PC.

Optimal Loudspeaker Performance

For both permanent installations and portable rigs, the DC-One optimizes speakers to suit any room. The DC-One sports two XLR inputs (2 XLR Thru Out), and six XLR analog outputs. The 2-in/6-out audio DSP features 24-bit AD/DA conversion and 32-bit floating point internal processing, so you get high-quality audio as you adjust everything from EQ and crossover points to dynamics and delays. Limiters prevent red-lining and clipping from taxing your speakers (or your ears), and switchable 6 dB analog pads placed before the A/D converter offers additional system protection.

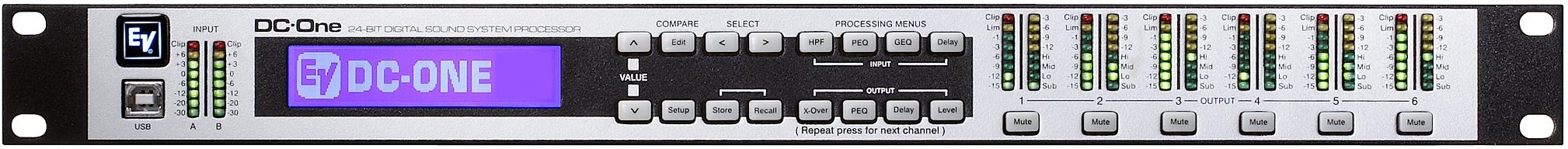

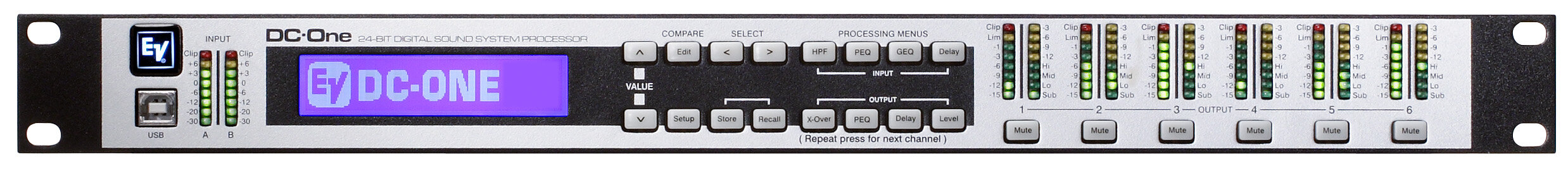

Quick Setup Via the Front Panel or Your Windows PC

Work from either the front panel or from DC-One Editor control software (Windows-based) to shape your sound. Pre-loaded standard speaker configurations and custom settings for various EV loudspeakers help you get to work faster. You get 60 factory presets, 20 user presets, and 6 predefined operation configurations. Customizable security settings ensure that once you adjust your sounds just so, you can set it and forget it. The EV DC-One's front-panel USB connector provides quick access to read more DC-One Editor software control.

Features:

- 2-in/6-out loudspeaker processor
- USB connection for DC-One Editor Software Control
- Analog or AES/EBU inputs
- Switchable 6 dB analog pad placed before A/D converter for system protection
- Highly customizable security settings
- Contact closure interface for remote Preset recall
- 20 user presets
- 60 factory presets
- Unique Edit/Compare Mode for comparing edited presets and settings
- 6 predefined operation configurations, including Free Edit
- 24-bit AD/DA conversion
- 32-bit floating point internal processing
- 111 dB dynamic range
- Frequency response: 10 Hz to 22 kHz (0.5 dB)

With the DC-One loudspeaker processor, you can tune your tone for any application -- whether it's for cinema, club sound, concert sound, houses of worship, performance and sports venues, pro music, or stadium systems.
read less

- A/D Conversion: 24-Bit Delta-Sigma
- A/D Conversion: 24-bit/sigma-delta (linear phase) 128 times oversampling

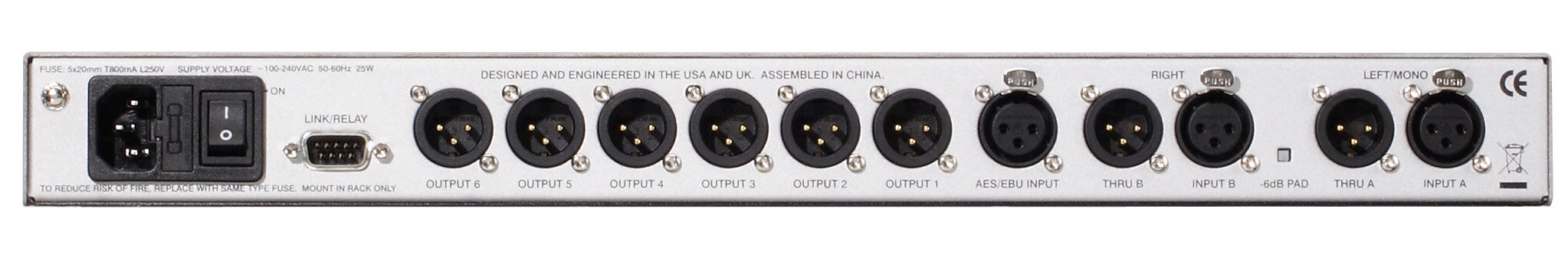

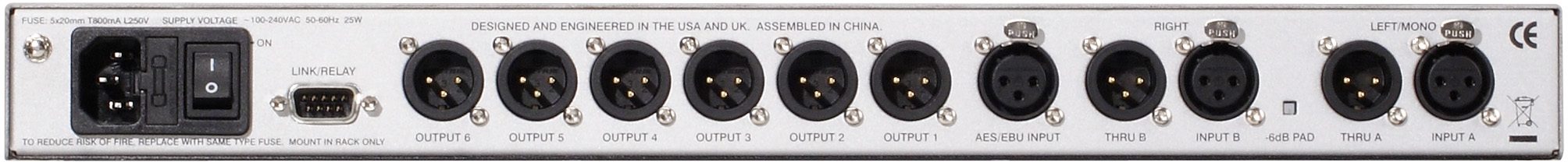

- Analog Inputs: 2 XLR (Electronically Balanced), 2 XLR Thru Out (Electronically Balanced)
- Analog Outputs: 6 XLR (Electronically Balanced)
- Control Protocol: Front Panel USB Connector
- D/A Conversion: 24-Bit Delta-Sigma
- D/A Conversion: 24-bit/sigma-delta 128 times oversampling
- Data Format: 24-Bit
- Digital Inputs: 1 XLR AES/EBU (2 Ch)
- Dynamic Range: 111 dB (unweighted, band limited 22 Hz - 22 kHz)
- Electronics Type: Processor
- FIR-Drive: No
- Frequency Response: 10 Hz - 22 kHz (.5 dB)
- Input Impedance (Balanced) : 10 kOhms
- Internal Processing: 32-Bit Floating Point
- Mains Voltage: 100-240 VAC
- Maximum Input Voltage: 8.7 V / +21 dBu (Without -6 dB Analog Pad Engaged)
- Maximum Output Voltage: 8.7 V / +21 dBu
- Nominal Input Voltage: 1.23 V / +4 dBu
- Nominal Output Voltage: 1.23 V / +4 dBu
- Output Impedance (Balanced) : 50 Ohms
- Power Consumption: 25 W
- Sample Rate: 48 kHz
- THD+N: < 0.01% (band limited 22 Hz - 22 kHz)
- Height: 1RU 44.45 mm (1.75 in.)
- Width: 482.6 mm (19 in.)
- Depth: 355.6 mm (14 in.)
- Weight Net: 4.6 kg (10.14 lbs)

For support or warranty questions, please contact the manufacturer:
Phone: 800-289-0096
Email: technical.support@us.bosch.com
Web: https://electrovoice.com/contact-us/

Electro-Voice DC-One Speaker Controller

Whether you're permanently installing a sound system or taking your portable rig to tonight's gig, the DC-One will help you optimize your loudspeakers for the room they're in. This fully-featured, 2-in/6-out audio DSP lets you adjust EQ and crossover points, dynamics and delays from the front panel or from PC software that lets you see how you're shaping your sound. Precise limiters help protect your loudspeaker investment from the unexpected. The DC-One comes pre-loaded with standard speaker configurations and custom settings for many EV loudspeakers.

Features:

- Designed for cinema, club sound, concert sound, houses of worship, performance & sports venues, pro music, stadium systems, and other applications
- USB connection for DC-One Editor Software Control
- Analog or AES/EBU inputs
- Switchable 6 dB analog pad placed before A/D converter for system protection
- Highly customizable security settings
- Contact closure interface for remote Preset recall
- 20 user presets
- 60 factory presets
- Unique Edit/Compare Mode for comparing edited presets and settings
- 6 predefined operation configurations, including Free Edit
- 24-bit AD/DA conversion
- 32-bit floating point internal processing
- 111 dB dynamic range
