ElectroVoice RE2 UHF Wireless Headset System with RE97

Packaged RE-2 Wireless Systems
The RE-2 Wireless product is available in eleven different system configurations packed in a hard plastic carrying case. The systems include transmitters and micriphones as indicated.

Whether you're performing at the local rock club, lecturing at a corporate seminar, or speaking in a house of worship, the Electro-Voice RE-2 brings ease-of-use, clear sound, and clean channels to wireless.

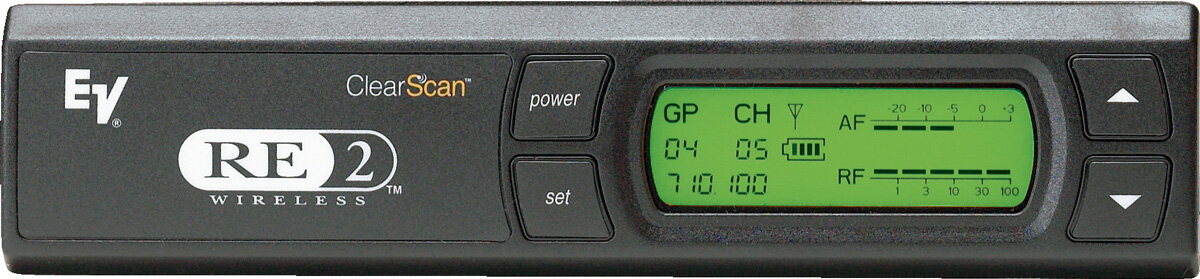

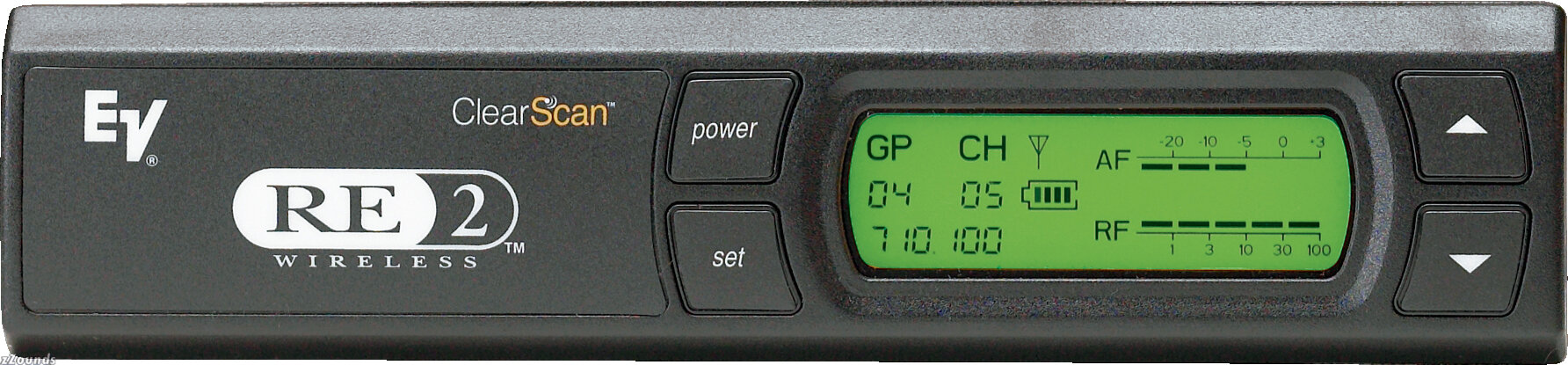

RE-2 Receiver
The RE-2 Series Wireless Microphone System brings sophisticated professional features to an affordable price point. The RE-2 is a completely programmable frequency agile system with one-touch Auto-ClearScan, operates over 28MHz (6 TV channels), XLR Mic or Line level output and many other features.

BPU-2 Bodypack Transmitter
The BPU-2 is a compact bodypack transmitter for the RE-2 wireless system made from high impact ABS plastic. The single on/off switch also functions as a mute and the TA4 microphone connector is compatible with any of the EV lapel and headworn microphones including the new RE97Tx. A cell phone style rotating beltclip, smart battery and unique guitar optimization mode are just a few of the features that make the BPU-2 as easy to use and versatile transmitter in its class.

Technical Info

RE-2 Receiver
RF Specifications: A Band 648 - 676 MHz (TV Ch. 43-48) B Band 696 - 724 MHz (TV Ch. 51-56)

Connector Type: 1/4 in. unbalanced

Connector Type: 3-pin XLR

Antennas: External 1/4 wave detachable

Diversity: Digital Posi-Phase True Diversity

Indicators LCD: Group, Channel, Frequency, AF Meter, RF Meter, Battery Level

Number of channels: 1112 possible (programmable in 25kHz steps) per band

Power Requirement: 12 V AC/DC 300mA

Squelch: Tone Code plus Amplitude

Wired/Wireless: Wireless

Finish: Non-reflecting Black

Case Material: Metal

Dimensions (HxWxD): 43.7 x 190.5 x 150 mm (1.72 in. x 7.5 in. x 5.91 in.)

BPU-2 Bodypack Transmitter
Displays: Group/Channel, Frequency, or Battery Level

Connector Type: TA4M

Antennas: External 1/4 wave fixed

Battery Life: >8 hours with alkaline typical

Power Requirement: 9V Battery

RF Output: 30 mW typical

Wired/Wireless: Wireless

Finish: Non-reflecting Black

Case Material: High-Impact ABS Plastic

Dimensions (HxWxD): 96.5 x 66 x 23.4 mm (3.8 in. x 2.6 in. x 0.92 in.)

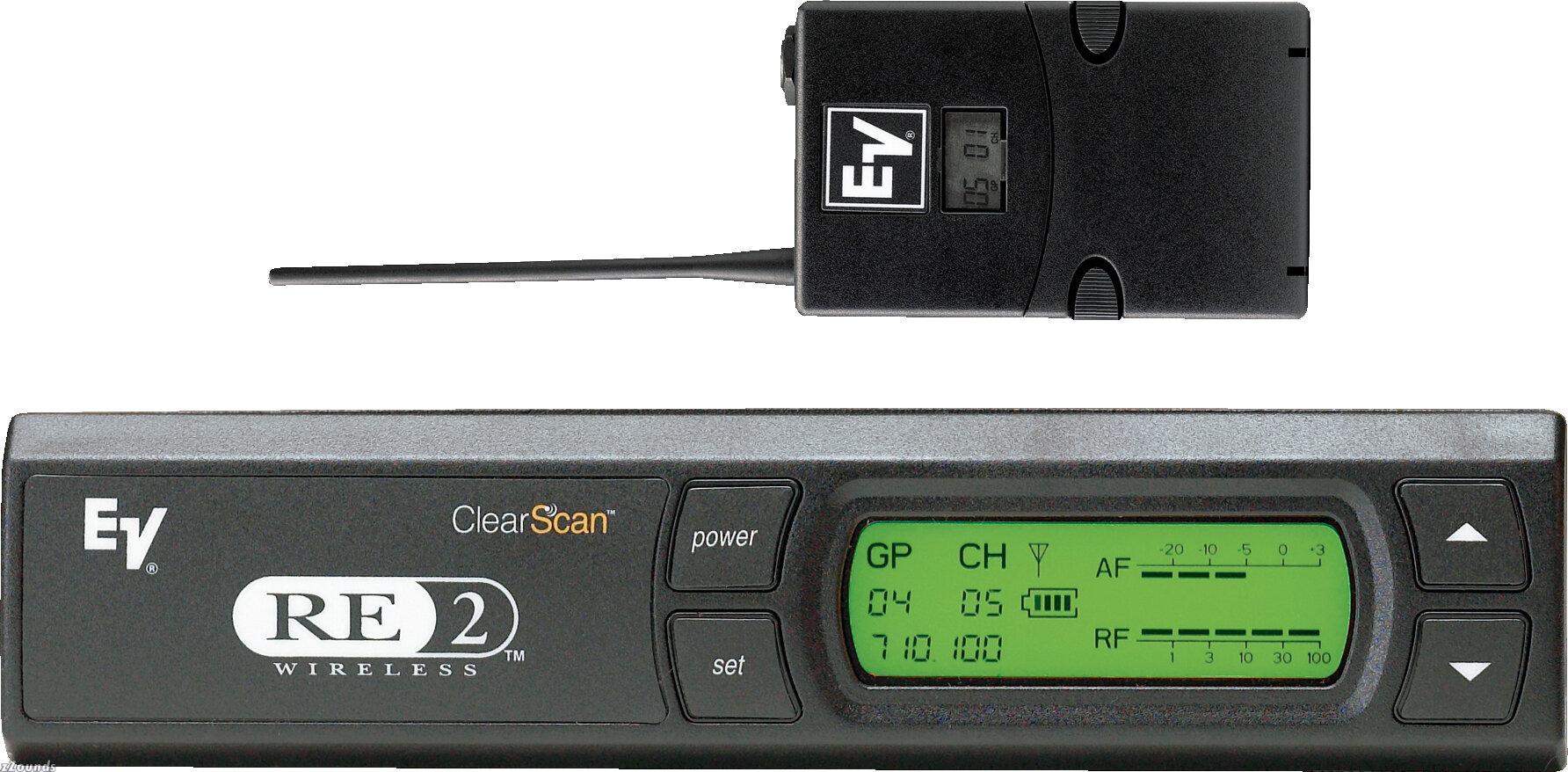

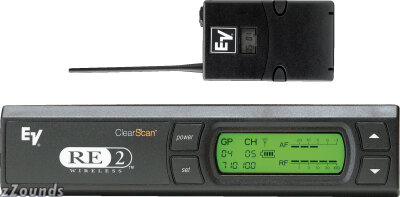

With RE-2 receiver, bodypack transmitter, and RE97TX micro headworn condenser mic.
