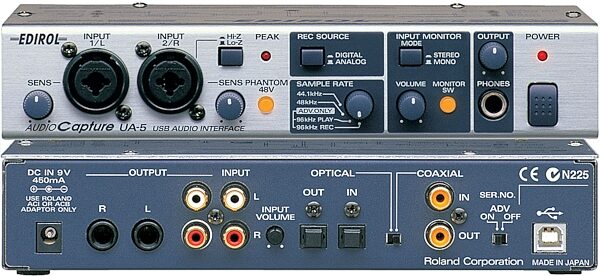

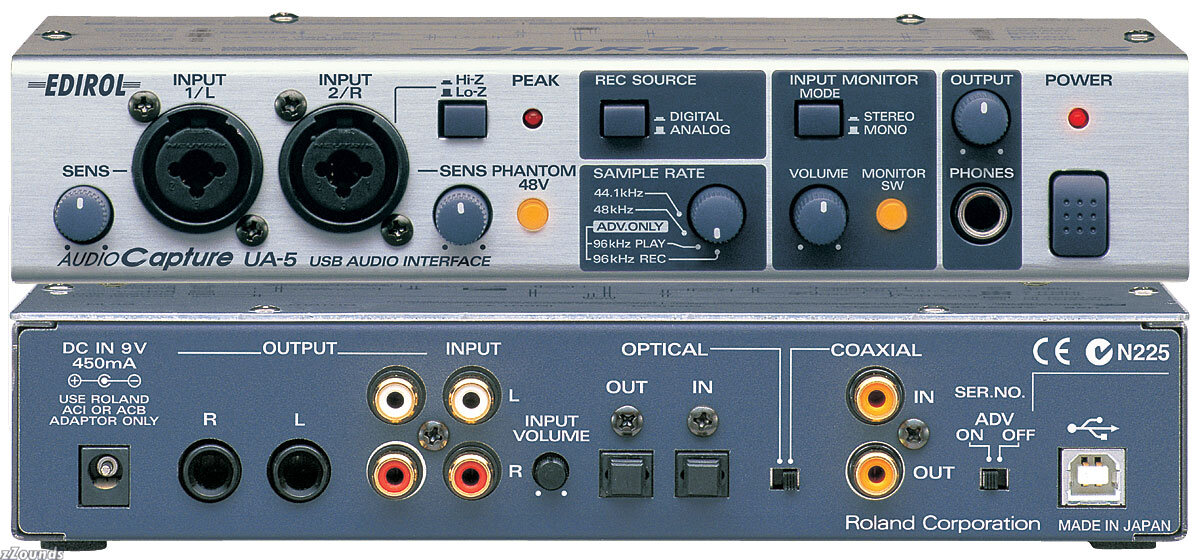

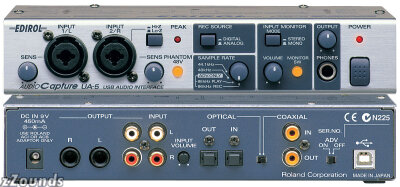

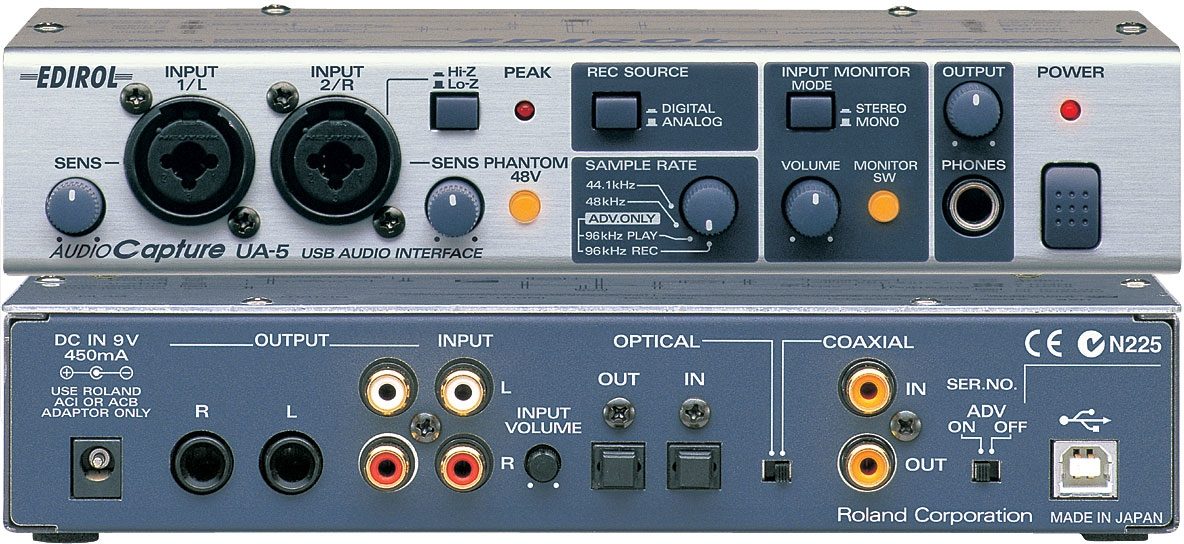

Edirol UA5 24/96 USB Audio Interface

24-bit/96kHz Processing USB Audio Interface
Discrete left and right inputs for either stereo input devices or 2 separate audio channels. Delivers clean digital audio conversion at resolution up to 24-bit /96 kHz.

Features:

24-bit/96 kHz AD/DA converter

2 input - 2 output

RCA plus optical/coaxial S/P DIF input and output jacks

48v phantom power for microphones

ASIO2.0 (WIN/MAC), MME (WIN), WDM (Win2000), Sound Manager (MAC)

Technical Info

Number of Audio Record/Playback Channels
Record: 1 pair of stereo
Playback: 1 pair of stereo
Full duplex (except for 96 kHz setting)

Signal Processing
AD/DA Conversion: 24-bit linear
PC interface: 24-bit

Sampling Frequency
Digital Output: 44.1/48/96kHz
Digital Input: 32/44.1/48/96kHz*
*Real-time hardware sample rate converter
AD/DA Conversion: 44.1/48/96kHz

Frequency Response
96.0 kHz: 20Hz to 40kHz (+0dB/-2dB)
48.0 kHz: 20Hz to 22kHz (+0dB/-2dB)
44.1 kHz: 20Hz to 20kHz (+0dB/-2dB)

Nominal Input Level (variable)
Input 1/2: -50 -- 0 dBu
Input 3/4: -10 dBu

Input Impedance
Input 1/2 22 k ohm
Input 2 (Hi-Z) 500 k ohm
Input 3/4 12 k ohm

Nominal Output Level
Master Out: 0 dBu

Output Impedance
Master Out: 1 k ohm
Headphones: 50 ohm

Residual Noise Level (input terminated with 1 k ohm, INPUT SENS=min., INPUT MONITOR=min., IHF-A, typ.)
Mater Out: -95 dBu or less

Interface
USB
Digital input/output
Coaxial type
Optical type
(conforms to S/Pdif)

Connectors
Input Jack 1/2 (XLR type (48v Phantom Power).
1/4 inch TRS phone type)
Input Jack 3/4 (RCA phono type

Digital In Connectors: Coaxial type, Optical type

Digital Out Connectors: Coaxial type, Optical type

Headphones Jack: Stereo Õ in.phone type

Power Supply: AC adapter

Current Draw: 450 mA

Dimensions: 218(W) x 137(D) x 46.5(H) mm 8-5/8(W) x 5-7/16(D) x 1-7/8(H) in.

Weight: 710 g/ 1lb 10 oz

Accessories: AC adapter, Getting Started Manual, USB Cable, CD-ROM

*In the interest of product improvement, the specifications and/or appearance of this unit are subject to change without prior notice.

System Requirements

Macintosh
OS: MacOS 9.0.4 or later. OS X in basic mode only.
Computer: Apple Macintosh series with on-board USB Test Studied on iMac, Power Mac G4, Power Mac G4 Cube, and iBook.
CPU/Clock: PowerPC G3/300 MHz or higher
Memory(RAM): 96MB or more (Application memory 32 MB or more)
Hard Disk: 120 MB or more
Display/Colors: 800x600 or higher

Windows
OS: Microsoft Windows 98/98SE/ME/2000/XP
Computer: Windows compatible computer with a USB connector*
CPU/Clock: Pentium II processor 233MHz or higher (win98/SE/ME)
Pentium II processor 400MHz or higher (win2000)
Memory(RAM): 64MB or more
Hard Disk: 120 MB or more
Display/Colors: 800x600 or higher/65,536 colors (16 bit High Color) or more.

* Must have a compatible USB host controller.
