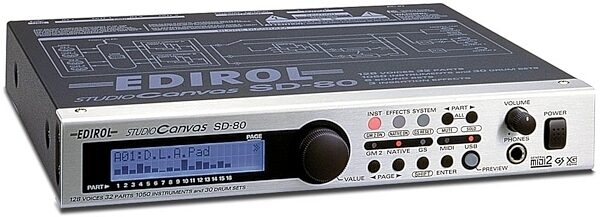

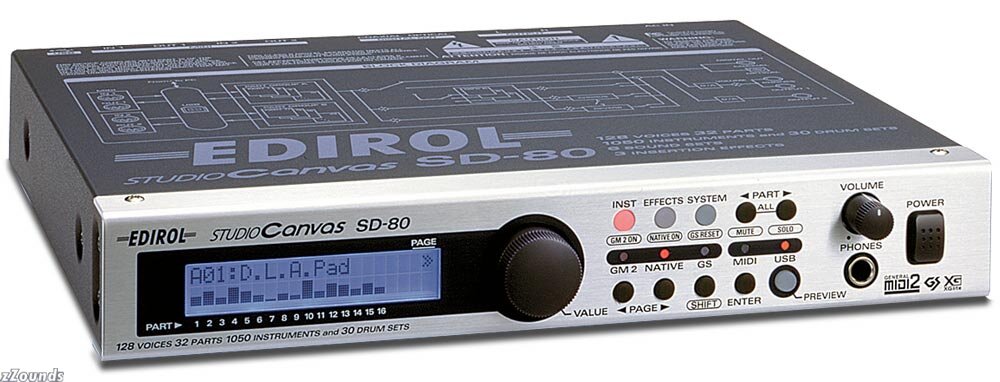

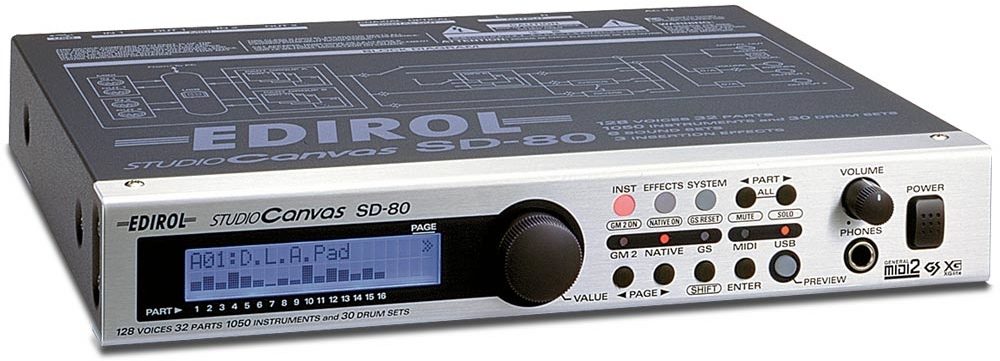

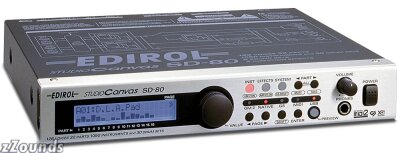

Edirol SD80 Studio Canvas USB MIDI Sound Module and Synthesizer

The SD-80 is a high performance MIDI sound generator with a powerful synthesizer engine and high quality waveforms in one slim body.

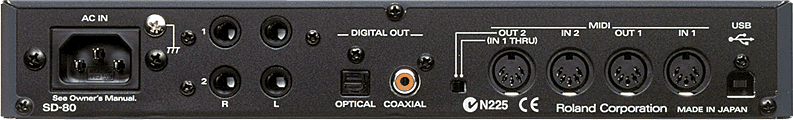

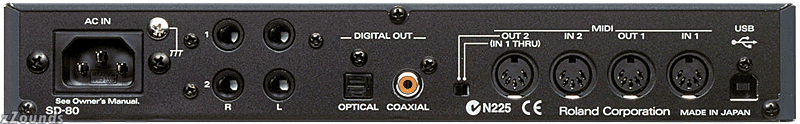

The SD-80 is equally at home on your desktop or in your rack. We started with a footprint that accommodates either application, added tons of connection options like USB, Coax S/P DIF, Optical S/P DIF and

Technical Info

Internal Sound Sets Sound Maps: 6 (Classical, Contemporary, Solo, Enhanced, Special 1, Special 2)

Preset Sound Instruments: 128, Drum Sound Sets: 8

System Effects: Reverb (6 types), Chorus (6 types)

Insertion Effects: Multi-effects x 3 (90 types)

Display: 20 characters, 2 lines (backlight LCD)

Dimensions: 280 (W) x 258.4 (D) x 46 (H) mm, 11-1/16 (W) x 10-3/16 (D) x 1-13/16 (H) inches

Weight: 1.8 kg/4 lbs

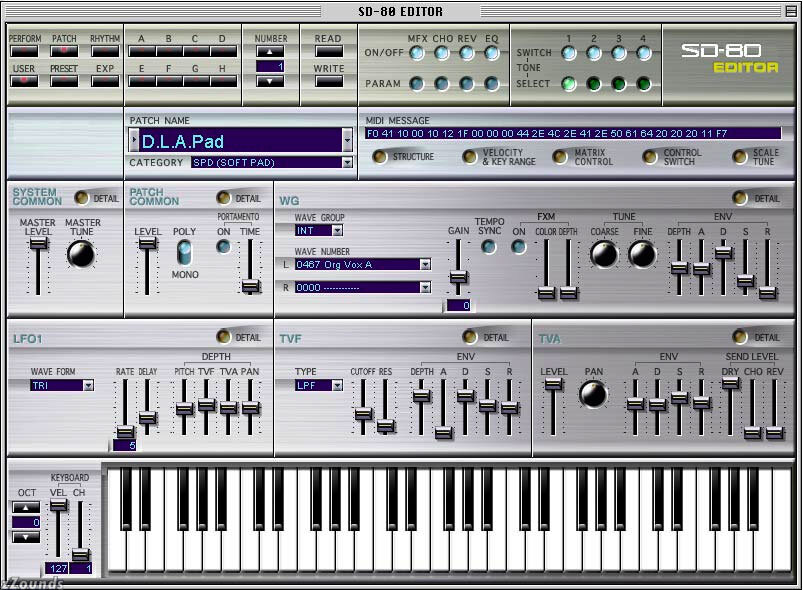

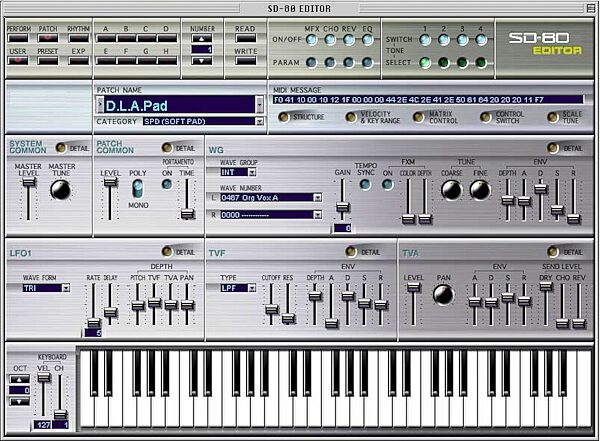

Includes: USB Cable, AC Cable, Getting Started Manual, Owner's manual, Driver and Editor software CD-ROM

System Requirements

Macintosh
Operating System: MacOS 8.5, 8.6 , and 9.x
Computer: USB ready Apple Macintosh
CPU/clock: PowerPC G3/233 MHz or higher
Memory (RAM): 64 MB or more
OMS 2.3.3 or later. FreeMIDI 1.35 or later

Windows
Operating System: Microsoft Windows Me/98/98SE/2000/XP
Computer: Windows compatible equipped with a USB* port
CPU/clock: Pentium Processor 200 MHz or higher
Memory (RAM): 64 MB or more
USB Chipset: Intel's USB chipset is recommended
* Must have a compatible USB host controller.

Audio Samples
