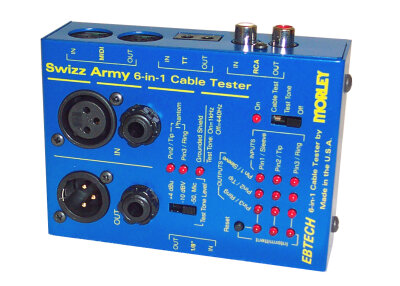

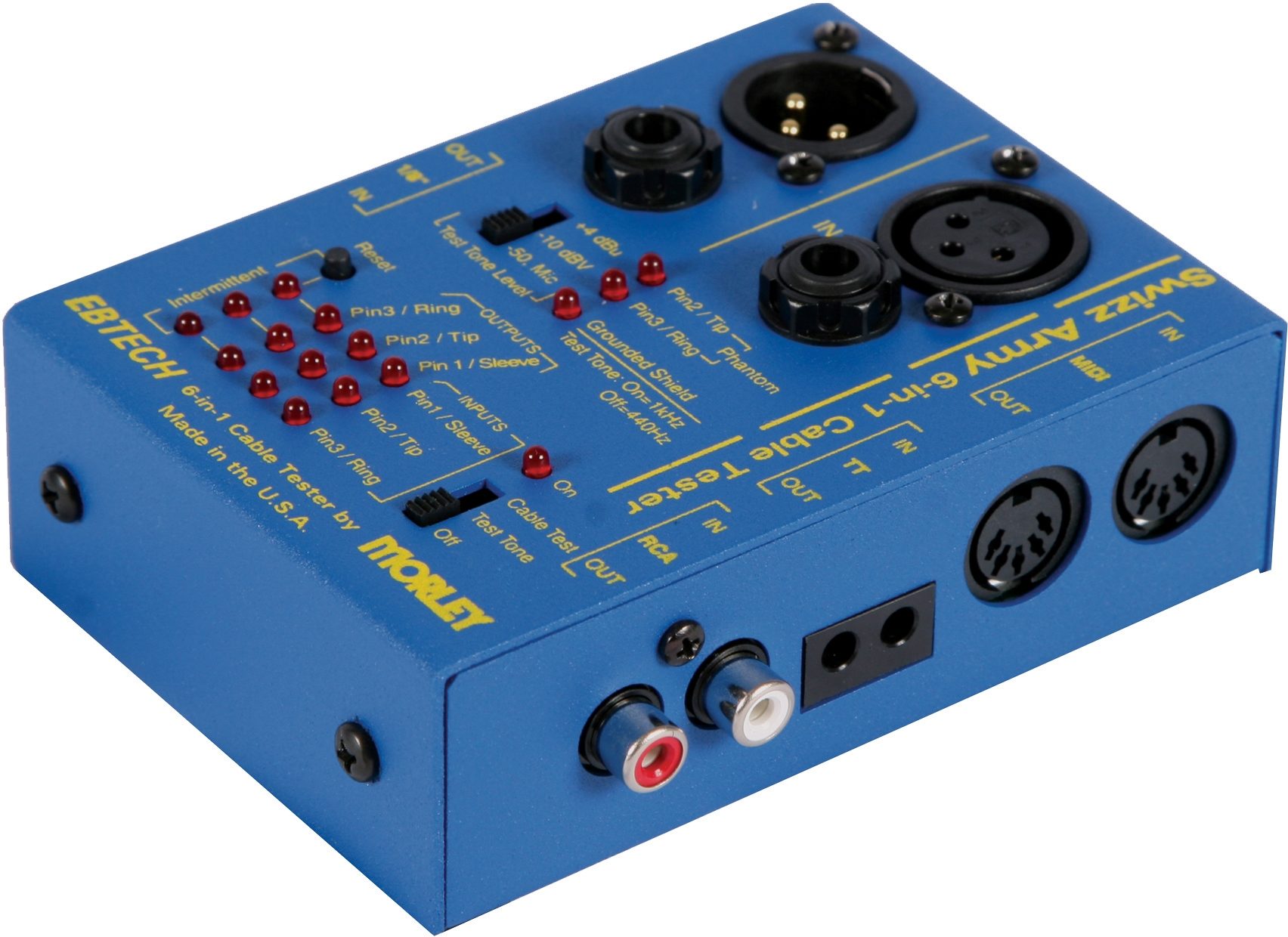

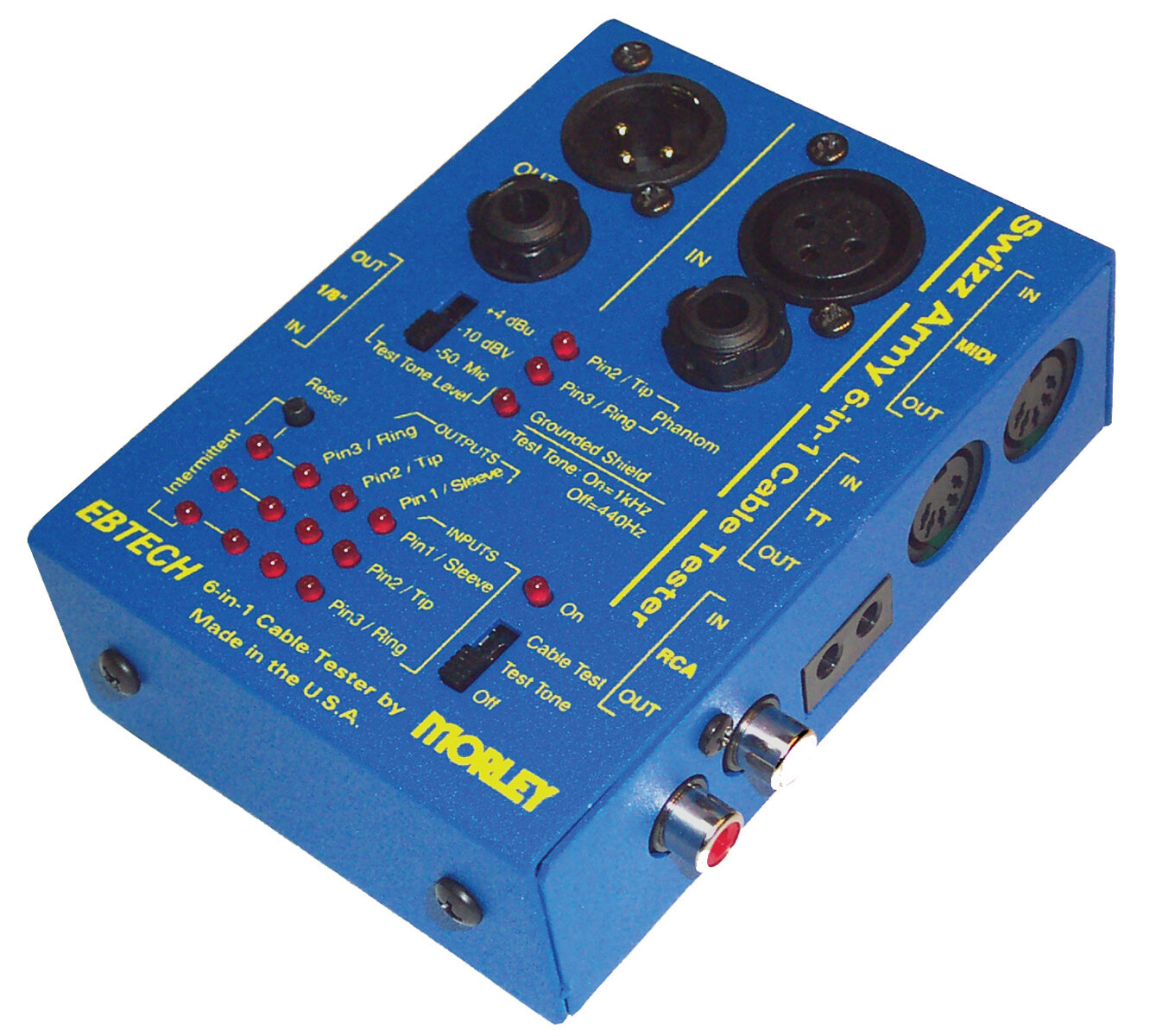

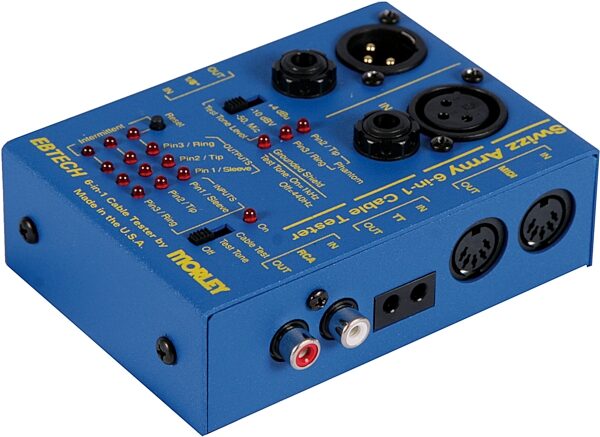

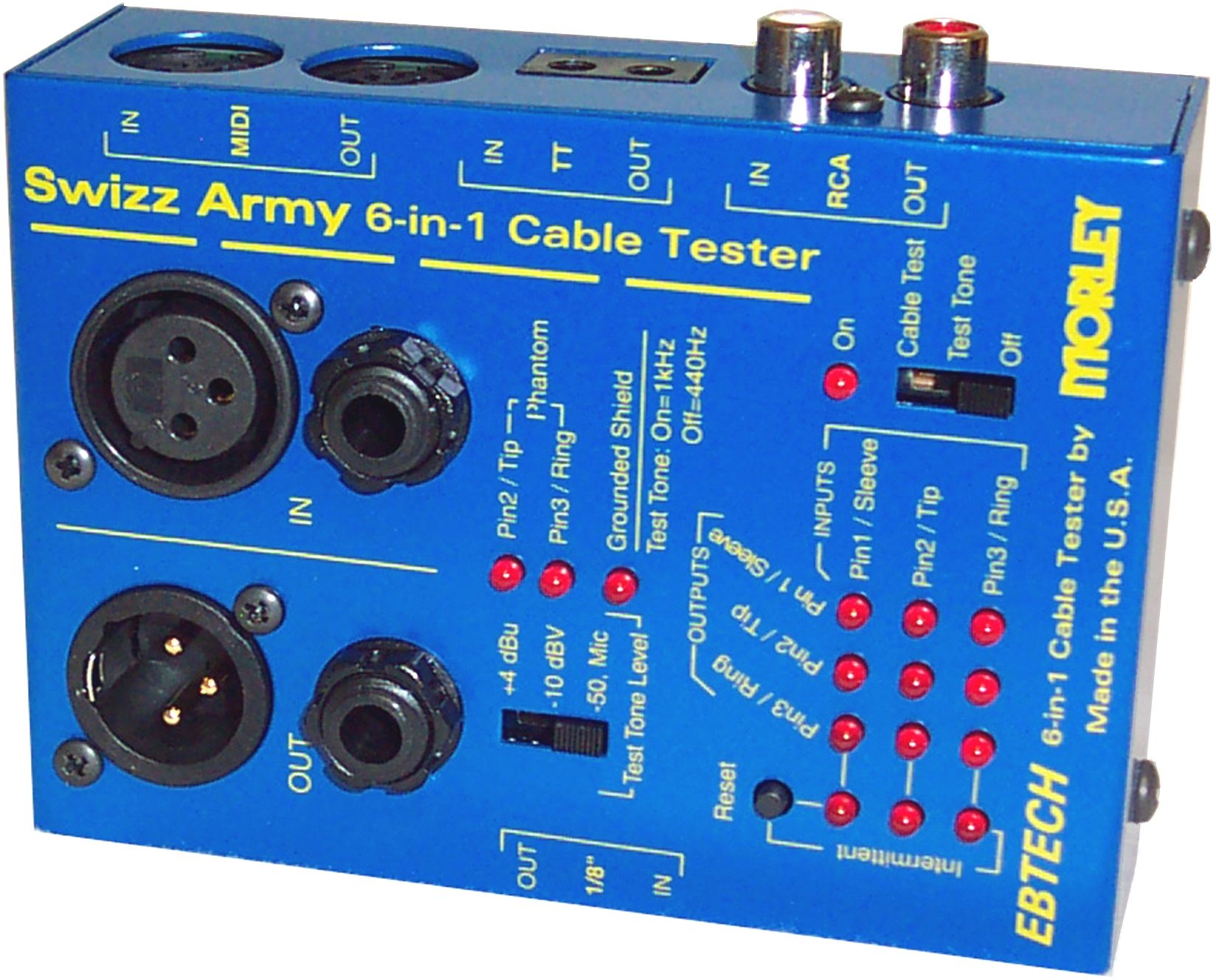

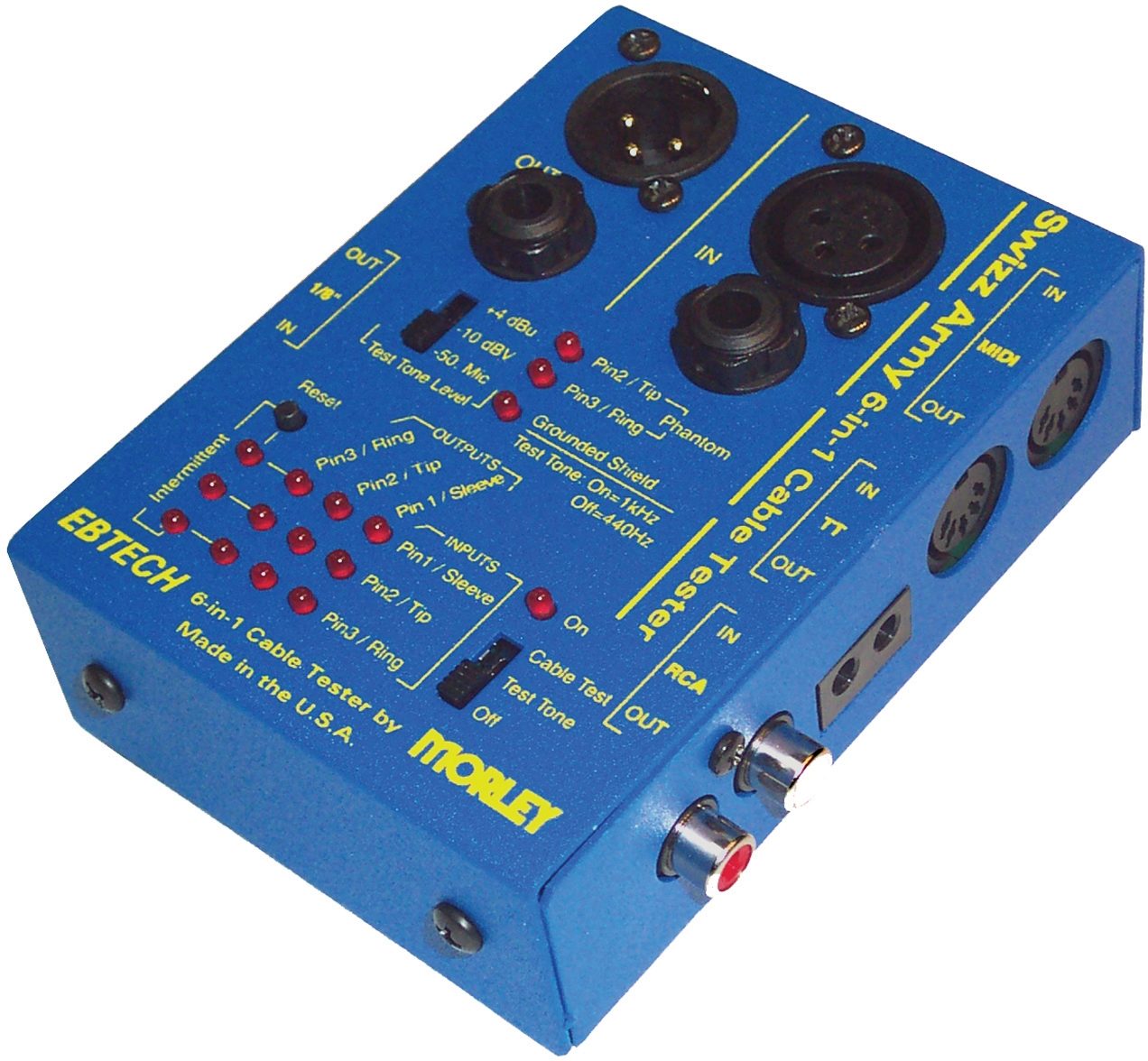

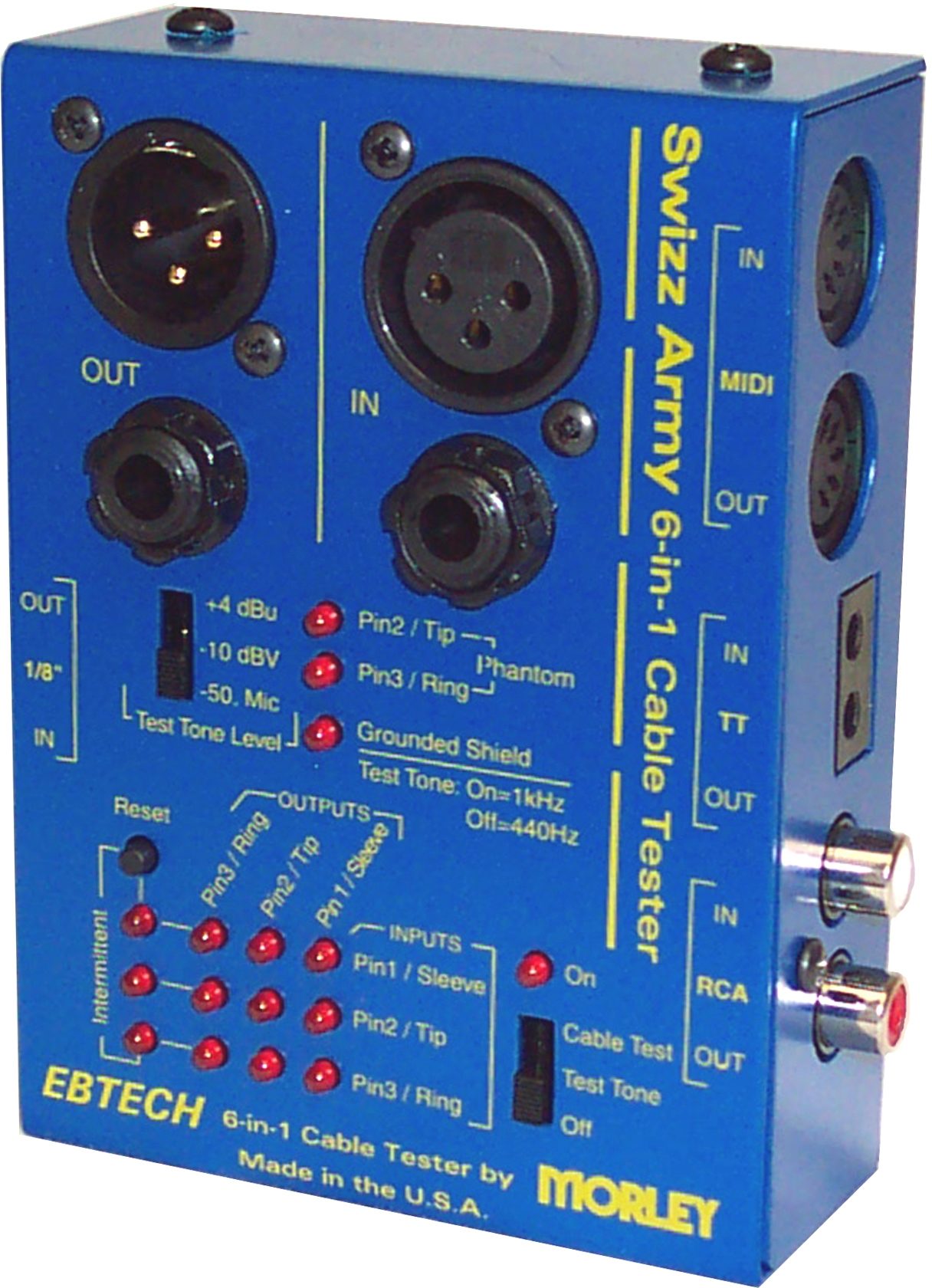

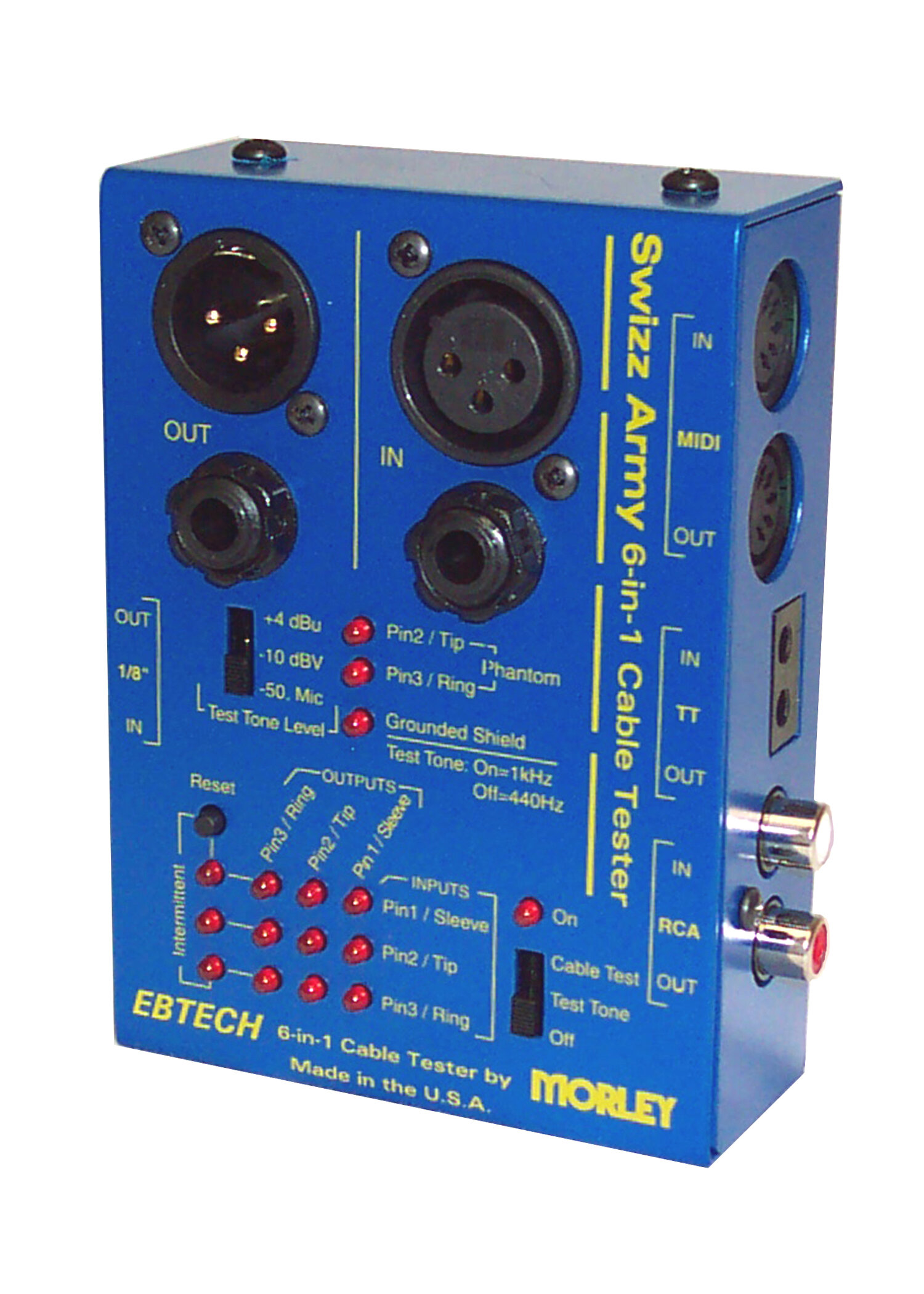

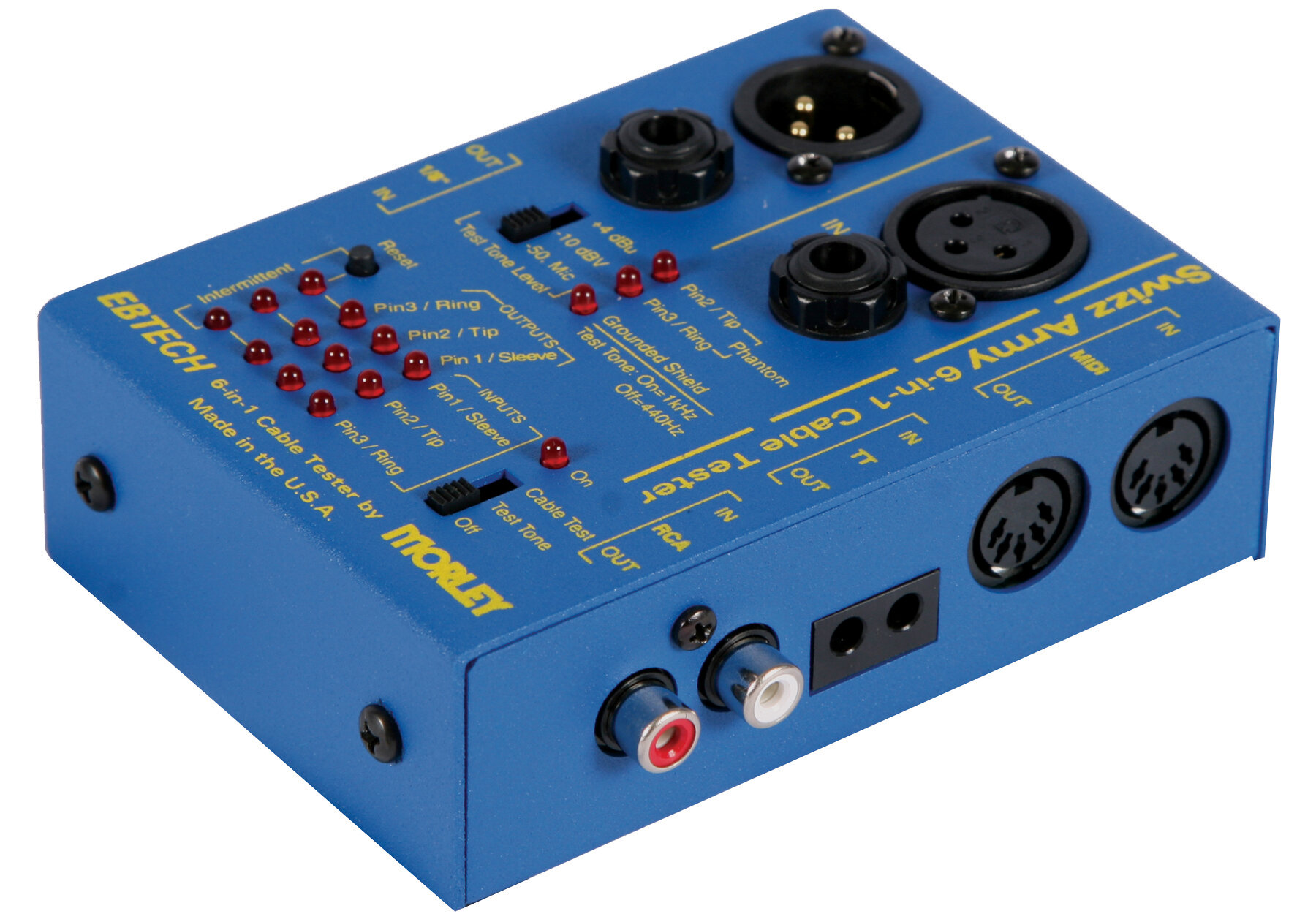

Ebtech Swizz Army 6 in 1 Cable Tester
Detects shorts, phantom power, grounding, etc.
Our 30-Day 100% Satisfaction Guarantee applies on this item. Buy it, and if it isn't just right for you, return it!
Description
Docs
Checks XLR, 1/4 in., RCA, 1/8 in., TT, and MIDI cables for continuity and/or intermittent connections. Also detects opens and shorts for each pin. Other features include test tone generator (+4, -10, Mic), phantom power detector, grounded XLR shield detector and cable wiring display.
Features:
The Cable Wiring Display quickly shows which pin is wired to what. The cable wiring display clearly shows continuity, opens and shorts for each pin. This is also perfect for determining how custom and adapter cables are wired.
Intermittent Detect and Display: Normally when testing for intermittent shorts, if you blink while testing for a short you may miss it. The Swizz Army 6 in 1 is the only tester that stores and displays the intermittent information until you reset it. It even tells you which line has a problem. Don't let a blink ruin your gig.
Installed Cable Testing inside of building walls is also enabled by the cable wiring display. Connect the Swizz Army 6 in 1 to 1 end of the cable to see if any of the lines are shorted together. Then, connect a shorting connector onto the other end of the cable and if the lines are good, the cable wiring display will show them as all shorted to each other.
Test Tone Generation: Generates a 1 kHz or 220 Hz tone at +4 dBu, -10 dBV, and mic levels.
Phantom Detect: Displays when a DC voltage is present on pin 2 (tip) and pin 3 (ring) individually.
Grounded Shield Detect: Confirms that the XLR connector shield is connected to pin 1 (grounded)
Runs on 2 AA batteries
Made in U.S.A. Patents pending
Features:
The Cable Wiring Display quickly shows which pin is wired to what. The cable wiring display clearly shows continuity, opens and shorts for each pin. This is also perfect for determining how custom and adapter cables are wired.
Intermittent Detect and Display: Normally when testing for intermittent shorts, if you blink while testing for a short you may miss it. The Swizz Army 6 in 1 is the only tester that stores and displays the intermittent information until you reset it. It even tells you which line has a problem. Don't let a blink ruin your gig.
Installed Cable Testing inside of building walls is also enabled by the cable wiring display. Connect the Swizz Army 6 in 1 to 1 end of the cable to see if any of the lines are shorted together. Then, connect a shorting connector onto the other end of the cable and if the lines are good, the cable wiring display will show them as all shorted to each other.
Test Tone Generation: Generates a 1 kHz or 220 Hz tone at +4 dBu, -10 dBV, and mic levels.
Phantom Detect: Displays when a DC voltage is present on pin 2 (tip) and pin 3 (ring) individually.
Grounded Shield Detect: Confirms that the XLR connector shield is connected to pin 1 (grounded)
Runs on 2 AA batteries
Made in U.S.A. Patents pending
What Our Customers Say About zZounds
"zZounds is a great place to buy. I'll have a great Christmas thanks to your Pay as you Play plan!" - customer on November 7, 2009
Call
800.ZZOUNDS (996.8637)
and mention priority code: 7W8WM81
Item: EBTSWIZZCT
related accessories
Ebtech Swizz Army 6 in 1 Cable Tester Reviews
10 out of 10
"The BEST multi-cable tester, built and designed for real working sound professionals."
Feature:
The latching test for intermittents alone would be killer. The pin 1 to chassis test would be incredible. Both in once, on top of an easy to read cable tester that's built to take real world abuse, and throw in a tone generator to boot? Now we're talking some seriously great gear here. What's especially great is that it uses a special tone-based test signal, rather than just being a straight continuity test, so it maps out exactly what pin is connected to what for all three pins at the same time. The only thing that would make it better would be if it also did NL-4 connectors, but then it'd be a huge monstrosity, LOL. Now if Ebtech came out with an NL-4/NL-8 tester...
Quality:
Built like a TANK, I have no fear that this won't hold up to the abuse it will surely see in my day-to-day work as the engineer on a touring arena show.
Value:
Between the unmatched* feature set and the fact that it is built so solidly, I'd easily pay the original list price of $180, let alone the current selling prices that are around half that! *-I do not count the Behringer CT-100, the only other tester with this feature set, because it is a direct knockoff of the Ebtech. Support the people who create these great devices, not the cheap knockoff artists!
Desirability:
Like I said, it's got a unique and useful feature set, it's built well, its layout is easy to read, I have it, and if I didn't have it, I'd want it.
Support:
I called after hours and left a message with a question about the product, and somebody called me back the next day and was very, very helpful.
Overall:
The only thing I don't like about this product is the installed cable test mode, but that's because I'm spoiled in that I already have one of Rat Sound's "Rat Sniffer" testers, which shows a detailed diagnostic of an installed cable in one quick glimpse, as opposed to needing two passes (one with the shorting cap, one without) with the Swizz. For testing intermittents, and pin 1 to chassis shorts, it's a winner, and I can't see ever replacing it unless some evil bastard stole mine! Only thing I don't care for is the tone gen, because I have two dedicated tone gen's already (Tone Plug, and Neutrik MR1), which have more options for tone/noise than this does. That's the only gripe I have about the price; as much as it is worth it for what you get, and then some, I wonder if it would have been cheaper if they hadn't added the tone gen features (it might not have been, since the cable test is an audio signal based test).
The latching test for intermittents alone would be killer. The pin 1 to chassis test would be incredible. Both in once, on top of an easy to read cable tester that's built to take real world abuse, and throw in a tone generator to boot? Now we're talking some seriously great gear here. What's especially great is that it uses a special tone-based test signal, rather than just being a straight continuity test, so it maps out exactly what pin is connected to what for all three pins at the same time. The only thing that would make it better would be if it also did NL-4 connectors, but then it'd be a huge monstrosity, LOL. Now if Ebtech came out with an NL-4/NL-8 tester...
Quality:
Built like a TANK, I have no fear that this won't hold up to the abuse it will surely see in my day-to-day work as the engineer on a touring arena show.
Value:
Between the unmatched* feature set and the fact that it is built so solidly, I'd easily pay the original list price of $180, let alone the current selling prices that are around half that! *-I do not count the Behringer CT-100, the only other tester with this feature set, because it is a direct knockoff of the Ebtech. Support the people who create these great devices, not the cheap knockoff artists!
Desirability:
Like I said, it's got a unique and useful feature set, it's built well, its layout is easy to read, I have it, and if I didn't have it, I'd want it.
Support:
I called after hours and left a message with a question about the product, and somebody called me back the next day and was very, very helpful.
Overall:
The only thing I don't like about this product is the installed cable test mode, but that's because I'm spoiled in that I already have one of Rat Sound's "Rat Sniffer" testers, which shows a detailed diagnostic of an installed cable in one quick glimpse, as opposed to needing two passes (one with the shorting cap, one without) with the Swizz. For testing intermittents, and pin 1 to chassis shorts, it's a winner, and I can't see ever replacing it unless some evil bastard stole mine! Only thing I don't care for is the tone gen, because I have two dedicated tone gen's already (Tone Plug, and Neutrik MR1), which have more options for tone/noise than this does. That's the only gripe I have about the price; as much as it is worth it for what you get, and then some, I wonder if it would have been cheaper if they hadn't added the tone gen features (it might not have been, since the cable test is an audio signal based test).
Submitted: 12/30/2004
Style of Music: Musical Theatre, Rock, Folk, etc.
