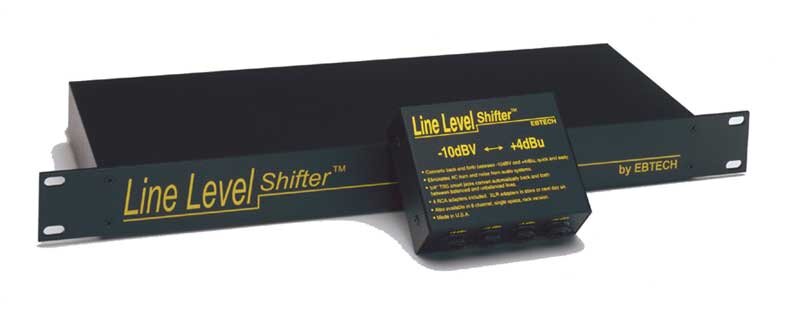

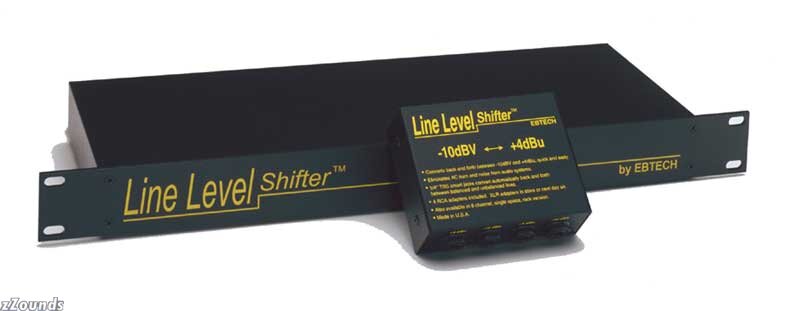

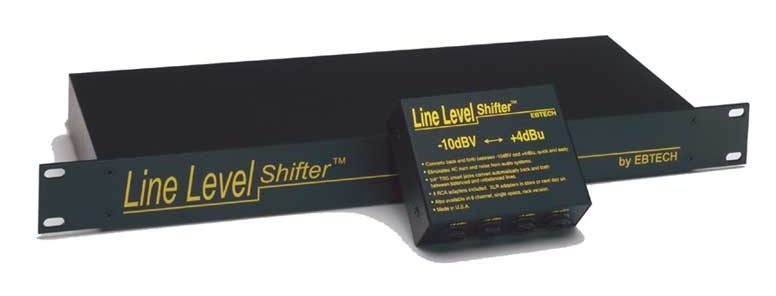

Ebtech LLS8 Line Level Shifter (8 Channel Rackmount Unit)

What do you do when you need to connect a low volume, -10dBV output (like a cassette deck, CD player, or synthesizer), into a high volume, -4dBu input (like a multi-track recorder or DAT machine)? Get the Line Level Shifter!

The Line Level Shifter uses the physics of inductance and impedance matching to increase or decrease the signal voltage without the added noise of active electronics. The Line Level Shifter also converts back and forth between balanced and unbalanced signals automatically. This is great because most -10dBV signals are unbalanced while most +4dBu signals are balanced.

The Line Level Shifter also contains Ebtech's Hum Eliminator technology to break ground loops that cause AC hum.

Features
Converts back and forth between -10dBV and +4dBu.

Built-in Hum Eliminator technology eliminates AC hum/60 MHz buzz and noise.

Automatically translates signal voltages to match differences in ground potentials, avoiding clipping.

Converts automatically back and forth between balanced and unbalanced lines at either end.

1/4 in. TRS "smart" jacks (tip, ring, sleeve) inputs and outputs. XLR adapters available.

Completely passive design with audiophile-quality components assures the best possible noise- and distortion-free performance.

Technical Info

Frequency response: 10Hz to 40Hz plus or minus 1dB into 10k0hm load

Distortion: less than 0.002% THD @ 1kHz

Crosstalk: better than -97dB

Maximum source impedance: 1k0hm

Minimum load impedance: 10k0hm

2-year warranty

Ebtech quality and reliability

Made in the U.S.A.
