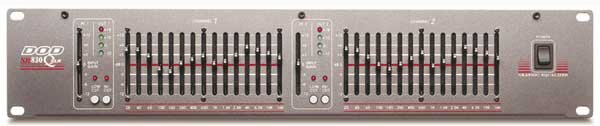

DOD SR830QXVLR Dual 15-Band Equalizer

DOD EQs are versatile, cost-effective equalization tools for musicians, studio engineers, and live performers. The units offer up to 12 dB of cut or boost per band with a switchable low cut filter for each channel. Electronic switching of these functions minimizes pops or clicks when the switch is depressed, and up to +/-12 dB of level control is available. This feature makes A/B comparisons of the EQ'd signal to the original signal quick and easy. Connection may be either balanced with an XLR connector or with an unbalanced 1/4 in. phone plug making the units readily interfaceable to any system. Dual channel units may be used as a stereo equalizer or as 2 independent equalizers. The units offer either 1/3rd octave or 2/3rds octave resolution, depending on the unit chosen. All DOD equalizers are solidly built with steel chassis and CSA standard circuit boards for years of reliable service.

Longer throw faders provide more precise adjustments when equalizing a room. The SR830QXLR offers 2 channels of equalization each with 15 bands of 45mm faders. The all steel chassis construction can handle the abuse of the road, or the solace of a permanent installation.

Features:
Dual 15 band equalizers

Constant Q

Low cut filter at 50Hz with a 12dB/Octave Slope

Balanced XLR inputs and outputs

Balanced 1/4 in. inputs and impedance balanced 1/4 in. outputs

Shielded internal power supply

ISO 2/3 octave frequency centers

Technical Info

Frequency Response: 20Hz to 20kHz, =0/-0.5 dB

Low Cut Filter: 12 dB/ octave roll-off, 3 dB down at 50 Hz switchable in or out.

Frequency Center Tolerance: 5%

Control Range: 12 dB cut/ boost

Recommended Operating Level: -10 dBV to +4 dBu

Input Impedance: 40k ohms balanced, 20k ohms unbalanced

Maximum Output Level: +21 dBu (balanced or unbalanced)

Input Level Control: +/-12 dB

Input Level Indicator: LED bar graph; -10,0,+10, and +17

Harmonic Distortion: .006% @ 1 kHz S/N Ratio: Greater than 90 dB (ref. 0.0775Vrms)

Electronic Switching: In/Out and Filter switches (FET type)

Power Requirements: 100/120/220-230/240 VAC, 50/60 Hz @ 18 watts

Dimensions: 3.5 x 6 x 19 in.
