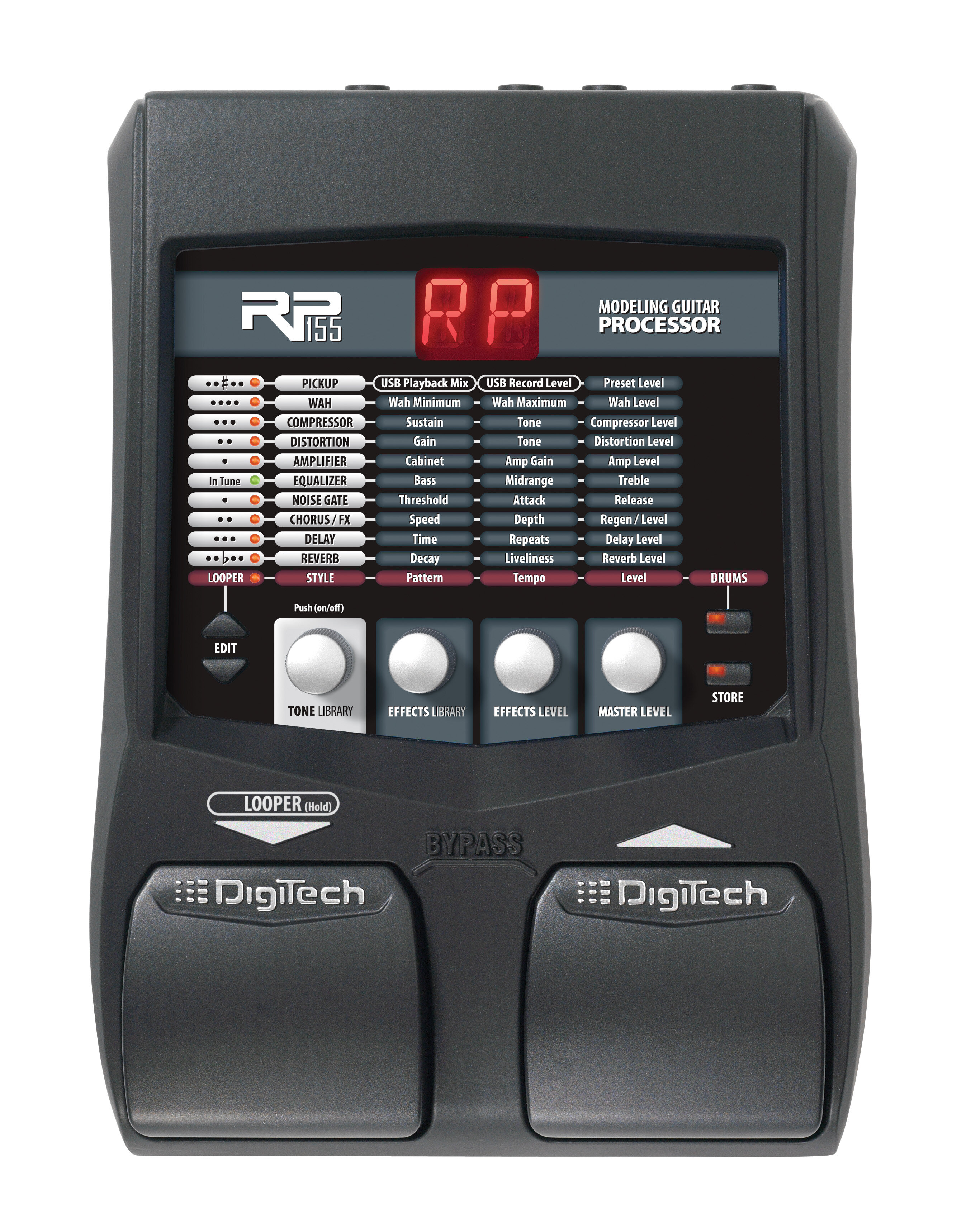

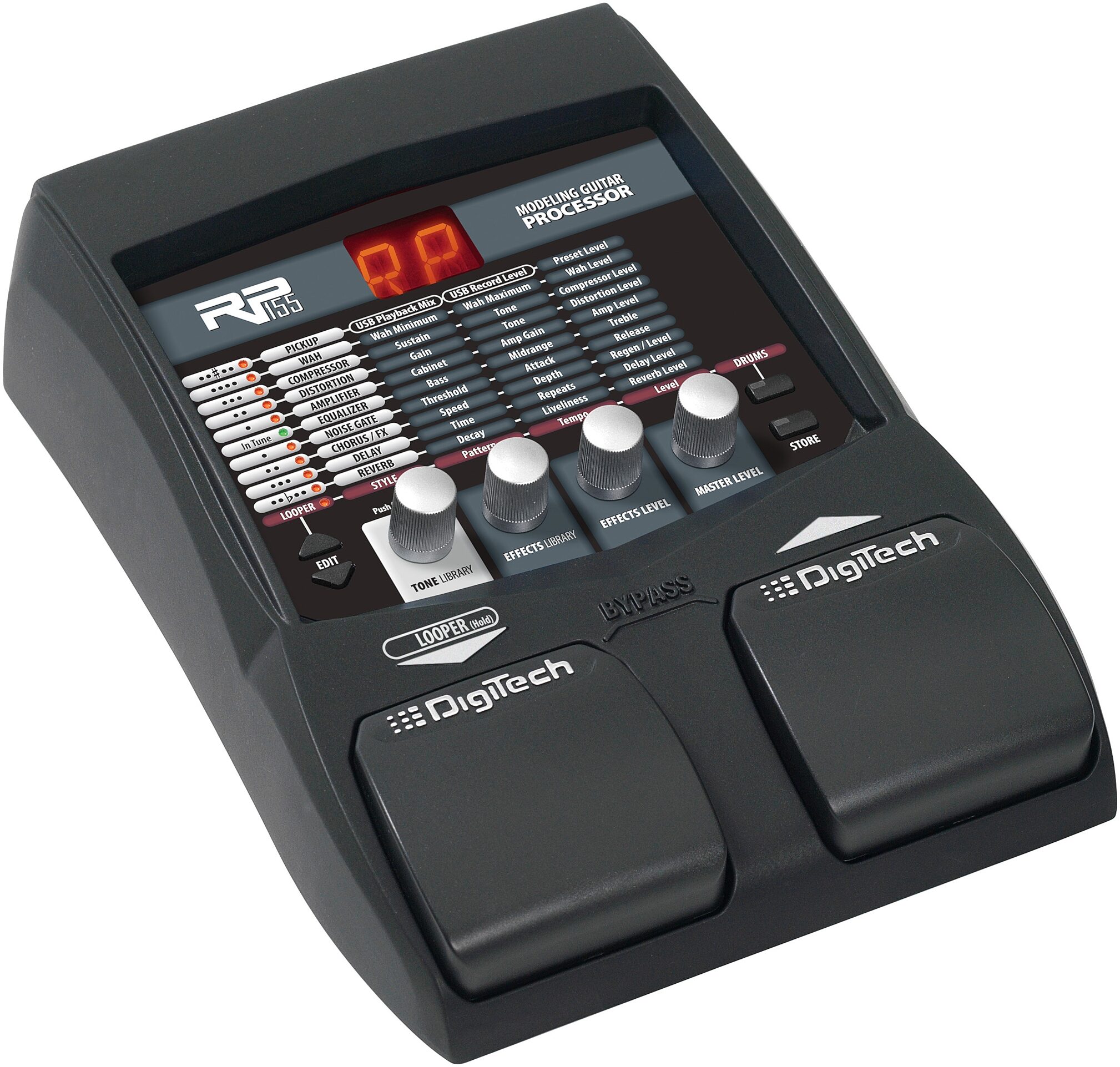

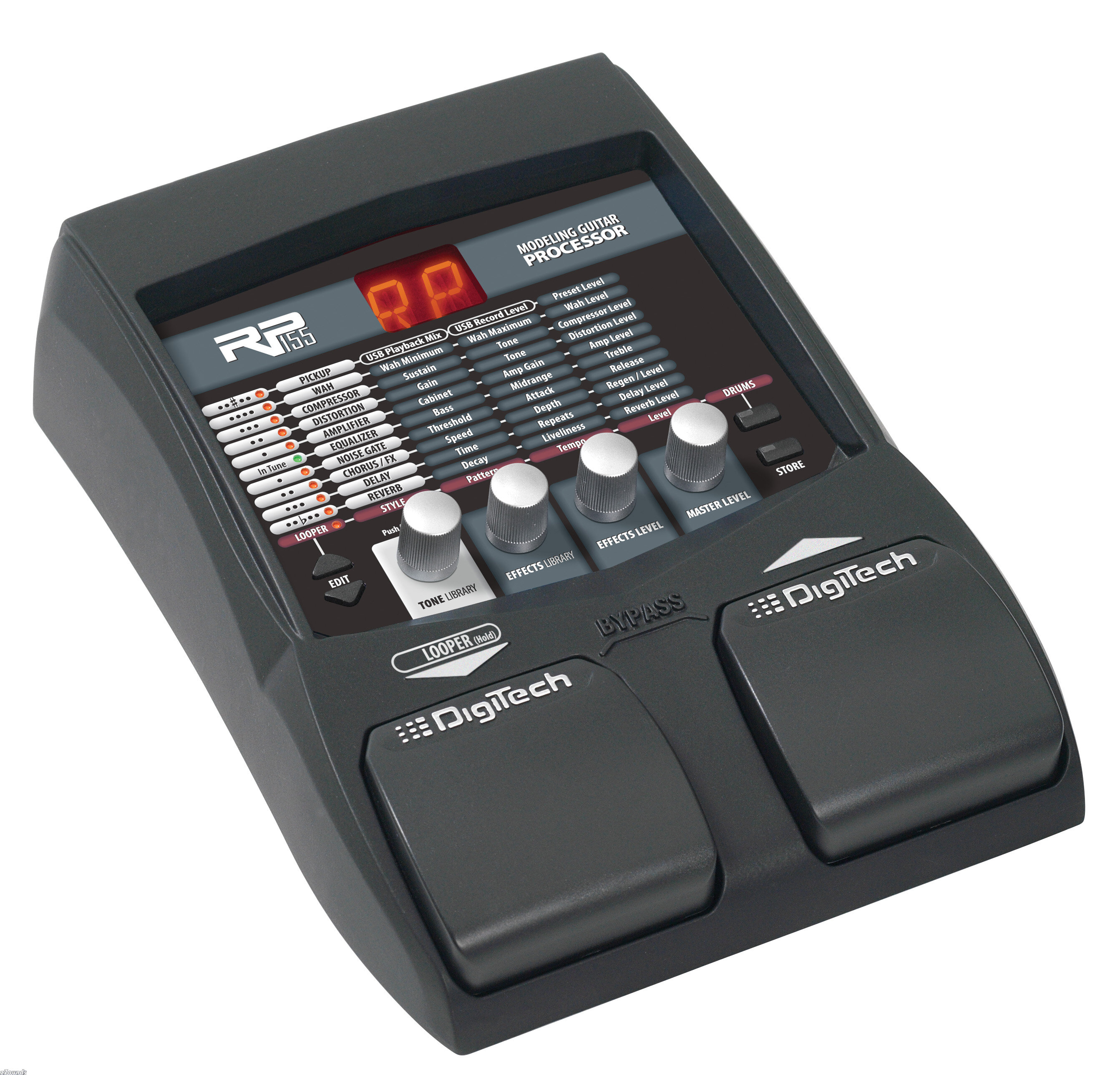

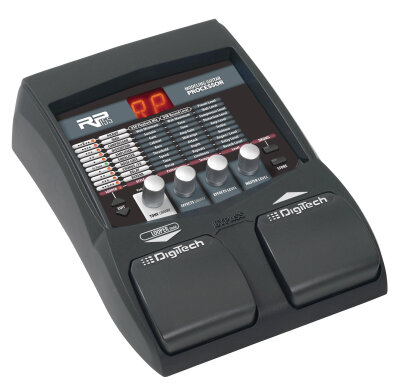

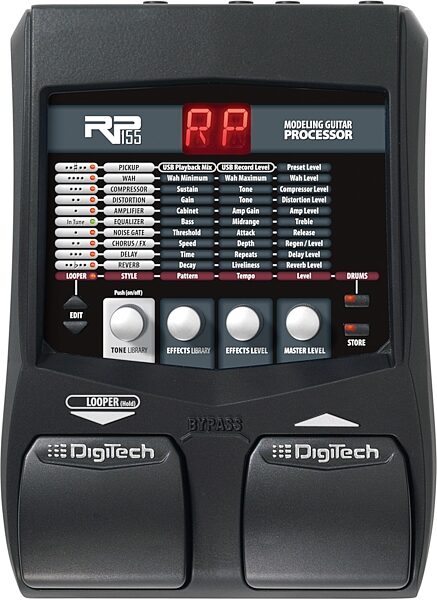

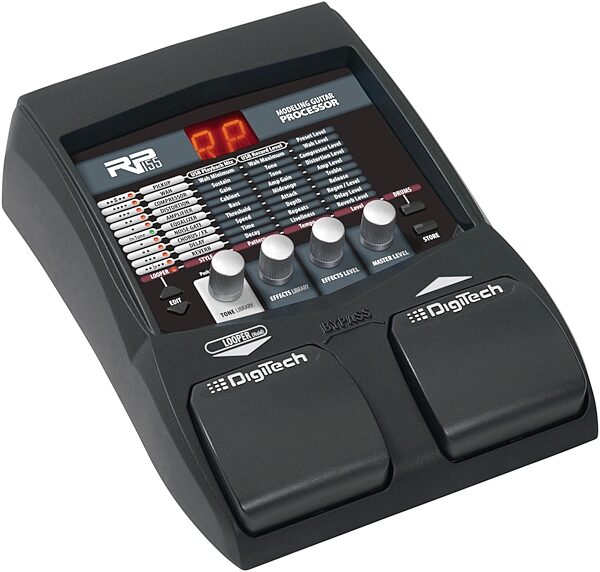

DigiTech RP155 Guitar Multi-Effects Pedal

The RP155 guitar multi-effect processor gives you 83 amps, cabinets, stompboxes, and effects allowing you to get virtually any sound you want, just like the pros. With USB streaming audio, the RP155 allows you to easily record directly to your computer's DAW with sounds so good people will think that your song was recorded in a major studio.

Features
20 Second looper

83 Amps, cabinets, stompboxes and effects

23 Amp/Acoustic Types

12 Cabinet Types

Lexicon(R) Reverbs

30 Tone and 30 Effects Libraries

100 presets (50 factory, 50 user)

Up to 5 seconds of delay time

24-bit 44.1kHz sample rate

60 High quality drum patterns

2 x 2 USB audio streaming

USB editing via DigiTech X-Edit(TM)

Independent 1/4 in. Left and Right Outputs

Amp / Mixer switch optimizes 1/4 in. outputs for amps and mixers

Stereo 1/8 in. headphone output

Stereo 1/8 in. Aux Input

Built-in chromatic tuner

Durable die-cast chassis

Power supply included

Tones, tones and more tones...
With over 83 amps, cabinets, stompboxes and effects the RP155 has nearly limitless tonal combinations for both live performances and recording. Never will you have to wonder "what if I had that effect or amp" again. When you are creating your personal tone, it's best to have an abundance of options to try and perfect.

Topping the RP155 off is the 2x2 USB audio streaming that allows you to easily record directly to your computer's DAW. Make the music you want, the way you want it to sound.

Technical Info

General Specifications
A/D Converter: 24-bit high performance audio

D/A Converter: 24-bit high performance audio

Sampling Frequency: 44.1kHz throughout

DSP Section: 1 Audio DNA2(TM) DSP Processor

Simultaneous Effects: 11

Preset Memory: 50 User / 50 Factory Presets

Drum Machine: 60 High Quality Patterns

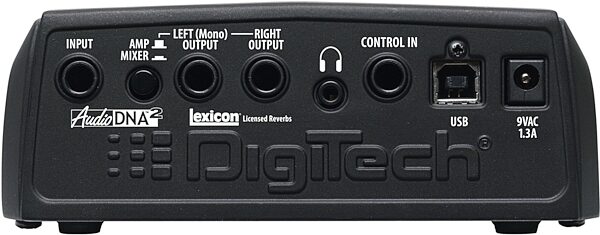

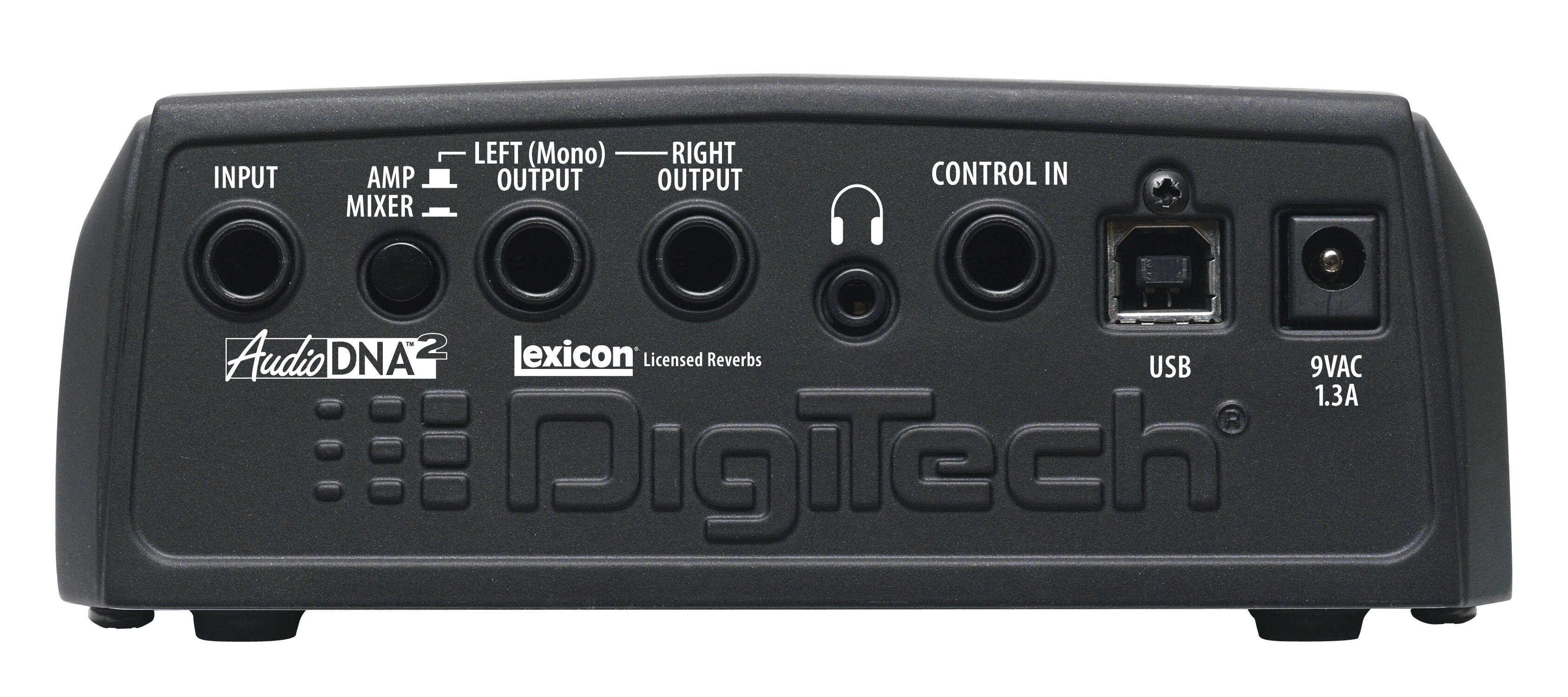

Analog Input Connections
Guitar Input:
Impedance: 500K Ohms

Maximum input signal: 8 dBu

Analog Output Connections
Line Output:
Impedance: 500 Ohms unbalanced / 2K Ohms balanced

Maximum Output level: +10dBu

Headphone Output:
Impedance: 50 Ohms

Maximum Output level: 13.6 mW / channel

Power Requirements
USA/Canada: 120 VAC, 60 H

Adapter: PS0913B-120

Japan: 100 VAC, 50/60 Hz Adapter: PS0913B-100

Europe: 230 VAC, 50 Hz Adapter: PS0913B-230

UK: 240 VAC, 50Hz Adapter: PS0913B-240

USB Specifications
USB: 2.0 compliant

Audio streaming: 2 channels to computer, 2 channels from computer

Sample rate: 44.1 kHZ

Size/Weight
Unit Dimensions (WxHxD): 8 3/4 x 10 5/8 x 2 5/8 in.

Shipping Dimensions (WxHxD): 8 3/4 x 10 3/4 x 2 3/4 in.

Shipping Weight: 3.2 lbs

Windows Software Requirements
Vista Home/Premium, XP Home/Professional (SP 2 installed, .NET Framework 2.0* installed)

800 MHz processor speed (1.2 GHz recommended)

512MB RAM (1GB recommended)

*.NET 2.0 will be installed during installation of X-Edit software if required on XP systems

Mac Software Requirements
OS 10.4.x, 10.5

PowerPC or Intel(R) G4, G5 processor 800 MHz (1.2 GHz recommended)

512MB RAM (1GB recommended)
