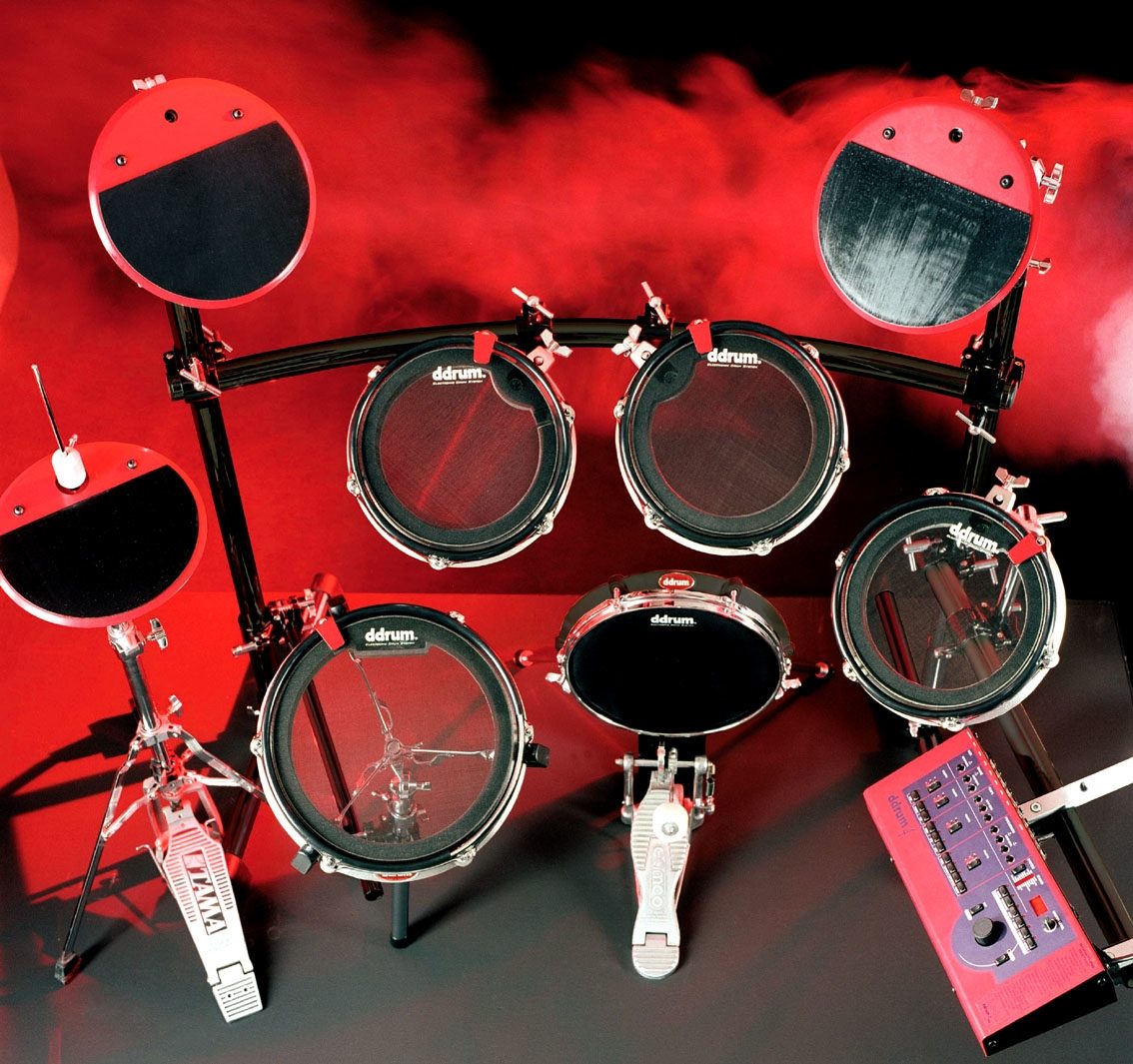

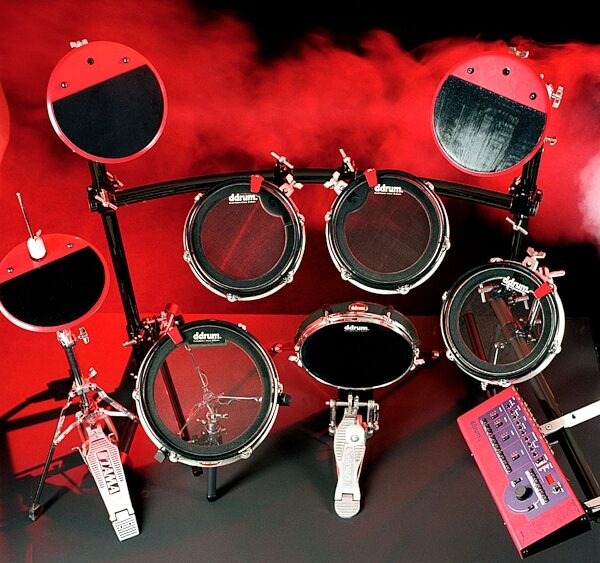

DDrum System SE Electronic Drum System with Mesh Heads

Product Description

The ddrum4 SE system offers new levels in terms of playback features, sample dumps, and audio performance. With a large memory capacity, compact design, incomparable triggering response, and superb sound reproduction, the ddrum4 qualifies as one of the most ideal and useful digital percussion systems in the world. Feel is very important. The Cast Precision Mesh Head pads are equipped with a new type of "silent" mesh drum heads - designed for natural response and great playing feel. The ddrum4 SE offers fast and accurate acoustic triggering without the need to muffle your drumheads! Their specially designed and patented acoustic triggers are the perfect solution for drummers that want to combine acoustic drum sounds with top-quality studio sounds. The intelligent design, coupled with "down to earth" playing features, sets ddrum4 apart from all others. Nothing else comes close!

Features:
Flash memory system ensures sound flexibility - download free ddrum4 samples

1000 steps of dynamics

10 trigger input channels with adjustable sensitivity

Channel 1, 2, 8, and 9 with pressure detection

Channel 10 also for hi-hat controller

6 line level audio output channels with separate 18-bit DACs (A1, A2, B3, B4, B5, B6)

1 stereo output for headphones (from output A1 and A2)

4 palettes with 5 user presets each

26 user kits in Flash memory

73 factory kits in ROM

Special sound compression format (4 to 6 times)

8 MByte Flash ROM for sound storage (equivalent to 32 to 48 MB uncompressed)

ddrum4 sounds can be downloaded as MIDI System Exclusive data

Supports reception of MIDI Sample Dump Standard samples

About ddrum
Since 1983 Clavia has brought top quality electronic drums to the market. Great sound quality, fast and accurate triggering and a superior dynamic range have made the name of ddrum to be the strongest name in electronic percussion.

The basic idea behind ddrum products is to combine superior studio sound quality and flexibility with playability and sound control. Ever since Clavia's first drum product, the Clavia Digital Percussion Plate, fast and accurate triggering, high dynamic range, and outstanding sound quality have been important and appreciated features. Still today, ddrum offers the market's fastest trig response times, the best dynamic resolution, and the best sound quality.

As a ddrum4 owner you will have access to ddrum's large and constantly growing Sound Library for an unlimited number of sounds. Connect your ddrum4 to an internet connected computer and download new samples from Clavia's web site into your ddrum4 brain - free of charge! The ddrum4 Mega Drumkits Signature Series sounds, recorded by some of the world's greatest drummers, will take the sound and feel of your ddrum4 to an even higher level. And it won't cost you anything extra!

ddrum4 SE with ddrum Triggers offers the same fast trig response and dynamics range as with the cast precision pads. Unlimited amount of sounds! This is the fact if you use ddrum4 SE. The ddrum4 SE soundlibrary holds plenty of multi-samples offering very realistic sound reproduction. And if that isn't enough for you, the ddrum4 holds the feature to download samples via MIDI sample dump from any sampler that offers that possibility. Imagine the possibility to use your own recorded sounds. This makes the ddrum concept as flexible as you want. At a touch of a button, you can switch from a 60's Bebop kit to a gated hard rock kit in a split second. That's what we call flexibility!

ddrum4 SE is a 10-channel digital drum system holding a flash memory. Besides the traditional features that comes with a ddrum set, Clavia have developed a realistic hi-hat controller, mountable on a traditional Hi-hat stand, and cymbals offering both bell/ride and a choke function. An impressive sound library comes with the system. Besides the high quality Signature Edition sounds that resides inside the unit, the user have access to another 1100+ samples on a special ddrum4 sound library CD that comes with the unit. zZounds is an authorized dealer of DDrum products.

Global Parameters
Button trigger level (1 to 127)
MIDI channel (OFF, 1 to 16)
MIDI Volume (1-127)
MIDI program change (on, off, thru)
MIDI local mode (on, off)
MIDI aftertouch (on, off)
MIDI system exclusive kit dump
MIDI factory initialization
Parameters global for each channel
Trigger type selection (kick, pad, rim, acoustic pad, hand, acoustic 1 to 3, mesh head 1-3, cymbal, hi-hat)
Trigger threshold (1 to 100)
Trigger dynamics curve (-15 to 15)
Output A assignment (A1 to A2)
Output B assignment (B3 to B6)
MIDI note number (0 to 127)
MIDI note position (1, 2, 4, 8)

Parameters for Each Channel Per Kit
Sound selection (10 sound groups with max 999 sounds each)
Variation (1 to 10)
Pitch (-4 to +1 octaves in 10 cent increments)
Decay (0 to 100)
Level A (0 to 100)
Level B (0 to 100)

Sound Manager Functions
Select sound/sound group
Show sound size
Show memory available
Listen
Mark/Unmark
Delete sound/sound group
Dump sounds via MIDI

Dimensions (W x D x H): 15.6 x 6.3 x 3.0 in.

Weight: 6.6 lbs.

Rack ears are optional

Specifications subject to change without notice
