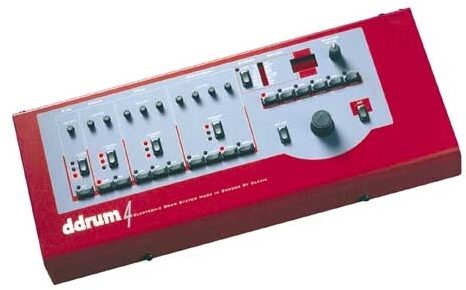

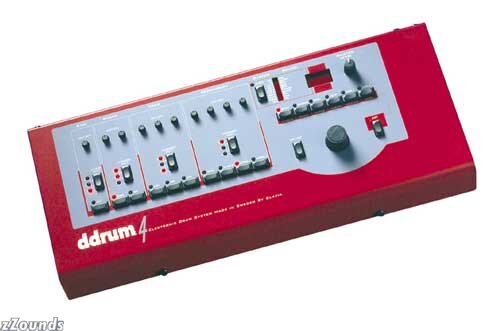

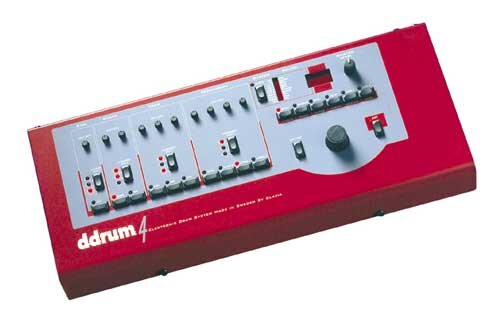

DDrum Electronic Percussion DDR4 Ddrum4 Brain Tone Generator

The ddrum4 Brain is a tone generator with an 8MB flash ROM memory system that ensures sound flexibility. You can download free ddrum4 samples from their Sound Library page.

Features
1000 steps of dynamics

10 trigger input channels with adjustable sensitivity

Channel 1, 2, 8, and 9 with pressure detection

Channel 10 also for hi-hat controller

6 line level audio output channels with separate 18 bit DACs (A1, A2, B3, B4, B5, B6)

1 stereo output for headphones (from output A1 and A2)

4 palettes with 5 user presets each

26 user kits

73 factory kits

Special sound compression format (4 to 6 times)

8 MB Flash ROM for sound storage (equivalent to 32 to 48 MB uncompressed)

ddrum4 sounds can be downloaded via MIDI System Exclusive

Supports reception of MIDI Sample Dump Standard samples

Technical Info

Global Parameter
Button trigger level (1 to 127)
MIDI channel (1 to 16)
MIDI program change (on, off, thru)
MIDI local mode (on, off)
MIDI aftertouch (on, off)
MIDI system exclusive kit dump
MIDI factory initialization

Parameters for Each Channel Global
Trigger type selection (kick, pad, rim, acoustic pad, hand, acoustic 1 to 3, cymbal, hi-hat)
Trigger threshold (1 to 100)
Trigger dynamics (-15 to 15)
Output A assignment (A1 to A2)
Output B assignment (B3 to B6)
MIDI note number (0 to 127)
MIDI note position (1, 2, 4, 8)

Parameters for Each Channel per Kit
Sound selection (10 sound groups with max 999 sounds each)
Variation (1 to 10)
Pitch (-4 to +1 octave in 10 cent increments)
Decay (0 to 100)
Level A (0 to 100)
Level B (0 to 100)

Sound Manager Functions
Select sound
Show sound size
Show memory available
Listen
Mark/Unmark
Delete
Send sounds via MIDI

Physical
Dimensions (W x D x H): 395 x 160 x 77mm (15.6 x 6.3 x 3.0 in.)

Weight: 3.0 kg (6.6 lbs.)

Rack ears are optional.
