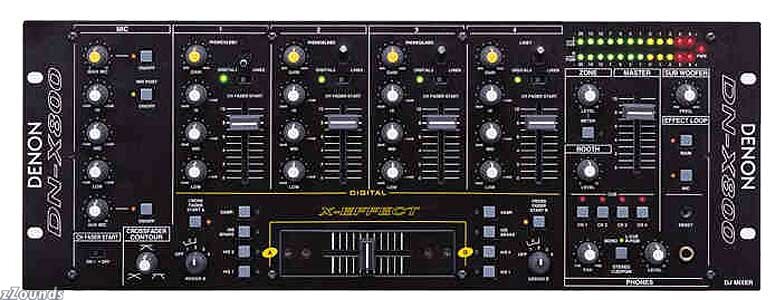

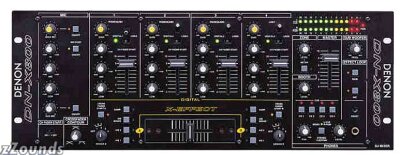

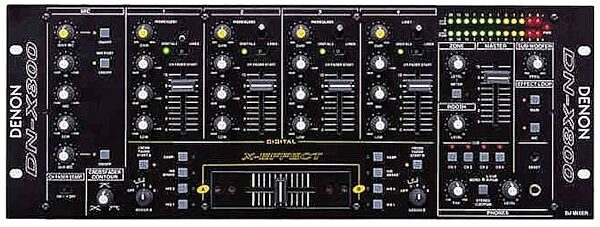

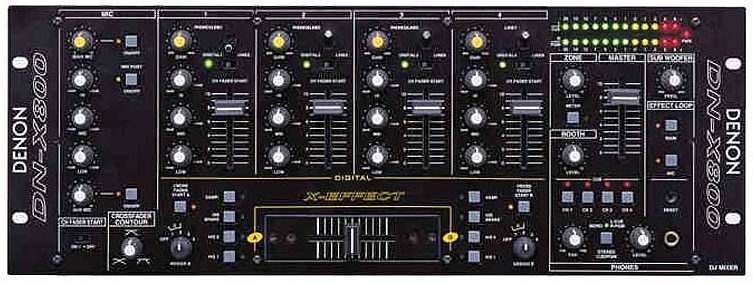

Denon DNX800 Digital/Analog DJ Mixer

As never before, when you combine the DN-X800 with a Denon Dual CD player, you can control Hot Start, Sampler, or Brake from the DN-X800 by simply moving the cross fader (or channel fader).

Main Features

X-Effect
The X-Effect is a unique feature which is designed to work with the Denon DN-2100F and DN-2600F CD players. The fader start of the below functions can be used with the Crossfader. Sampler, Hot start brake/platter, Hot start 1, 2 (each drive).

CH. Fader and Crossfader Start
The CD player can be started or stopped simply by increasing or decreasing the level of the CH fader or by using the cross fader left to right or right to left. (This function can only be used when the Denon CD players DN-1800F, DN-2100F, or DN-2600F is connected to the DN-X800.)

Digital Outputs
The DN-X800 allows you to record directly to CD-R, MiniDisc, or a hard disk device through it's exclusive coaxial digital outputs. The digital outputs maintains a constant 16-bit/44.1 kHz signal.

Digital Inputs
The DN-X800 accepts up to 4 digital inputs. Such as Denon's family of performers, DN-1800F, DN-2100F, DN-2600F, DP-DJ151, or any device with a digital output. The sampling frequency range can be 32 kHz, 44.1 kHz or

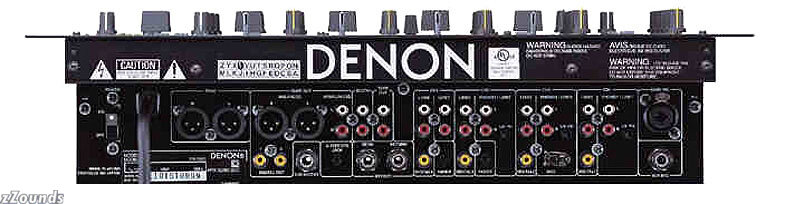

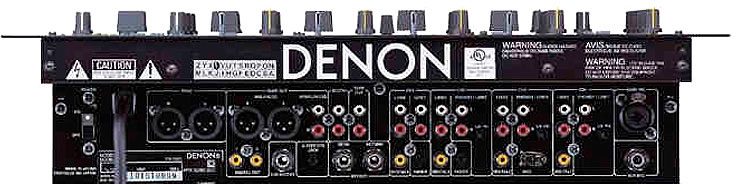

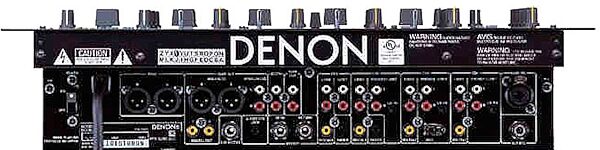

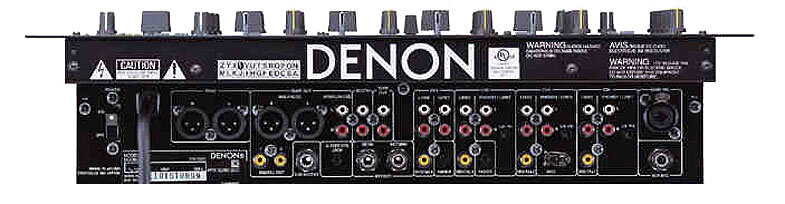

Enhanced Input/Output Terminals (Analog)
8 Line, 3 Phono, 2 microphone systems, 2 Main outputs, Zone output, Booth output, subwoofer output, and tape output are provided independently. Effect in/out terminals are also provided for a external effects processor.

3-Band Equalizer/Gain
Bass, Mid, Treble, and Gain controls are available on every input channel.

Crossfader Contour
This feature allows adjusting the "shape" of the Crossfader response from a gentle curve for smooth, long running fades, to the steep pitch required for top performance cut and scratch effects.

Mic Post
This feature will pass the Main Mic signal into the Zone, Booth, Tape output, and Digital output signal path. In the OFF mode, the MIC signal will not be routed through the above outputs.
