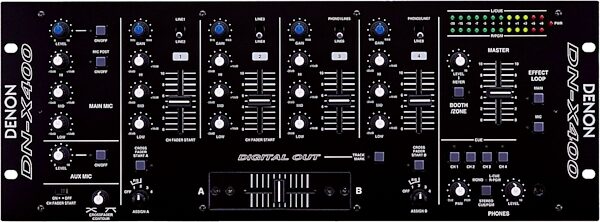

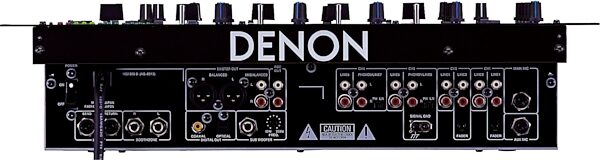

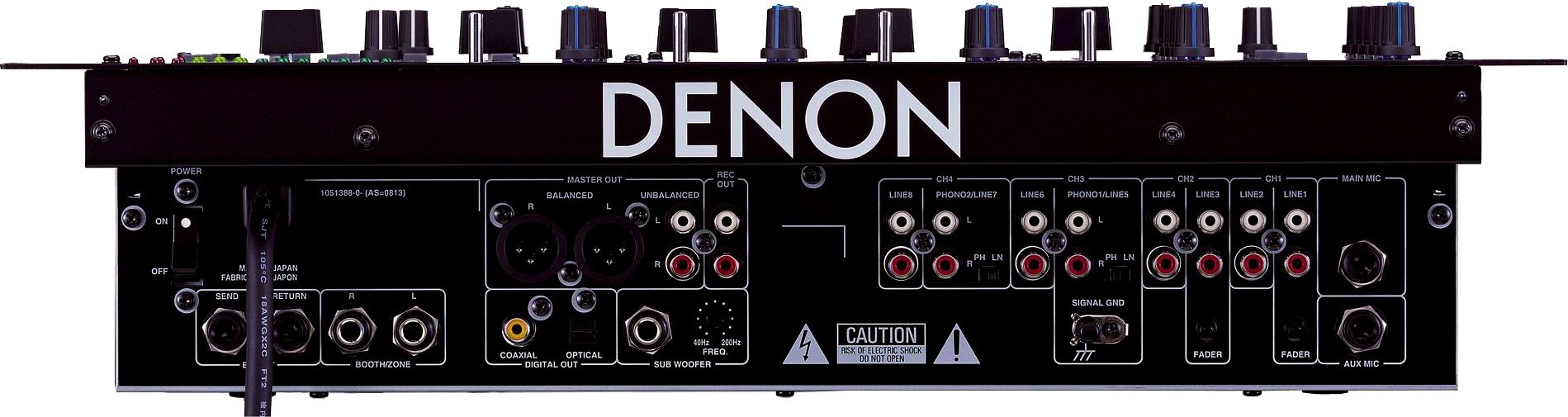

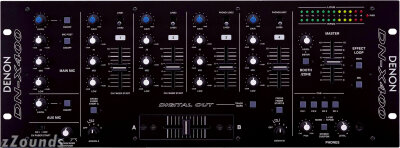

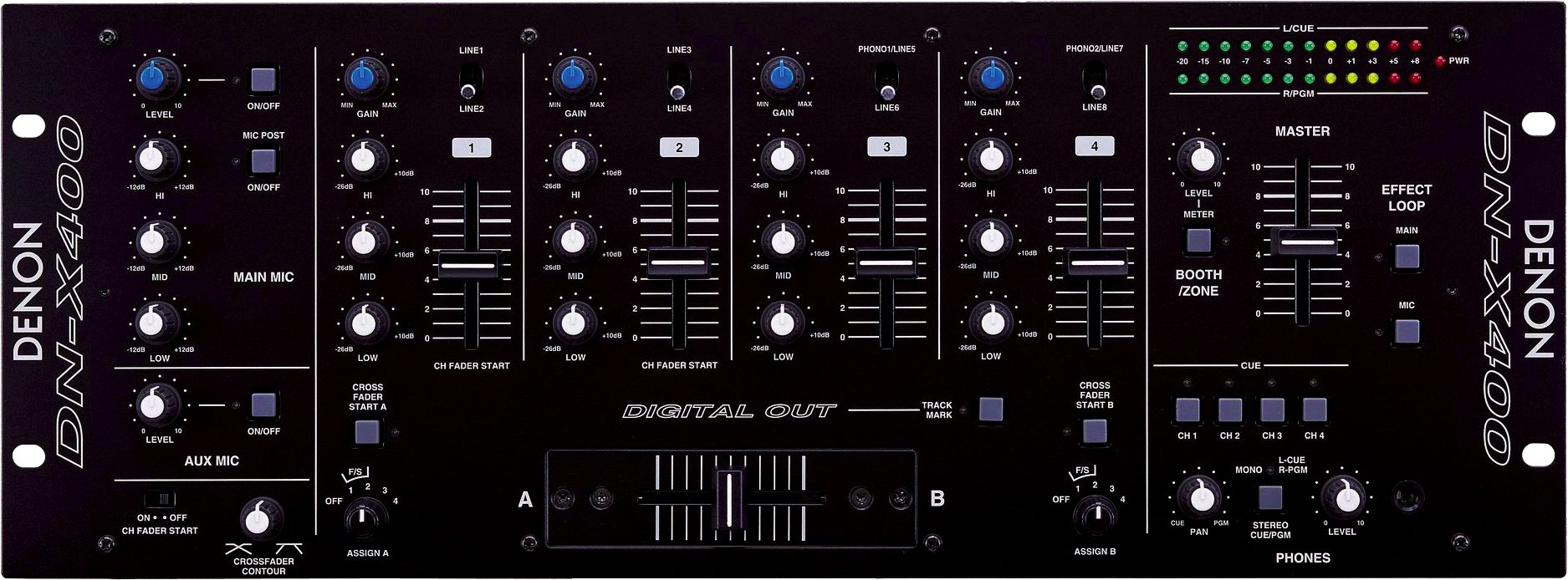

Denon DNX400 Professional DJ Mixer

The new DN-X400 is a professional DJ mixer with digital outputs. Its industrial build and high performance parts give it superb audio fidelity while maintaining a small chassis of only 4U rack spaces.

Features
2-digital outputs (Coaxial and Optical)

Track Mark (increments digital tracks from the mixer while recording)

8 line/2 phono inputs

2 Microphone inputs

Mic post on/off

Master output (balanced)

Master and Rec output (unbalanced)

Booth/Zone output (balanced)

Booth/Zone output level adjustment with meter display

Subwoofer output (balanced, mono)

Subwoofer output freq control

Send/Return effect loop (stereo)

Input Gain control (each channel)

PFL adjustment

-26dB ~ +10dB HI, MID, LOW tone controls

Split cue H/P monitor and display

Cross fader channel assign selector, 1~4

Cross fader contour adjustment

Cue, program pan

45mm VCA faders

Fader Start: compatible with Denon's DN-1800F, DN-2100F, DN-2600F, or other brand pulse start CD players

Industrial build with high performance parts

Superb audio fidelity (extremely clean)

Complement the digital outputs to MiniDisc or CD-R recorders

Technical Info

Dimensions (W x H x D): 482 x 105 x 177 mm (19.0 x 4.1 x 7.0 in.), without feet

Weight: 5.5 kg (12.1 lbs.)

Power supply: 120 V AC�10%, 60 Hz (U.S.A. and Canada models)

Power consumption: 26 W

Input Sensitivity and Impedance:
Main Mic -54 dBV (2.0 mV) 10 kohms
Aux Mic -60 dBV (1.0 mV) 10 kohms
Effect (Return) -10 dBV (316 mV) 50 kohms
2-Phono -50 dBV (3.0 mV) 50 kohms
8-Line -14 dBV (200 mV) 50 kohms

Output level & Impedance:
Main (Balanced) 4 dBm (1.23 V) 600 ohms load
Main (Unbalanced) 0 dBV (1.0V) 1 kohms
Booth/Zone (Balanced) 4 dBm (1.23 V) 600 ohms load
Rec (RCA) -10 dBV (316 mV) 1 kohms
Effect (Send) -10 dBV (316 mV) 1 kohms
Subwoofer -2 dBV (800 mV) 1 kohms
Headphone -4 dBV (630 mV) 150 ohms

Frequency Response:
Line 20 to 20 kHz �2 dB
Phono 20 to 20 kHz RIAA �2 dB
Mic 20 to 20 kHz �2 dB

Signal to Noise ratio:
Line 80 dB (0 dBm, 1 kHz, EQ flat)
Phono 75 dB (0 dBm, 1 kHz, EQ flat)
Main Mic 65 dB (0 dBm, 1 kHz, EQ flat)

Total harmonic distortion rate:
Line Below 0.05%
Phono Below 0.05%

Cross talk: Over 70 dB

Channel equalizer:
Hi +10 dB, -26 dB (13 kHz)
Mid +10 dB, -26 dB (1 kHz)
Low +10 dB, -26 dB (100 Hz)

Microphone equalizer:
Hi +12 dB, -12 dB (10 kHz)
Mid +12 dB, -12 dB (1 kHz)
Low +12 dB, -12 dB (100 Hz)

Digital output (Coaxial):
Signal format IEC958 Type II
Output level 0.5 Vp-p 75 ohms
Output signal level -6 dB

Digital output (Optical):
Signal format IEC958 Type II
