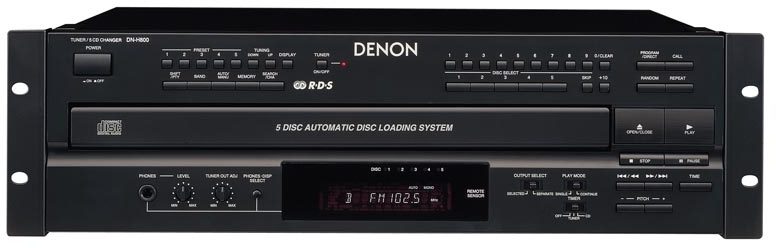

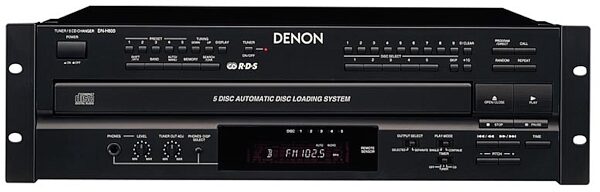

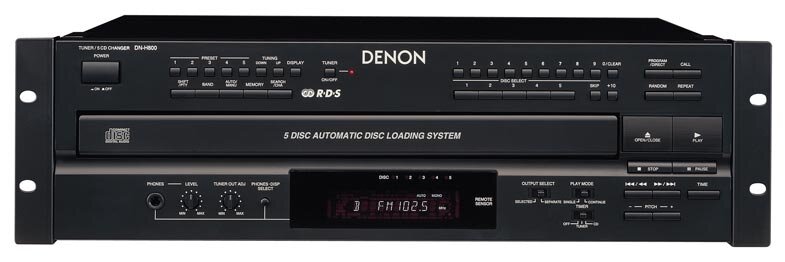

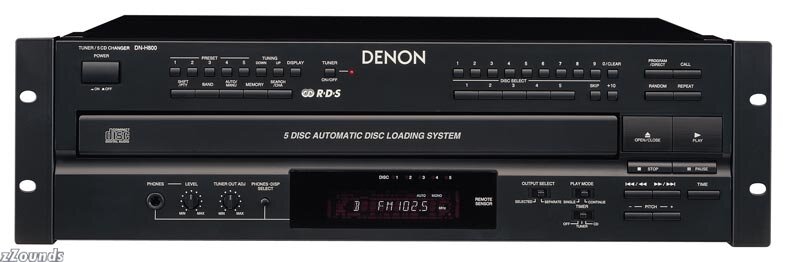

Another "World's First," The DN-H800 professional 5 CD Changer + AM/FM Tuner combines a programmable carousel-type 5 CD changer with a programmable AM/FM tuner in a 3-rack space unit (16.2 in. deep).
Features
RCA analog and balanced XLR outputs for CD and Tuner.
Independent outputs for CD and Tuner.
CD pitch control (±12%, 0.1 steps).
Intelligent Disc Scan; carousel tray rotates clockwise or counter-clockwise for quick disc access.
AM/FM/FM Stereo Tuner.
Auto/Manual tuner search function.
RDS (Radio Data System) includes; PS-program service name, CT-clock time, PTY-program type, and TP-traffic program.
Headphone jack w/volume control.
Integrated FL tube display.
2-way outputs; Independent sources into separate zones or selected source into one zone.
5-way Repeat; Single track, Entire disc, All loaded discs, A stored program sequence, and 3-way random.
Last function memory; remembers your last operation at "power on" Ý Program Play (up to 20 tracks).
Selectable timer switch operation (Off/Tuner/CD).
Play mode switch (Single or Continuous).
CD's can be removed and updated without interrupting current playback (drawer opens while CD is playing).
Manual Character Input; up to 8 characters can be entered for naming your favorite stations.
Headphone monitor and display selector (CD or Tuner).
Optional Wired remote (coming soon).
3-way random playback; All Disc Random, Disc Sequential Random, and Program Random Play.
Dedicated direct disc and track select buttons.
30-station random preset memory.
Tuner output attenuator (used to match CD output level).
3-way unit operation; Front Panel, Infrared remote control, and Wired remote control.
Optional Infrared remote RC-H800.
Optional AMC-22 lens cleaner.
3U rack spaces.
Technical Info
Type: Carousel 5 CD Changer and AM/FM Tuner
CD Section (Playback Speed Control Off)
Audio Channels: 2 channels (L/R)
Quantization Bits D/A Converter: 16-bit linear
Sampling Frequency: 44.1 kHz
Total Harmonic Distortion: 0.02% or less
S/N Ratio: 94 dB or higher
Frequency Response: 20 Hz-20 kHz (±1.0 dB)
Line Output (Unbalanced): RCA Jacks
Output Level: 2.0 Vrms at 0 dB Disc
Load Impedance 10 kohms or more
Line Output (Balanced): 3-Pin XLR (Active Balanced)
Output Level: +18 dBm at 0 dB Disc
Load Impedance: 600 ohms
FM
Tuning Frequency: 87.5 - 108 MHz
Usable Sensitivity: 2.0 µV, 75 ohms
S/N Ratio: 76 dB/Stereo, 78 dB/Mono
Total Harmonic Distortion: 0.8%/Stereo, 0.6%/Mono
AM
Tuning Frequency: 520 - 1710 kHz
Usable Sensitivity: 20 µV
Line Output (Unbalanced): RCA Jack
Output Level FM: 0.6 V ± 3dB, AM: 0.3 V ±3 dB
Load Impedance: 10 kohms or more
Line Output (Balanced): 3-pin XLR (Active Balanced)
Output Level: +4 dBm
Load Impedance: 600 ohms (FM)
General
Power Supply: 120V, 60 Hz
Power Consumption: 19 W
Dimensions (W x H x D): 482 x 132 x 412 mm (19.0 x 5.2 x 16.2 in.)
Weight: 7.5 kg (16.5 lbs.)
