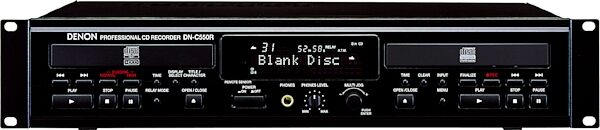

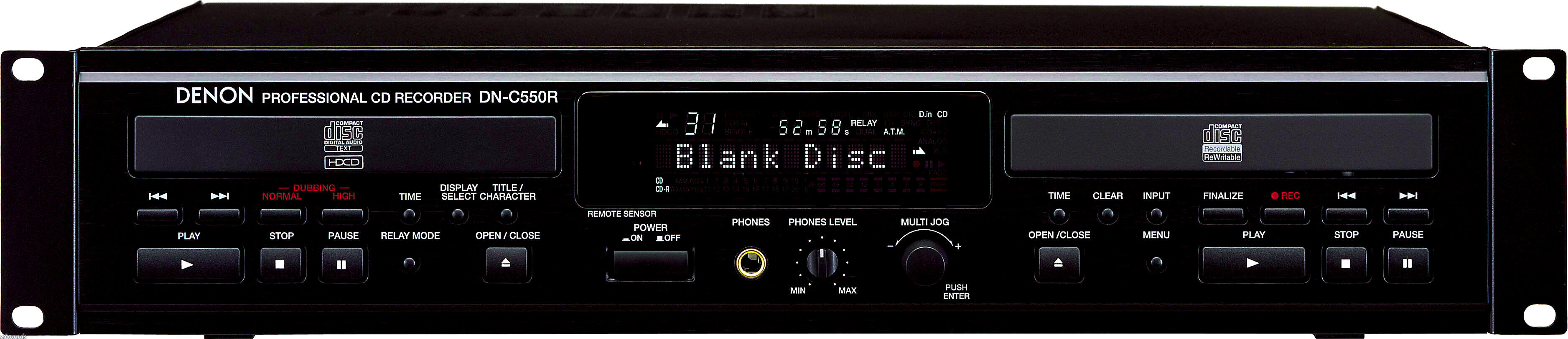

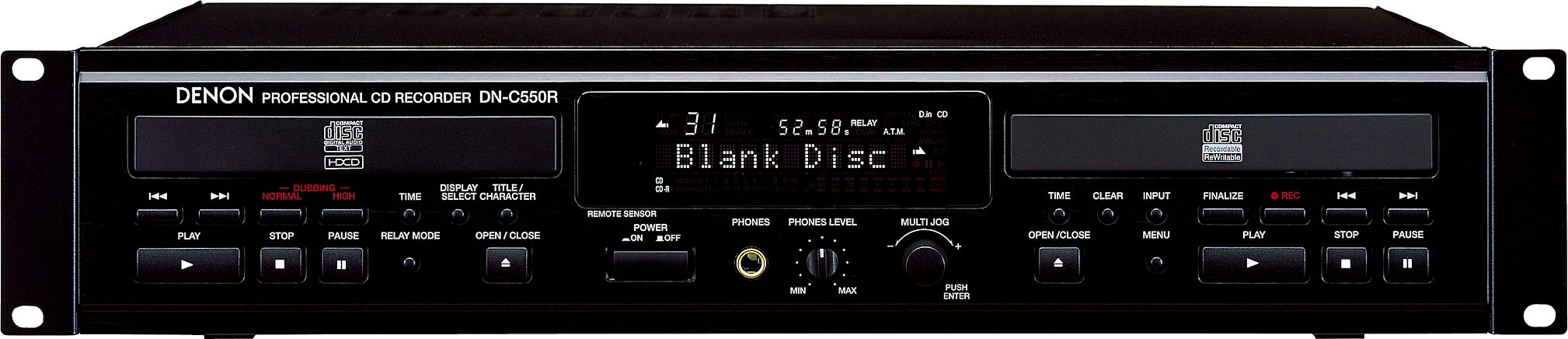

Denon DNC550R Professional Dual Drive CD-R & CD-RW Recorder

This professional dual-drive CD-R and CD-RW recorder accepts CD-R/CD-RW data or audio blank media, ignores SCMS, and writes at a 1X or 2X dubbing speed.

Features
4-way recording option

Optimum Power Calibration for Recording

HDCD dubbing compatible

CD Text & Titling compatible

Synchronized Recording

24-bit A/D conversion

24-bit Analog Devices D/A converters

Auto digital sampling frequency converter (32 kHz, 48 kHz digital inputs converted to 44.1 kHz CD sampling frequency)

Drive 1: CD & HDCD playback

Drive 2: CD-R/CD-RW Recorder; CD playback

Balanced XLR input

Unbalanced, mixed RCA output

Independent RCA outputs (each drive)

2 digital inputs (optical + coaxial)

4 digital outputs (optical + coaxial)

Dual Playback Mode (both drives play at the same time)

Relay Playback Mode

Mixed Playback Mode

IR remote included

2U rack spaces

Technical Info

Channels: 2-channel stereo

Disc played: Music CD, Finalized CD-R, Finalized CD-RW

Disc record: CD-R, CD-RW, CD-R-DA, CD-RW-DA

Frequency response: 20 Hz - 20 kHz

Dynamic range: 98/88 dB (CD drive/CD-R drive)

S/N ratio: 105/100 dB (CD drive/CD-R drive)

Total harmonic distortion: 0.003/0.01% (CD drive/CD-R drive)

Analog output (UNBALANCED)
Transfer and connector: Unbalanced, RCA jack
Output level: 1.7 Vrms, 10 k/kohms
Headphone output: 0.3 mW (32 /ohms)

Analog input (UNBALANCED)
Transfer and connector: Unbalanced, RCA jack
Input level: 1.7 Vrms, 47 k/kohms

Analog input (BALANCED)
Transfer and connector: Balanced active, XLR connector (1. Common 2. Hot 3. Cold)
Input level: +18 dBs, 10 k/kohms

Digital output (COAXIAL)
Transfer and connector: Unbalanced, RCA jack
Signal format: S/PDIF or IEC-958 Type II

Digital output (OPTICAL)
Signal format: S/PDIF or IEC-958 Type II

Digital input (COAXIAL)
Transfer and connector: Unbalanced, RCA jack
Signal format S/PDIF or IEC-958 Type II

Digital input (OPTICAL)
Signal format: S/PDIF or IEC-958 Type II

Power Supply: AC 120 V, 60 Hz

Power Consumption: 29 W

Dimensions (W x H x D): 482 x 88 x 315 mm (19.0 x 3.5 x 12.4 in.) (not including feet, knobs, and terminals)

Weight: 6.3 kg (13.9 lbs.)

Note: Design and specifications are subject to change without notice.

Professional-strength dual-deck CD player/recorder! Selectable 1x or 2x dubbing speeds. Supports HDCD playback and CD Text. Ignores SCMS. XLR analog plus S/PDIF inputs; individual RCA and S/PDIF outputs for each deck. Includes remote.
