8 ohms Stereo: 650 watts (per channel)
4 ohms Stereo: 1,200 watts (per channel)
2 ohms Stereo: 1,600 watts (per channel)
8 ohms Bridge - Mono: 2,400 watts
4 ohms Bridge - Mono: 3,200 watts
Input EQ: 6 parametric filters per channel with adjustable Q, +/-15 dB boost/cut. Also adjustable high and low shelving filters. This 8-filter EQ section can be bypassed.
Crossover Filters: Highpass and Lowpass per channel. Butterworth 6/12/18/24 dB per octave. Linkwitz-Riley 24/48 dB per Octave. Also includes +/- 15 dB bandpass gain and polarity control.
Output EQ: 8 parametric filters per channel with adjustable Q, +/-15 dB boost/cut. This 8-filter EQ section can be bypassed.
Delay: For signal alignment of driver; 50 mS of total delay.
SubHarmonic Synth: Takes the low-frequency content of the input signal and "synthesizes" a signal that is the same as the input signal but one octave lower. The synthesized signal is then mixed with the original signal to create the effect. Users now have control over frequency, gain, and filter type.
Peakx(TM) Plus Limiter: User defeatable limiter that allows users to control Threshold, Attack, and Release times.
Presets: 30 total presets, 29 of which are user-definable.
Sensitivity (for full rated power at 4 ohms): 1.4 Vrms
Frequency Response (at 1 watt, 20 Hz - 20 kHz): +0 dB, -1 dB
Signal-to-Noise Ratio (below rated 1kHz power at 8 ohms):
- XTi1002/2002/4002: 100 dB (A weighted)
- XTi6002: 103 dB (A weighted)
Total Harmonic Distortion (THD): < 0.5%
Damping Factor 20 Hz to 1 kHz: > 500
Crosstalk (below rated power): 20 kHz - 1 kHz: > 70 db
Input Impedance (nominal): 20k ohms balanced, 10k ohms unbalanced
Maximum Input Signal: +22 dBu typical
AC Line Voltage and Frequency Configurations: 100 VAC, 120 VAC, 220-240 VAC 50/60 Hz
AC Line Current: (120 VAC amplifier playing 1/8 power pink noise into 4 ohms per ch)
- XTi1002: 6.8A; no more than 38W at idle
- XTi2002: 8.3A; no more than 38W at idle
- XTi4002: 10.5A; no more than 38W at idle
- XTi6002: 15.3A; no more than 180W at idle
Operating Temperature: 0*C to 40*C at 95% relative humidity (non-condensing)

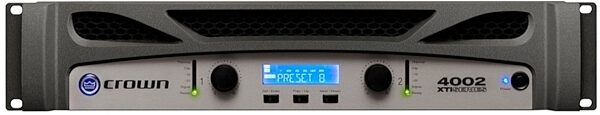

Level: Two front-panel rotary level controls, one for each channel
Power Switch: On/Off switch applies AC power to the amplifier
Sel/Prev/Next Buttons: Three buttons near the LCD screen that are used to access menu items and front panel lockout
LCD Screen: Backlit liquid crystal display that shows preset and processing status
Signal Indicator: Green LED, one per channel, illuminates when a very low-level signal is present at input (may be used for troubleshooting cable runs).
-10 Indicator: Green LED flashes when output signal exceeds -10 dB below clip.
-20 Indicator: Green LED flashes when output signal level exceeds -20 dB below clip.
Ready Indicator: Green LED, one per channel, illuminates when the amplifier is ready to produce audio.
Clip Indicator: Red LED, one per channel, turns on at the threshold of audible distortion
Temp Indicator: Red LED, one per channel, illuminates under excessive temperature conditions
Power Indicator: Blue LED illuminates when the amplifier has been turned on and has power

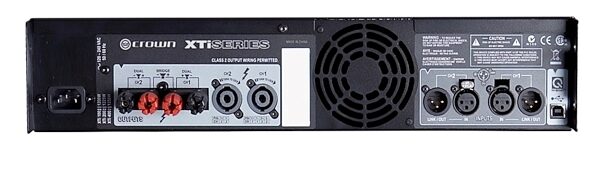

Input Connectors: XLR, one per channel
Link/Out Connector: Loop-thru signal from input connector for linking another amplifier, one per channel.
Output Connectors: Two Neutrik(R) Speakon(R) NL4MP output connectors. Channel-1 Speakon(R) is wired with Ch. 1 and Ch. 2 outputs for use with optional single 4-conductor cable. Two binding post outputs (in parallel with Speakon(R) connectors).
HiQnet(TM) USB Connector: Type B, connects to HiQnet(TM) network.
Front Panel: Cast-aluminum
Cooling: Proportional speed fan with front-to-rear airflow.
XTi 1002/2002/4002: 19" (W) x 3.5" (H) x 12.25" (D)
Net Weight - XTi 4002: 18.5 lbs (8.4kg)
Shipping Weight - XTi 4002: 21.5 lbs (9.8kg)
