Product Description

At a maximum 2100 watts, the Crown XLS 2000 Power Amp features integrated crossovers, plus switch-mode power supply produce superior sound, and Peakx limiters protect your speakers. Crown's XLS Series amplifiers define the standard for portable PA systems with unmatched performance, technology and affordability. Its advantageous flexibility includes multiple inputs so you can plug in anything and play anywhere, along with several system setup configurations. Weighing less than 11 pounds, compared to 40 pounds for its competitors, it's much easier to set up and move from show to show. Simply put, the XLS is most reliable, versatile, efficient amp available today.

Features

- XLS High Performance, Lightweight Class D amp weighs less than 11 lbs.
- Integrated PureBand Crossover System for better performance and control
- Peakx Limiters provide maximum output while protecting your speakers
- XLR, 1/4-inch, RCA inputs provide outstanding flexibility
- Efficient forced-air fans prevent excessive thermal buildup

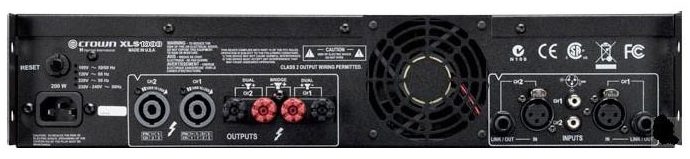

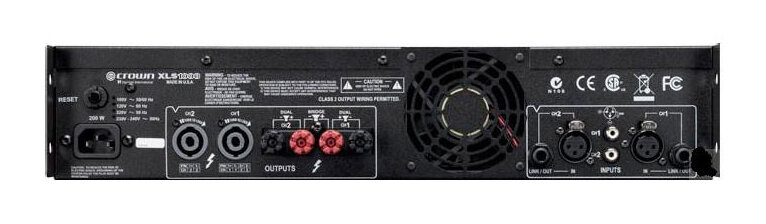

- Electronically balanced XLR inputs; touchproof binding post and Speakon outputs

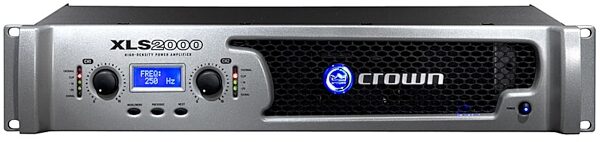

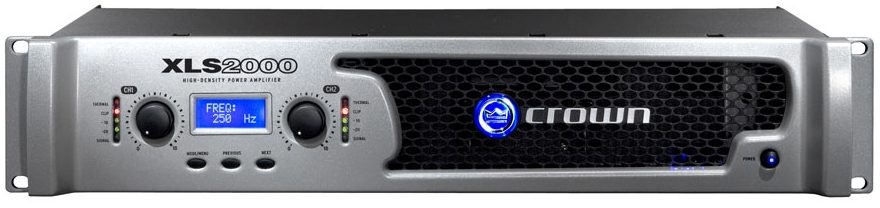

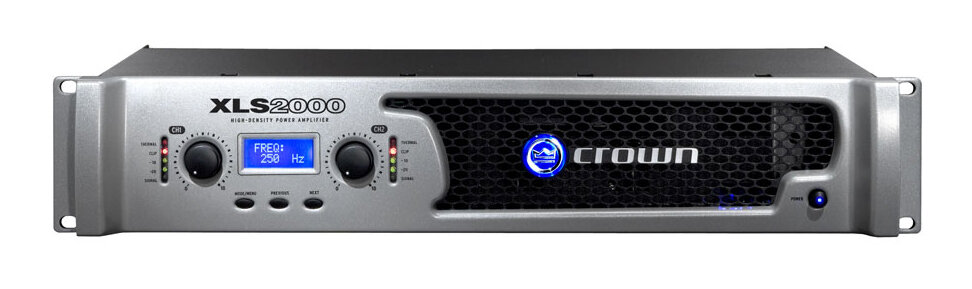

- Precision detented level controls, power switch, power LED, and six LEDs which indicate signal, clip and fault for each channel
- Three-Year, No-Fault, Fully Transferable Warranty completely protects your investment and guarantees its specifications

Integrated DriveCore Technology

The XLS 2000 power amplifier from Crown defines the standard for live sound systems with unmatched performance, technology, and affordability.

The XLS 2000 amplifier provides enormous power and flexibility thanks to the integrated DriveCore Technology, PureBand Crossover System and Peakx limiters. And weighing in at only 11 lbs, it also provides the ultimate in lightweight portability.

Generating chest-thumping lows and crystal clear highs, the four models in the series - the XLS 1000, XLS 1500, XLS 2000, and XLS 2500 - are engineered to meet any demanding audio requirements - reliably and within budget.

Every XLS 2000 is backed by Crown's unequaled three-year, no-fault, fully transferable warranty that covers everything.

With over five decades of experience designing and building rock-solid products, Crown is the standard in amplifier technology. So check out the Crown XLS 2000. It's a powerful argument for performance, flexibility, and value!

Feature Details:

Integrated DriveCore Technology
Class D amplifiers are notable for extraordinarily high efficiency and being well suited for driving difficult reactive loads such as subwoofers. However, their performance can suffer impaired performance on marginal and unstable AC line supplies.

To overcome this obstacle, Crown engineers developed DriveCore technology - a proprietary hybrid analog-digital integrated circuit (IC) developed with Texas Instruments that drives the front end of the Class D output stage. Over 60 years of Crown's design knowledge and experience went into the development of this technology resulting in truly remarkable benefits.

Advanced Switched-Mode Power Supply
This advanced power supply is highly efficient and optimized for maximum power transfer from the AC line through the Class D output stage to the loudspeakers. A benefit to this is substantial weight reduction when compared to older 60Hz transformer-based power supplies. All four models in the line weigh 10 pounds or less with no compromise in performance. This makes the XLS 2000 the benchmark for high performance lightweight portability.

PureBand Crossover System
The PureBand Crossover System in the Crown XLS 2000 adds an enormous amount of flexibility and performance to any system. With this system, the crossover frequency is completely variable allowing the choice of any crossover point between 50Hz and 3kHz on 1/12 octave centers. The use of 4th order Linkwitz-Riley filters provides steep slopes for a seamless transition between high and low drivers. And with four crossover modes to choose from providing the ultimate in flexibility, all of your system needs are covered.

Peakx Limiters
Peakx limiters provide the ultimate in performance and protection for your entire system. This advanced algorithm was specifically developed and tuned to work with this amplifier and power-supply to achieve higher SPL will less audible artifacts. This means less distortion, less shutdowns, and maximum safe power delivered to your speakers. The Peakx limiters can be easily turned on or off by channel right from the front panel eliminating the need to be digging around in the back of the dark rack. zZounds is an authorized dealer of Crown products.

Specifications
- Total Harmonic Distortion (THD): < 0.5%
- Intermodulation Distortion (IMD): (60Hz and 7kHz at 4:1), From full rated output to -30dB: <0.3%
- Damping Factor (8 ohm): 10 Hz to 400 Hz: > 200
- Crosstalk (below rated 8 Ohm power): At 1kHz: > 85dB, At 20kHz: >55dB
- Input Impedance (nominal): 20 kOhm balanced, 10 kOhm unbalanced
- Load Impedance: 2 to 8 Ohm per channel in Stereo, 4 to 8 Ohm in Bridge Mono
- AC Line Voltage and Frequency Configurations Available (+/- 10%): 120 VAC 60 Hz, 100 VAC 50/60 Hz, 220 and 240 VAC 50 Hz
- Ventilation: Flow-through ventilation from front to back
- Cooling: Internal heat sinks with forced-air cooling for rapid, uniform heat dissipation
- Air Volume Requirements (per minute per unit): 80.15 ft

Minimum Guaranteed Power (per channel, both channels driven)
- Stereo, 2 ohms: 1050W
- Stereo, 4 ohms: 650W
- Stereo, 8 ohms: 375W
- Bridged mono, 4 ohms: 2100W
- Bridged mono, 8 ohms: 1300W

Dimensions and Weight in Packaging

Base Item

Shipping Weight: 13 lbs

Shipping Dimensions: 22 x 15 x 6 in
