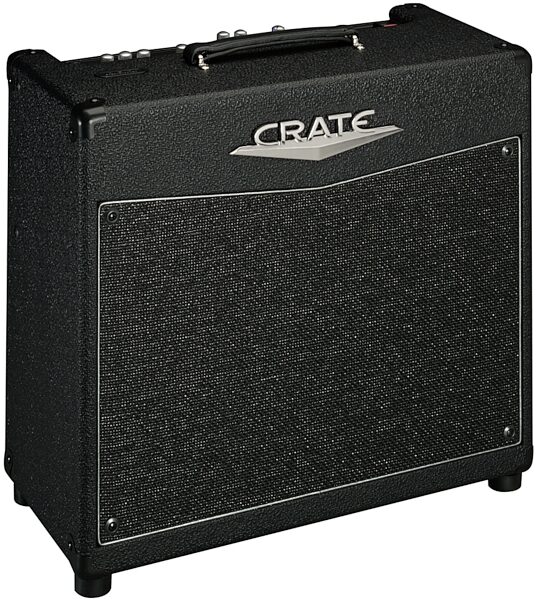

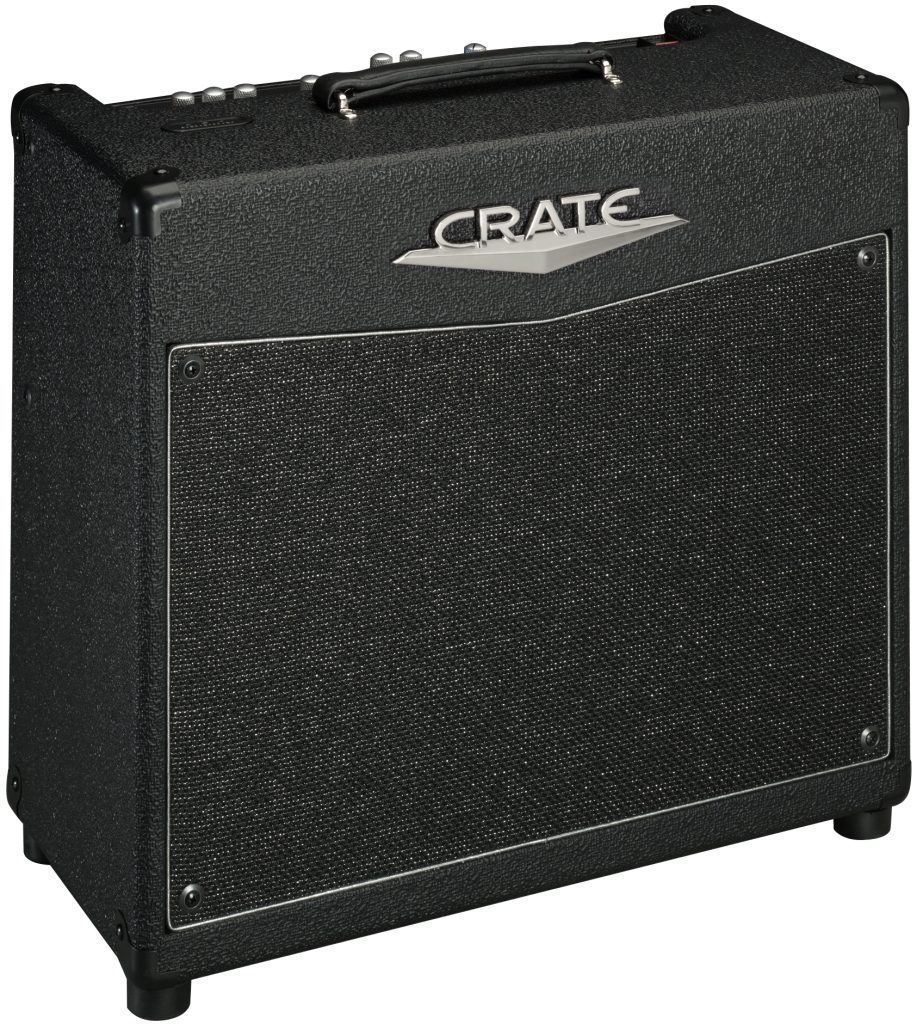

Crate VTX65B Guitar Combo Amplifier (65 Watts, 1x12 in.)

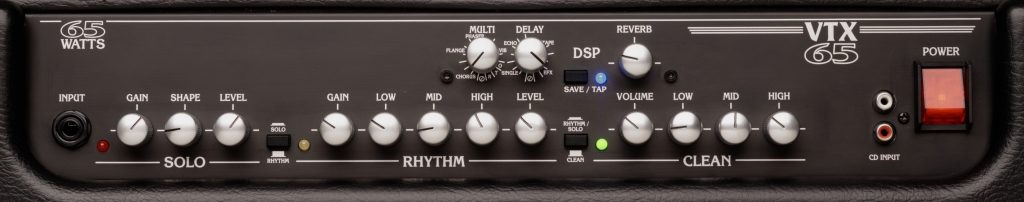

The VTX65B features full three-channel operation with independent gain, level and tone shaping circuits. The DSP section has 15 multi-effects including chorus, flange, phase shift, vibrato, octave down, touch-wah and reverse wah and also has 15 delays with adjustments. Each of these can be set for depth, and then the Tap button on the front controls speed.

The Tap button and blue LED show the speed of the effect being programmed and once the proper effect is selected for each channel, simply holding the button for 3 seconds programs that customization for the channel.

The reverb control increases the size of the room and the amount of reverb simultaneously, and is also assignable separately from the other effects.

Technical Info

Output power rating: 65W RMS @ 5% THD, 4, 120 VAC

Maximum input signal accepted: 7 volts peak-to-peak min. @ 1kHz

Total system gain:
-- Solo channel: 110dB, all controls @10

-- Rhythm channel: 88dB, all controls @10

-- Clean channel: 58dB, all controls @10

CD input: 29dB

Rhythm channel:
-- Low Control: 20dB range @ 80Hz

-- Mid Control: 15dB range @ 1kHz

-- High Control: 20dB range @ 10kHz

Clean channel:
-- Low control: 36dB range @ 80Hz

-- Mid control: 15dB range @ 800Hz

-- High control: 40dB range @ 10kHz

Internal speaker: custom design 12 in., 8 ohms

Power requirements: 120 VAC, 60Hz, 90VA

Size and weight: 19-1/4 in. H x 21 in. W x 10-1/4 in. D, 34 lbs.
